Securview Professional Series 5.0MP Motorised HDCVI Turret - VSCVI-5DIRMG2

Name: Securview Professional Series 5.0MP Motorised HDCVI Turret - VSCVI-5DIRMG2
Brand: Securview
SKU: VSCVI-5DIRMG2
Price: 175 AUD
Availability: InStock

SKU VSCVI-5DIRMG2 In Stock - Ready to Ship

$175.00 inc GST

Stream up to 5.0MP (2880 × 1620) at 25fps
Motorised varifocal 2.7~13.5mm lens with fixed iris
31.4° ~ 113° horizontal viewing angles
Superb colour image performance in low light at 0.001lx
Smart infrared illumination, up to 60m range
CVI / TVI / AHD / CVBS / Analog switchable (DIP switch)
True WDR (120dB) and 3D noise reduction
IP67 rated weather-resistant metal housing
Dual power input 12VDC/24VAC
Switch modes via DIP switches

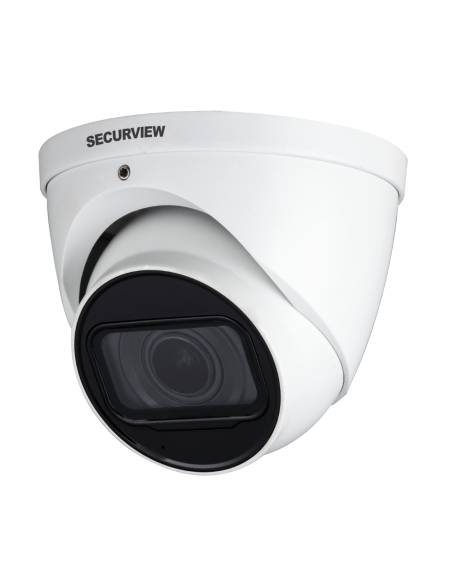

Securview Professional Series 5.0MP Motorised HDCVI Turret

VSCVI-5DIRMG2

With the high-resolution image quality of up to 5.0MP and a compact, weather-resistant metal casing body, the VSCVI-5DIRMG2 captures excellent video footage, ultra-low light performance, long-range infrared, and zero image distortion with its flat lens cover.

Camera Features:

• Stream up to 5.0MP (2880 × 1620) at 25fps

• Motorised varifocal 2.7~13.5mm lens with fixed iris

• 31.4° ~ 113° horizontal viewing angles

• Superb colour image performance in low light at 0.001lx

• Smart infrared illumination, up to 60m range

• CVI / TVI / AHD / CVBS / Analog switchable (DIP switch)

• True WDR (120dB) and 3D noise reduction

• IP67 rated weather-resistant metal housing

• Dual power input 12VDC/24VAC

• Switch modes via DIP switches

Specifications:

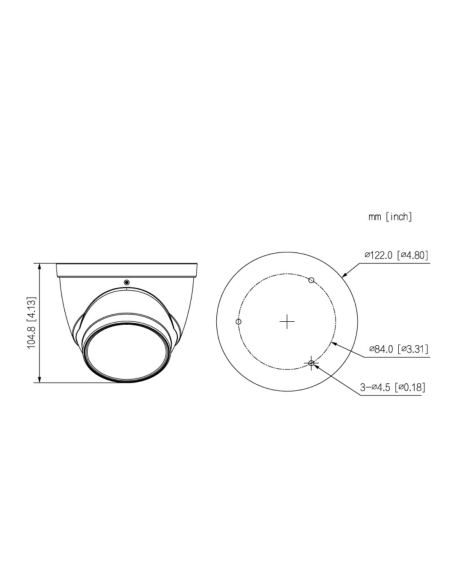

Dimensions: Ø122mm x 107mm
Housing: Metal casing
Power input: 12VDC/24VAC
Ingress Protection: IP67
Operating Environment: -30° to 60°C / RH90% (max)
Weight: 0.64kg
Power Consumption: < 9.5W
Video Output: 1 x CVI / TVI / AHD / CVBS / Composite Video Output (DIP switch)
Resolution: 5.0MP (2880 × 1620) to CIF (352 x 288)
Audio Input: 1 channel in Built-in Mic
Vandal Resistant: N/A
Series: Professional Series
Angle of View: 31.4° ~ 113° (H) / 17.6° ~ 58° (W)
Focus: Fixed / 0.8m Min. Focus Distance
Frame Rate: 25fps (5.0MP and lower)
Effective Pixels: 2880 (H) × 1620 (V)
Image Sensor: 1/2.7” 5.0 Megapixel CMOS
Lens: 2.7mm ~ 13.5mm F1.6 Motorised Lens, Fixed Iris
Minimum Illumination: 0.001 Lux at F1.8 (Colour) / 0 Lux IR Active
Alarm Interface: N/A
Camera Type: Dome
Max. Resolution: 5.0 Megapixel
Lighting Compensation: BLC / HLC / WDR (120dB)
Transmission Distance: Rated for up to 700m via coaxial cable (performed in ideal test conditions)
Day/Night: Auto (ICR) / Color / B&W
Detect (25px/m): 64m
Electronic Shutter: 1/3s ~ 1/100,000s
Gain Control: Auto / Manual
Identify (250px/m): 6m
Infrared Range: 60m
Lens Type: Motorised Varifocal
Mode Switching: DIP Switches
Modes Supported: HDCVI, AHD, HDTVI & Composite
Noise Reduction: 3D
Observe (63px/m): 26m
OSD Menu: Support
Recognise (125px/m): 13m
Signal Noise Ratio: > 65dB
Synchronisation: N/A
Tri-Axis Mounting: No
White Balance: Auto / Manual
