Securview Professional Series 5MP 2.8mm Fixed VSCVI-5DIRG2

Securview Professional Series 5MP 2.8mm Fixed HDCVI Turret - VSCVI-5DIRG2

Name: Securview Professional Series 5MP 2.8mm Fixed HDCVI Turret - VSCVI-5DIRG2
Brand: Securview Victory Series
SKU: VSCVI-5DIRG2
Price: 119 AUD
Availability: InStock

Reference VSCVI-5DIRG2

In Stock - Ready to Ship

$ 119.00

inc-GST

Stream up to 5.0MP (2880 x 1620) at 25fps
2.8mm lens with a wide 132° viewing angle
Superb colour image performance in low light at 0.001lx
Smart infrared illumination, up to 50m range
Switchable BNC output for HD/composite video
True WDR (120dB) and 2D/3D noise reduction
Up to 700m video transmission over coaxial cable
IP67 rated weather resistance
Compact Ø106mm base for versatile installation
Supports HDCVI, AHD, HDTVI & Composite video format modes

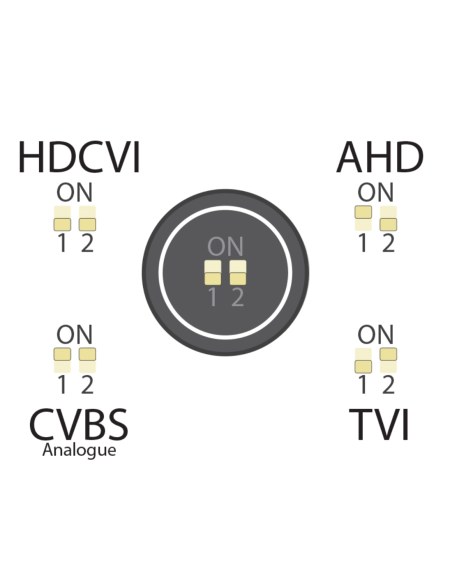

Switch modes via DIP switches

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

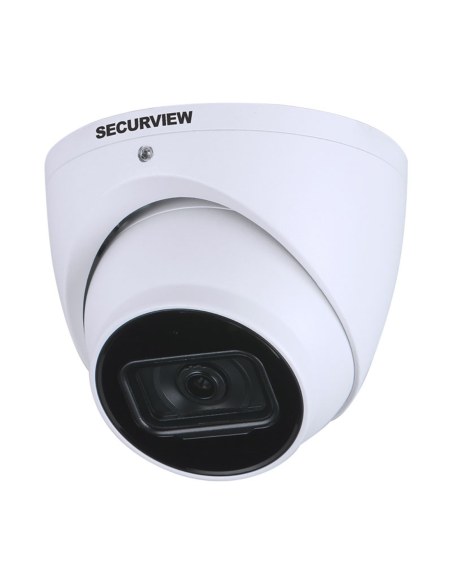

Securview VSCVI-5DIRG2 | 5MP Fixed HDCVI Turret • 2.8mm Lens • IR 50m

The Securview VSCVI‑5DIRG2 is a professional 5.0 MP HDCVI turret that delivers crisp imaging over coax. With a 2.8 mm wide‑angle lens, smart IR up to 50 m, and rugged IP67 weather resistance, it’s an easy upgrade for existing coax installs needing high‑resolution performance and modern image processing.

Key Features & Benefits

5.0 MP @ 25fps — 2880 × 1620 recording for detailed evidence.
2.8 mm fixed lens — Ultra‑wide ~132° viewing for broad coverage.
Ultra‑low light — Colour down to 0.001 lx (F1.6); 0 lx with IR.
Smart IR to 50 m — Even night exposure with long‑range illumination.
True WDR 120 dB + 2D/3D DNR — Clean images in mixed lighting.
4‑in‑1 output — HDCVI / HDTVI / AHD / CVBS switchable via DIP.
Long‑distance over coax — Up to 700 m transmission.
IP67 weatherproof — Outdoor‑ready; compact Ø106 mm base for easy install.

Ideal Applications

Upgrades of legacy coax systems to 5MP quality
Retail entries, reception areas & cashier counters
Driveways, car parks & warehouse aisles (up to 50 m IR)

Specifications at a Glance

Model: VSCVI‑5DIRG2
Image Sensor: 1/2" 5.0 MP CMOS
Max Resolution: 5.0 MP (2880 × 1620) @ 25fps
Lens: 2.8 mm F1.6 fixed; FOV approx. 132° (H)
Minimum Illumination: 0.001 lx (F1.6, colour) / 0 lx (IR on)
IR Range: Up to 50 m (smart IR)
WDR / DNR: True WDR 120 dB; 2D/3D noise reduction
Video Formats: HDCVI / AHD / HDTVI / CVBS (switchable)
Transmission: Up to 700 m over coax (HDCVI)
Ingress Protection: IP67

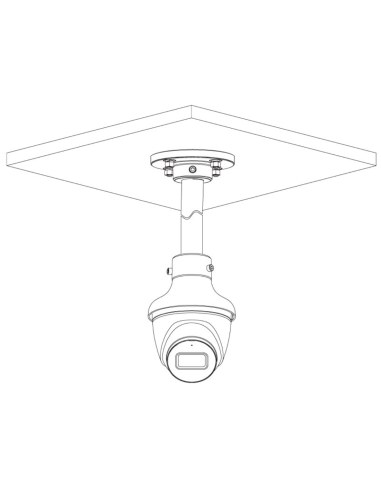

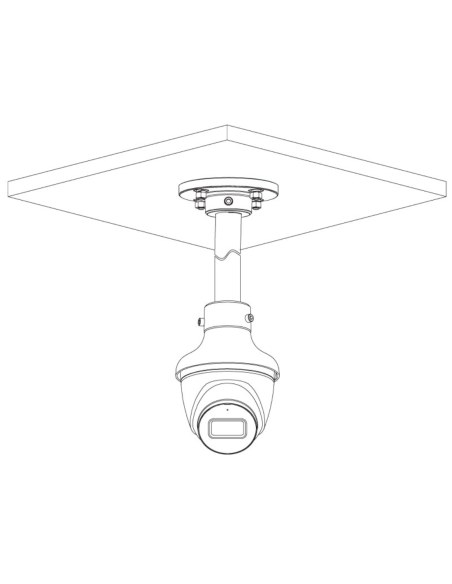

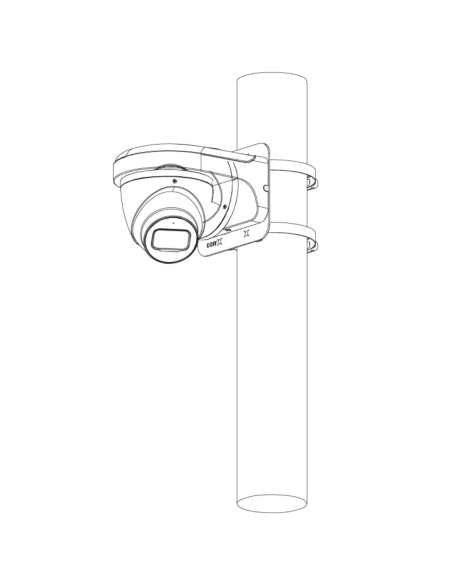

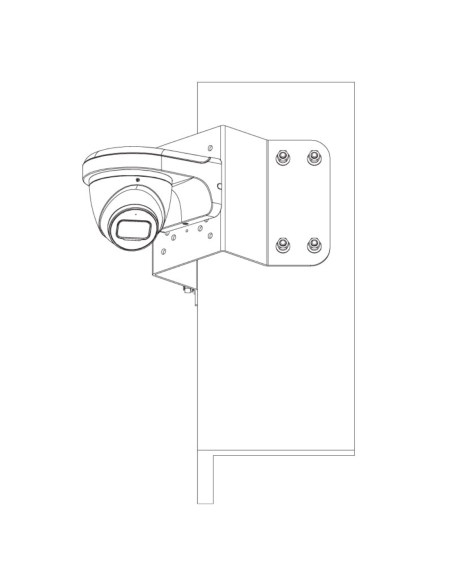

Recommended Brackets: VSBKTA106, VSBKTA130E, VSBKTA151, VSBKTB204W, VSBKTB220C
Documents: Datasheet; CE/RCM; RoHS (see product page)

Modern images over your existing coax. VSCVI‑5DIRG2 brings 5MP detail, wide coverage and long‑range IR—without re‑cabling.

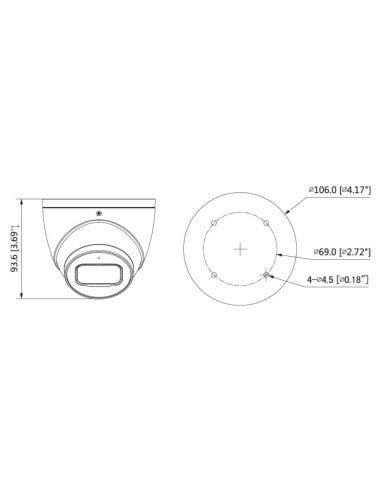

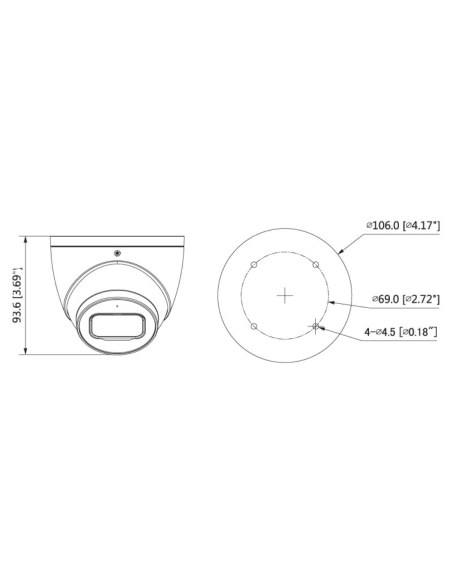

Dimensions: ø106mm x 94mm
Housing: Aluminium
Power input: 12VDC
Ingress Protection: IP67
Operating Environment: -40° to 60°C / RH90% (max)
Weight: 0.43kg
Power Consumption
Video Output: 1 x HDCVI / AHD / TVI / Composite video output
Resolution: 5.0MP (2880 x 1620) to 960H (960 x 576)
Audio Input: 1 channel in & Built-in Mic
Vandal Resistant: N/A
Series: Professional Series
Angle of View: 132° (H) / 111° (V) / 50° (D)
Focus: Fixed / 0.9m Min. Focus Distance
Frame Rate: 25fps (5.0MP and lower)
Effective Pixels: 2880 (H) x 1620 (V)
Image Sensor: 1/2” 5.0 Megapixel CMOS
Lens: 2.8mm F1.6 Fixed Lens
Minimum Illumination: 0.001 Lux at F1.6 (Colour) / 0 Lux IR Active
Alarm Interface: N/A
Camera Type: Turret
Max. Resolution: 5.0 Megapixel
Lighting Compensation: BLC / HLC / WDR (120dB)
Transmission Distance: Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
Day/Night: Auto (ICR) / Color / B&W
Detect (25px/m): 63.6m
Electronic Shutter: 1/3s ~ 1/100,000s
Gain Control: Auto
Identify (250px/m): 6.4m
Infrared Range: 50m
Lens Type: Fixed

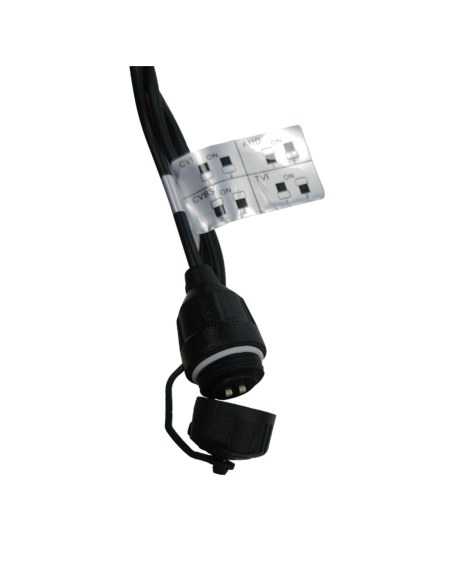

Mode Switching: DIP Switches
Modes Supported: HDCVI, AHD, HDTVI & Composite
Noise Reduction: 2D / 3D
Observe (63px/m): 25.4m
OSD Menu: Support
Recognise (125px/m): 12.7m
Signal Noise Ratio: >65db
Synchronisation: Internal
Tri-Axis Mounting: Yes
White Balance: Auto / Manual
