VIP Vision Ultra HD Network Video Decoder (9 x HDMI Out) - NVD-A9

VIP Vision Ultra HD Network Video Decoder (9 x HDMI Out) - NVD-A9

Name: VIP Vision Ultra HD Network Video Decoder (9 x HDMI Out) - NVD-A9
Brand: VIP Vision
SKU: NVD-A9
Price: 3723.5 AUD
Availability: InStock

Reference NVD-A9

In Stock - Ready to Ship

$ 3,723.50

inc-GST

Roaming decoder displays all video feeds on the network
Video wall splicing for up to 36 displays per monitor
Split screen control with zoom/merge/roam/overlay
Switch between standard & high definition streams
Decode up to 12CH 4K, 48CH 1080p or 144CH D1
Support for audio, alarm, bi-directional talk, RS232, RS485
Fisheye dewarp & multi-video split display
Manage via a web browser or VIP Vision™ SmartPSS

VIP Vision Ultra HD Network Video Decoder (9 x HDMI Out)

NVD-A9

4 Years Warranty!

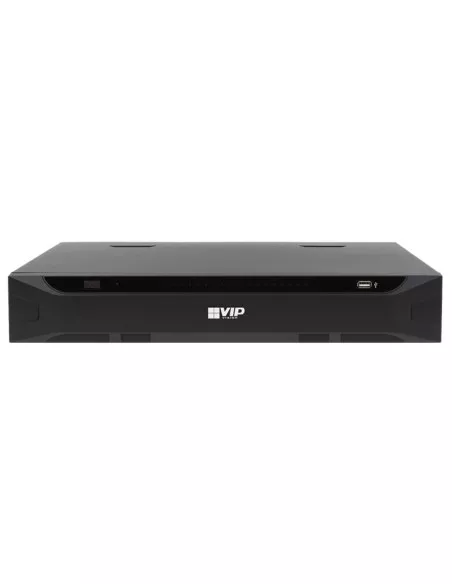

The NVD-A9 is an IP video decoder that allows for the configuration of up to 9 HDMI displays, creating video walls that display live footage from any camera or recorder connected to the network, plus any connected HDMI video inputs. Each decoder can be fully configured and adjusted over the network or with SmartPSS.

Product Features:

• Roaming decoder displays all video feeds on the network

• Video wall splicing for up to 36 displays per monitor

• Split screen control with zoom/merge/roam/overlay

• Switch between standard & high definition streams

• Decode up to 12CH 4K, 48CH 1080p or 144CH D1

• Support for audio, alarm, bi-directional talk, RS232, RS485

• Fisheye dewarp & multi-video split display

• Manage via web browser or VIP Vision™ SmartPSS

Dimensions: 440 x 408 x 70mm (1U)
Power Supply: 100 ~ 240VAC, 50Hz-60Hz
Weight: 4.83kg
Alarm Output: 4ch relay out (30VDC 1A, 125VAC, 0.5A)
Operating temperature: -10°C~+55°C, 10%~95%RH (86Kpa ~ 106Kpa)
Display Resolution: 3840 x 2160 / 2560 x 1600 / 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768 (6 ports support 3840 x 2160, 3 ports support 2560 x 1600)
Display Split: 1 / 4 / 9 / 16
Operating System: Embedded Linux
Power Consumption: ≤70W

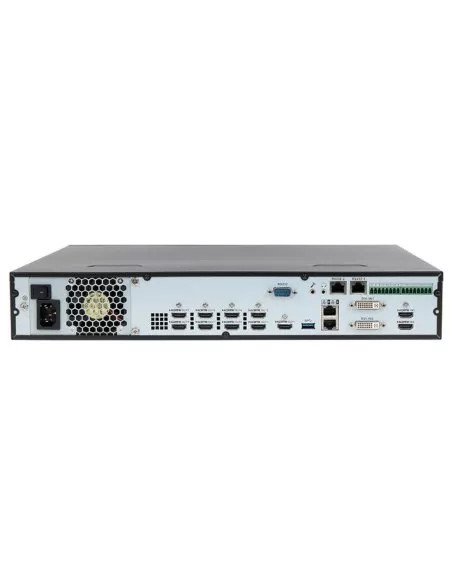

Video Input: 2 x HDMI, 2 x DVI-I
Video Output: 9 x HDMI
Alarm Input: 4ch
Audio Format: PCM / G.711 / AAC
Bi-directional Talk: 1 Pair 3.5mm jack (2.0V Line in / 50mV Mic in / 10KΩ,2.0V / 16Ω out)
Collection Resolution: 4096 x 2160 @ 24fps / 3840 x 2160 @ 30fps / 1920 x 1080 and lower @ 60fps
Communication Interface: 1 RJ45 network port (10M/100M/1000M); 2 RS232; 1 RS485
Decoding Resolution: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / 960H / D1 / HD1 / 2CIF / CIF / QCIF
Processor: Internal Processor
Video Decoding Capacity (Separate): Port 1, 2 & 3: 3CH@12MP / 4CH@4K / 16CH@1080p / 36CH@720p / 48CH@D1, Port 4, 5 & 6: 3CH@12MP / 4CH@4K / 16CH@1080p / 36CH@720p / 48CH@D1, Port 7, 8 & 9: 3CH@12MP / 4CH@4K / 16CH@1080p / 36CH@720p / 48CH@D1
Video Decoding Capacity (Total): 9CH@12MP / 12CH@4K / 48CH@1080p / 108CH@720p / 144CH@D1
Video Format: H.265+ / H.265 / H.264 / MJPEG / MPEG4 / MPEG2
Video Frame Rate: PAL: 1~25fps / NTSC: 1~30fps

NVD-A Series Datasheet

VIP Vision NVD-A Series Datasheet (PDF)

Download (393.51KB)

NVD-A User Manual

VIP Vision NVD-A Series User Manual (PDF)

Download (2.64MB)

Quick Start Guide

VIP Vision NVD-A Series Quick Start Guide (PDF)

Download (810.21KB)

VIP Vision is backed by over 2,000 professionals in research and development at the forefront of advanced surveillance and IP intercom technologies. Their constant pursuit of innovation delivers cutting edge products with high quality, performance and reliability.

With 4 to 128 channel systems, VIP Vision offers professional video surveillance solutions for small projects through to large commercial, public sector and government level applications.

Stream beyond Ultra HD with 12 megapixel recording using the latest range of VIP Vision IP surveillance cameras. Adaptable to any task, the range offers a wide selection of professional bullet and dome cameras, as well as application specific models such as PTZ, fisheye and pinhole cameras.

VIP Vision IP systems are accompanied by an extensive range of accessories including, video wall controllers, brackets & adapters, central management software and PoE accessories to help you deliver the most professional and reliable install possible.

Rest assured knowing you have usable video evidence when it matters most with VIP Vision IP surveillance.
