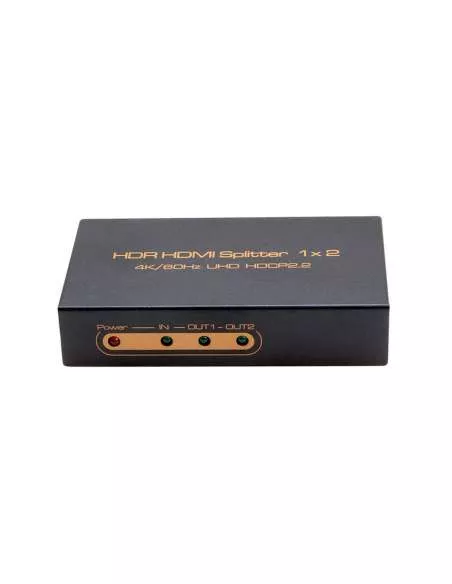

HDMI Splitter 2 Port HDMI 2.0 HDR 4Kx2K 60Hz with EDID/Scaler down (HDCP 2.2)
AV-HDM2SP-60Hz-2
In Stock - Ready to Ship $ 121.00
inc-GST
or 4 interest-free payments of $30.25 with
- Max bandwidth: 600MHz
- Max baud rate: 18Gbps
- Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal: 5Volts p-p (TTL)
- Input cable distance: ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable
- Output cable distance: ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable
- Max working current: 400mA
- Power adapter format Input: AC (50HZ, 60HZ) :100V-240V
- Power adapter format Output: DC5V/1A
- Operating temperature range: -0 to +40℃
- Storage temperature range: -20 to +60℃
- Operating humidity range: 5 to 85%RH (No Condensation)
- Storage humidity range: 5 to 95%RH (No Condensation)
- Dimension (L x W x H): 95X53X22(mm)
HDMI resolution:
- 4K@60Hz
- 4K@30Hz
- 3D
- 1080P
- 1080i
- 720p
- 576p
- 576i
- 480P
- 480i
Support audio format:
- DTS-HD
- Dolby-trueHD
- LPCM7.1
- DTS
- Dolby-AC3
- DSD
One HDMI 2.0 input signal split into two HDMI 2.0 sink devices
When 4K is input, it can support 1080P and 4K two resolutions output.
- Output only supports the same refresh rate, for example, 60Hz.
Supports HDR
Supports 4K*2K @60Hz resolution
Supports deep colour 24bit, 30bit, 36bit
HDMI output audio supports EDID function: mix and max two audio mode option
Video format support:
- 4Kx2K/60Hz 10Bit Ycbcr4:2:0
- 4Kx2K/60Hz 12Bit Ycbcr4:2:0
- 4Kx2K/60Hz 8Bit Ycbcr4:4:4/Ycbcr4:2:0
- Note: It only supports the standard HDMI source Ycbcr4:4:4 signal
The HDMI input cable distance can be up to 10m and the HDMI output cable distance can be up to 10m
- when transmitting the 1080P signal by using a standard AWG24 HDMI cable
The HDMI Input cable distance can be up to 5m and the HDMI output cable distance can be up to 5m
- when transmitting the 4Kx2Knal by using a standard AWG24 HDMI cable
Comes with DC5V/1A power supply
Support HDCP V2.2
