VIP Vision 9-port Unmanaged Gigabit Fibre Access PoE Ethernet Switch - VSETH-SW9GF2
- 4 x Gigabit 1000Mbps PoE ports
- 4 x Gigabit 1000Mbps SFP fiber ports
- 1 x Gigabit 1000Mbps uplink port
- Total PoE power loads up to 120W
- Unmanaged switch for plug and play applications
- DIN rail mountable for neat rackmount installations
- Full metal enclosure for professional appearance
- Lightning overvoltage protection up to 4kV
- Electrostatic discharge protection up to 8kVW
- Operates in extreme temperatures from -30°~65°C

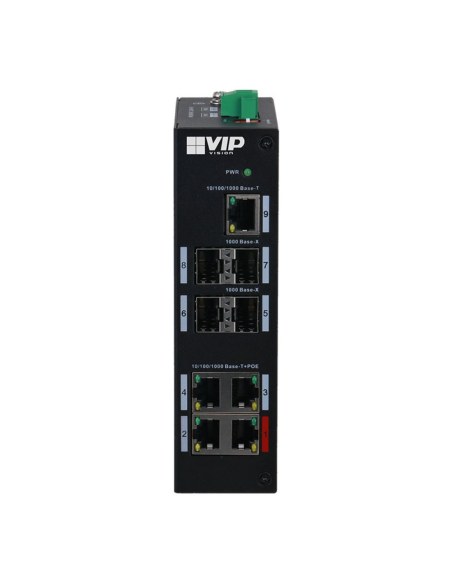

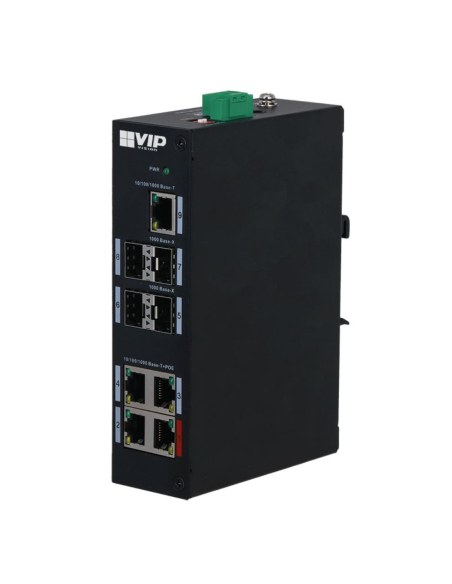

VIP Vision 9-port Unmanaged Gigabit Fibre Access PoE Ethernet Switch
VSETH-SW9GF2
The VSETH-SW9GF2 is a 9-port Gigabit Ethernet switch designed for integrating with fiber-optic network infrastructure. Connect IP devices including surveillance, telephones, access points and more to fiber backbone with multiple gigabit SFP & Ethernet ports. It is ideal in connecting large facilities such as school & university campuses. This model features 4 ports of PoE.
Product Features:
• 4 x Gigabit 1000Mbps PoE ports
• 4 x Gigabit 1000Mbps SFP fibre ports
• 1 x Gigabit 1000Mbps uplink port
• Total PoE power load up to 120W
• Unmanaged switch for plug and play applications

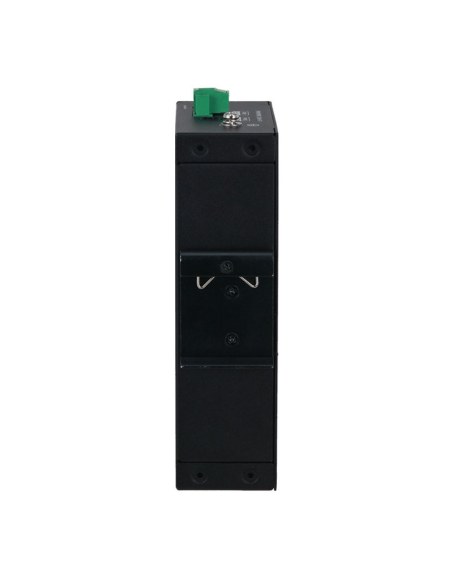

• DIN rail mountable for neat rackmount installations
• Full metal enclosure for professional appearance
• Lightning overvoltage protection up to 4kV
• Electrostatic discharge protection up to 8kVW
• Operates in extreme temperatures from -30°~65°C

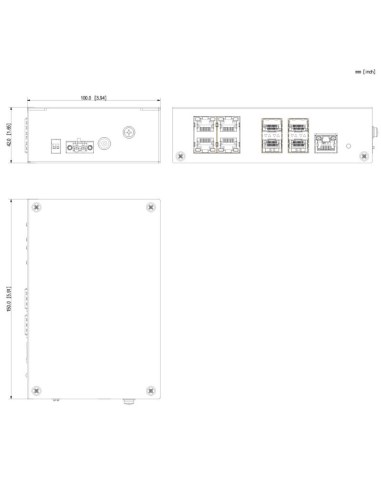

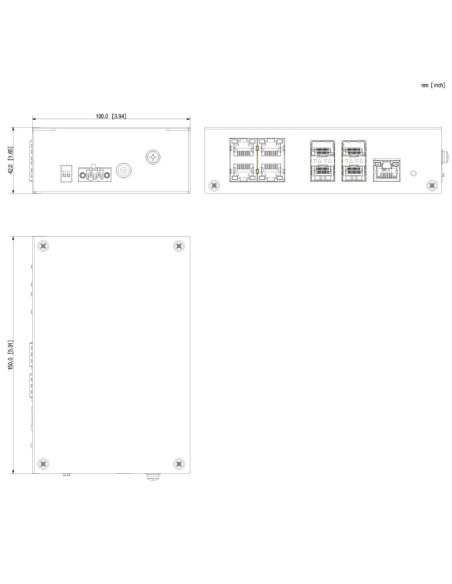

- Dimensions
- 150 x 110 x 42mm
- Operating Environment
- -30°C~65°C / RH10%~90%
- Weight
- 0.67kg
- Ports
- 9 ports
- PoE
- Yes
- Mounting Options
- DIN rail
- DHCP
- N/A
- PoE Protocol
- IEEE 802.3af/ IEEE 802.3at/ Hi-PoE/IEEE 802.3bt
- Device Ports
- 4 x 10/100/1000 Base-T (PoE)
- Exchange Mode
- Store & forward
- Extend Mode
- N/A
- Flow Control
- N/A
- Input Power
- 48 ~ 57VDC
- Lightning Protection
- Common Mode: 4KV / Differential Mode: 2KV
- LLDP
- N/A
- MAC Address Capacity
- 4K
- Network Management
- N/A
- Network Time Protocol
- N/A
- Packet Forwarding Rate
- 13.39Mpps
- PoE Management
- N/A
- Port Aggregation
- N/A
- Port Mirroring
- N/A
- Quality of Service
- N/A
- Security Features
- N/A
- Spanning Tree Protocol
- N/A
- Speed
- Gigabit 10/100/1000
- Switch Management
- Unmanaged
- Switch Power Load
- Port 1 ≤90 W, Port 2-4 ≤30W, Total ≤120W
- Switching Capacity
- 33Gbps
- System Maintenance
- N/A
- Uplink Ports
- 4 x 1000 Base-X / 1 x 10/100/1000 Base-T
- Virtual LAN
- N/A
- ESD Protection
- Air Discharge: 8kV / Contact Discharge: 6kV
