Dahua 8MP (4K) IR Fixed-focal Eyeball WizSense DH-IPC-HDW3866EMP-S-AUS
Dahua 8MP (4K) IR Fixed-focal Eyeball WizSense DH-IPC-HDW3866EMP-S-AUS
Dahua 8MP (4K) IR Fixed-focal Eyeball WizSense DH-IPC-HDW3866EMP-S-AUS
Dahua 8MP (4K) IR Fixed-focal Eyeball WizSense DH-IPC-HDW3866EMP-S-AUS

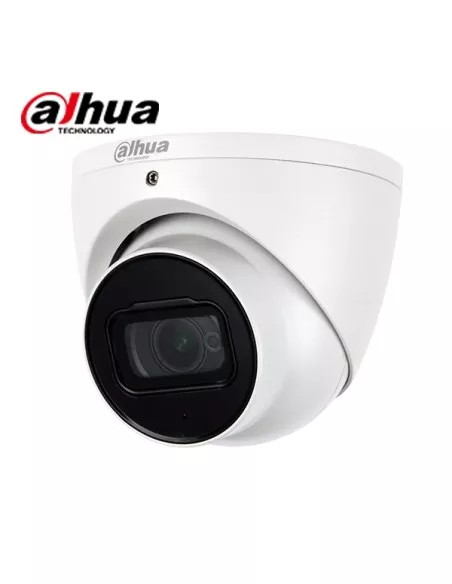

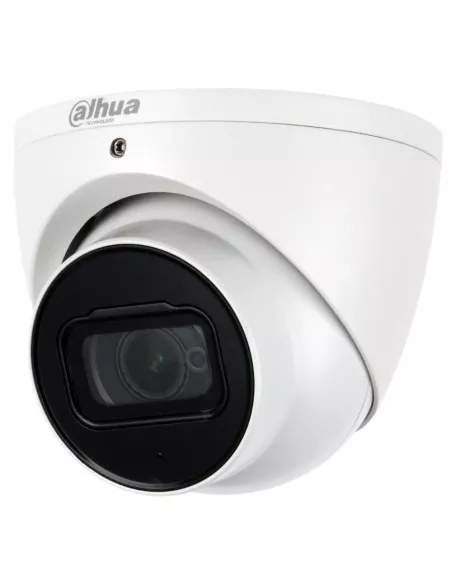

Dahua 8MP (4K) IR Fixed-focal Eyeball WizSense Network Security Camera - DH-IPC-HDW3866EMP-S-AUS

DH-IPC-HDW3866EMP-S-AUS
In Stock - Ready to Ship
$ 189.30
inc-GST
  • 8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
  • Outputs max. 8MP (3840 x 2160) @25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED, max. IR distance: 30 m.
  • ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection
  • Max. 256 G Micro SD card. built-in Mic.
  • SMD 4.0, AI SSA.



Dahua 8MP (4K) IR Fixed-focal Eyeball WizSense Network Security Camera



DH-IPC-HDW3866EMP-S-AUS



Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to act fast on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.

Dahua WizSense 3 Series Network Camera saves bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.



Product Features:

» 8MP 1/2.8'' CMOS image sensor, excellent low luminance performance, and high definition of images.

» Outputs max. 8MP (3840 x 2160) @25/30 fps.

» H.265 codec, high compression rate, ultra-low bit rate.

» Built-in IR LED, max. IR distance: 30 m.

» ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

» Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

» Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).

» Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

» Max. 256 G Micro SD card. built-in Mic.

» 12 VDC/PoE power supply facilitates installation.

» IP67 protection.

» SMD 4.0, AI SSA.



Functions:

SMD 4.0

Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targeted, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

AI SSA

Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light, and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.

Smart H.265+ & Smart H.264+

With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes higher encoding efficiency than H.265 and H.264, provides high-quality video and reduces the cost of storage and transmission.

Perimeter Protection

With a deep learning algorithm, Dahua Perimeter Protection technology can recognize humans and vehicles accurately. In restricted areas (such as pedestrian areas and vehicle areas), the false alarms of intelligent detection based on the target type (such as tripwire, or intrusion) are reduced.

Protection (IP67, Wide Voltage)

IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.

Cyber Security

Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from comprising the device.



Specifications:

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 [email protected] (Color, 30 IRE)
0.0007 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.4

Field of View

2.8 mm: Horizontal:107°; vertical: 56°; diagonal: 127°
3.6 mm: Horizontal:84°; vertical: 47°; diagonal: 97°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.5 m
3.6 mm: 2 m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

87.7 m

35.1 m

17.5 m

8.8 m

3.6 mm

102.1 m

40.8 m

20.4 m

10.2 m

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion (support the classification and accurate detection of vehicle and human)

AI SSA

Yes

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

Smart Search

Work together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+
Smart H.264+

AI Coding

AI H.265
AI H.264

Video Frame Rate

Mainstream: 3840 × 2160 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×
1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto, natural; streetlamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

AFSA

Yes

Image Rotation

0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 4.3 W (12 VDC); 4.9 W (PoE)
Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

93.6 mm × Φ106.0 mm (3.69" × Φ4.17")

Net Weight

500 g (1.10 lb)

Gross Weight

770 g (1.70 lb)
