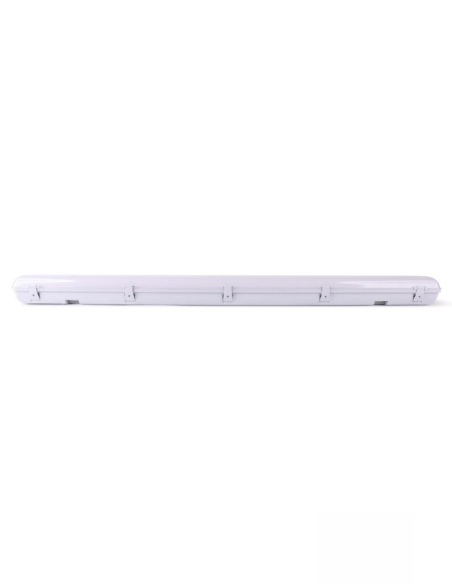

Rapid LED 24w / 40w, 1200mm DUAL WATTAGE R3540-TRI

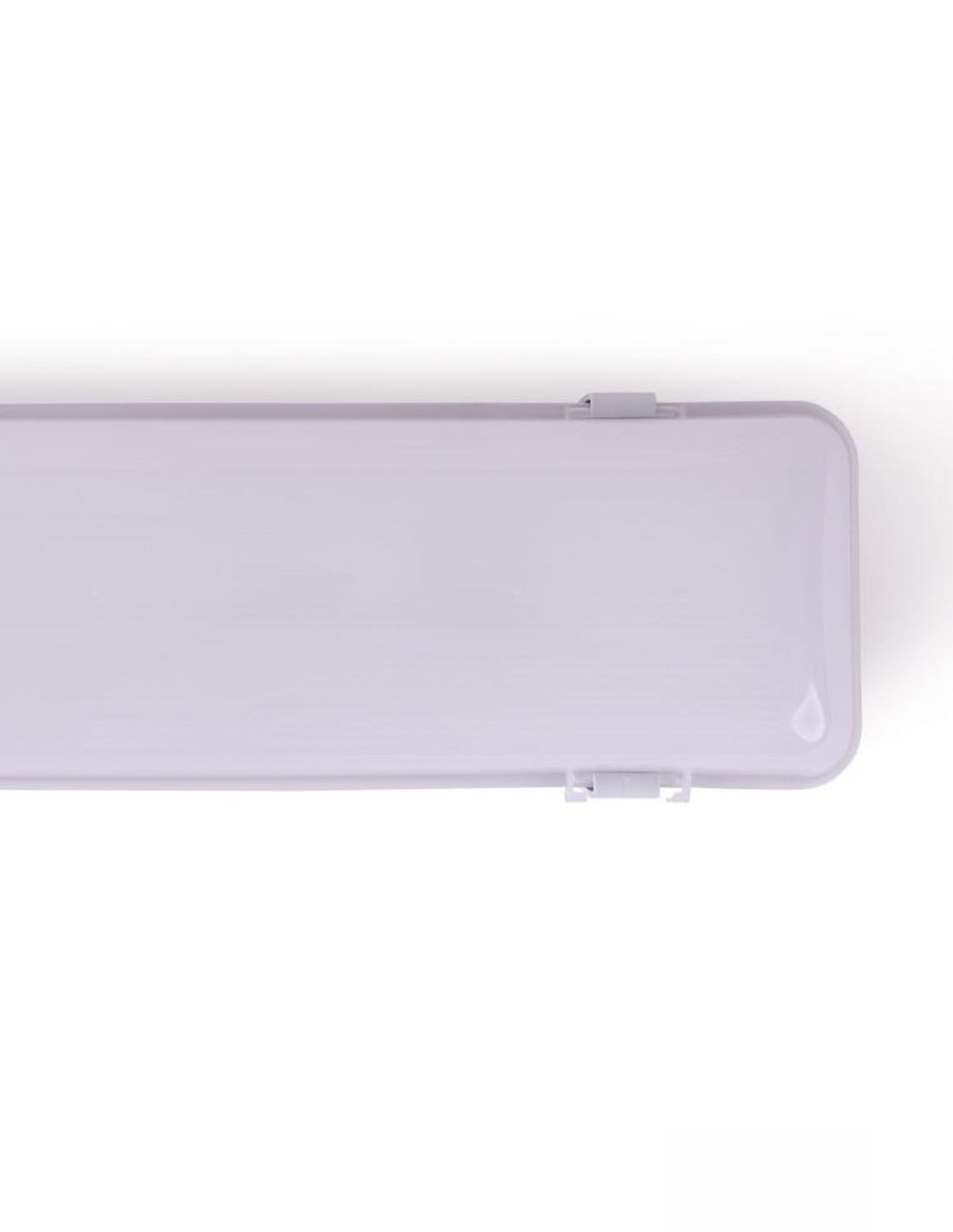

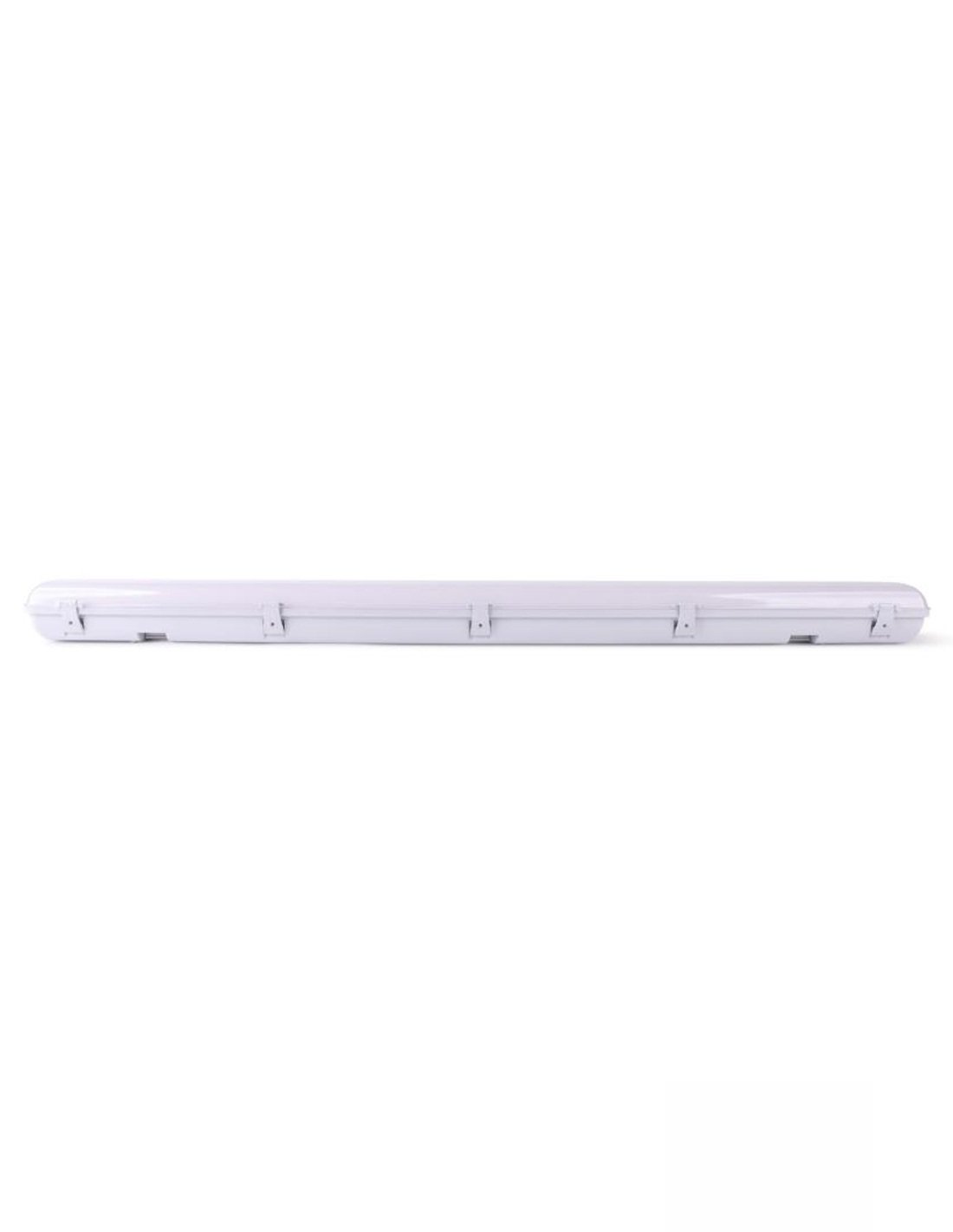

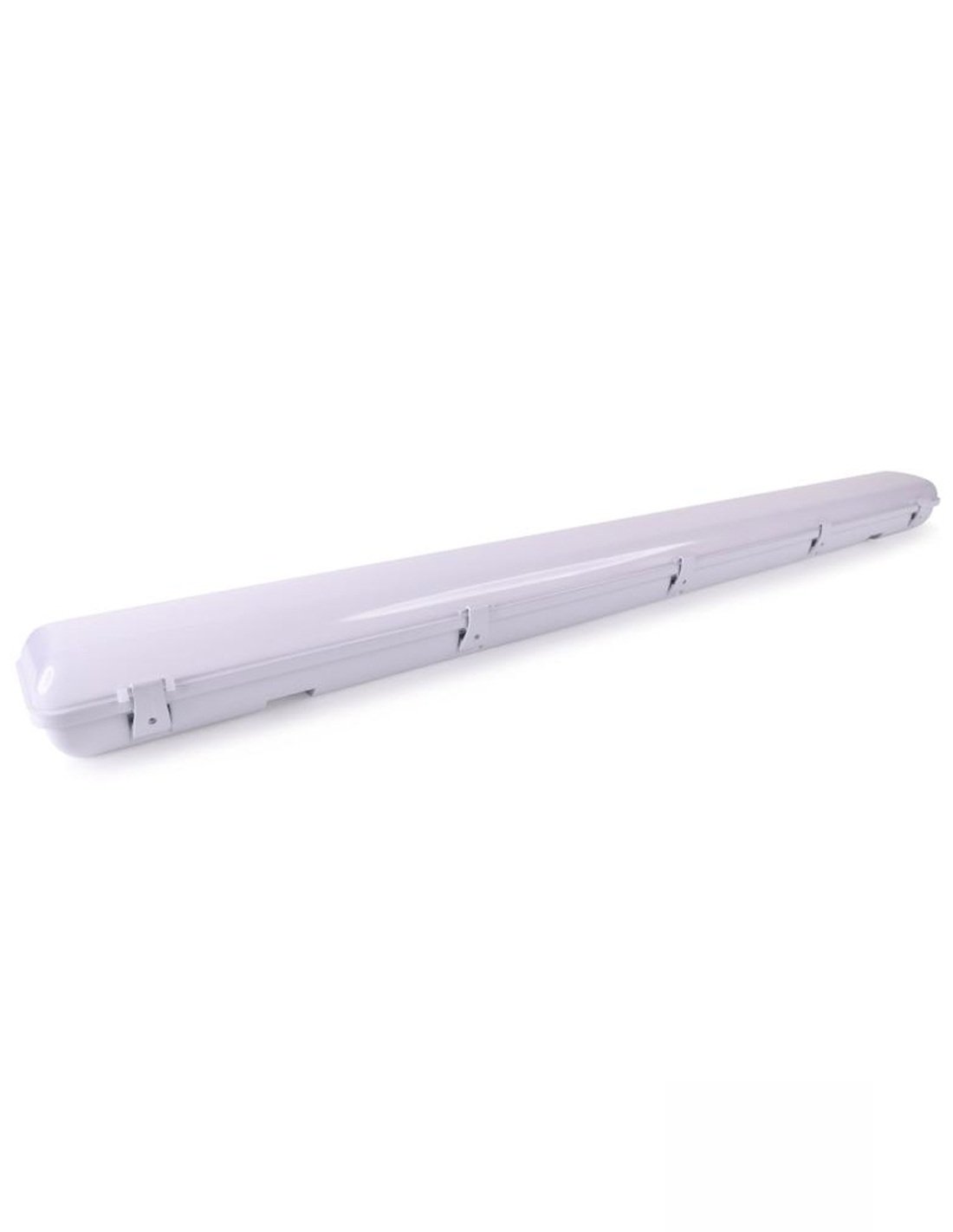

Rapid LED 24w / 40w, 1200mm DUAL WATTAGE WEATHERPROOF BATTEN - IP65

Name: Rapid LED 24w / 40w, 1200mm DUAL WATTAGE WEATHERPROOF BATTEN - IP65
Brand: Rapid LED
SKU: R3540-TRI
Price: 88.8 AUD
Availability: InStock

Reference R3540-TRI

In Stock - Ready to Ship

$ 88.80

inc-GST

24W/40W Dual Wattage 1200mm LED Batten – CCT Selectable IP65 Weatherproof

Selectable 24W or 40W output delivers up to 5200 lumens with 4000K or 5000K colour temperature options. Ideal for car parks, warehouses, and covered outdoor areas with reliable, long-lasting performance.

Dual Wattage Switchable – Choose between 24W or 40W output
CCT Selectable – Neutral 4000K or Cool White 5000K
High Output – Up to 5200 lm @ 40W
Weatherproof IP65 & IK08 Impact-Resistant Housing
120° Wide Beam Angle for Broad Coverage

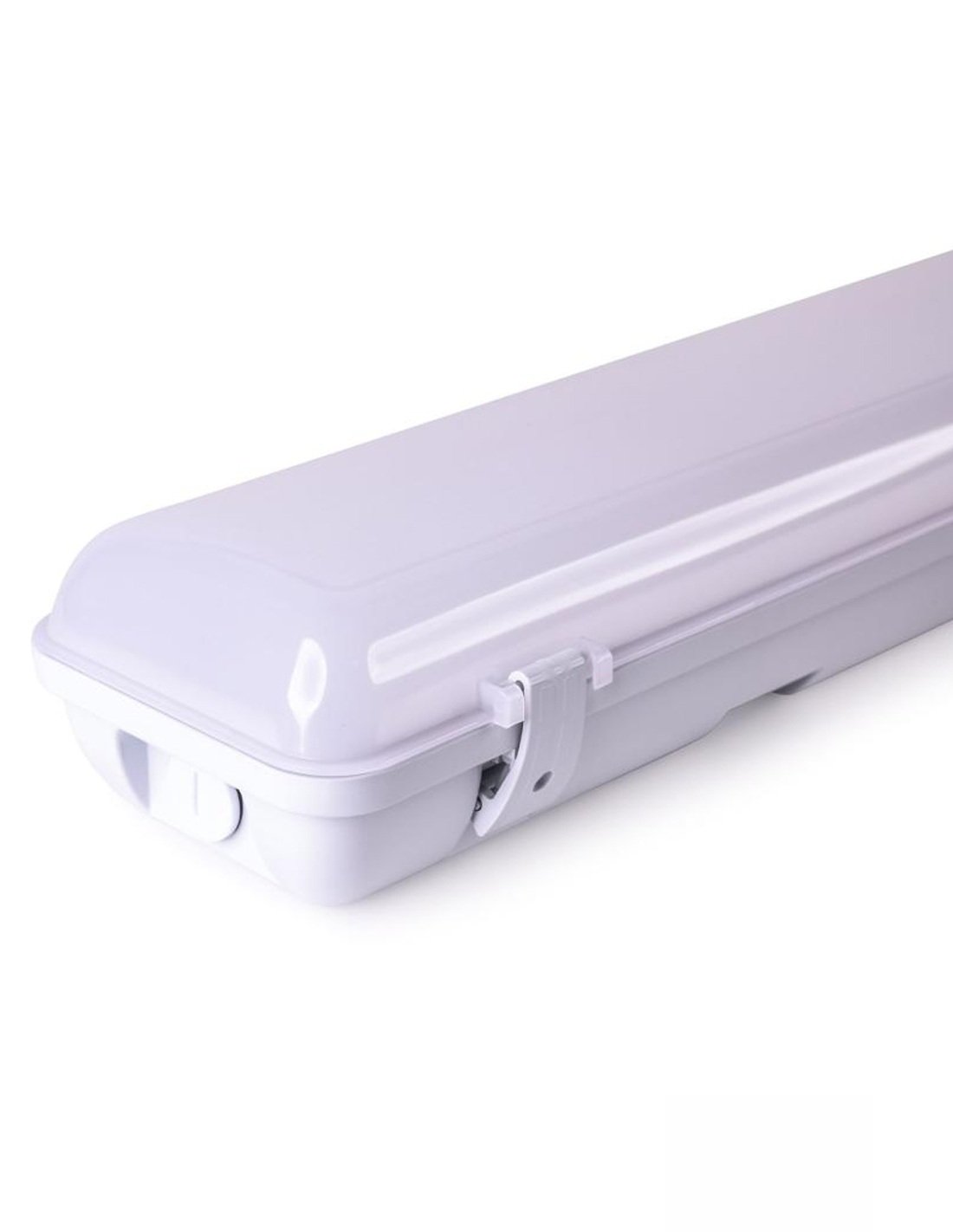

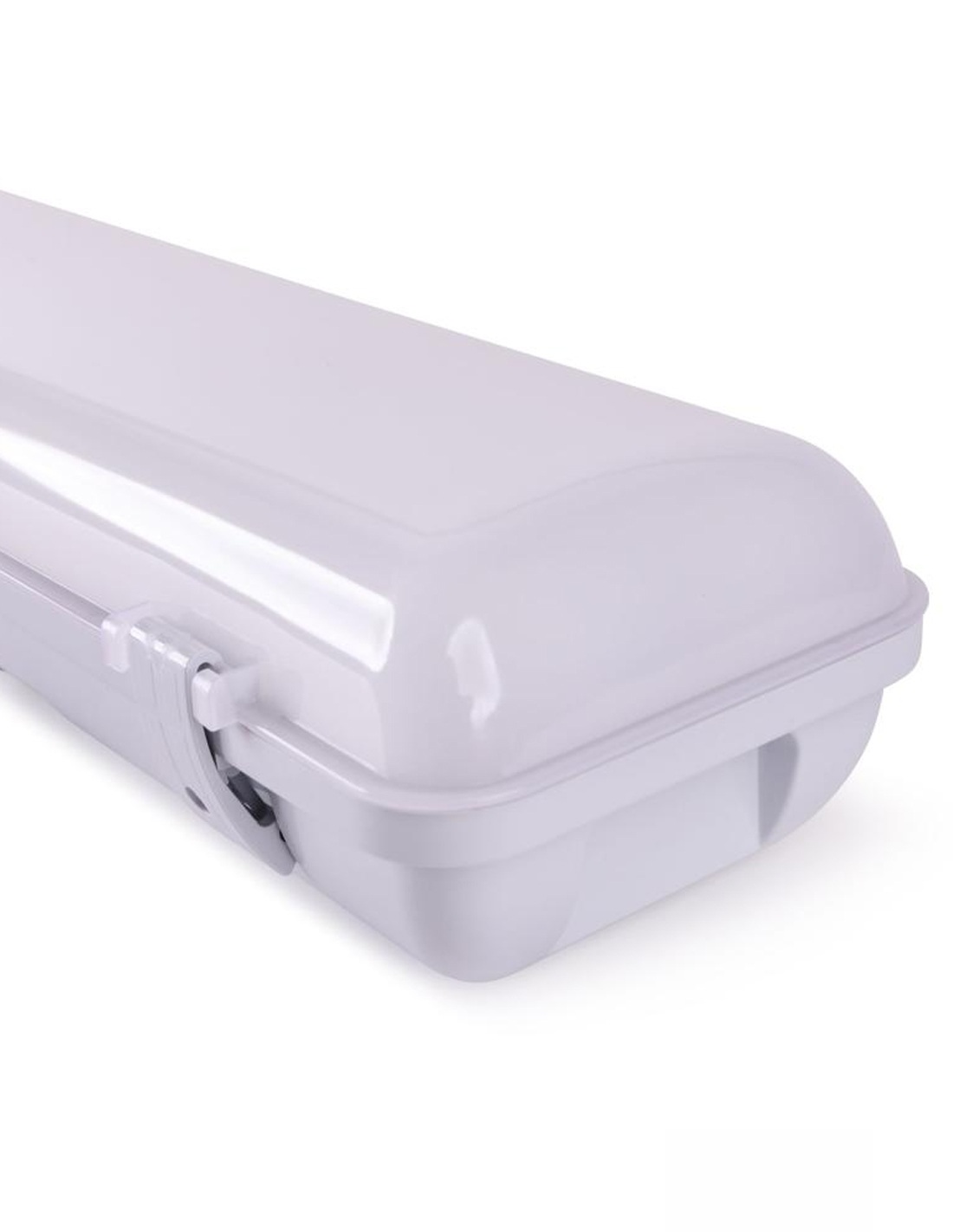

Easy Install with Clip-In Design – Surface or Suspended
50,000 Hour Lifespan & 5-Year Warranty
Ideal for warehouses, car parks, workshops, corridors, and plant rooms
Trade Welcome | Contact us or create a Trade Log-in for Trade Pricing
Further discounts for very large orders QTY 200+

24W/40W Dual Wattage 1200mm LED Batten • IP65 Weatherproof • CCT Selectable

24W 40W Dual Wattage Weatherproof LED Batten

The 1200mm Dual Wattage LED Batten is a durable, energy-efficient solution for indoor and outdoor lighting. With selectable wattage and CCT options, IP65 weatherproof housing, and fast installation clips, this batten is ideal for warehouses, car parks, workshops, and more.

Key Features

Dual Wattage Selectable: Choose between 24W and 40W output for optimal energy use and brightness.
CCT Selectable: Switchable between 4000K and 5000K to suit cool white or neutral light preferences.
High Light Output: Up to 5200 lumens (40W mode) for bright and efficient illumination.
IP65 Rated: Fully weatherproof enclosure for indoor or outdoor installation.
IK08 Impact Resistance: Tough build for industrial and commercial environments.
Easy Install: Quick-mount clips for time-saving setup and maintenance.
Wide Beam Angle: 120° beam for consistent area lighting coverage.
Long Lifespan: 50,000+ hours rated life for reduced maintenance costs.
5 Year Warranty: Backed by manufacturer warranty for peace of mind.

Ideal For

Car parks and garages
Warehouses and storage rooms
Workshops and manufacturing
Commercial corridors and awnings
Plant rooms and outdoor sheds

Technical Specifications

Specification	Details
Model	RLWP1240CCT
Wattage	Selectable 24W or 40W
Lumen Output	Up to 5200lm (40W)
Colour Temperature	Selectable 4000K / 5000K
Beam Angle	120°
Weather Rating	IP65
Impact Rating	IK08
Dimensions	1200mm Length
Input Voltage	220-240V AC
Rated Lifespan	50,000 hours
Warranty	5 Years

Upgrade to reliable, bright, and long-lasting lighting.
Choose the 24W/40W Dual Wattage Weatherproof LED Batten – perfect for any commercial, industrial, or outdoor space.

R3540-TRI

Download (803.7KB)

SPECIFICATIONS
Wattage	24 W or 40 W (selectable via DIP switch)
Voltage / Frequency	220–240 V AC · 50–60 Hz
Power Factor	> 0.9
Dimmable	No (non‑dimmable driver model)
Colour Temp.	Tri‑CCT: 3000 K / 4000 K / 5700 K
Lumens / Efficacy	• 24 W: approx 2880–3150 lm (~120 lm/W) • 40 W: approx 4800–5250 lm (~130 lm/W)
CRI / SDCM	> 80 Ra · < 6 SDCM
Beam Angle	~120° flood
LED Type	Samsung 2835 SMD LEDs

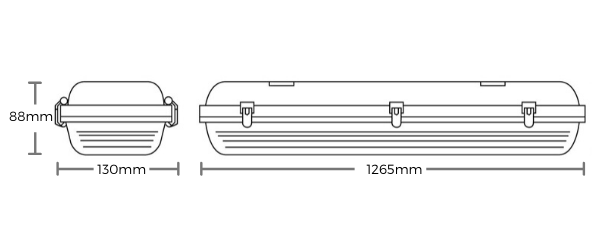

Dimensions	Approx 1265 mm (L) × 117–130 mm (W) × 70–88 mm (H)
Finishes	Grey body · Opal polycarbonate diffuser
Materials	UV‑stabilised polycarbonate housing & diffuser
IP / IK / Class	IP65 · IK08‑IK10 (varies) · Class II
Lifetime (L70)	> 90 000 h typical
Operating Temp.	–10 °C to +40 °C
Standards	AS/NZS 60598.1, -2.2 · AS/NZS 61347.1, -2.13
Warranty	5 years
