ENSA Multi-Adjustable 150W LED High Bay Light - LHB-G150-A

Name: ENSA Multi-Adjustable 150W LED High Bay Light - LHB-G150-A
Brand: ENSA
SKU: LHB-G150-A
Price: 137.5 AUD
Availability: InStock

SKU LHB-G150-A In Stock - Ready to Ship

$137.50 inc GST

ENSA LHB-G150-A: an IP65 LED high bay that you set on site to 80, 120 or 150 W, 3000, 4000 or 5000 K and a 60, 90 or 110° beam, for warehouses, workshops and sports halls.

✓80 / 120 / 150 W by DIP switch
✓3000 / 4000 / 5000 K by DIP switch
✓60 / 90 / 110° beam by rotating the lens
✓Up to 25,500 lm, 170 lm/W at 4000 K
✓IP65 die-cast aluminium, 0–10 V dimming, hook included

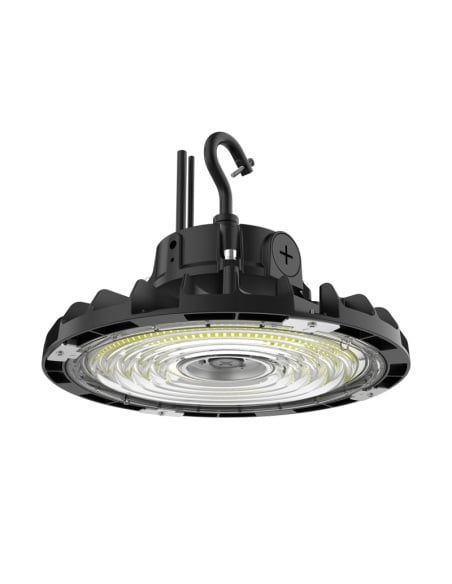

ENSA LHB-G150-A multi-adjustable LED high bay, black die-cast aluminium body with G1/2 inch hook and clear polycarbonate lens

ENSA · LED high bay · 80 / 120 / 150 W

Nine lights in one high bay.
Set the power, colour and beam on site.

The LHB-G150-A lets you pick 80, 120 or 150 W, warm, natural or cool white, and a 60, 90 or 110° beam at the install, so one light suits low workshops and tall warehouses alike.

In one sentence: the ENSA LHB-G150-A is an IP65 die-cast aluminium LED high bay with DIP switches for 80, 120 or 150 W and 3000, 4000 or 5000 K, a rotating lens for 60, 90 or 110° beams, up to 25,500 lm and 0–10 V dimming.

Mains powered. Installation by a licensed electrician.

The light runs on 100–240 V AC through a 3-pin plug, so it needs a power outlet near the mounting point, and it hangs from its hook at height. Have a licensed electrician fit the outlet and any switching or 0–10 V dimming wiring.

In the box

LHB-G150-A high bay light
G1/2 inch threaded hook with screw latch
3-pin AC plug on the power lead

You also need

A power outlet or circuit at the mounting point, fitted by a licensed electrician
A beam, chain or hook point rated for the light's weight
Safe access at height: elevated work platform or scaffold
Optional: ENSA motion sensor, wall switch or remote (ask us)

Set the light to the building, not the other way round.

Most high bays come in one wattage, one colour and one beam, so you guess before you buy. The LHB-G150-A has two DIP switches and a rotating lens: dial the power down for a low ceiling, choose the colour the space needs, and narrow or widen the beam to suit the mount height and aisle width.

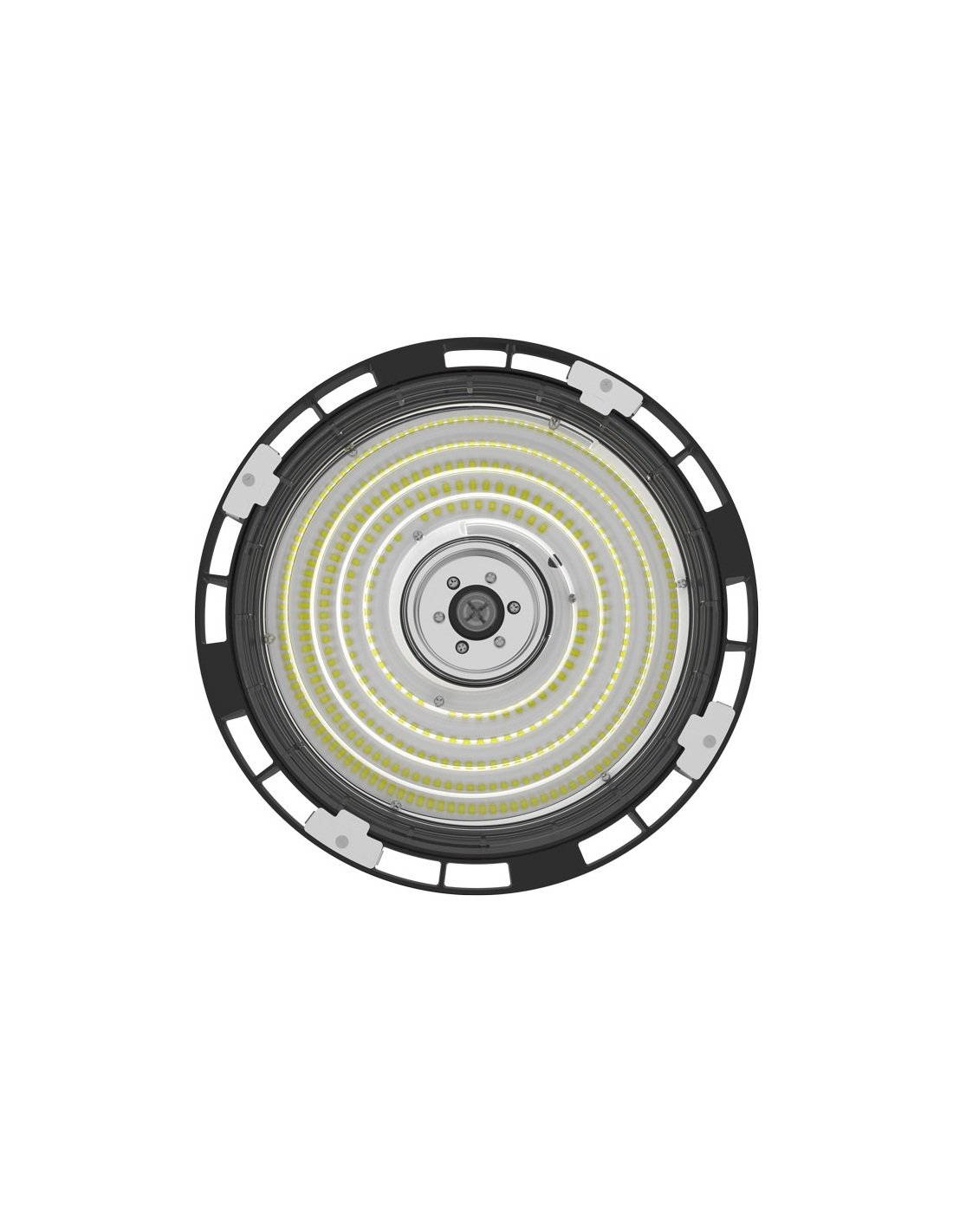

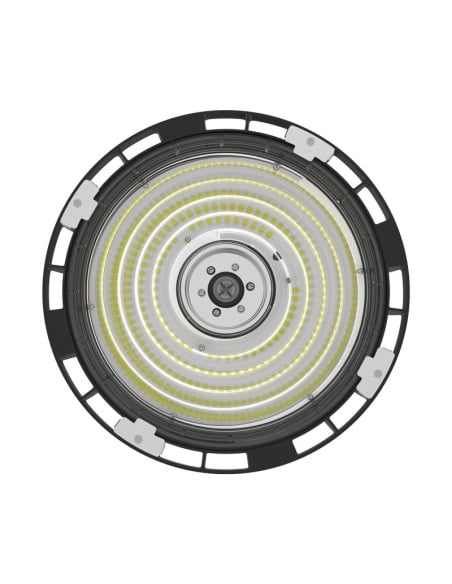

Underside of the ENSA LHB-G150-A showing the rings of LEDs behind the round polycarbonate lens

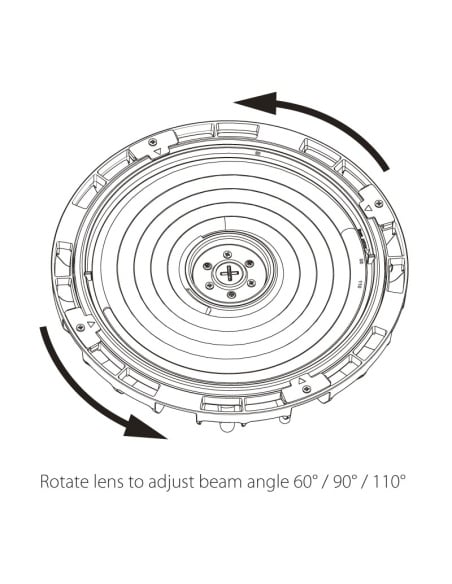

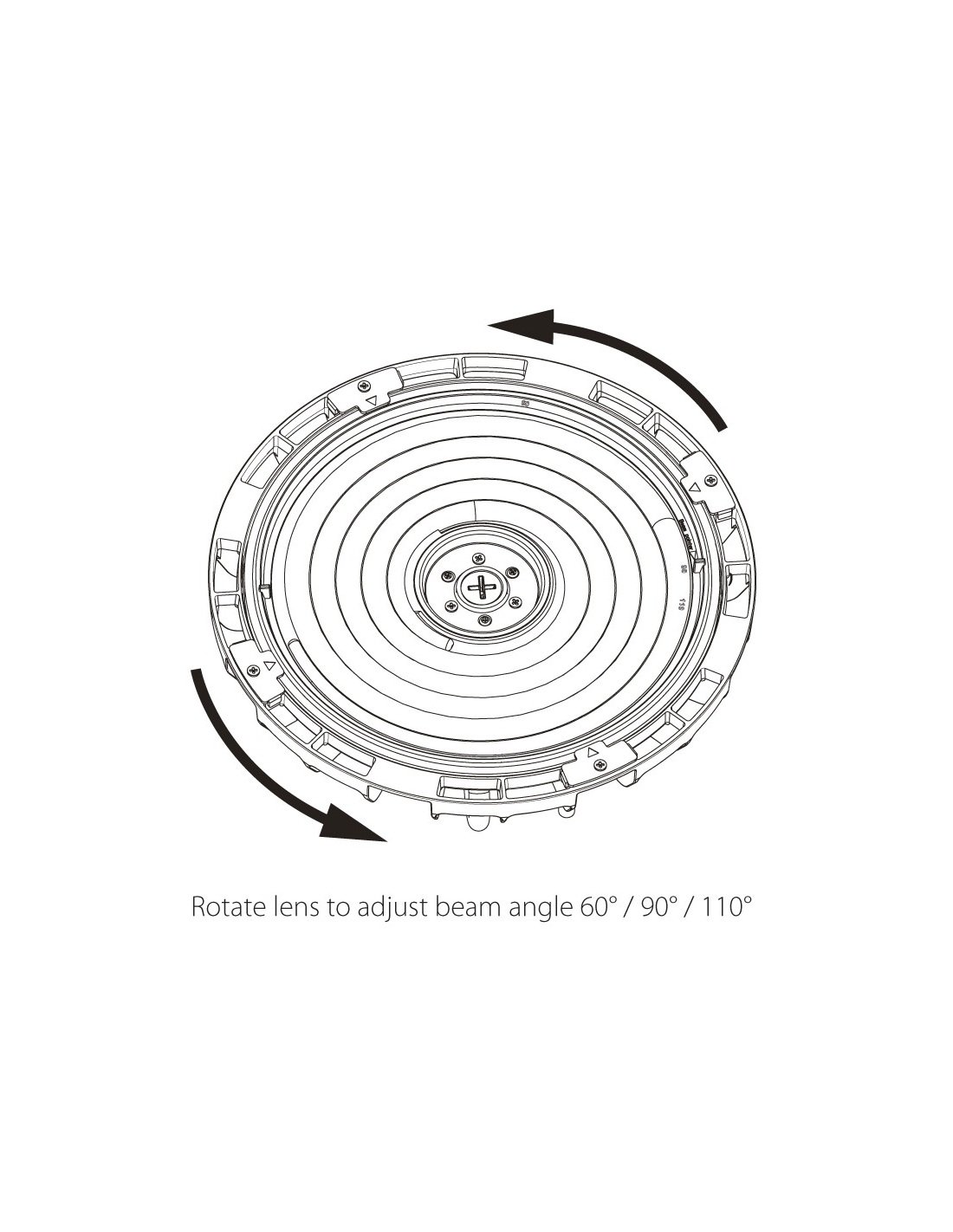

Beam angle

Turn the lens for 60, 90 or 110°.

The polycarbonate lens rotates to set the beam. Use 60° to throw light down high racking aisles, 90° for general warehouse floors, and 110° to spread light wide under a lower roof.

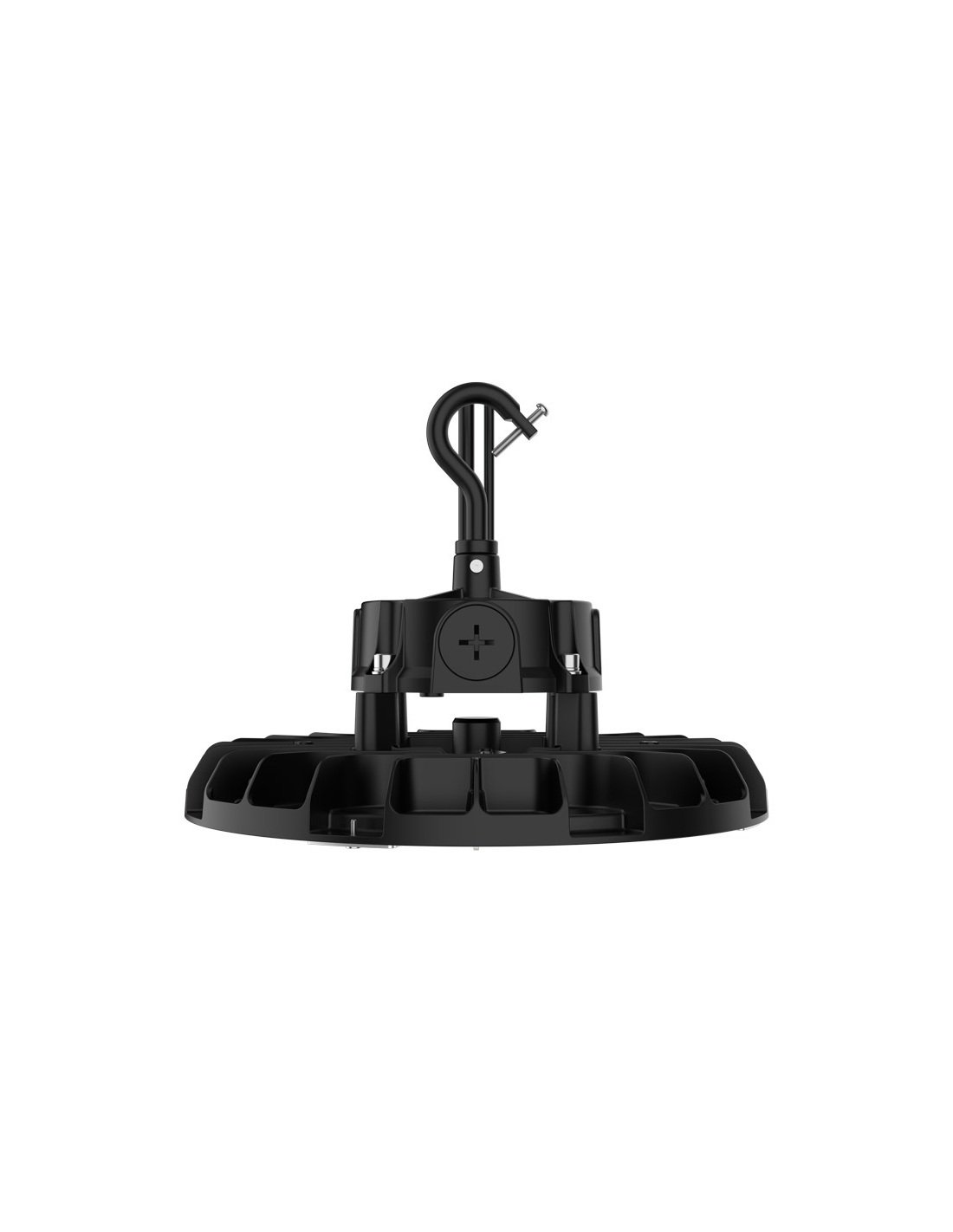

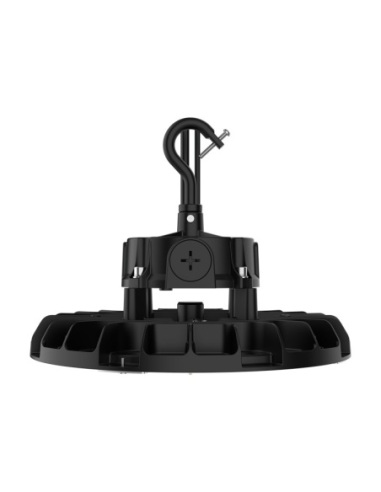

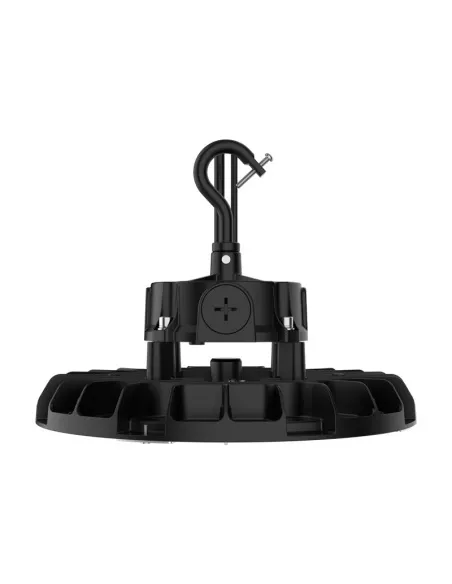

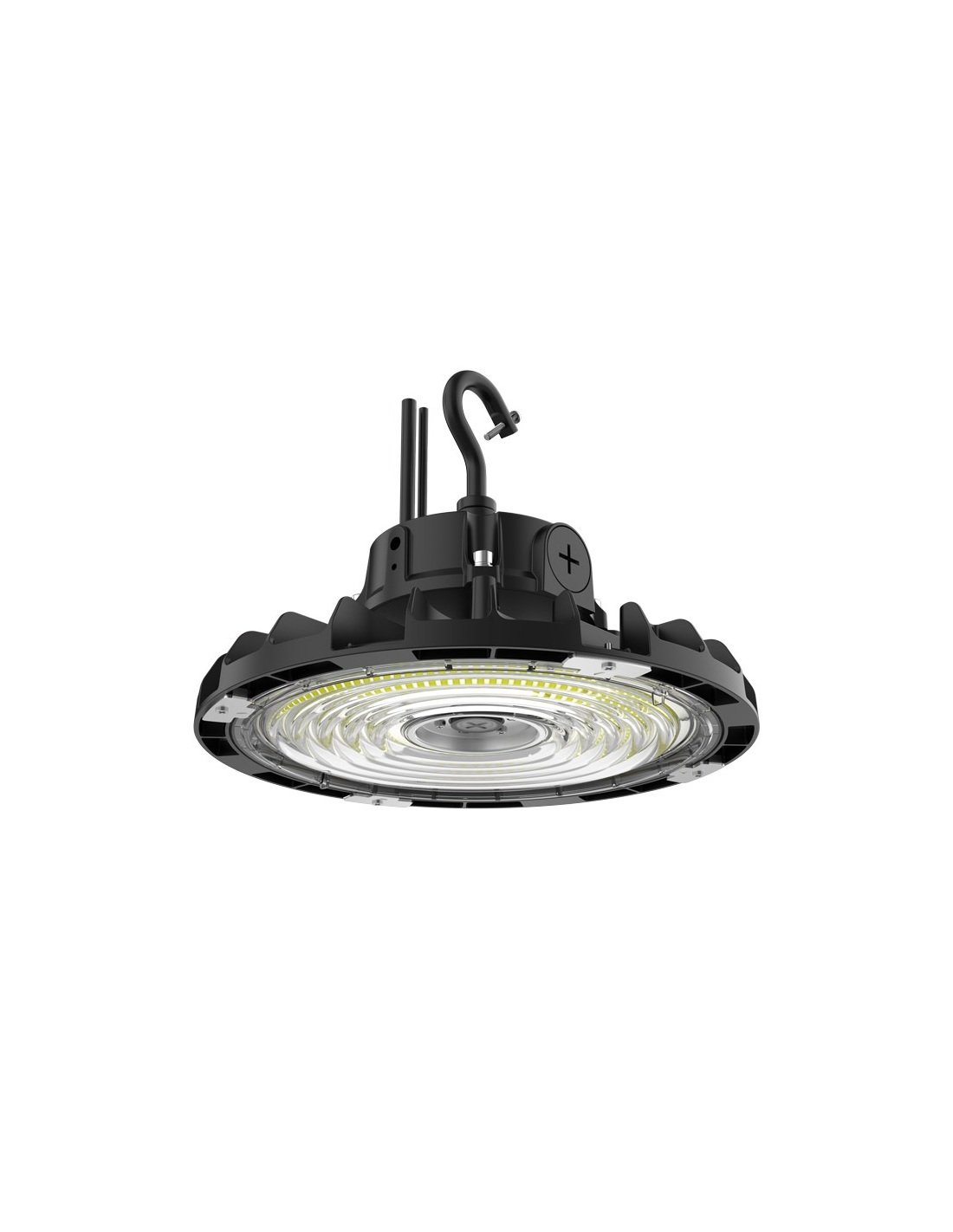

Side view of the ENSA LHB-G150-A with the G1/2 inch hook and screw latch on top and the slim round body below

Mounting

Hangs from a hook with a screw latch.

The G1/2 inch threaded hook screws into the top of the light and its latch closes over the chain or beam clamp. The light is Ø266 × 198 mm including the hook, or 118 mm high without it.

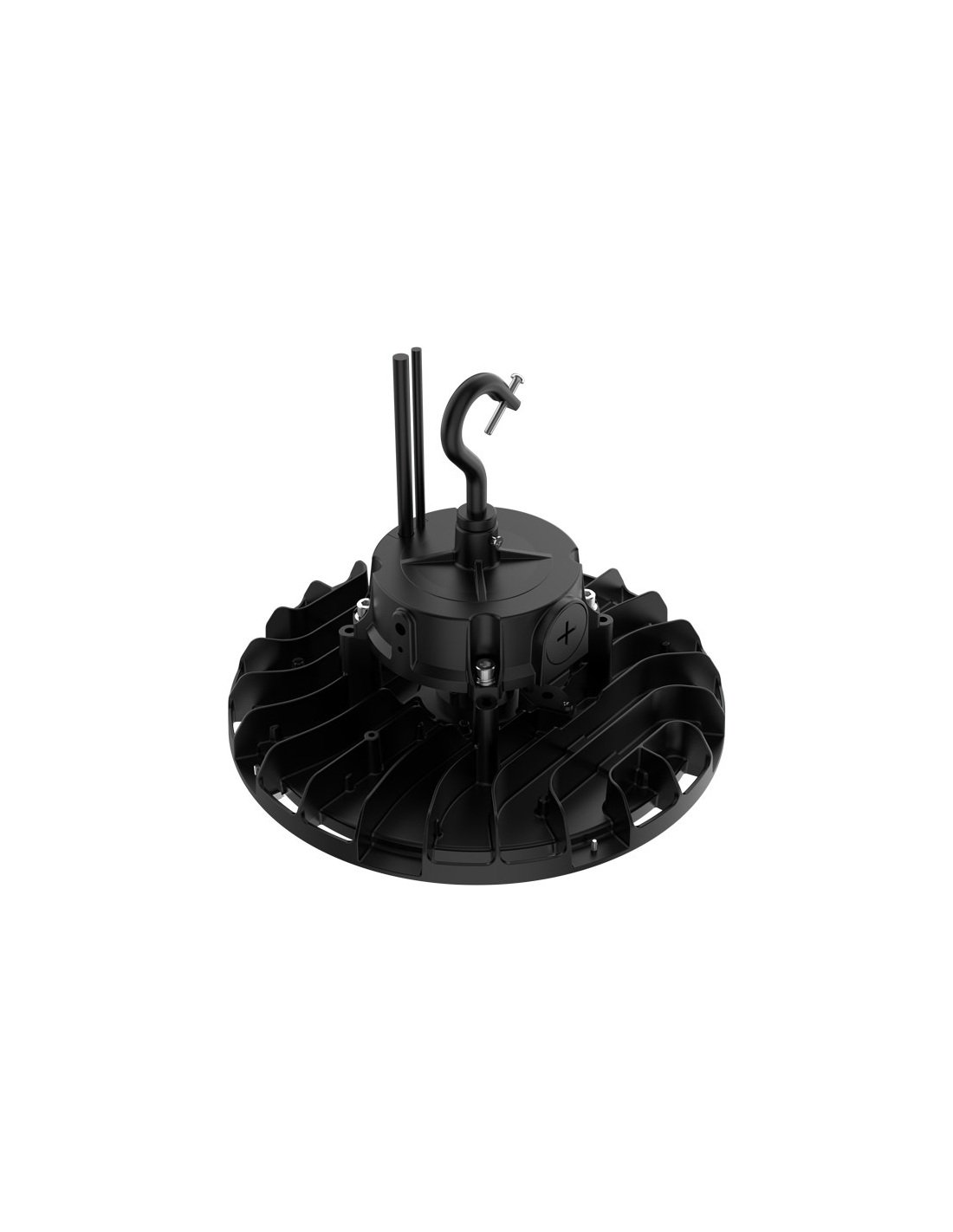

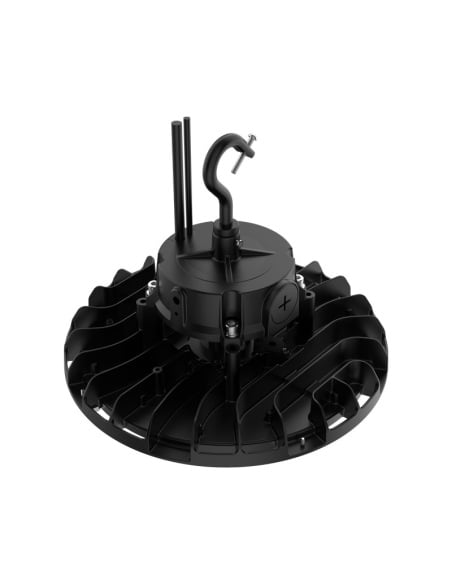

Top of the ENSA LHB-G150-A showing the die-cast aluminium heat-sink fins around the driver housing

Build

Die-cast aluminium, IP65.

The finned die-cast aluminium body draws heat away from the LEDs for a rated 50,000 hours at 25 °C. It is IP65 rated and runs from −30 to +50 °C.

How it goes in

Up and running in four steps.

Choose the settings

Before lifting it, set the wattage and colour DIP switches and turn the lens to the beam angle for your mount height.

Fit the hook

Screw the G1/2 inch hook into the top of the light and hang it from a chain or point rated for its weight.

Connect power

Plug the 3-pin lead into an outlet installed by a licensed electrician. Add 0–10 V dimming wiring if needed.

Check the light

Switch on and check the light level on the floor. Lower the wattage or change the beam if an area is too bright.

At a glance

LHB-G150-A

Show specs

Power

80 W, 120 W or 150 W, set by DIP switch

Colour temperature

3000 K, 4000 K or 5000 K, set by DIP switch

Beam angle

60°, 90° or 110°, set by rotating the lens

Efficacy

150 lm/W at 3000 K, 170 lm/W at 4000 K, 155 lm/W at 5000 K

Light output at 150 W

22,500 lm (3000 K), 25,500 lm (4000 K), 23,250 lm (5000 K)

Light output at 120 W

18,000 lm (3000 K), 20,400 lm (4000 K), 18,600 lm (5000 K)

Light output at 80 W

12,000 lm (3000 K), 13,600 lm (4000 K), 12,400 lm (5000 K)

Light at 5 m (150 W, 4000 K)

60°: 388 lx over 6.01 m; 90°: 191 lx over 10.77 m; 110°: 169 lx over 11.51 m

Colour rendering

CRI over 70

Rated LED life

50,000 hours at 25 °C

Input

100–240 V AC, 50/60 Hz, power factor over 0.9

Dimming

0–10 V

Connection

3-pin AC plug

Body and lens

Die-cast aluminium, polycarbonate adjustable lens

Protection

IP65

Mounting

G1/2 inch thread with hook and screw latch

Operating temperature

−30 °C to +50 °C

Size

Ø266 × 198 mm (Ø266 × 118 mm without the hook)

Warranty

5 years, ENSA

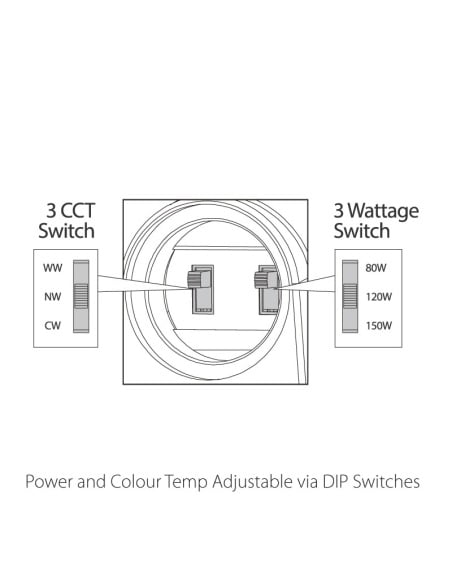

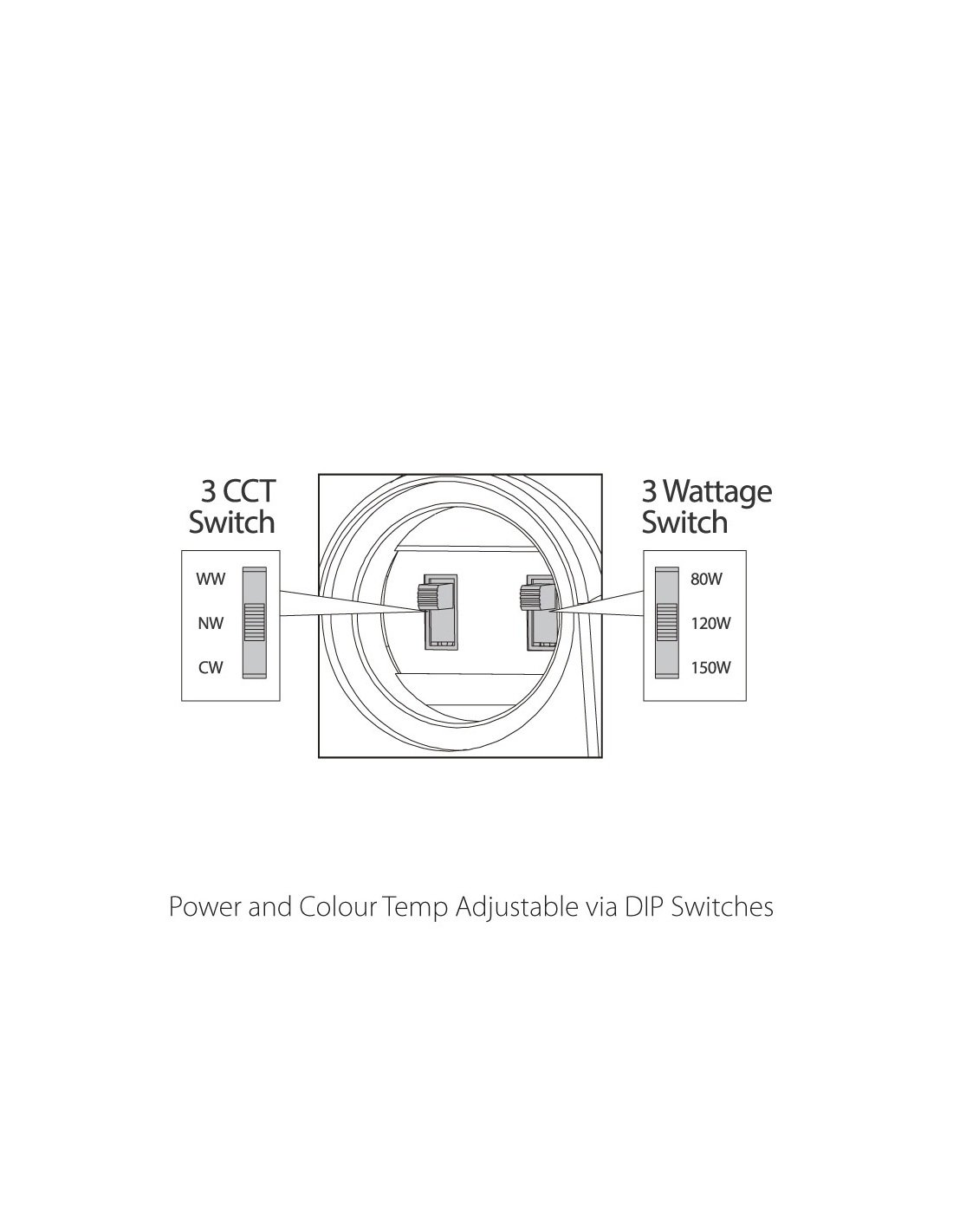

ENSA LHB-G150-A DIP switch diagram: CCT switch with WW, NW and CW positions and wattage switch with 80 W, 120 W and 150 W positions

The two DIP switches on the light body: colour (WW 3000 K, NW 4000 K, CW 5000 K) and power (80, 120 or 150 W).

Pair it with

What it needs around it

Power

An outlet at the light

A power point or circuit near each mounting point, installed by a licensed electrician.

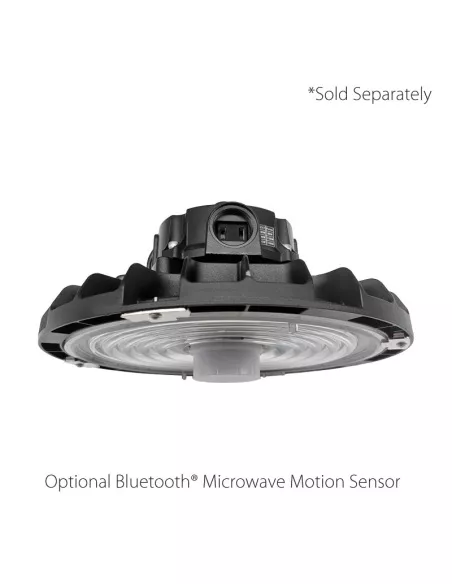

Motion sensor

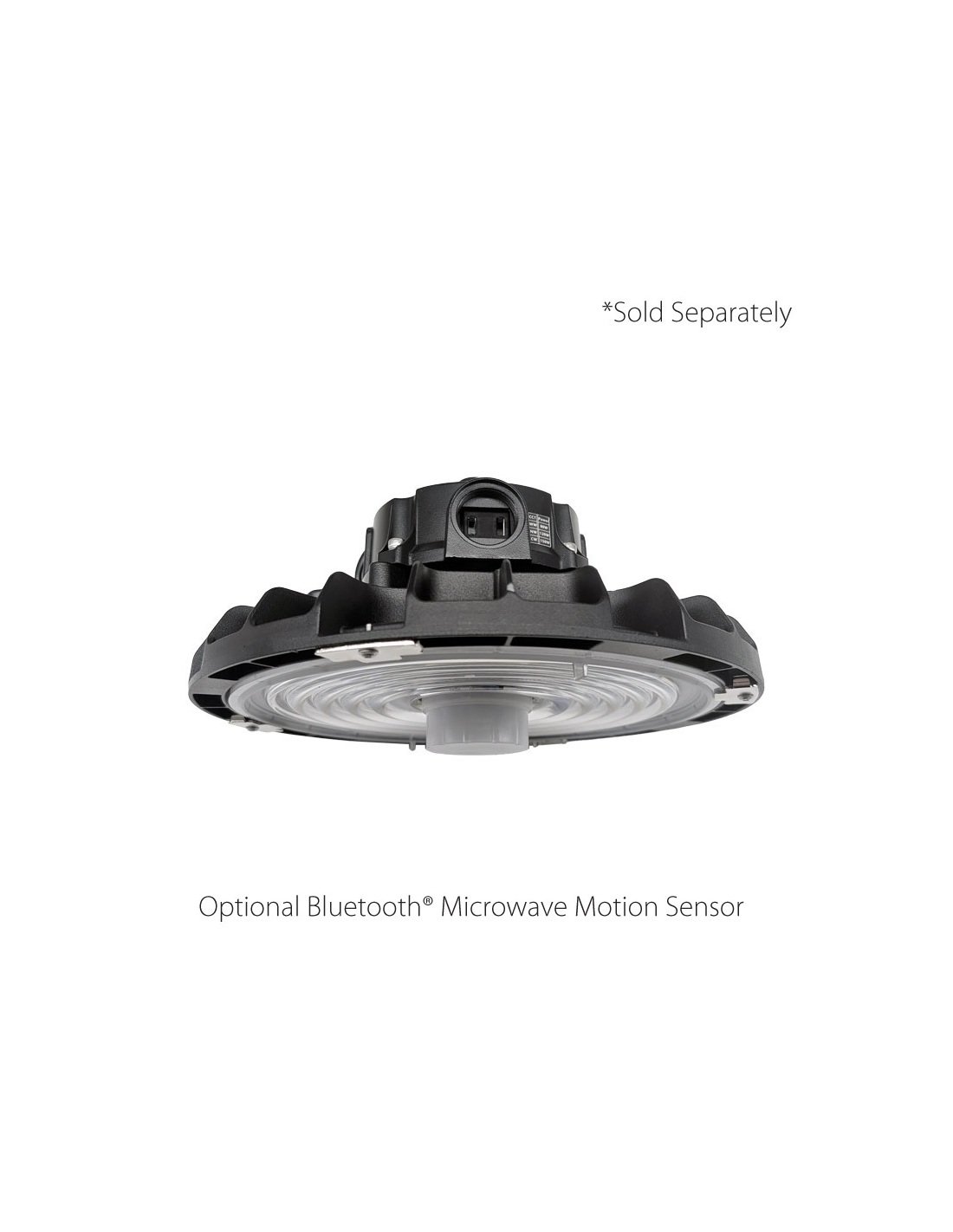

ENSA LHB-G-BM

Retrofit IP65 microwave motion sensor that turns lights on when someone walks in. Bluetooth mesh, sold separately: ask us.

Wall switch

ENSA LHB-G-BW

Bluetooth on/off and dimming wall switch that talks to the motion sensors. Sold separately: ask us.

Remote

ENSA LHB-G-RC

Infrared remote that sets mount height up to 15 m and configures the motion sensor. Sold separately: ask us.

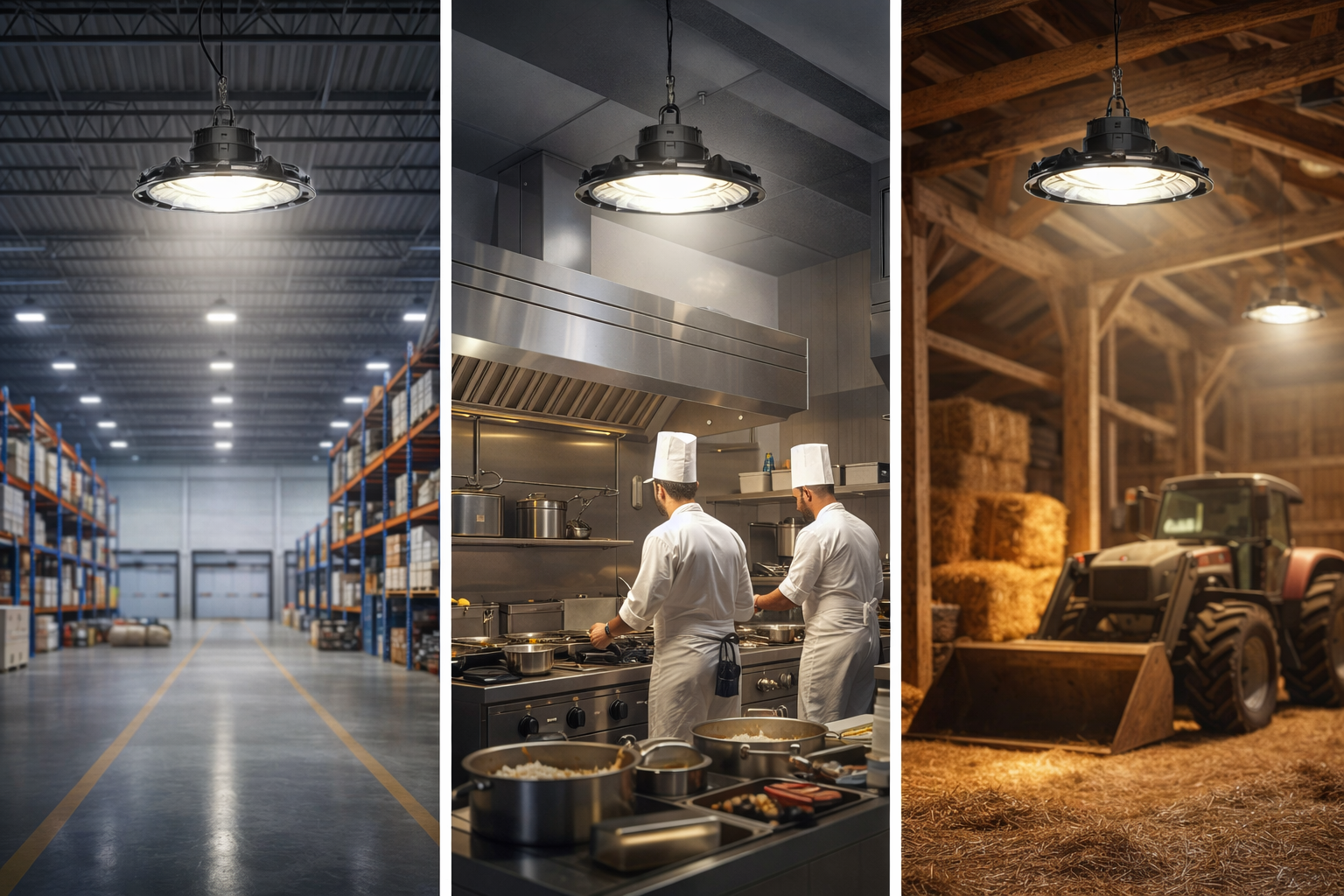

Where it is used

Where it earns its keep.

Warehouses

60° beam down racking aisles, or 90° over open floor and loading areas.

Factories and workshops

Bright, even light over benches and machines, dimmed down where it is not needed.

Sports halls and gyms

Indoor courts and gyms with a wide 110° beam and natural white light.

Sheds and farm buildings

Machinery sheds and barns, with the IP65 body handling dust and wash-down.

Retail and showrooms

Large stores, trade counters and back-of-house areas under high roofs.

Covered outdoor areas

Canopies, loading docks and carports, inside the −30 to +50 °C range.

Which power setting to use

	80 W setting	150 W setting
Light output at 4000 K	13,600 lm	25,500 lm
Light output at 3000 K	12,000 lm	22,500 lm
Light output at 5000 K	12,400 lm	23,250 lm
Power used	80 W	150 W
Suits	Lower ceilings, smaller spaces, or rows of lights close together	High roofs and racking, where more light has to reach the floor

Figures from the ENSA LHB-G Series datasheet. The 120 W setting sits in between, at 18,000 to 20,400 lm. Not sure which suits your building? Send us the ceiling height and floor size.

Common questions

How do I change the wattage?

Set the wattage DIP switch on the light body to 80, 120 or 150 W, ideally before you hang it.

How do I change the colour?

Set the colour DIP switch to WW (3000 K warm white), NW (4000 K natural white) or CW (5000 K cool white).

How do I change the beam angle?

Rotate the polycarbonate lens to the 60°, 90° or 110° position.

Which beam suits my ceiling height?

As a guide, 60° for high roofs and narrow aisles, 90° for most warehouses and 110° for lower roofs. Send us your height and layout and we will check.

How bright is it?

Up to 25,500 lumens at 150 W and 4000 K. At 5 m with the 60° lens it gives an average of 388 lux at the centre of the beam.

Does it come with a plug?

Yes, it has a 3-pin AC plug. The outlet near the mounting point must be installed by a licensed electrician.

Can it be dimmed?

Yes, by a 0–10 V dimming controller, or with the optional ENSA Bluetooth wall switch and motion sensor.

Does it have a motion sensor?

Not built in. The ENSA LHB-G-BM microwave motion sensor retrofits to it and is sold separately. Ask us for a price.

How is it mounted?

From the included G1/2 inch threaded hook with a screw latch, hung from a chain or rated hook point.

Can it be used outdoors?

It is IP65 rated and works from −30 to +50 °C, so it suits covered outdoor areas such as canopies and loading docks.

How long will the LEDs last?

ENSA rates the LEDs for 50,000 hours at 25 °C.

What warranty does it have?

ENSA shows a 5-year warranty on the datasheet. Contact us for the full terms.

Supported by InFront Technologies.

Send us your ceiling height and floor size and we will suggest the number of lights and the settings: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Mains power. The light runs on 100–240 V AC. Any new power outlet, switching or 0–10 V dimming wiring must be installed by a licensed electrician.

Working at height. High bays are hung several metres up. Use an elevated work platform or scaffold, and hang the light from a point rated for its weight.

Before adjusting. Unplug the light before changing the DIP switches or turning the lens.

Weather. The body is IP65. Outdoors, mount it under cover and keep the plug and outlet out of the weather.

What it does not do. It has no built-in motion sensor or wireless control. Those need the optional ENSA accessories, sold separately.

Figures. From the ENSA LHB-G Series datasheet. Light levels were measured by ENSA at 150 W and 4000 K.
