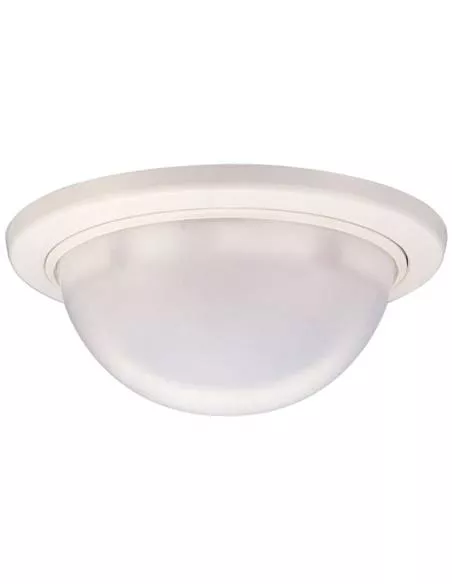

Takex 360° PIR Sensor
Takex 360° PIR Sensor
Takex 360° PIR Sensor
Takex 360° PIR Sensor

Takex 360° PIR Sensor - PIR-T68R

PIR-T68R
In Stock - Ready to Ship
$ 123.00
inc-GST

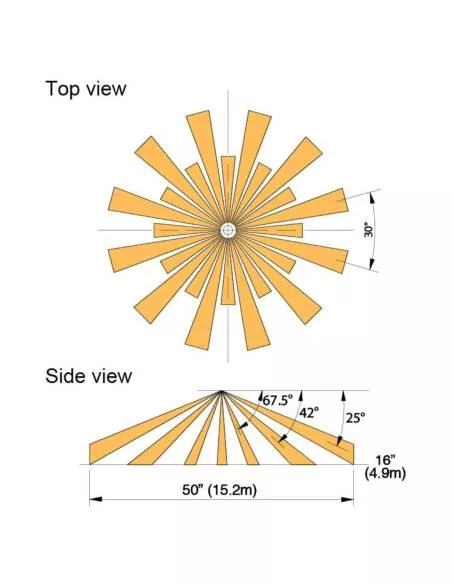

  • 360° round passive infrared range up to Ø15m
  • Highly adjustable infrared sensitivity - 60% / 80% / 100% / 120%
  • High stability against noise and insect intrusion
  • Sensitive Zones - 33 pairs
  • ABS Plastic housing built for indoor environments
  • Super slim and compact design - Ø120 x 47mm
  • Input voltage: 10.5 ~28VDC
  • Made in Japan



Takex 360° PIR Sensor



PIR-T68R



The PIR-T68R PIR Sensor from Takex is built with complete 360° infrared detection up to Ø15m to detect intruders from all directions. Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. Ideal to be installed in rooms with multiple entrances.



Product Features:



• 360° round passive infrared range up to Ø15m

• Highly adjustable infrared sensitivity - 60% / 80% / 100% / 120%

• High stability against noise and insect intrusion

• Sensitive Zones - 33 pairs

• ABS Plastic housing built for indoor environments

• Super slim and compact design - Ø120 x 47mm

• Input voltage: 10.5 ~28VDC

• Made in Japan

* Maximum mounting height is 4.9m (16')



Dimensions
Ø120 x 47mm
Housing
ABS Plastic (Body) , PE Plastic (Lens)
Operating Conditions
-15°C ~ +55°C without condensation
Type
Motion Sensor
Transmitting Current
25mA Max.
Alarm Output
Yes
Pet Immunity
No
Input Voltage
10.5~28VDC
Infrared Detection Range
Ø15m , 360° (field of detection)
Infrared Type
Passive Infrared
Mounting Options
Wall / Ceiling
Sensitive Zones
33 pairs
Tamper Protection
No
