Takex Vertical Curtain PIR Sensor - PIR-T46C
- Passive infrared detection up to 16.5m
- Adjust the coverage area for different mounting heights
- Sensitive Zones - 6 pairs
- ABS Plastic housing built for indoor environments
- Input voltage: 9 ~18VDC
- Made in Japan

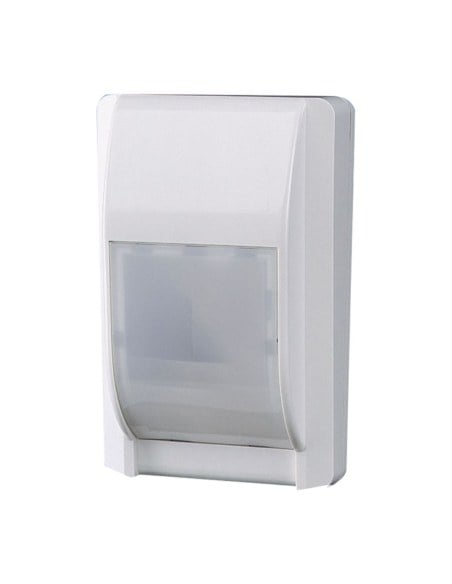

Takex Vertical Curtain PIR Sensor
PIR-T46C

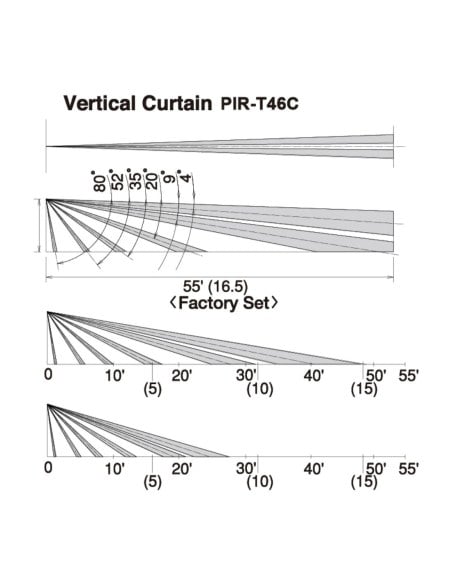

The PIR-T46C Vertical Curtain PIR Sensor from Takex is built with adjustable infrared detection up to 16.5 meters to detect intruders. Choose from three coverage settings by matching the PCB (printed circuit board) to the index marks (refer to the manual). Designed to integrate with our range of Watchguard™ Hardwired Alarm Systems. Its vertical curtain infrared makes it ideal to be installed above entrances and windows.
Product Features:
• Passive infrared detection up to 16.5m
• Adjust the coverage area for different mounting heights
• Sensitive Zones - 6 pairs
• ABS Plastic housing built for indoor environments
• Input voltage: 9 ~18VDC
• Made in Japan
* Can be wall/ceiling mounted (bracket sold separately PIR-T4BKT)
- Dimensions
- 70 x 45 x 110mm
- Housing
- ABS Plastic (Body) , PE Plastic (Lens)
- Operating Conditions
- -15°C ~ +55°C without condensation
- Type
- Motion Sensor
- Transmitting Current
- 25mA Max.
- Alarm Output
- Yes
- Pet Immunity
- No
- Input Voltage
- 9~18VDC
- Infrared Detection Range
- 16.5m
- Infrared Type
- Passive Infrared - Vertical Curtain
- Mounting Options
- Wall / Ceiling (bracket sold separately)
- Sensitive Zones
- 6 pairs
- Tamper Protection
- Yes
