Watchguard Heavy Duty Hard Wired Reed Switch (White) - RSW-M1W
$19.00 inc GST
- Heavy duty magnetic contact switch
- Large magnet sensor gap, up to 50mm
- Normally closed (NC) reed switch output
- 10W maximum contact rating (up to 100V, 0.5A)
- 250mm sensor leads (22 AWG / Ø0.64mm)
- Robust casing of zinc alloy construction
- Surface Mounted, screws included
- Dimensions 106 x 16 x 16mm
Watchguard Heavy Duty Hard Wired Reed Switch (White)
RSW-M1W

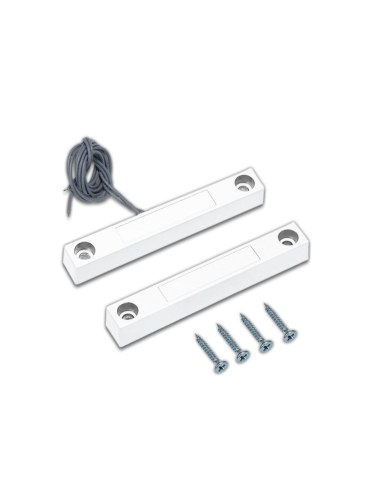

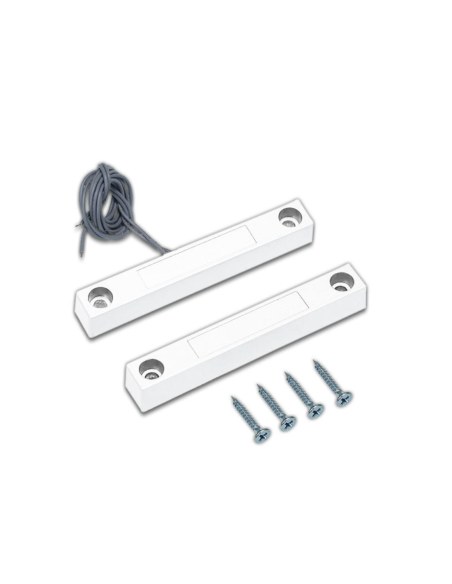

The RSW-M1 is a heavy duty hard wired reed switch, designed for window and door applications.
.jpg)
Product Features:
• Heavy duty magnetic contact switch
• Large magnet sensor gap, up to 50mm
• Normally closed (NC) reed switch output
• 10W maximum contact rating (up to 100V, 0.5A)
• 250mm sensor leads (22 AWG / Ø0.64mm)
• Robust casing of zinc alloy construction
• Surface Mounted, screws included
• Dimensions 106 x 16 x 16mm

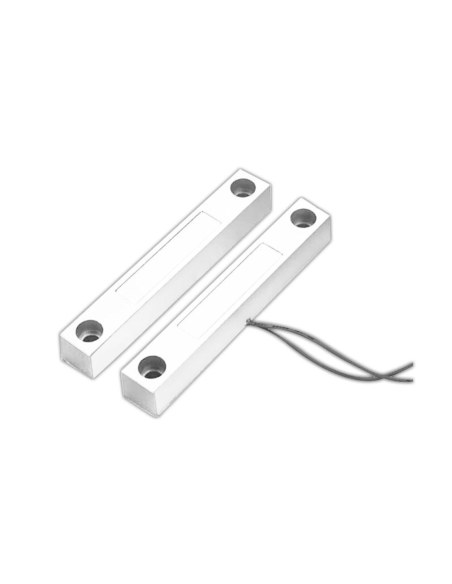

Available in the silver, white or brown casing.
.jpg)

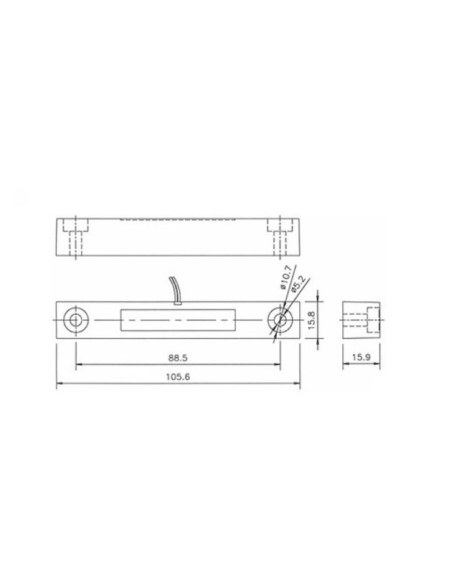

- Dimensions
- 160mm x 16mm x 16mm
- Type
- Reed Switch
- Material
- Zinc Alloy
- Mount
- Surface
- Contact Rating - Maximum
- 10W 100VDC 0.5A
- Magnet Away
- Open Circuit
- Magnet Near
- Closed Circuit
- Magnet-Sensor Gap - Maximum
- 50mm
- Switch Type
- Normally Open (N.O)
