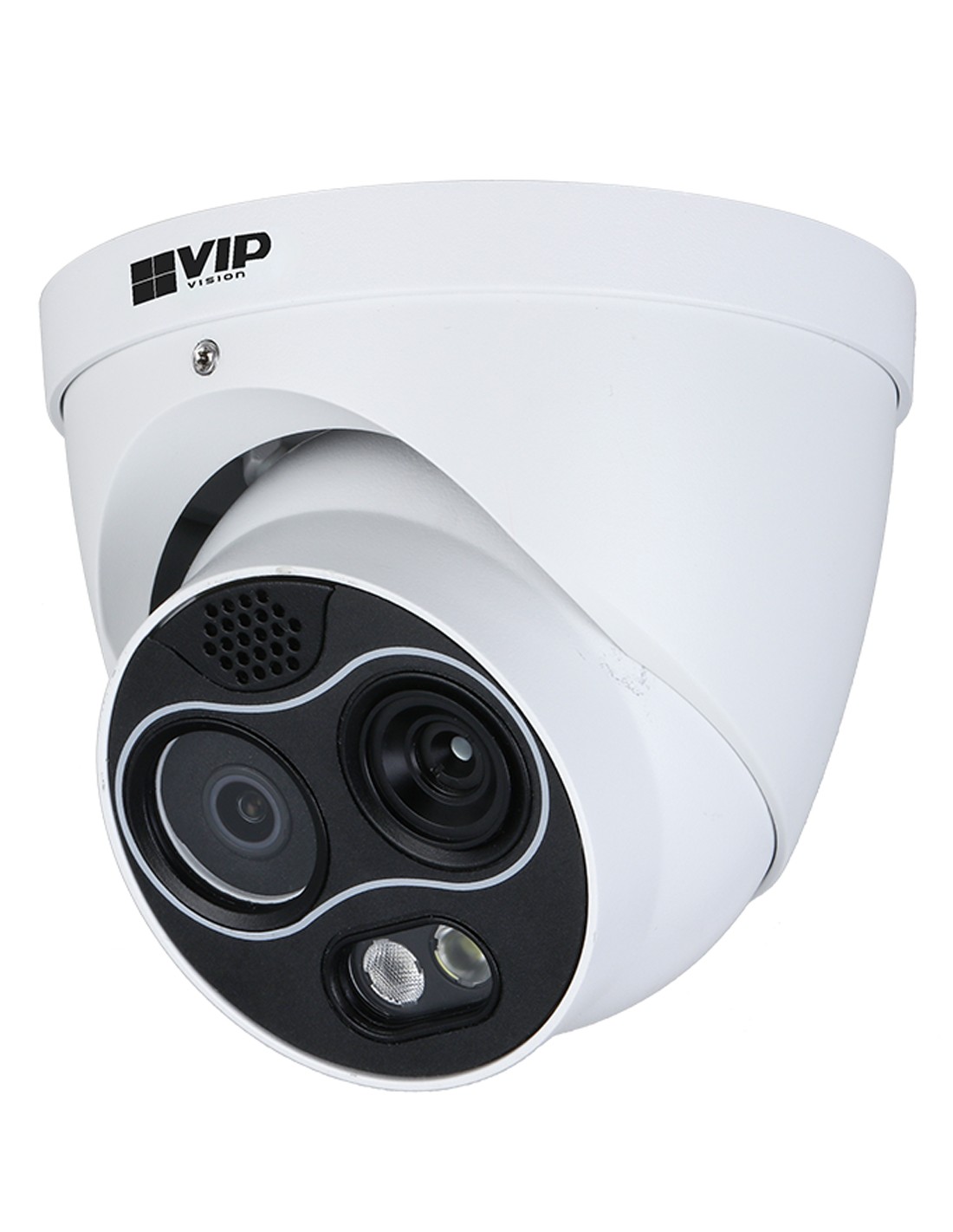

VIP Vision 4MP AI Hybrid Thermal Series IP Dome VSIPTC-4DIRG

VIP Vision 4MP AI Hybrid Thermal Series IP Dome Surveillance Camera - VSIPTC-4DIRG

VSIPTC-4DIRG
In Stock - Ready to Ship
$ 1,274.00
inc-GST
  • Dual Surveillance: Combines thermal and visible light monitoring.
  • High-Resolution Sensor: 4.0MP visible light sensor with fixed lens options.
  • Channel Efficiency: Uses one IP address per channel for thermal and visible images (2 channels total).
  • Advanced Detection: Set tripwire/intrusion rules; detect heat and fire.
  • Thermal Sensor: VOx thermal sensor with 256 x 192px resolution.
  • Infrared Range: Detects 8~14μm wavelength infrared spectrum.
  • Alert System: White light and siren for thermal trigger events.
  • Fire Detection: Adjustable modes and alarm output.
  • Night Vision: 30m IR illuminator.
  • Connectivity: Alarm I/O, audio I/O.
  • Durability: IP67 weather-resistant rating.



VIP Vision 4MP AI Hybrid Thermal Series IP Dome Surveillance Camera

VSIPTC-4DIRG

Experience superior surveillance with VIP Vision hybrid thermal cameras, combining traditional image and thermal sensors for unparalleled security. These cameras enhance images with Image Fusion thermal overlay, deliver precise motion detection, set up thermal perimeters using IVS, and detect fires early, all within a compact, weather-rated chassis.

Key Features:

  • Dual Surveillance: Combines thermal and visible light monitoring for comprehensive coverage.
  • High-Resolution Sensor: 4.0MP visible light sensor with fixed lens options for detailed imaging.
  • Efficient Channel Use: Uses one IP address per channel for thermal and visible images (2 channels total).
  • Advanced Detection: Set tripwire and intrusion rules, and detect heat and fires efficiently.
  • Thermal Sensor: VOx thermal sensor with 256 x 192px resolution for accurate thermal imaging.
  • Infrared Detection: Captures 8~14μm wavelength infrared spectrum for precise thermal detection.
  • Event Alerts: Equipped with white light and siren for thermal trigger event alerts.
  • Fire Detection: Adjustable modes and alarm output for early fire detection.
  • Night Vision: 30m IR illuminator ensures clear images in low-light conditions.
  • Connectivity: Features Alarm I/O and audio I/O for integrated security solutions.
  • Durability: IP67 rated for weather and dust resistance, ensuring reliable performance in harsh conditions.

Optimize your security with VIP Vision hybrid thermal cameras, designed for enhanced image clarity, accurate detection, and robust performance. Perfect for both residential and commercial applications.

Ethernet
RJ-45 (10/100 Base-T)
Housing
Full Metal Enclosure
Operating Conditions
-30° ~ +50° C / Less than 95% RH
Power Supply
12VDC / PoE
Ingress Protection
IP67
Vandal Resistance
N/A
Max. User Access
10 Users / 20 Users
Power Consumption
Video Compression
H.265; H.264M; H.264H; H.264B; MJEPG
Network Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Series
Hybrid Vision Thermal Series
Interoperability
ONVIF / CGI
Alarm Interface
1 Input / 1 Output
Camera Type
Turret
Max. Resolution
4.0 Megapixel
Field of View
Thermal: 50° Visible: 71°
Lighting Compensation
BLC / HLC / Digital WDR
Day/Night
Auto (ICR) / Color / B&W
Gain Control
Auto / Manual
Noise Reduction
3D DNR
White Balance
Auto / Natural / Street Lamp / Tracking / Outdoor / Manual
Audio Interface
1 Input, 1 Output (RCA) / Compression: G.711a, G.711Mu, AAC
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Infrared System
1 x Infrared LED, 30m range, Auto/manual on/off control
Intelligent Functions
Tripwire Rules, Intrusion Rules, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Min Illumination
0.05 Lux/F1.8 (Color), 0 Lux/F1.8 (IR on)
Picture Control
90° / 180° / 270°
Colour Palettes
18 thermal colour palettes (eg: WhiteHot, BlackHot, Rainbow etc.)
Image Settings
Digital Detail Enhancement, Auto Gain Control, 2D/3D Noise Reduction
Thermal Functions
Heat Detection & Alarm, Cold & Hot Spot Trace, Human & Vehicle Classification, Smoking Detection, Mobile Phone Use Detection
Aperture
Thermal: F1.0 Visible: F1.6
Focal Length
Thermal: 3.5mm Visible: 4.0mm
Close Focus Distance
Thermal: 0.5m Visible: 1.0m
Dimensions & Weight
122mm x 122mm x 112mm, 0.85kg
Effective pixel (Thermal)
256 (H) x 192 (V), 12μm Pixel Pitch
Effective pixel (Visible)
2336 (H) x 1752 (V)
Image Fusion Modes
Warm Colour, Cool Colour, Ironred
Image Sensor (Thermal)
Vanadium oxide uncooled focal plane detector
Image Sensor (Visible)
1/2.7’’ 4.0MP Progressive Scan CMOS
Range & Sensitivity
Range: 8~14um Sensitivity (NETD):
Resolution & Frame Rate (Main)
Thermal: 1280 x 960 to 256 x 192 at 1~25fps Visible: 4.0MP (2336 x 1752) ~ D1 (704 x 576) at 1~25fps
Resolution & Frame Rate (Sub)
Thermal: VGA (640 x 480) to 256 x 192 at 1~25fps Visible: 720p (1280 x 720) to CIF (352 x 288) at 1~25fps
