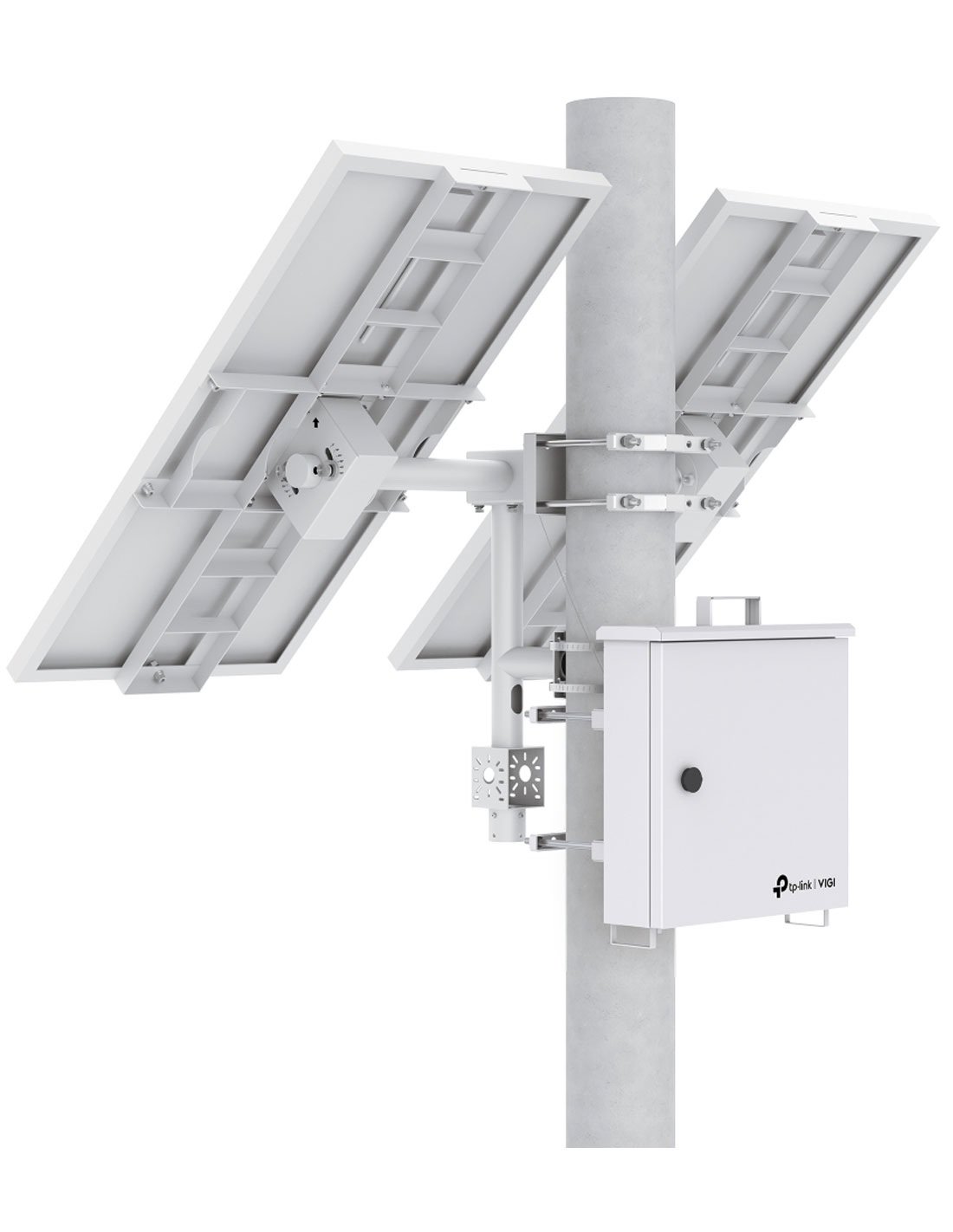

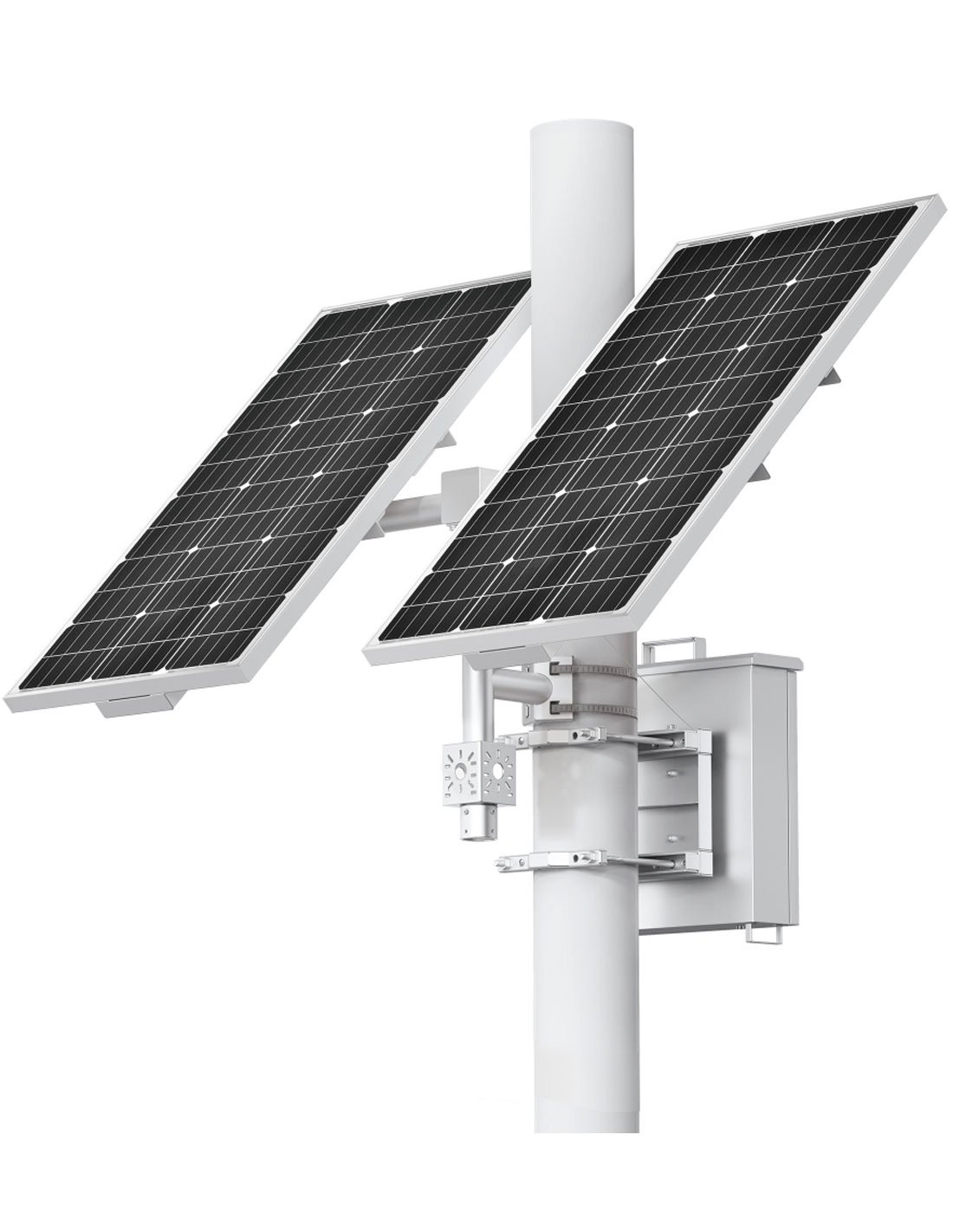

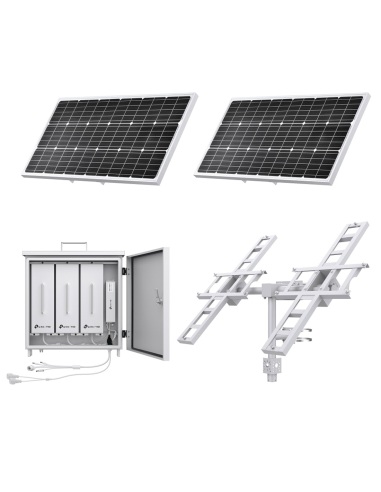

VIGI-SP18090 Intelligent Solar Power Supply System
Reliable Off-Grid Power for VIGI Surveillance Solutions
The VIGI SP18090 is an intelligent solar power supply system designed to provide a dependable and eco-friendly power solution, ensuring uninterrupted operation of VIGI cameras and related equipment. With its modular design and robust features, it's ideal for remote and off-grid surveillance applications.
Key Features & Benefits
- Dual 90W Photovoltaic Panels — totaling 180W for efficient solar energy capture.
- 93.6Ah Lithium Battery — provides reliable energy storage with intelligent auxiliary heating for cold environments.
- Maximum Power Point Tracking (MPPT) — ensures optimal charging efficiency.
- Three DC Output Ports — supports multiple devices with 9V–12.6V/2A and 12V/2A outputs.

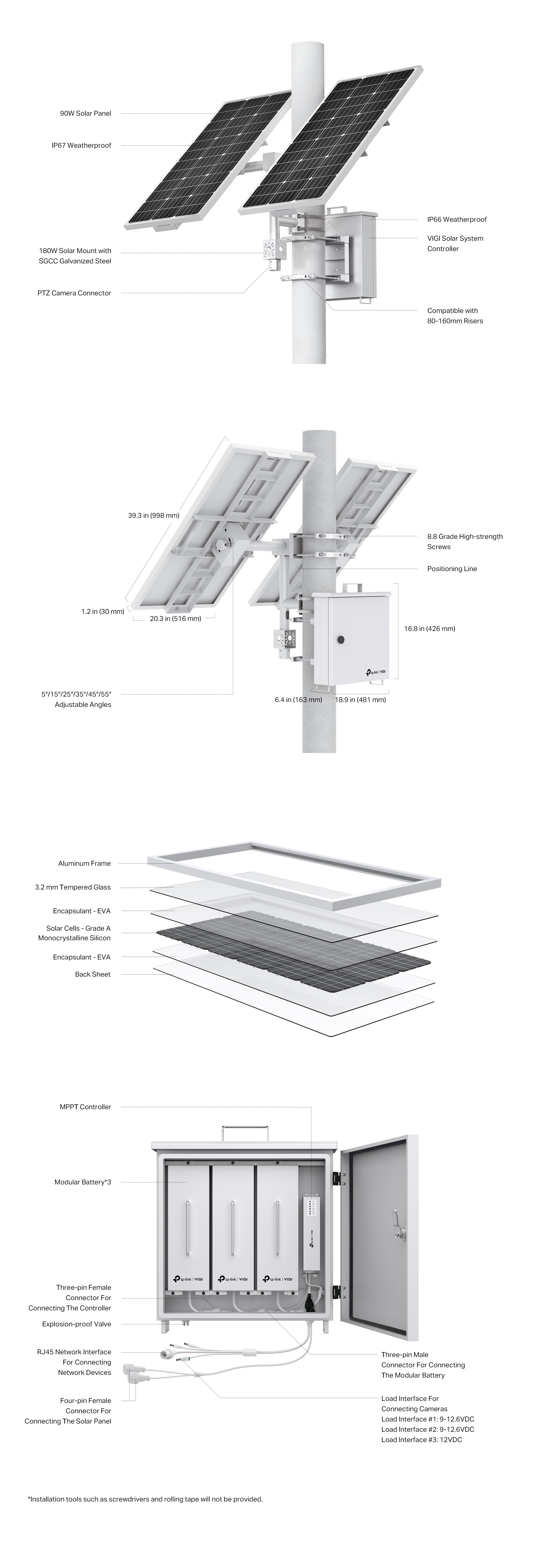

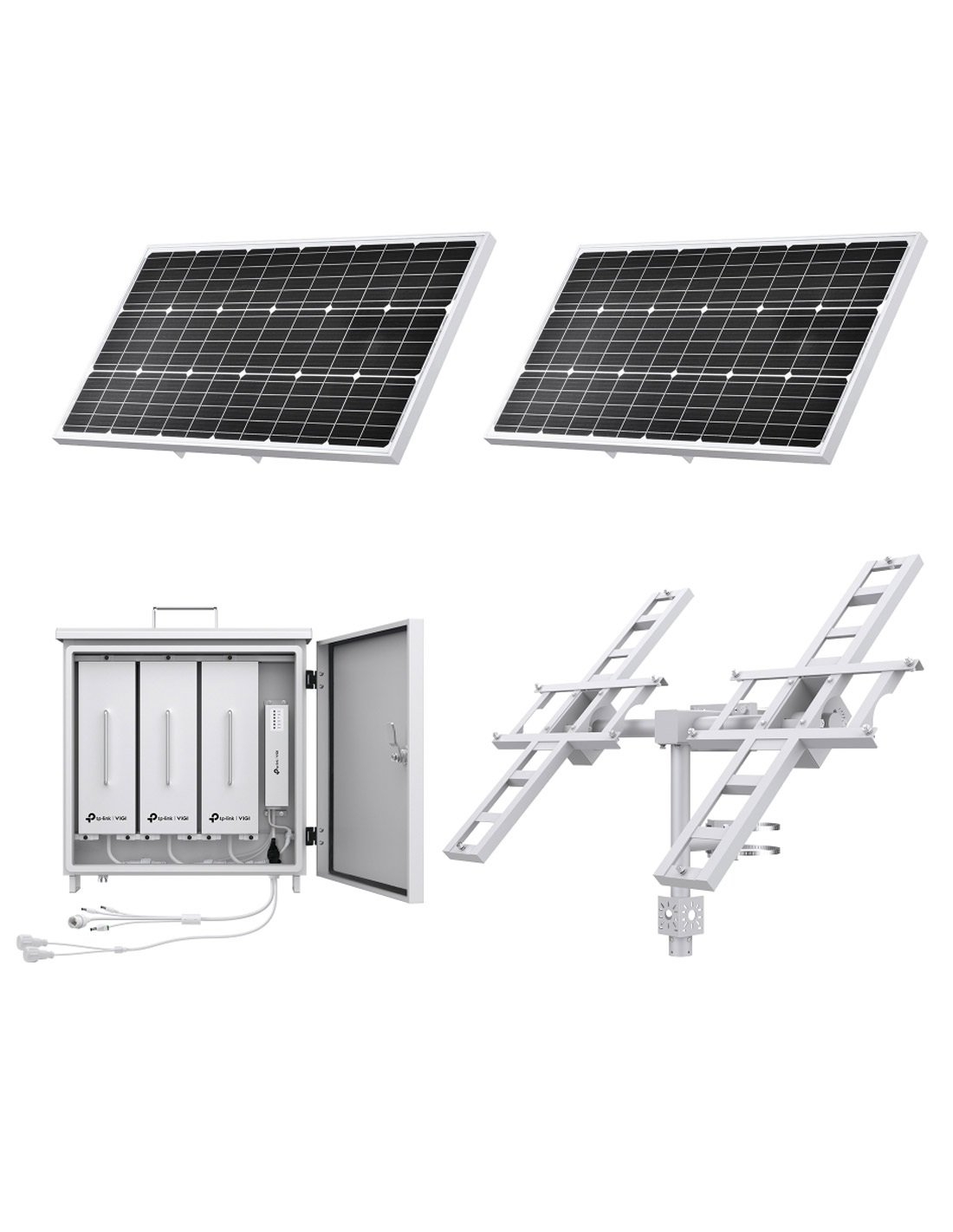

- Modular Design — allows for flexible configuration and easy maintenance.
- Adjustable Mounting Angles — 5° to 55° to maximize sunlight exposure.
- IP66 Weatherproof Rating — ensures durability in harsh outdoor conditions.
- Remote Management — monitor and control the system via VIGI app or Cloud VMS.
Eco-Friendly and Efficient
Reduce your carbon footprint while ensuring continuous power supply for your surveillance systems.
Ideal Applications
Remote Surveillance — perfect for areas without access to the power grid.
Construction Sites — provides temporary power solutions for site monitoring.
Farms and Rural Areas — ensures security in agricultural settings.
Public Parks and Reserves — maintains surveillance in environmentally sensitive areas.
.jpg)
Quick Specs
| Solar Panel Power |
180W (2×90W) |
| Battery Capacity |
93.6Ah/10.95V |
| Output Ports |
3× DC (9V–12.6V/2A, 12V/2A) |
| Operating Temperature |
-30°C to 60°C |
| Weatherproof Rating |
IP66 (System), IP67 (Solar Panel) |
| Management |
Remote via VIGI App/Cloud VMS |
Ensure Continuous Surveillance — with the VIGI SP18090, maintain reliable power supply for your security systems, even in the most remote locations.
