TP-Link VIGI 4MP Outdoor 4G Full-Colour Pan Tilt Security Camera – Model VIGI-C540-4G
$190.50 inc GST
TP-Link VIGI C540-4G 4MP full-colour pan-tilt camera with a built-in 4G modem, for sites with no internet or network cable.
- ✓4G LTE Cat 4 with a Nano-SIM (SIM not included)
- ✓4MP (2560 × 1440), 4 mm F1.6 lens, 80° view
- ✓Pan 348°, tilt 120°, 300 presets, auto tracking
- ✓Colour night vision to 30 m, or infrared to 30 m
- ✓Two-way audio, audible warning and flashing light
- ✓microSD up to 512GB · 12 V adapter included · IP66
- ✓Solar ready with VIGI SP6020 / SP6030 · 3-year TP-Link Australia warranty, handled through InFront Technologies.
TP-Link VIGI · 4MP full-colour 4G pan-tilt
A pan-tilt camera on 4G.
No NBN or network cable needed.
The TP-Link VIGI C540-4G is a 4MP outdoor pan-tilt camera with its own 4G modem. Put a data Nano-SIM in it, power it from a 12 V supply or a VIGI solar system, and watch it from the VIGI app. It pans 348°, tilts 120°, tracks people and vehicles, and sees in colour at night.
In one sentence: the VIGI C540-4G is a 4MP full-colour pan-tilt camera that connects over 4G with a Nano-SIM, records to microSD, and suits sites with no internet such as farms, building sites and holiday homes.
Camera and power adapter included. SIM and memory card are not.
The C540-4G runs on 12 V DC. Use the supplied power adapter where there is a power point, or pair it with a VIGI SP6020 or SP6030 solar system for sites with no power.
In the box
- TP-Link VIGI C540-4G camera with two antennas
- 12 V DC power adapter
- Mounting accessories
- Waterproof cable attachments
- Quick start guide
You also need
- A 4G data Nano-SIM with coverage at the site
- A microSD card, up to 512GB, to record on the camera
- Power: a power point for the adapter, or a VIGI solar system
- A pole bracket or junction box, if mounting on a pole
For the places a cable won’t reach.
There is no network cable to run and no internet service to connect. Footage records to a microSD card in the camera, and you watch live, play back and get alerts over 4G in the VIGI app or VIGI Security Manager. If a network is handy, the Ethernet port connects it by cable instead.
Why people buy it
Why people choose the C540-4G.
Online anywhere with 4G
LTE Cat 4 on the bands Australian carriers use, through two external antennas. Insert a Nano-SIM and it connects.
One camera, many views
Pan 348° and tilt 120°, with up to 300 presets and 8 patrol routes, so one camera can cover a yard, a gate and a shed.
Follows what moves
Auto tracking turns the camera to follow a person or vehicle, so you get one longer clip instead of someone walking out of frame.
Colour after dark
Two white LEDs light the scene to 30 m for colour video, or switch to the two infrared LEDs for black and white.
Talk and warn
Two-way audio through the built-in microphone and speaker, plus an audible warning and flashing white light when a rule is triggered.
Solar ready
Runs on 12 V DC, so it pairs with TP-Link’s VIGI SP6020 and SP6030 solar systems for sites with no power at all.
Full-colour night vision
Colour at night, or infrared if you prefer.
Two white LEDs light the scene to 30 m and the sensor holds colour down to 0.005 lux. Switch to the two 850 nm infrared LEDs, also 30 m, when you would rather not light the area up. Set the lights to auto, a schedule, always on or off.
4G
Nano-SIM in, and it is online.
LTE Cat 4 on FDD bands 1, 3, 5, 7, 8, 20 and 28 and TDD bands 38, 40 and 41. The main stream runs from 256 Kbps to 3 Mbps with H.265+, so you can set how much data it uses. Recording to the microSD card uses no mobile data.
Pan, tilt and auto tracking
It turns to follow them.
Pan 0–348° and tilt 0–120° at up to 44° a second. Save up to 300 presets and 8 patrols of up to 8 presets each, or let auto tracking follow a person or vehicle. After a power cut it returns to where it was.
How it goes in
From the box to the first alert.
01
Check the signal
Test 4G coverage where the camera will go, using your SIM in a phone. Pick a spot about 3 m or higher with a clear view.
02
Mount it
Fix the bracket to a wall or overhead, or use a VMB-350 bracket on a pole. Fit the two antennas.
03

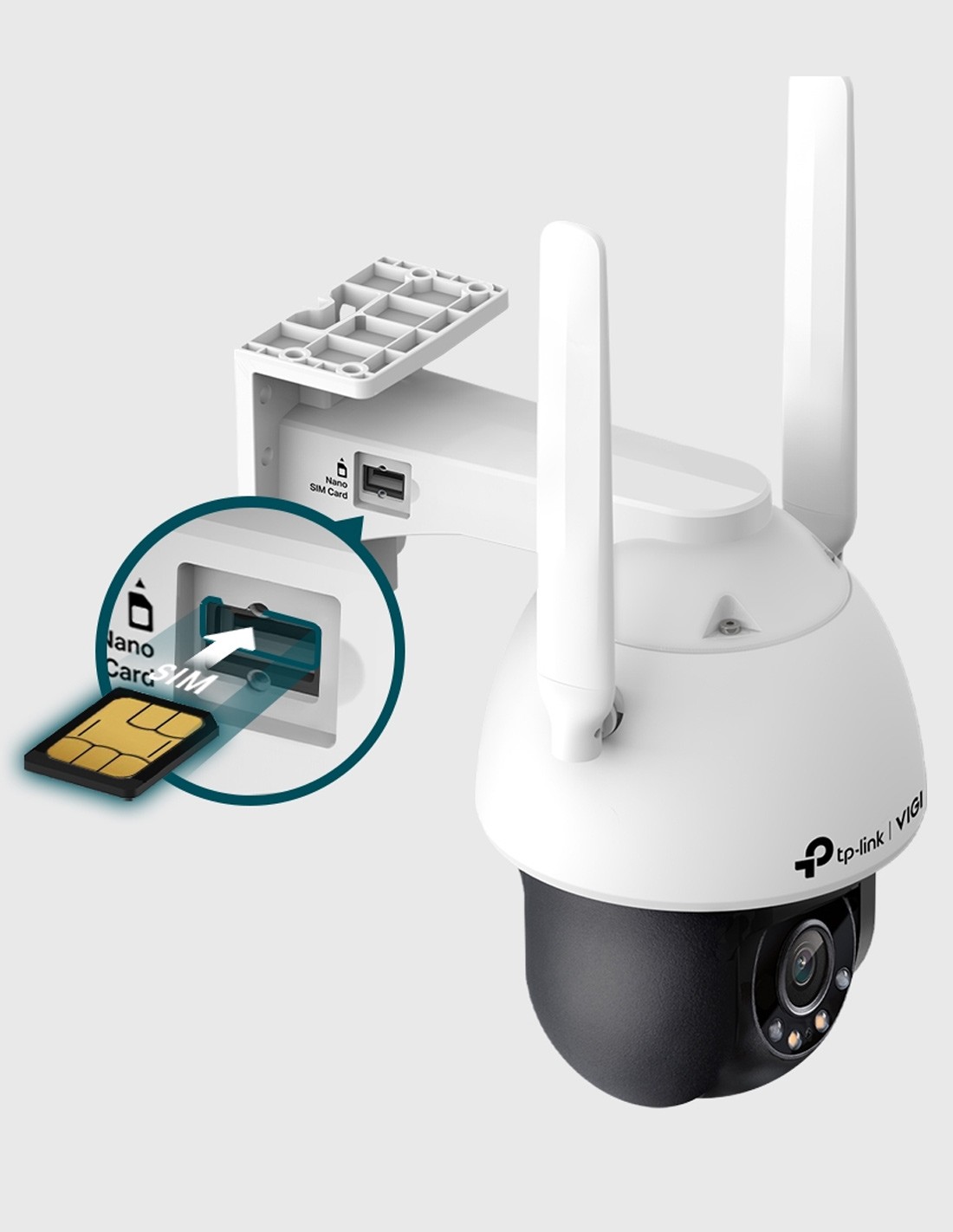

SIM, card and power
Fit the Nano-SIM and a microSD card in the camera, then connect the 12 V power adapter or a VIGI solar system.
04
Add it to the app
Add the camera in the VIGI app, set presets and detection areas for people and vehicles, and turn on alerts.
At a glance
VIGI-C540-4G
Show specs
Model
VIGI C540-4G (4 mm)
Resolution
4MP, 2560 × 1440
Image sensor
1/3.06" progressive scan CMOS
Lens
4 mm F1.6, fixed. 80° horizontal, 43° vertical, 94° diagonal
Pan and tilt
Pan 0–348°, tilt 0–120°, 8–44°/s
Presets and patrols
300 presets, 8 patrols of up to 8 presets, auto tracking
Night vision
2 white LEDs to 30 m (colour), 2 IR LEDs 850 nm to 30 m
Compression
H.265+ / H.265 / H.264+ / H.264, main stream 256 Kbps–3 Mbps
Smart detection
Human and vehicle classification, intrusion, line crossing, region entering and exiting, object left or removed, abnormal sound, tampering
Audio and deterrence
Two-way audio, audible warning, flashing white light
Mobile network
4G LTE Cat 4, Nano-SIM. FDD B1/3/5/7/8/20/28, TDD B38/40/41
Storage
microSD up to 512GB (card not included)
Apps
VIGI app, VIGI Security Manager, web browser, cloud, ONVIF Profile S; VIGI NVR for local management only
Power
12 V DC 1 A, 5.5 mm plug (adapter included)
Network
1 × RJ45 10/100 (no PoE)

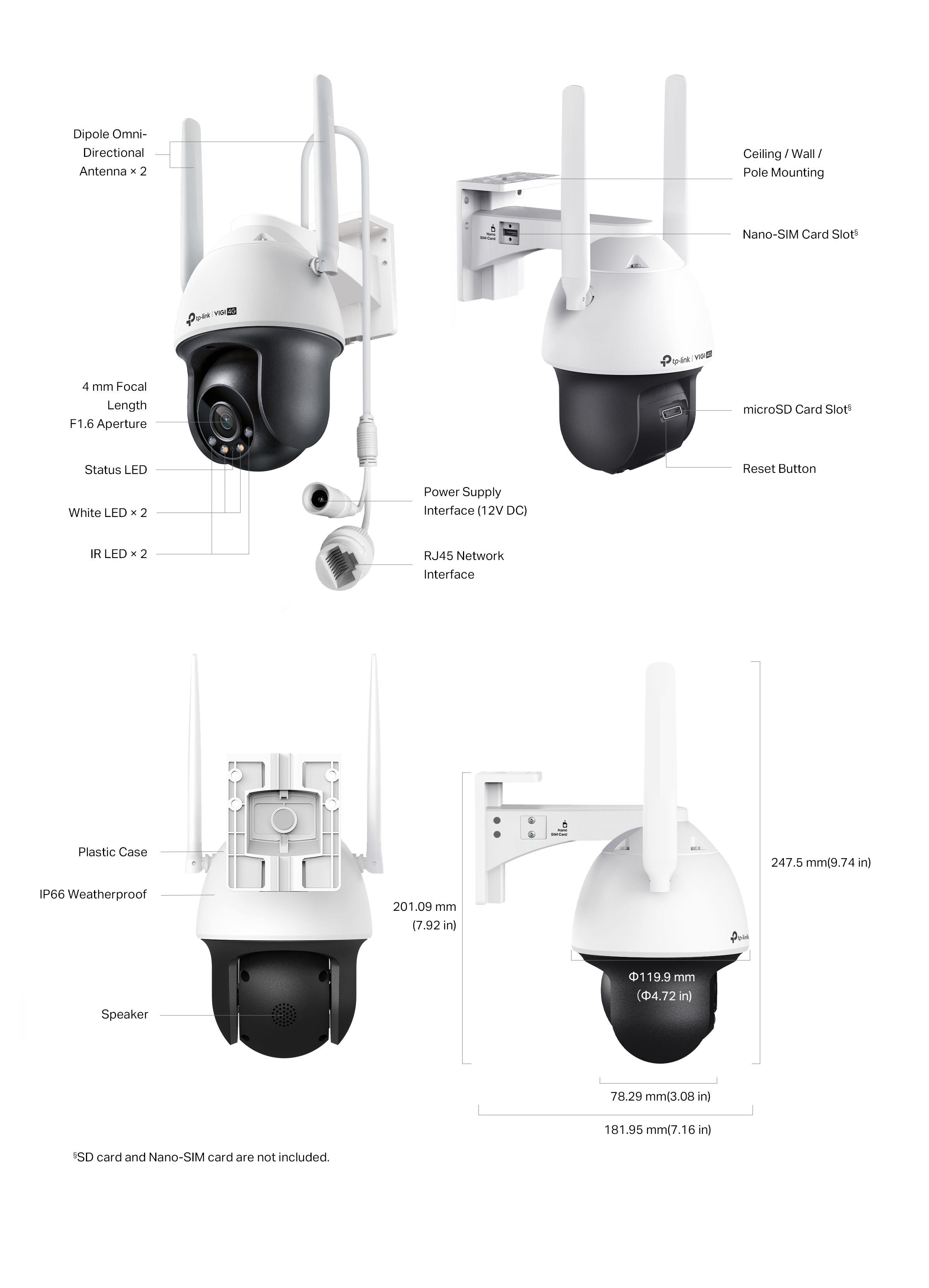

Body
Plastic, IP66, −30 °C to 60 °C, 120 × 182 × 201 mm without antennas, 0.69 kg
Warranty
3-year TP-Link Australia warranty, handled through InFront Technologies.
Pair it with
Make it work off the grid.
Solar
C540-4G-SP6020 kit
This camera with a 60 W panel and 20.8Ah battery, rated 4.3 days without sun.
Solar
C540-4G-SP6030 kit
The same panel with a 31.2Ah battery, rated 6.4 days without sun.
Mounting
VMB-350 pole bracket
Straps the camera to a round pole of 70 to 130 mm.
Storage
High-endurance microSD
Up to 512GB in the camera. Our SanDisk High Endurance cards suit continuous recording.
Where it is used
Where the C540-4G fits best.
Farms and sheds
Watch a gate, machinery shed or fuel tank a long way from the house network.
Building sites
Up on a pole before the internet is connected, and moved when the job moves.
Holiday homes
Check an empty property without paying for a home internet service.
Depots and yards
Cover a laydown yard or car park where trenching a cable is not worth it.
Camera only, or a solar kit?
| C540-4G (this camera) | C540-4G-SP6020 kit | C540-4G-SP6030 kit | |
|---|---|---|---|
| Power | 12 V adapter (included) | 60 W solar panel | 60 W solar panel |
| Battery | — | 10.8 V 20.8Ah | 10.8 V 31.2Ah |
| Running with no sun* | — | 4.3 days | 6.4 days |
| Needs a power point | Yes, or your own 12 V supply | No | No |
| Best for | Sites with power but no internet | Sunny sites with no power | Shaded or cloudy sites with no power |
All three use the same VIGI C540-4G camera. *TP-Link’s modelled figures for one C540-4G; season, shade and panel angle change real results.
Common questions
Does it need an internet connection?
No. It connects over 4G with a Nano-SIM. It needs 4G coverage at the site to stream live, play back remotely or send alerts.
Is a SIM card included?
No. Use a 4G data Nano-SIM from a carrier with coverage at the site. The memory card is not included either.
Which mobile bands does it support?
LTE Cat 4 on FDD bands 1, 3, 5, 7, 8, 20 and 28, and TDD bands 38, 40 and 41. It also lists WCDMA bands 1, 5 and 8, but Australian 3G networks have closed, so use a 4G plan.
Does it need a power point?
It runs on 12 V DC, 1 A. Use the supplied adapter from a power point, or a VIGI SP6020 or SP6030 solar system where there is no power. It is not powered by PoE.
Does it keep recording if the 4G drops?
Yes, to a microSD card in the camera, up to 512GB. You need 4G coverage to watch live, play back remotely or get alerts.
How much mobile data does it use?
It uses data when you watch live, play back remotely or receive alerts. Recording to the microSD card uses none. The main stream bit rate is adjustable from 256 Kbps to 3 Mbps, with H.265+ compression.
How far does it pan and tilt?
Pan is 0° to 348° and tilt is 0° to 120°. It stores 300 presets and 8 patrols, and auto tracking can follow a person or vehicle. The lens is a fixed 4 mm with an 80° horizontal view; there is no optical zoom.
Can it see in colour at night?
Yes. Two white LEDs light the scene to 30 m for colour video, down to 0.005 lux. It can also use two 850 nm infrared LEDs to 30 m for black-and-white night video.
Can I talk to people through it?
Yes. It has a built-in microphone and speaker for two-way audio, and it can sound an audible warning and flash its white light when it detects someone.
Will it work with a VIGI NVR?
TP-Link lists VIGI NVRs for local management only, over the Ethernet port. Over 4G it is designed to record to its own microSD card and be viewed in the VIGI app or VIGI Security Manager.
Can it go on a pole?
Yes. It mounts on a wall or overhead with the supplied bracket, and TP-Link lists the VMB-350 bracket for poles of 70 to 130 mm and the VJB-300 junction box. It is rated IP66.
What warranty do I get?
3-year TP-Link Australia warranty, handled through InFront Technologies. Contact us first and we will look after any claim.
Supported by Infront Technologies.
Need help choosing a SIM plan, a solar kit or the right spot for coverage? Call 1300 736 970 or email [email protected]. Australian stock, local technical support, trade welcome.
Installation and safety
Power. The supplied adapter plugs into a standard power point. A new outdoor power point must be installed by a licensed electrician; the 12 V cable to the camera is extra-low voltage.
Working at height. Use a stable ladder or the right access equipment, and have someone with you when mounting a camera under eaves or on a pole.
Privacy and audio. Aim cameras at your own property. Recording conversations is covered by state surveillance laws, so check the rules for your state before turning on the microphone.
- Dimensions
- 120 × 182 × 201 mm (without antennas), 0.69 kg
- Audio
- Two-way (built-in microphone and speaker)
- Operating temperature
- −30 °C to 60 °C
- Power
- 12 V DC 1 A (adapter included)
- Video Compression
- H.265+ / H.265 / H.264+ / H.264
- Resolution
- 4MP (2560 × 1440)
- Brand
- TP-Link
- IP Rating
- IP66
- Interoperability
- ONVIF Profile S
- Image Sensor
- 1/3.06" progressive scan CMOS
- Lens
- 4 mm fixed, F1.6
- Field of View
- 80° horizontal
- Presets
- 300 presets, 8 patrols
- Auto Tracking
- Yes, people and vehicles
- Network Interface
- 1 × RJ45 10/100
- Active Deterrence
- Audible warning, flashing white light
- Product Type
- 4G pan-tilt IP camera, 4MP full-colour
- Onboard Storage
- microSD up to 512GB
- Model
- VIGI C540-4G (4 mm)
- Smart detection
- Human and vehicle classification, intrusion, line crossing, region entering and exiting, object left or removed
- Night Vision
- Full colour (2 white LEDs, 30 m) or IR (2 LEDs, 30 m)
- Pan / Tilt
- Pan 0–348°, tilt 0–120°
- Mobile Network
- 4G LTE Cat 4, Nano-SIM
In Stock - Ready to Ship
In Stock - Ready to Ship
In Stock - Ready to Ship
TP-Link Solar Camera Kits
TP-Link VIGI 4MP Full-Colour 4G Pan Tilt Network Camera 60W/10.8V 31.2Ah Solar System -...
- On sale!
- -20%
In Stock - Ready to Ship
TP-Link Solar Camera Kits
TP-Link VIGI 4G Solar Security Camera Kit, Farms, Sites & Remote Properties, 4MP Pan...
$ 710.40 $ 888.00
Sale ends Thu 31 Dec
In Stock - Ready to Ship
TP-Link Surveillance Accessories
TP-Link VIGI 60W 10.8V Lithium Battery Intelligent Solar Power Supply System - VIGI-SP6020
In Stock - Ready to Ship
TP-Link Surveillance Accessories
TP-Link VIGI 60W 10.8V Lithium Battery Intelligent Solar Power Supply System - VIGI-SP6030
In Stock - Ready to Ship
TP-Link Surveillance Accessories
TP-Link VIGI 90W 10.8V Lithium Battery Intelligent Solar Power Supply System - VIGI-SP9030
| Category | Specification |
|---|---|
| CAMERA | |
| Image Sensor | 1/3.06” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94° |
| Lens Mount | M12*0.5 |
| DORI Distance | Detect: 80 m (262 ft)Observe: 33 m (109 ft)Recognize: 16 m (52 ft)Identify: 8 m (26 ft) |
| ILLUMINATOR | |
| IR LED | • Quantity: 2• Range: 30m• Wavelength: 850nm |
| White LED | • Quantity: 2• Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2560 X 1440 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution: 640x480, 352x288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 3 Mbps• Sub-Stream: 64 Kbps to 512 Kbps |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card§, Up to 512 GB |
| Built-in Nano-SIM Card Slot | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories• Power Adapter |
| Material | Plastic |
| Net Weight | 0.69 Kg |
| Gross Weight | 1.16 Kg |
| Power Supply | 12V DC/1A, 5.5mm Coaxial Power Plug |
| Antenna | • Quantity: 2• Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna• Gain:Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHzAnt2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 182 × 201 mm (excluding antennas) |
| Certifications | CE, RCM, BSMI, RoHS, NCC |
