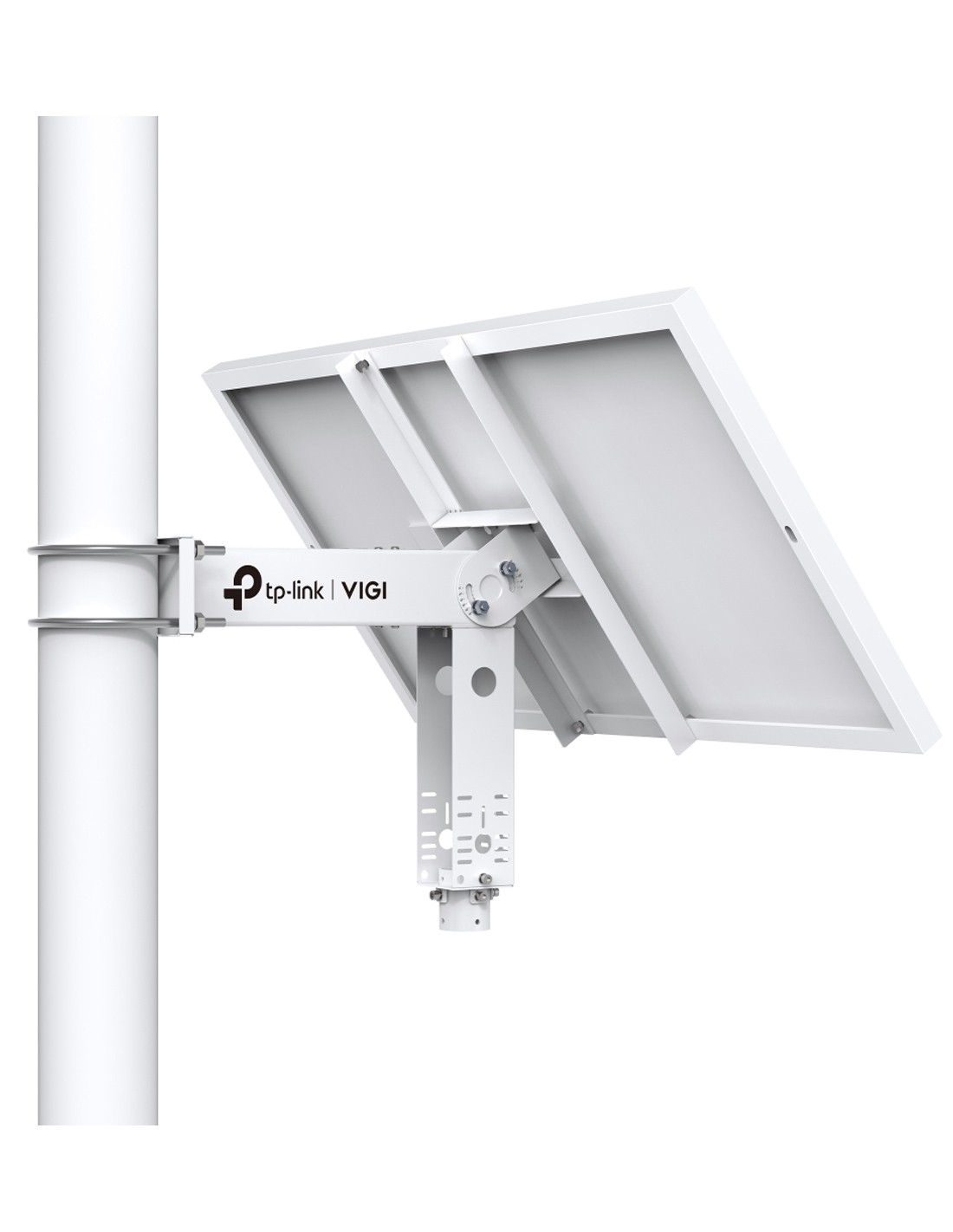

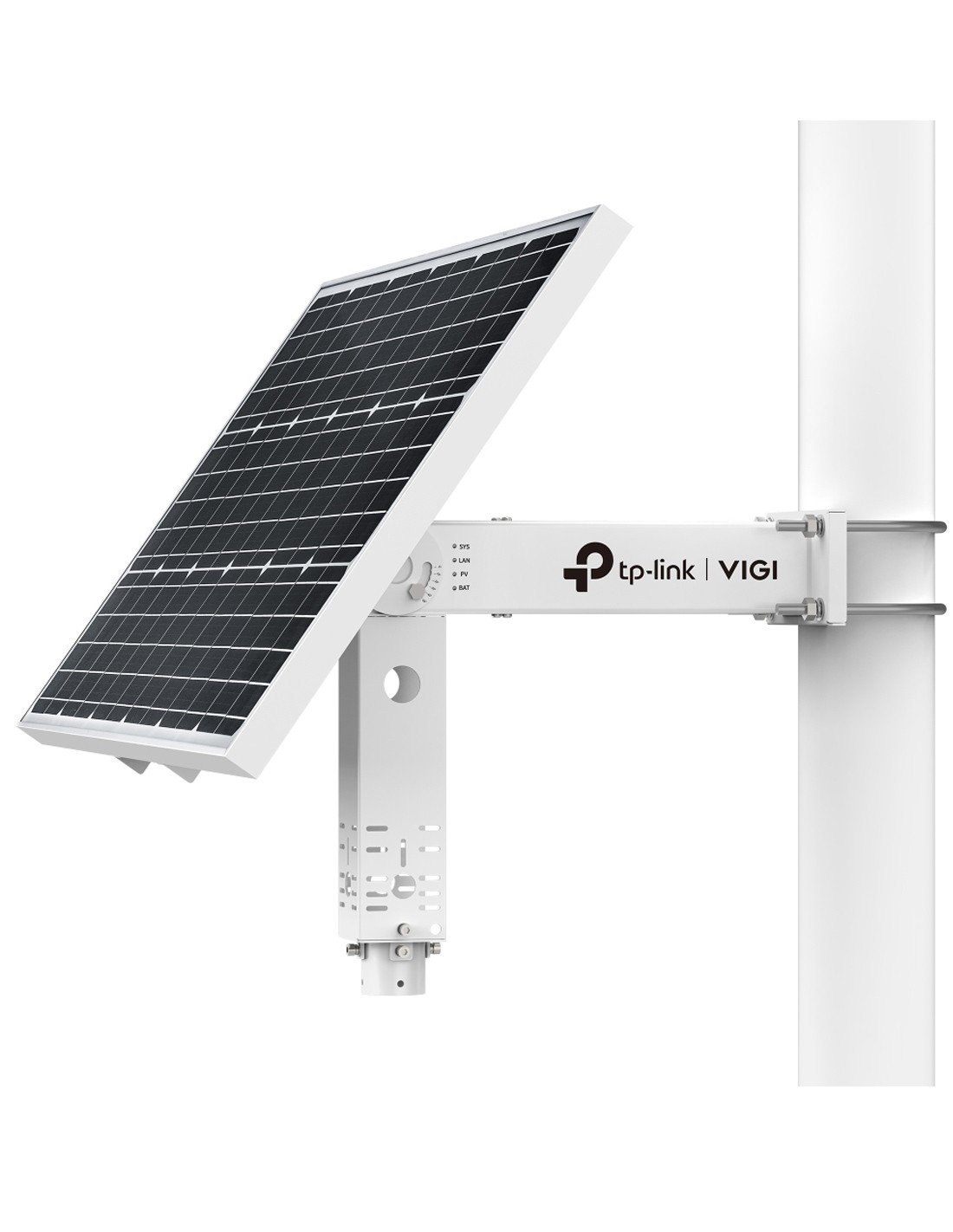

TP-Link VIGI-SP6030 • 60 W Solar Panel + 31.2 Ah Li-Ion Battery
Intelligent Outdoor Power Supply System | IP 66 Weatherproof

Key Features

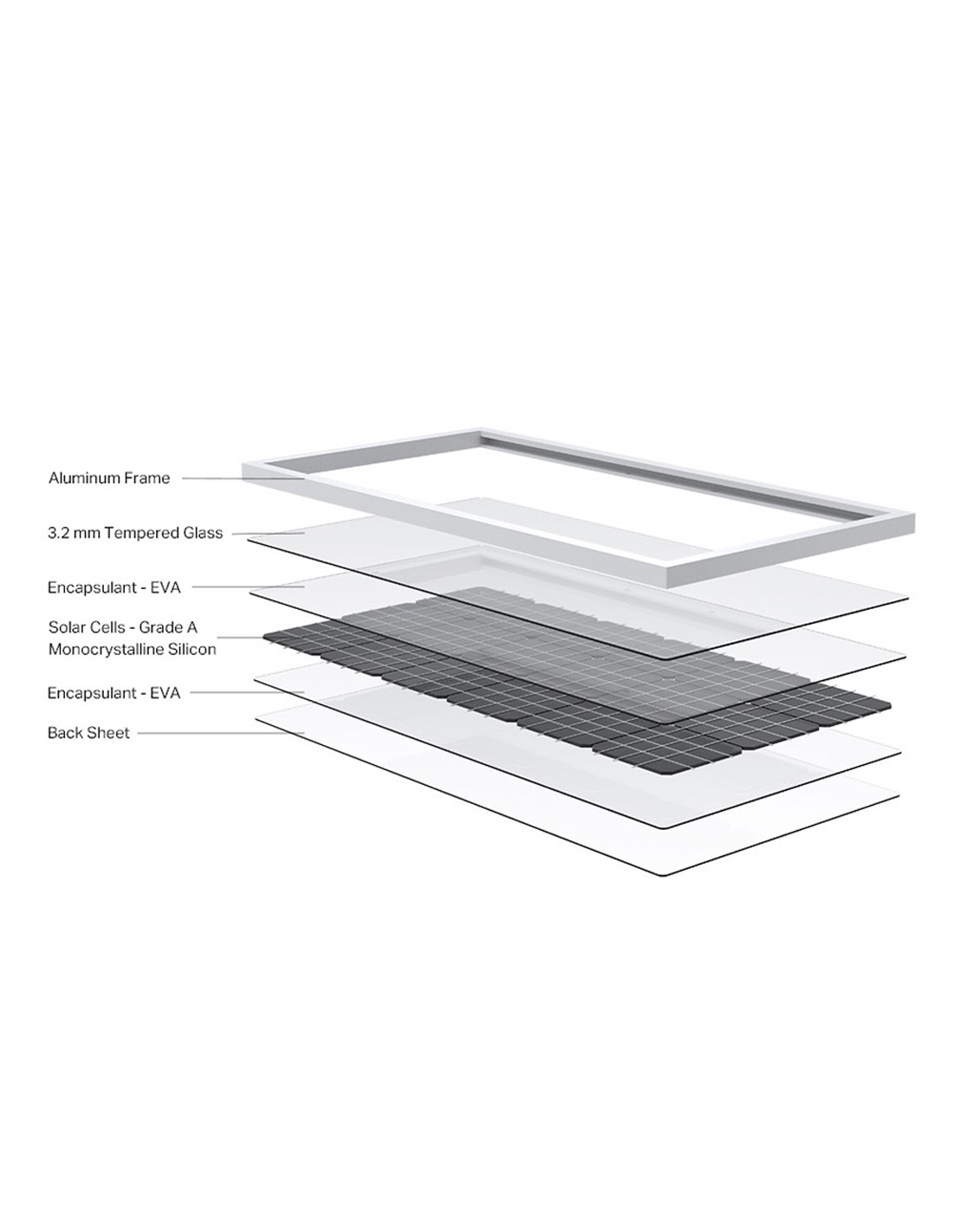

- 60 W High-Efficiency PV Panel delivers sustainable power even on cloudy days.
- 31.2 Ah / 10.8 V Li-Ion Battery supplies up to 5 days* of back-up power.
- 3 × DC Output Ports – drive cameras, wireless bridges or other 12 V gear.
- MPPT Smart Charger maximises harvest & extends battery life.
- Intelligent Auxiliary Heating keeps cells above 0 °C for reliable winter charging.

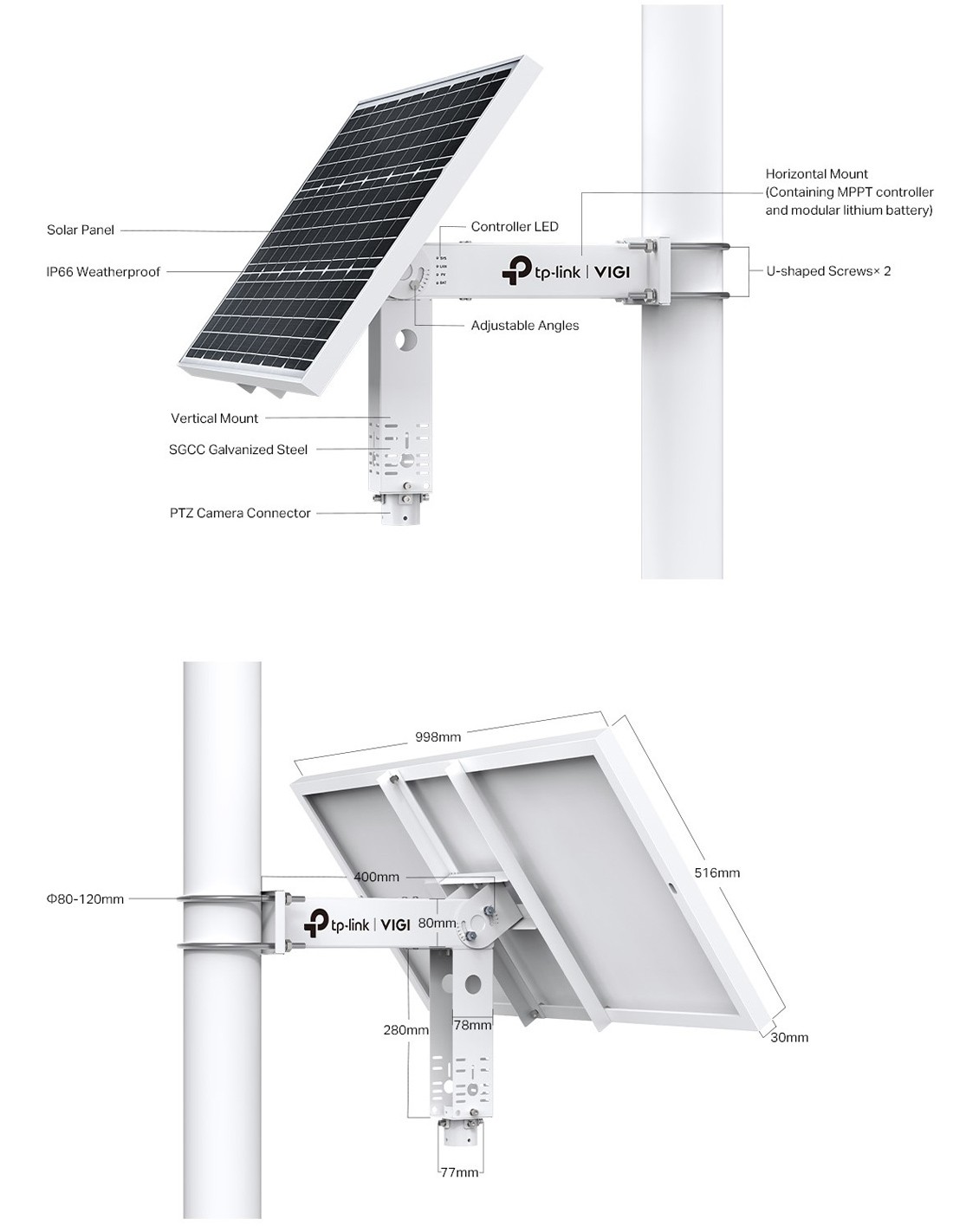

- Adjustable Bracket – 5°, 15°, 25°, 35°, 45°, 55° tilt angles for all latitudes.
- Modular Build – panel, battery & bracket ship separately for easier handling.
- Remote Management – monitor volts, amps & temperature, push low-battery alerts, update FW.
- Rugged IP 66 Aluminium Enclosure – dust-tight & storm-proof.
- 3-Year Warranty from TP-Link Australia.
Real-World Applications
- Remote gates & rural driveways where mains power is unavailable
- Construction & mining sites requiring temporary surveillance
- Farms, orchards & livestock paddocks for 4 G or point-to-point camera setups
- National parks & wildlife observation posts
- Outdoor events, festivals & car-park security
- Critical infrastructure back-up power for routers / bridges during grid outages
Typical System Combinations

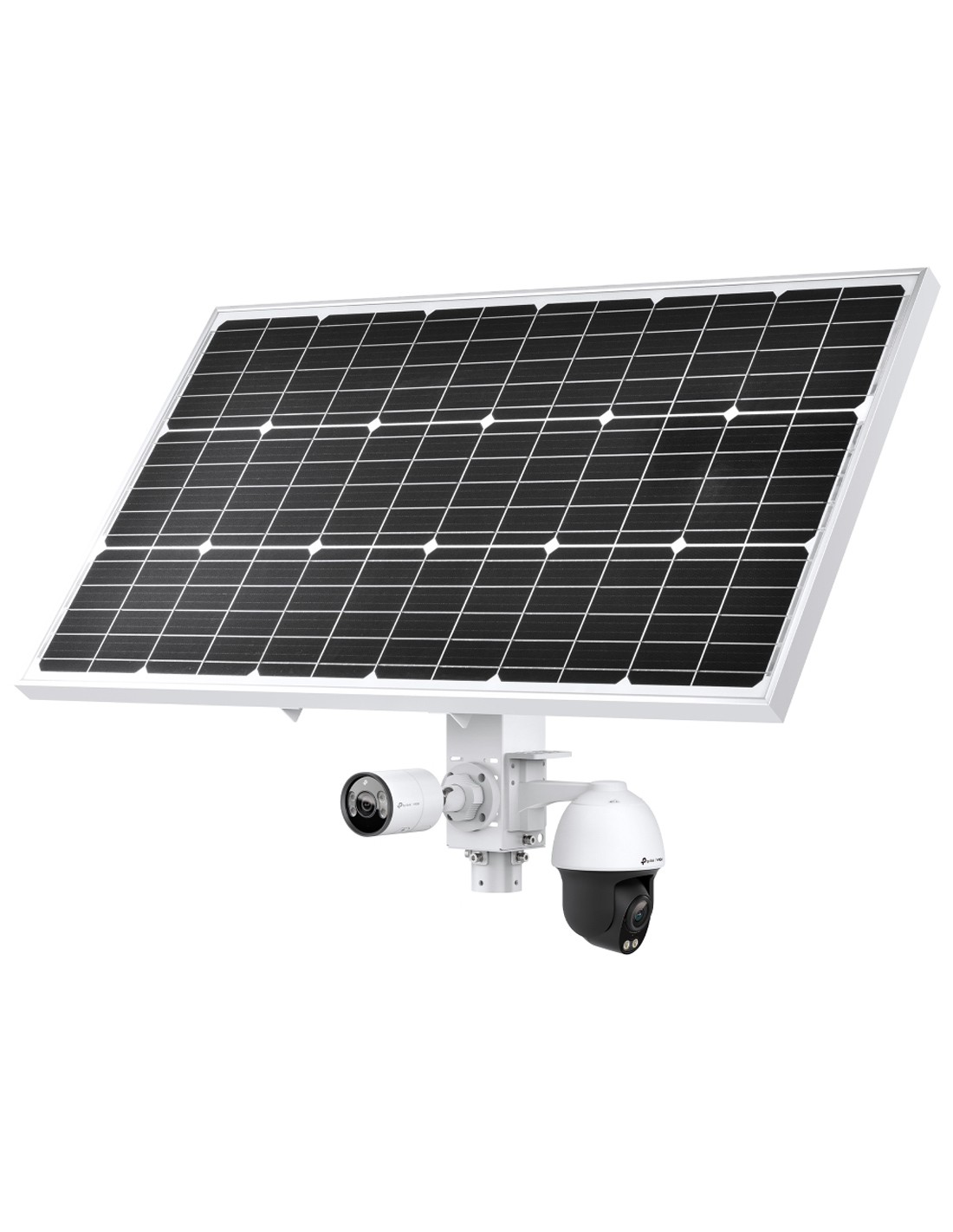

VIGI-SP6030 | 4 G Cameras

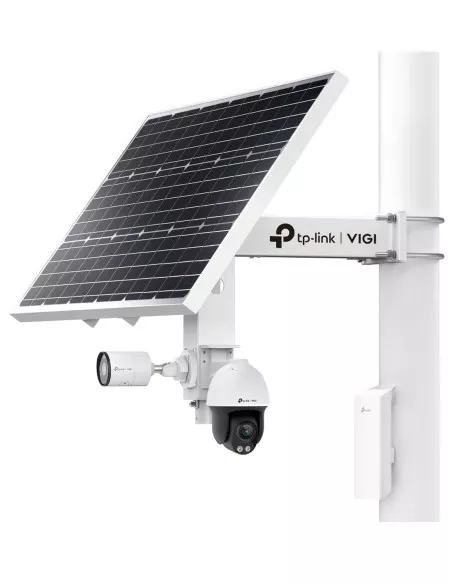

VIGI-SP6030 | Wireless Bridge & Bullet Cameras

Remote Management Snapshots



Specification |
Details |
Panel Output |
60 W @ 18 V DC (22 % efficiency) |
Battery Capacity |
31.2 Ah @ 10.8 V (337 Wh) |
DC Outputs |
3 × 12 V DC screw terminals |
Charging Controller |
MPPT + Temperature-compensated charge algorithms |
Operating Temp |
–30 °C to +60 °C (battery heater auto-activates < 0 °C) |
Bracket Tilt |
5° 15° 25° 35° 45° 55° presets |
Weather Rating |
IP 66 (dust-tight & high-pressure water jets) |
Dimensions (Panel) |
845 × 560 × 30 mm |
Warranty |
3 Years (panel, battery & controller) |
