VIP Vision Professional AI Series 4MP Fixed VSIPP-4DIRD-I3

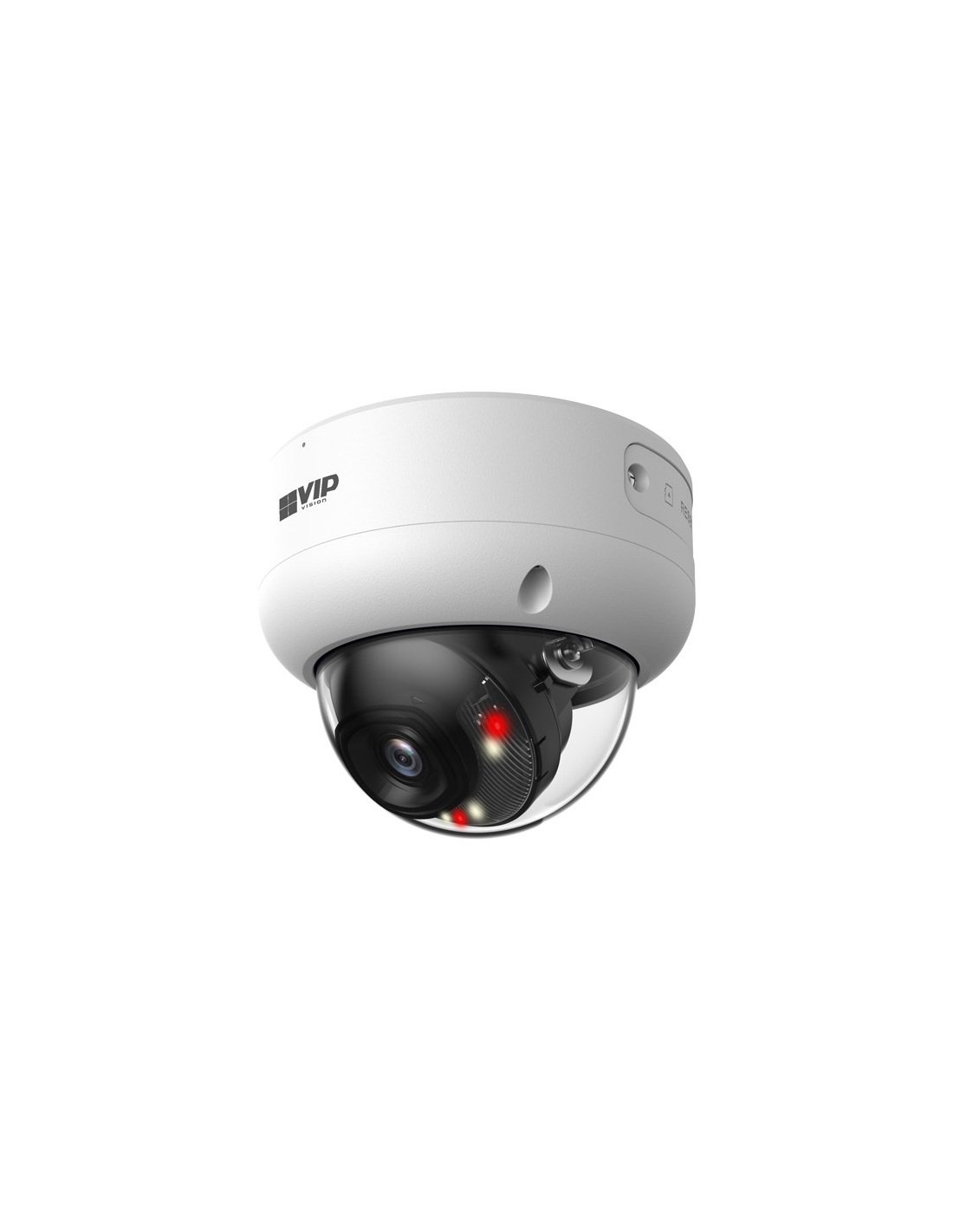

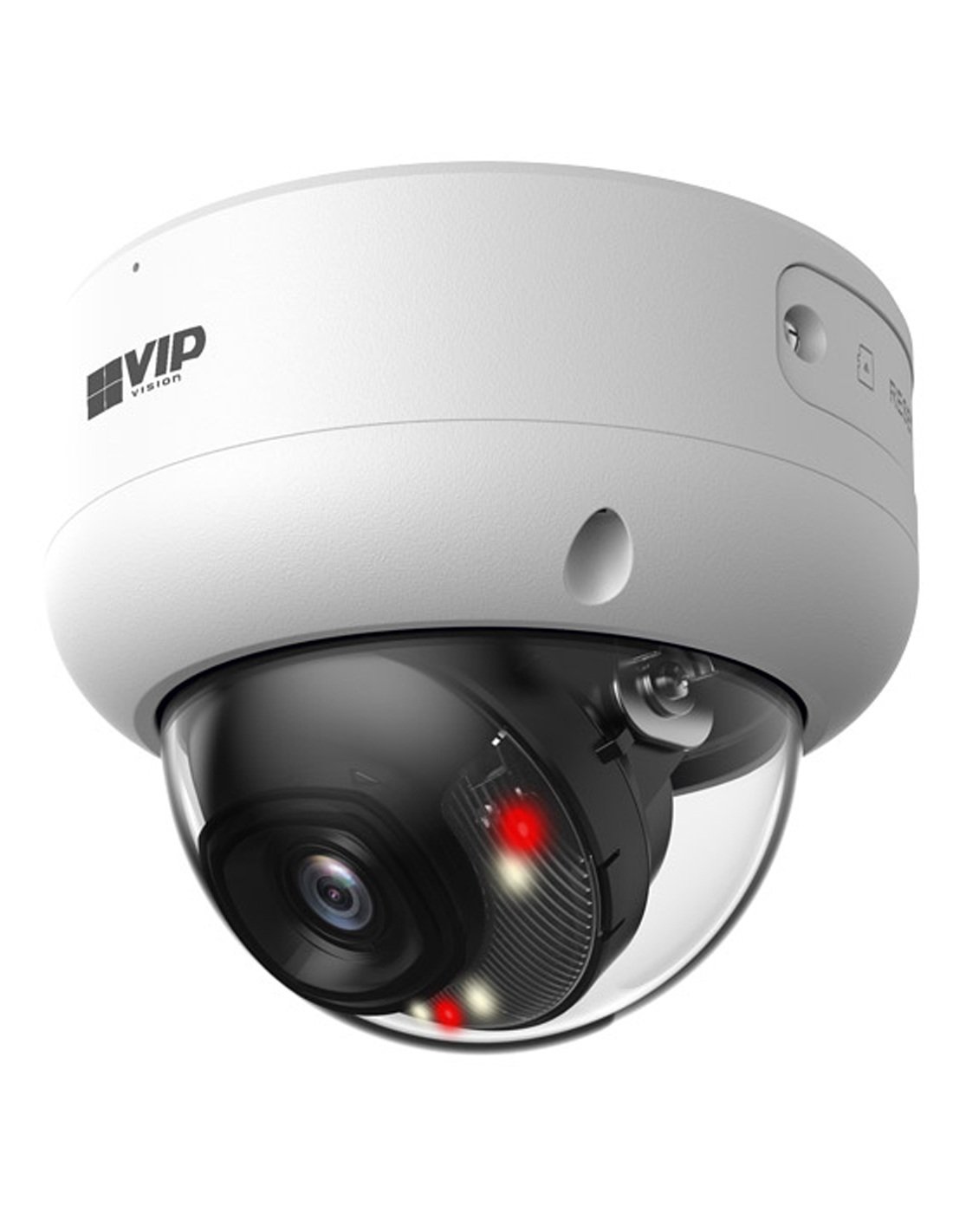

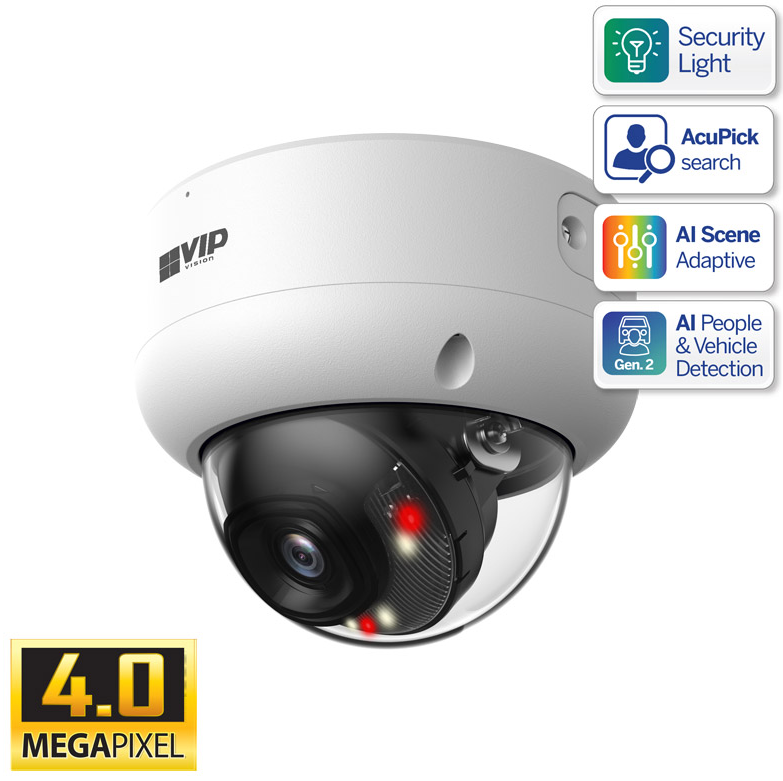

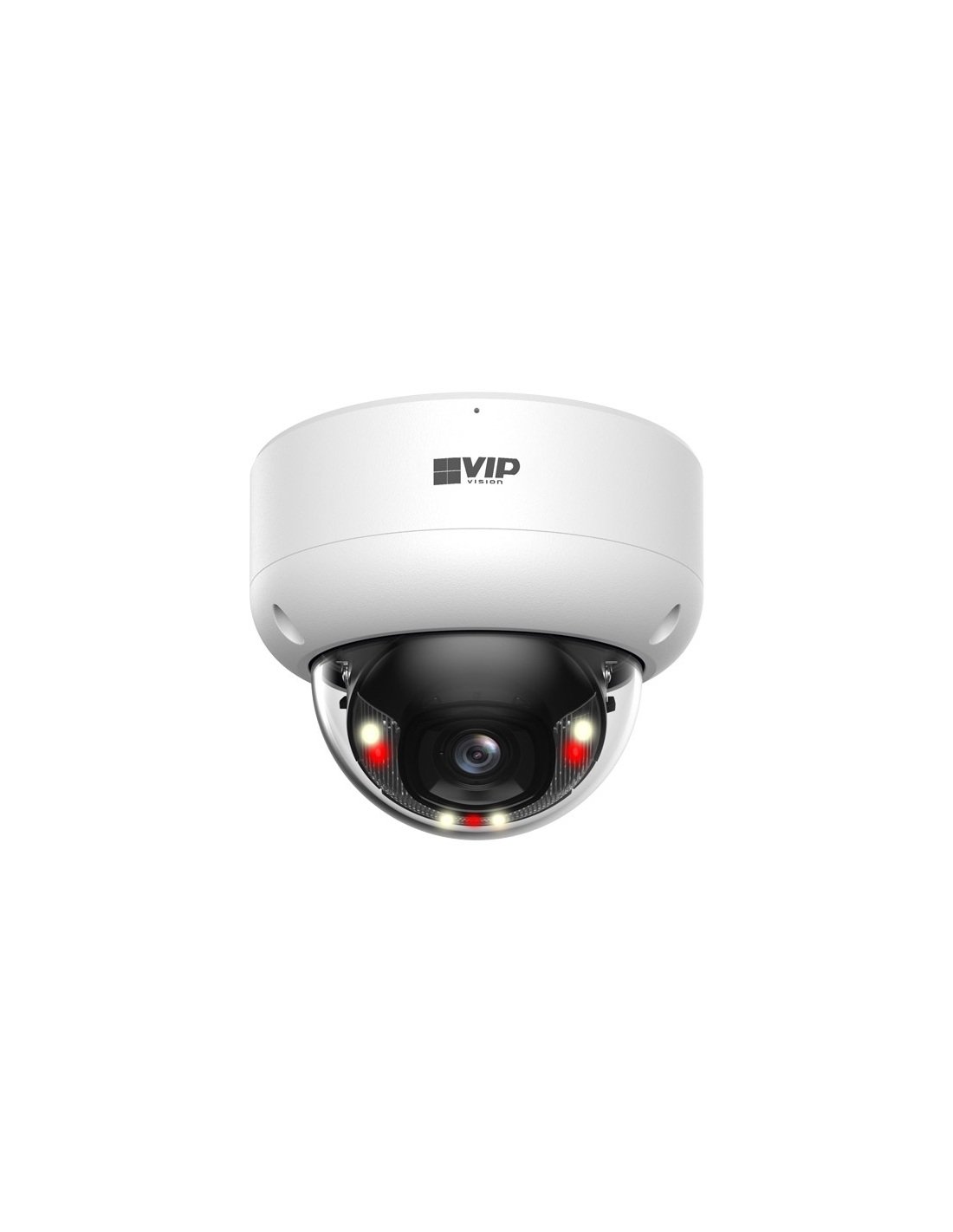

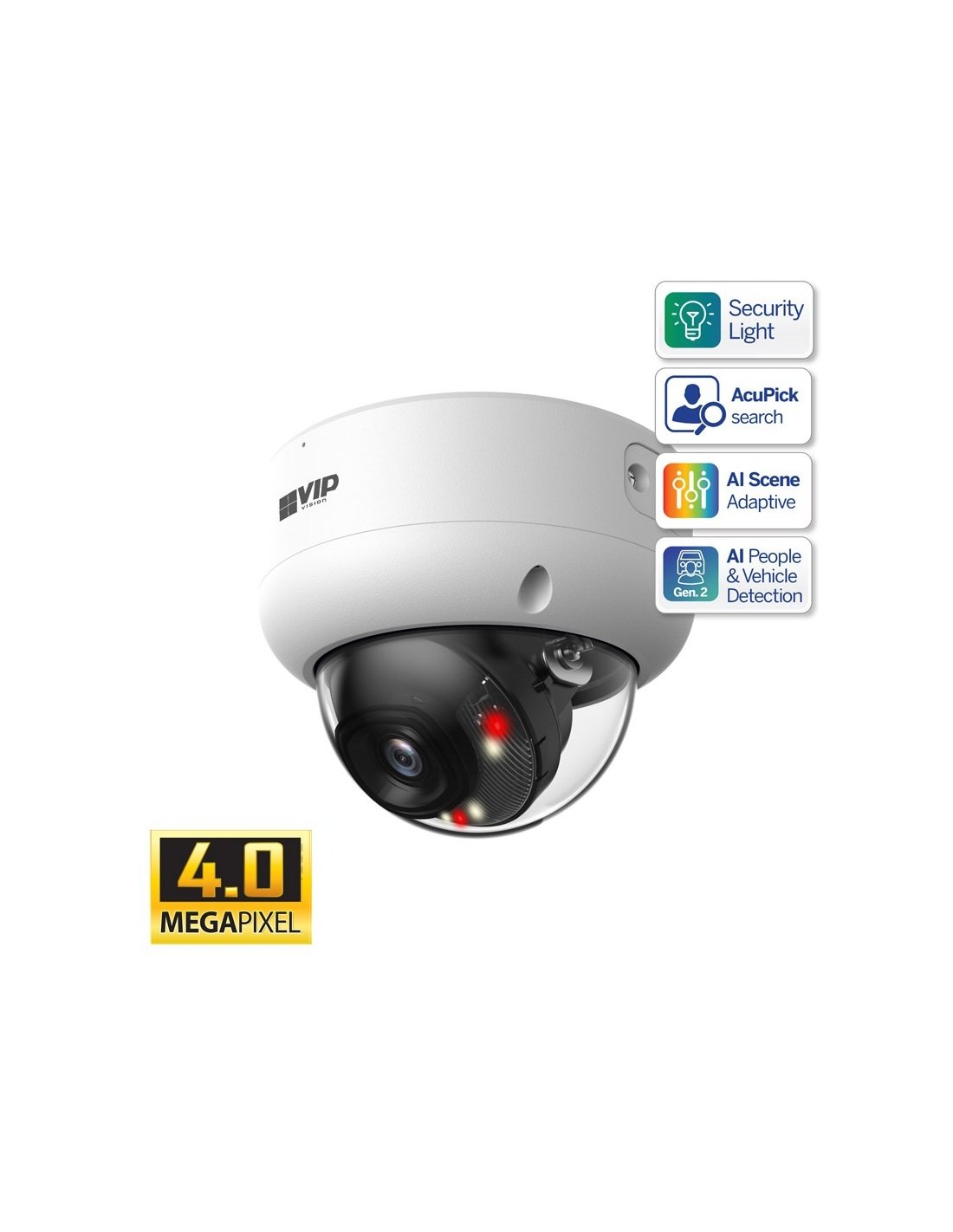

VIP Vision Professional AI Series 4MP Fixed Vandal Dome Camera - VSIPP-4DIRD-I3

Name: VIP Vision Professional AI Series 4MP Fixed Vandal Dome Camera - VSIPP-4DIRD-I3
Brand: VIP Vision
SKU: VSIPP-4DIRD-I3
Price: 190 AUD
Availability: InStock

Reference VSIPP-4DIRD-I3

In Stock - Ready to Ship

$ 190.00

inc-GST

• Stream up to 4.0MP (2688 x 1520) at 25fps
• 2.8mm fixed lens with 100° viewing angle
• Up to 40m infrared range; true day/night (auto ICR)
• Intelligent search across all Acupick cameras
• Warm LED light triggers on person/vehicle detection
• H.265 encoding for efficient storage & streaming
• MicroSD slot for recording at the edge up to 512GB
• AI powered perimeter protection & smart motion detecti

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

VIP Vision VSIPP-4DIRD-I3 | 4MP AI Fixed Vandal Dome IP Camera – 2.8mm Lens, 40m IR, IP67, IK10

VIP Vision VSIPP-4DIRD-I3 4MP Fixed Vandal Dome Camera

The VIP Vision VSIPP-4DIRD-I3 is a professional-grade, AI-powered 4MP vandal dome security camera designed for reliable, high-definition surveillance in demanding environments. Engineered with a robust IK10 vandal-resistant dome and IP67 weatherproof housing, it is perfect for both indoor and outdoor installations where durability is essential. Featuring a wide-angle 2.8mm fixed lens, long-range infrared night vision up to 40m, and warm LED active deterrence, this camera captures crystal-clear footage day and night, deterring intruders while providing detailed evidence.

With advanced AI detection including Smart Motion Detection (SMD 4.0) and human/vehicle classification, the VSIPP-4DIRD-I3 minimises false alarms and ensures accurate security alerts. Its MicroSD edge storage (up to 512GB) allows for onboard recording, while ONVIF compatibility ensures seamless integration with a wide range of NVRs and VMS platforms. Ideal for residential, commercial, and industrial applications, this vandal dome camera delivers dependable security for peace of mind.

Key Features

4MP Ultra HD Resolution — 2688×1520 @ 25fps for sharp, detailed video surveillance.
2.8mm Fixed Wide-Angle Lens — ~100° field of view for maximum area coverage.
40m IR Night Vision — True Day/Night mode with smart IR for evenly lit low-light scenes.
Warm LED Deterrent — Activates when people or vehicles are detected for enhanced security.
Advanced AI Detection — Smart Motion Detection (SMD 4.0), human & vehicle classification, perimeter protection.
WDR & Noise Reduction — 120dB True WDR and 3D DNR for clear images in challenging lighting.
Edge Recording — Supports MicroSD cards up to 512GB for onboard video storage.
Rugged Outdoor Build — IP67 weatherproof rating & IK10 vandal resistance for extreme durability.
Easy Integration — ONVIF compliant for compatibility with most major NVR and VMS systems.
Flexible Power — Powered via PoE (802.3af) or 12V DC.

Ideal Applications

Residential Security — Protect homes, driveways, and entry points with reliable 24/7 monitoring.
Retail & Shopfronts — Deter theft and monitor customer and staff activity.
Warehouses & Industrial Sites — Safeguard assets, loading docks, and perimeter fences.
Office Buildings — Secure entrances, car parks, and communal spaces.
Schools & Public Facilities — Ensure safety in classrooms, hallways, and open areas.
Car Parks & Garages — Monitor vehicle movement and prevent vandalism.
Hospitality Venues — Enhance security in bars, restaurants, and hotels.

Technical Specifications

Image Sensor: 1/2.9" 4.0 MP Progressive Scan CMOS
Lens: 2.8 mm fixed, fixed iris
Field of View: ~100° horizontal, ~56° vertical
Min. Illumination: 0.005 Lux (Colour), 0 Lux (IR on)
IR Distance: Up to 40 m
WDR: 120 dB True WDR
Video Compression: H.265 / H.264 / MJPEG, Smart codecs supported
AI Functions: Perimeter protection, tripwire, intrusion, human/vehicle classification, SMD 4.0
Edge Storage: MicroSD up to 512 GB
Ingress & Vandal Rating: IP67, IK10
Power Supply: 12 V DC / PoE (802.3af)
Operating Temp: –40 °C to +60 °C
Maximum Users: Up to 20 simultaneous connections

Upgrade to the VIP Vision VSIPP-4DIRD-I3 — delivering 4MP Ultra HD clarity, advanced AI-driven detection, and rugged vandal-resistant design for unbeatable surveillance in any location.

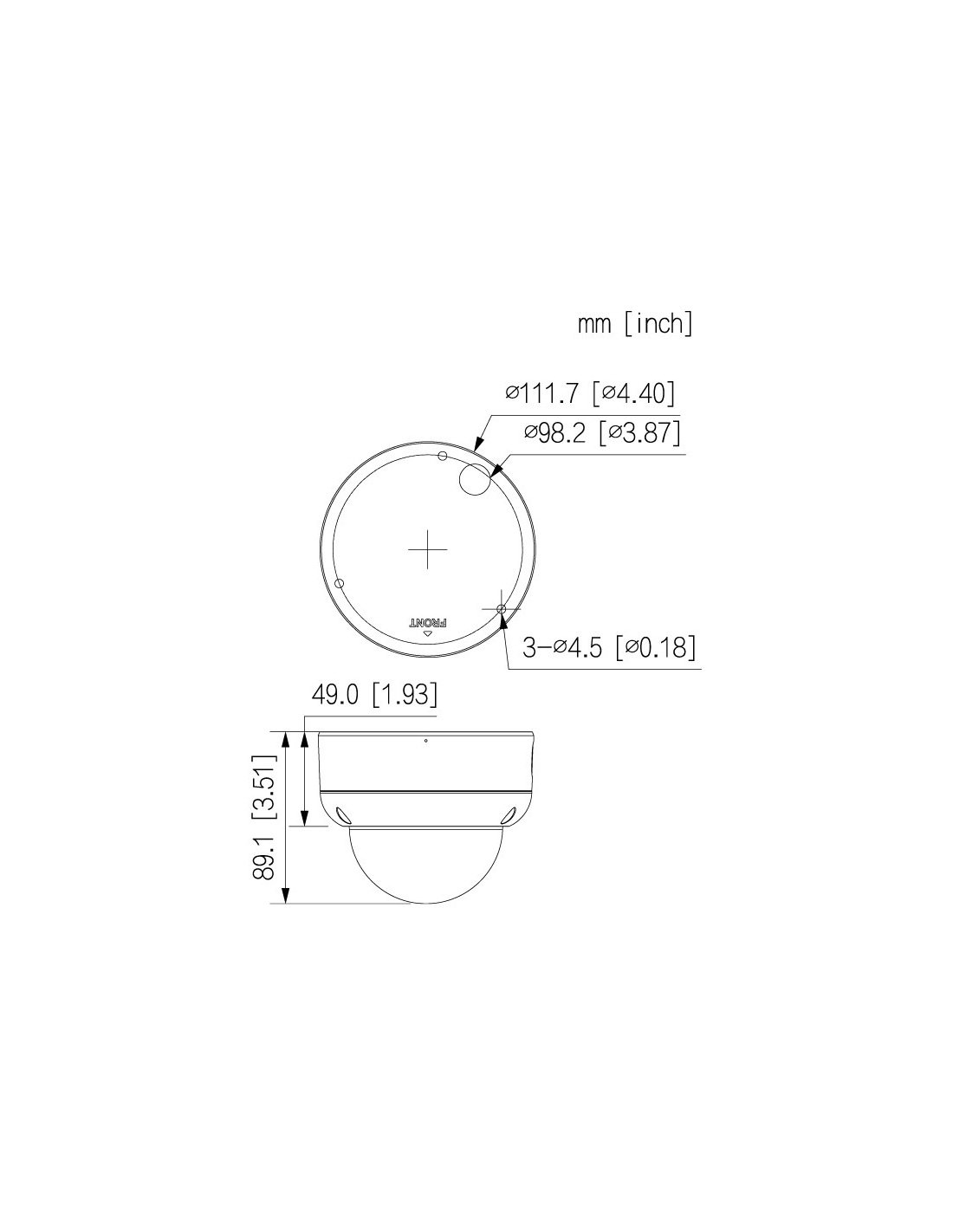

Dimensions: Ø89mm x 112mm
Ethernet: RJ-45 (10/100Base-T)
Housing: Metal
Net Weight: 0.53kg
Operating Conditions: -40°C ~ +60°C / ≤95% RH
Power Supply: 12VDC / PoE (802.3af)
Ingress Protection: IP67
Vandal Resistance: IK10
Bit Rate: H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
Frame Rate (Main): 4.0MP (1 ~ 25fps)
Frame Rate (Sub): 1080p (1 ~ 25fps)
Frame Rate (Third): 1080p (1 ~ 25fps)
Max. User Access: 20 Users (Total bandwidth: 64MB)
Power Consumption
Video Compression: H.265 / H.264 / H.264H / H.264B / MJPEG / Smart H.265+ / Smart H.264+ / AI H.265 / AI H.264
Resolution: 4.0MP (2688 x 1520) to CIF (352 x 288)
Series: Professional AI Series
Focus: Fixed / 1.0m Min. Focus Distance
Interoperability: ONVIF / P2P / CGI
Effective Pixels: 2688 (H) x 1520 (V)
Image Sensor: 1/2.9’’ 4.0MP Progressive Scan CMOS
RS485: N/A
Alarm Interface: 1 channel in: 5mA 3-5VDC/ 1 channel out: 300mA 12VDC
Camera Type: Vandal Dome
Max. Resolution: 4.0 Megapixel
Field of View: Horizontal: 100°, Vertical: 56°
Lighting Compensation: BLC / HLC / WDR (120dB) / AI SSA
Day/Night: Auto (ICR) / Color / B&W
Detect (25px/m): 62m
Gain Control: Auto/Manual
Identify (250px/m): 6m
Lens Type: Fixed
Noise Reduction: 3D DNR
Observe (63px/m): 25m
Recognise (125px/m): 12m
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface: 1 input (RCA Port) / 1 output (RCA Port) / Built-in MIC / Audio Compression - G.711a; G.711Mu; PCM; G.726; G.723
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage: MicroSD Card (up to 512GB) / NAS
ePoE: No
Infrared System: 2x warm LED light, 2 x Infrared LED, 40m range, Auto/manual on/off control
Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
Lens / Iris: 2.8mm F1.4 Fixed Lens
Min Illumination: 0.005 Lux/F1.4 (Color), 0.0005 Lux/F1.4 (B/W), 0 lux (illuminator on)
Pan/Tilt/Rotation: Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
Picture Control: Mirror / Flip (0°, 90°, 180°, 270°)
Protocol: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
RAM / ROM: 1GB / 256MB
S/N Ratio: > 56dB
Smart Scene Adaptive (SSA): Yes
Streaming Method: Multicast
Video Interface: N/A
Event Trigger: Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Face Attributes: N/A
Face Detection: N/A
Heat Map: N/A
Intelligent Search: Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
People Counting: N/A
Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles)
