VIP Vision Ultimate AI Series 4MP Motorised VSIPU-4BIRM-I

VIP Vision Ultimate AI Series 4MP Motorised Bullet - VSIPU-4BIRM-I

Name: VIP Vision Ultimate AI Series 4MP Motorised Bullet - VSIPU-4BIRM-I
Brand: VIP Vision
SKU: VSIPU-4BIRM-I
Price: 402.5 AUD
Availability: InStock

Reference: VSIPU-4BIRM-I

In Stock - Ready to Ship

$ 402.50

inc-GST

Stream up to 4.0MP at 25fps
2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles
H.265 encoding for efficient storage & streaming
Up to 60m infrared range; true day/night
MicroSD slot for recording at the edge up to 256GB
Up to 10 channels of face recognition with an AI NVR
Detect faces and receive face alerts in real time
Search footage by face image or by facial attributes
Extend PoE up to 800m

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

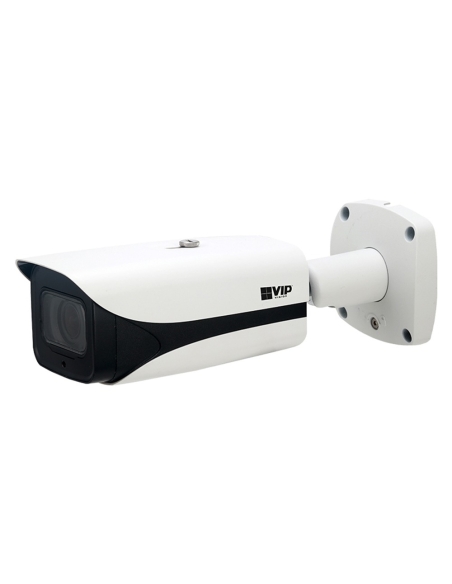

VIP Vision Ultimate AI Series 4.0MP Motorised Bullet

4 Years Warranty!

VSIPU-4BIRM-I

Applying a deep learning algorithm, the VSIPU-4BIRM-I detects and captures both faces and vehicles to use in face recognition, intelligent searching and perimeter protection, all while delivering superb image performance with low light colour and automatic image adjustment.

Camera Features:

• Stream up to 4.0MP (2688 x 1520) at 25fps

• 2.7 ~ 12mm motorised lens with 114 ~ 47° viewing angles

• H.265 encoding for efficient storage & streaming

• Up to 60m infrared range; true day/night (auto ICR)

• MicroSD slot for recording at the edge up to 256GB

• Up to 10 channels of face recognition with an AI NVR

• Detect faces and receive face alerts in real time

• Search footage by face image or by facial attributes

• Set up AI powered tripwire & intrusion rules, receive alerts and search footage by people or vehicles

• Extend PoE up to 800m (requires ePoE NVR/switch)

VIP Vision Ultimate AI Series Motorised 4.jpg

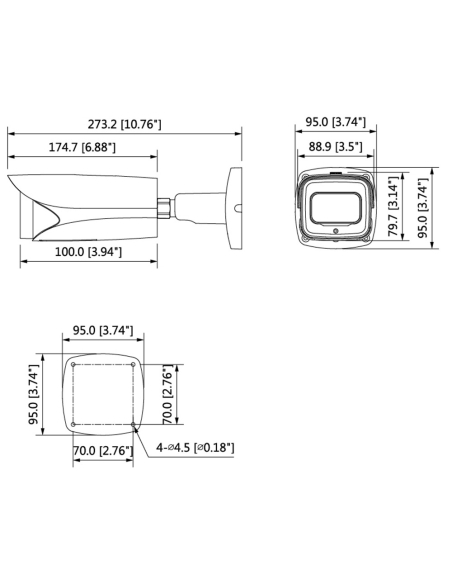

Dimensions: 273mm x 95mm x 95mm
Ethernet: RJ-45 (10/100Base-T)
Housing: Metal, Plastic
Net Weight: 1.11kg
Operating Conditions: -40°C ~ +60°C (Heater on), ≤95% RH
Power Supply: 12VDC (±30%) / PoE (802.3af) / ePoE
Ingress Protection: IP67
Vandal Resistance: IK10
Bit Rate: H.264: 32Kbps ~ 8192Kbps / H.265: 19Kbps ~ 8192Kbps
Frame Rate (Main): 4.0MP (1 ~ 25fps) / 3.0MP (1 ~ 25fps) / 2.0MP (1 ~ 50fps)
Frame Rate (Sub): D1 (1 ~ 50fps)
Frame Rate (Third): 1080p (1 ~ 16fps)
Max. User Access: 20 Users
Power Consumption
Video Compression: H.265, H.264, H.264B, H.264H, MJPEG
Resolution: 4.0MP (2688 x 1520) to CIF (352 x 288)
Category: Network Surveillance
Series: Ultimate AI Series
Focus: Auto Focus / 1.2m Min. Focus Distance
Interoperability: ONVIF / P2P / CGI / Milestone / Genetec
Effective Pixels: 2688 (H) x 1520 (V)
Image Sensor: 1/1.8’’ 4.0MP Progressive Scan CMOS
RS485: N/A
Alarm Interface: 2 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC
Camera Type: Bullet
Max. Resolution: 4.0 Megapixel
Field of View: Horizontal: 114°~47°, Vertical: 62°~26°
Lighting Compensation: BLC / HLC / WDR (140dB)
Day/Night: Auto (ICR) / Color / B&W
Detect (25px/m): 58m (wide) / 131m (tele)
Gain Control: Auto / Manual
Identify (250px/m): 6m (wide) / 13m (tele)
Lens Type: Motorised Varifocal
Noise Reduction: 3D DNR
Observe (63px/m): 23m (wide) / 52m (tele)
Recognise (125px/m): 12m (wide) / 26m (tele)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface: 1 input (RCA Port) / 1 output (RCA Port) / Audio Compression: G.711a; G.711Mu; G726; G.723
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage: MicroSD Card (up to 256GB) / NAS / FTP /SFTP
ePoE: Yes
Infrared System: 4 x Infrared LED, 50m range, Auto/manual on/off control
Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Lens / Iris: 2.7 ~ 12.0mm F1.8 Motorised Varifocal Lens with Auto Iris
Min Illumination: 0.003 Lux / F1.8 (Color)
Pan/Tilt/Rotation: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
Picture Control: Mirror / Flip (0°, 90°, 180°, 270°)
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
RAM / ROM: 1GB / 128MB
S/N Ratio: > 50dB
Smart Scene Adaptive (SSA): No
Streaming Method: Multicast
Video Interface: N/A
Event Trigger: Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Face Attributes: Age, Gender, Expression, Glasses, Face Mask, Facial Hair
Face Detection: Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Heat Map: Yes
Intelligent Search: Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
People Counting: Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
