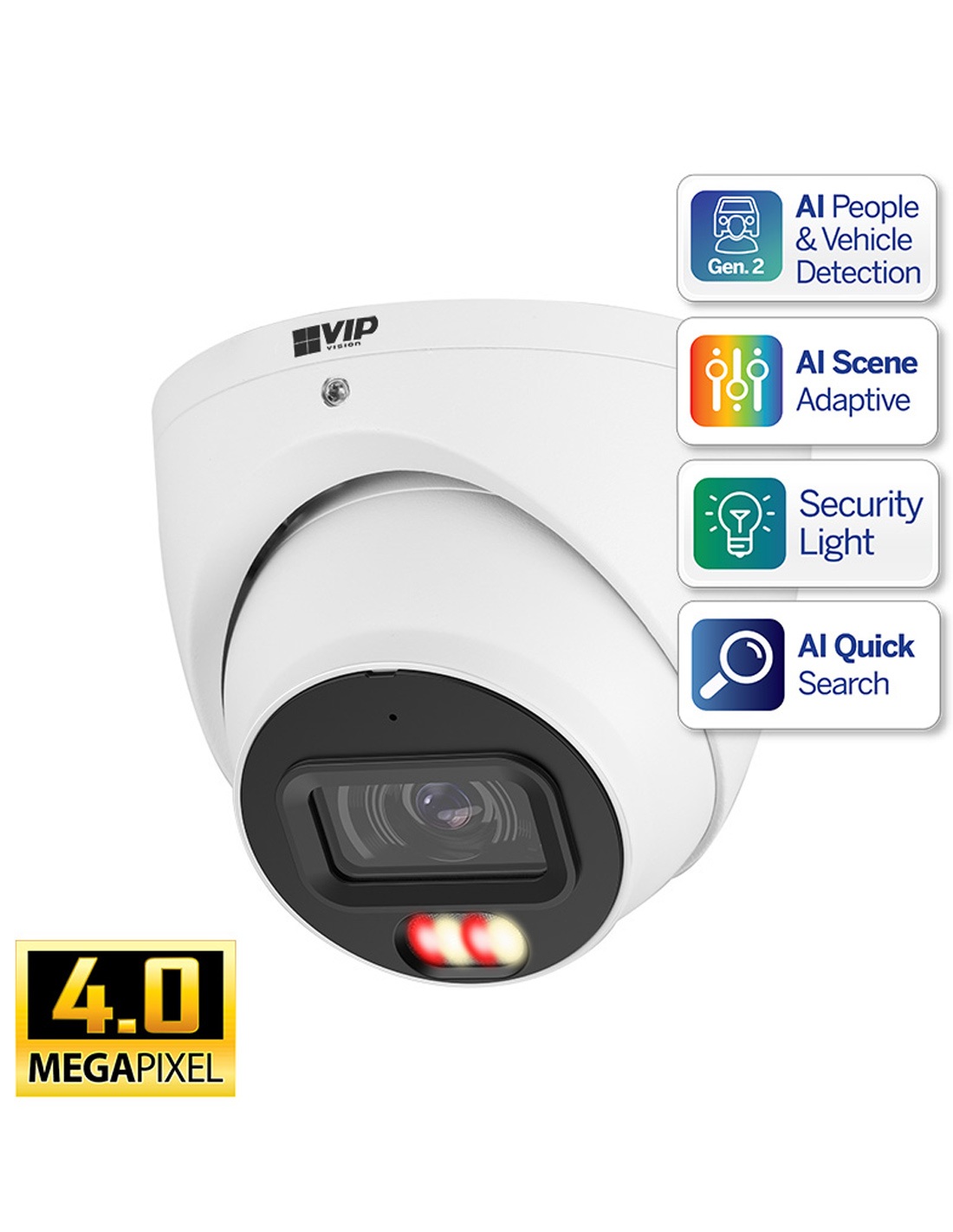

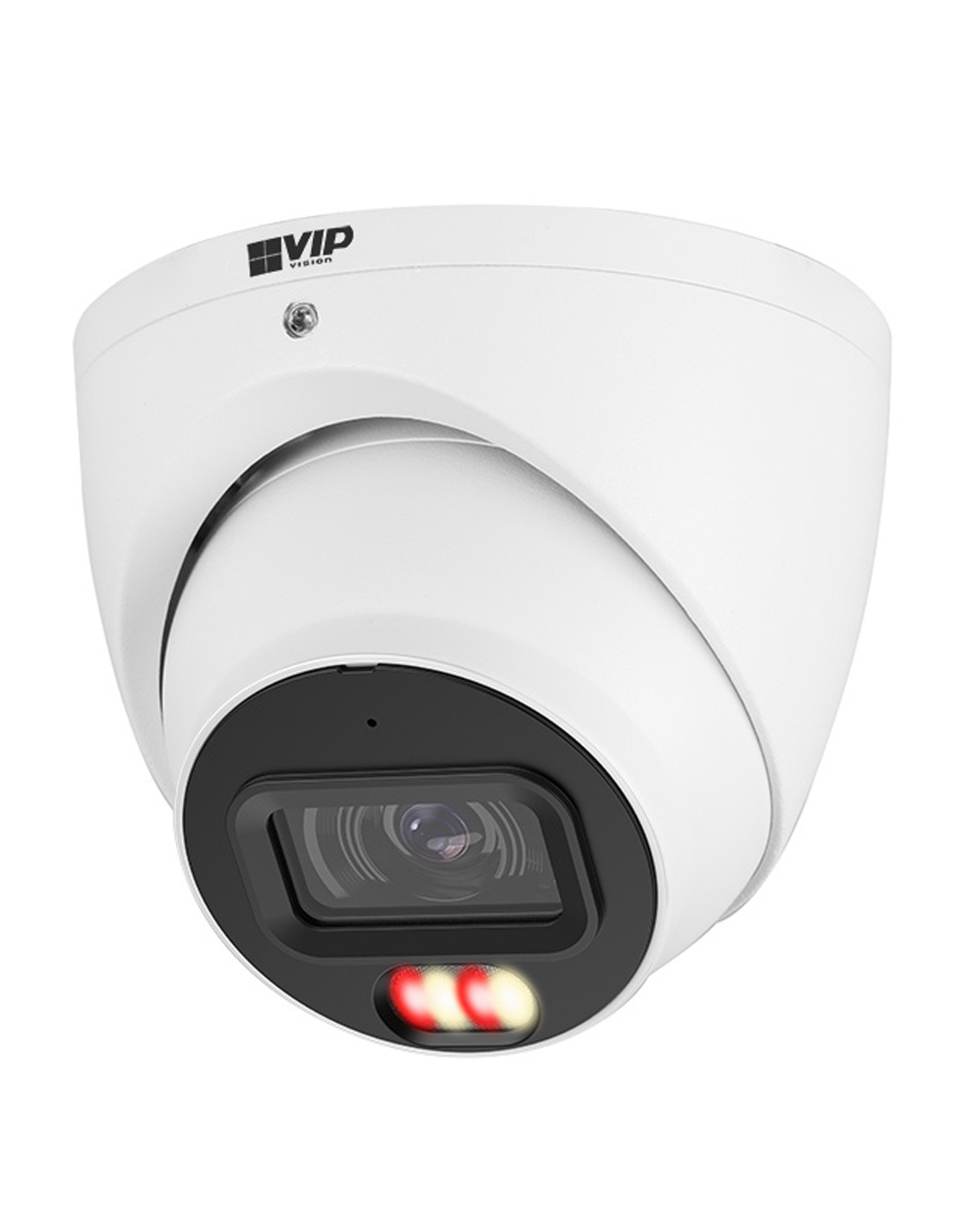

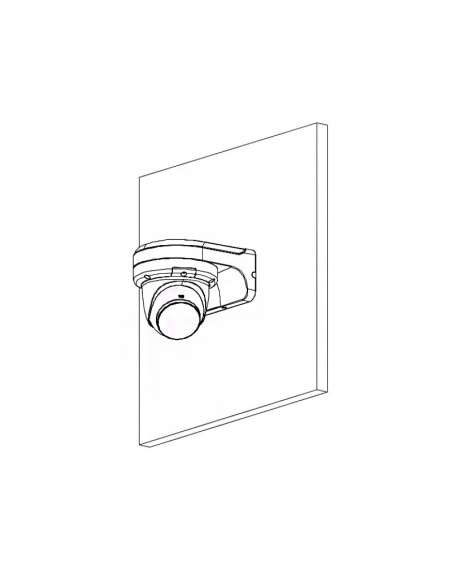

The VIP Vision VSIPP-4DIRG-I3 is a compact, professional-grade 4MP AI fixed turret security camera engineered for reliable indoor/outdoor CCTV surveillance. With a wide-angle 2.8mm lens (≈100°), 50m infrared night vision and a warm LED deterrent light that activates on person/vehicle detection, it captures crisp, detailed evidence day and night while actively discouraging intruders.

Powered by AI analytics including Smart Motion Detection (SMD 4.0), human/vehicle classification and perimeter protection, the VSIPP-4DIRG-I3 reduces false alarms and delivers accurate alerts. It supports AcuPick intelligent search across compatible cameras for fast incident review, plus edge recording to MicroSD (up to 512GB). With IP67 weather resistance, PoE (802.3af) power, and ONVIF interoperability, it drops into most CCTV systems with minimal fuss—ideal for homes and businesses that want smart, easy-to-understand security.

Key Features

• 4MP Resolution — 2688×1520 @ 25fps for sharp, detailed video.
• Wide 2.8mm Fixed Lens — ≈100° field of view for broad coverage.
• 50m IR Night Vision — True day/night (ICR) with smart IR for balanced low-light images.
• Warm LED Deterrent — Triggers on AI person/vehicle events for full-colour capture and active deterrence.
• Advanced AI — SMD 4.0, human/vehicle classification, tripwire & intrusion perimeter analytics.
• AcuPick Smart Search — Quickly find people/vehicles across compatible cameras and NVRs.
• Edge Storage — Built-in MicroSD slot supports up to 512GB.
• Built-in Microphone — Capture audio with G.711/G.726/PCM compression options.
• Rugged Build — IP67 metal housing for outdoor use.
• Easy Integration — ONVIF, RTSP/RTMP, and more; up to 20 users (64Mb bandwidth).
• Flexible Power — PoE (802.3af) or 12V DC.

Ideal Applications

• Homes & Apartments — Front doors, garages, driveways and perimeters; deter porch piracy and intruders.
• Retail & Shopfronts — Cash registers, entrances, aisles and stock rooms; reduce shrinkage and improve safety.
• Small Businesses & Offices — Receptions, car parks and shared areas; track visitors and protect assets.
• Warehouses & Industrial Sites — Loading docks, warehouses and fence lines; monitor deliveries and OH&S.
• Schools & Childcare — Entryways, corridors and common areas; enhance duty-of-care and incident review.
• Hospitality & Venues — Bars, restaurants and hotels; improve security and incident response.
• Car Parks & Garages — Vehicle movement, number plate capture zones*, and vandalism deterrence.
• Strata & Body Corporate — Lobbies, lifts and bin rooms; improve compliance and community safety.

Technical Specifications

• Image Sensor: 1/2.9" 4.0MP Progressive Scan CMOS
• Max Resolution: 4MP (2688×1520)
• Lens: 2.8mm fixed; FOV ≈ 100° (H) / 56° (V)
• Min. Illumination: 0.005 lux (Colour, F1.4); 0.0005 lux (B/W, 30 IRE); 0 lux (illuminator on)
• Illumination: 2× warm LED + 2× IR LED, up to 50m; auto/manual control
• WDR / DNR: 120dB True WDR; 3D DNR; AI Smart Scene Adaptation
• Compression: H.265 / H.264 (H/HB/B) / MJPEG; AI H.265 / AI H.264
• Bitrate: H.265 19–16384 Kbps; H.264 32–16384 Kbps; CBR/VBR
• Audio: Built-in mic; G.711a / G.711Mu / G.726 / G.723 / PCM
• AI Functions: SMD 4.0; human/vehicle classification; tripwire & intrusion; smart IR; privacy mask; ROI
• Smart Search: AcuPick people/vehicle search via compatible NVR
• Networking: IPv4/IPv6, HTTP/HTTPS, RTSP/RTMP, SMTP, FTP/SFTP, NTP, SNMP, Multicast & more
• Users: Up to 20 users (total bandwidth 64Mb)
• Edge Storage: MicroSD up to 512GB; NAS
• Power: 12V DC / PoE (802.3af); Max <7.1W (12V), 9.2W (PoE)
• Operating Conditions: −40 °C ~ +60 °C, ≤95% RH
• Ingress Protection: IP67 (metal housing)
• Mechanical: Pan 0–360°, Tilt 0–78°, Rotation 0–360°

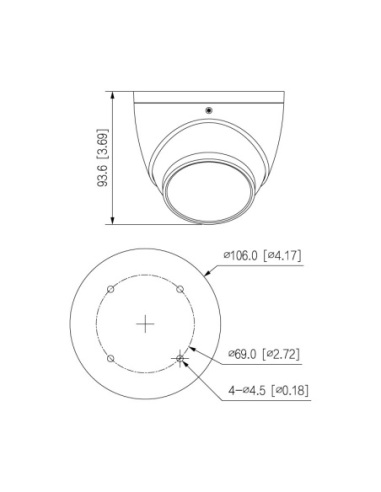

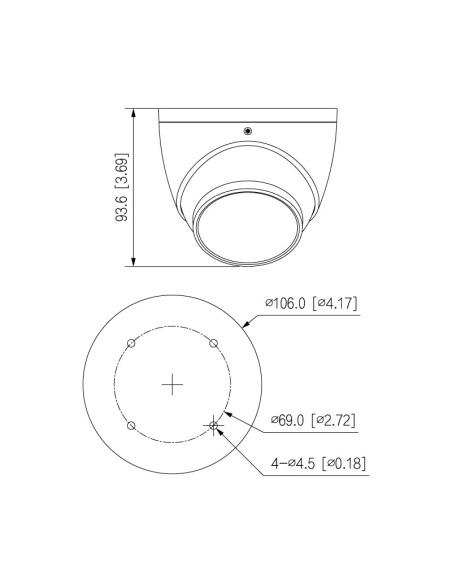

• Dimensions / Weight: Ø94 × 106 mm; 0.53 kg (net)
• Warranty: 4 years

*For dedicated number plate capture, pair with an LPR-optimised camera or adjust placement/angle and shutter settings appropriately.
