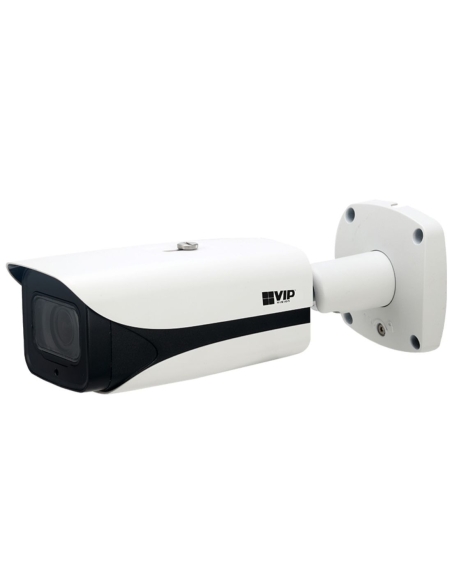

VIP Vision Ultimate AI Series 4.0MP Motorised Bullet

VIP Vision Ultimate AI Series 4.0MP Motorised Bullet (8 ~32mm lens)

VIP Vision Ultimate AI Series 4MP Motorised Bullet 8 ~32mm lens - VSIPU-4BIRM-IZ

Name: VIP Vision Ultimate AI Series 4MP Motorised Bullet 8 ~32mm lens - VSIPU-4BIRM-IZ
Brand: VIP Vision
SKU: VSIPU-4BIRM-IZ
Price: 657.5 AUD
Availability: InStock

Reference: VSIPU-4BIRM-IZ

In Stock - Ready to Ship

$ 657.50

inc-GST

Stream up to 4.0MP (2688 x 1520) at 25fps
8~32mm motorised lens with 43~15° viewing angles
H.265 encoding for efficient storage & streaming
Long 120m infrared range; true day/night (auto ICR)
Back/highlight compensation & true WDR (140dB)

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

VIP Vision Ultimate AI Series 4.0MP Motorised Bullet (8 ~ 32mm lens)

VSIPU-4BIRM-IZ

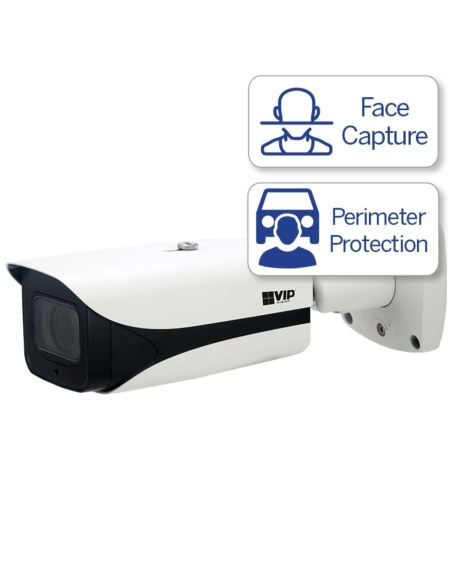

Applying machine-learned algorithms, the VSIPU-4BIRM-IZ detects and captures faces independently from the AI NVR, extending face recognition capabilities across the whole CCTV system. The series also features intelligent Perimeter Protection and delivers superb image performance with low light colour and a motorised auto iris.

The VSIPU-4BIRM-IZ has a narrower field of view than the standard model (VSIPU-4BIRM-I), making it more suited for surveillance of single points of interest, such as entry points & corridors.

Camera Features:

• Stream up to 4.0MP (2688 x 1520) at 25fps

• 8~32mm motorised lens with 43~15° viewing angles

• H.265 encoding for efficient storage & streaming

• Long 120m infrared range; true day/night (auto ICR)

• Back/highlight compensation & true WDR (140dB)

VIP Vision Ultimate AI 4.jpg

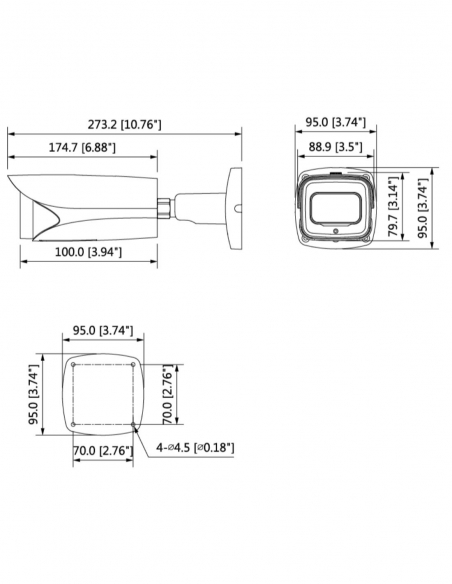

Dimensions: 273.2mm x 95mm x 95mm
Ethernet: RJ-45 (10/100Base-T)
Housing: Metal, Plastic
Net Weight: 1.11kg
Operating Conditions: -30°C ~ +60°C, ?95% RH
Power Supply: 12VDC / PoE (802.3af)/ ePoE
Ingress Protection: IP67
Vandal Resistance: IK10
Bit Rate: H.264: 32Kbps ~ 8192Kbps / H.265: 19Kbps ~ 8192Kbps
Frame Rate (Main): 4.0MP (1 ~ 25fps)
Frame Rate (Sub): D1 (1 ~ 25fps)
Frame Rate (Third): 1080p (1 ~ 25fps)
Max. User Access: 20 Users
Power Consumption
Video Compression: H.265, H.264, H.264B, H.264H, MJPEG (Sub Stream)
Resolution: 4.0MP (2688 x 1520) to CIF (352 x 288)
Category: Network Surveillance
Series: Ultimate AI Series
Focus: Auto Focus / 2.5m Min. Focus Distance
Interoperability: ONVIF / P2P / CGI / Milestone / Genetec
Effective Pixels: 2688 (H) x 1520 (V)
Image Sensor: 1/1.8’’ 4.0MP Progressive Scan CMOS
RS485: N/A
Alarm Interface: 2 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC
Camera Type: Bullet
Max. Resolution: 4.0 Megapixel
Field of View: Horizontal: 43°~15°, Vertical: 23°~8°, Diagonal: 50°~17°
Lighting Compensation: BLC / HLC / WDR (140dB)
Day/Night: Auto (ICR) / Color / B&W
Detect (25px/m): 151.1m (wide) / 400m (tele)
Gain Control: Auto / Manual
Identify (250px/m): 15.1m (wide) / 40m (tele)
Lens Type: Motorised Varifocal
Noise Reduction: 3D NR
Observe (63px/m): 60.7m (wide) / 160m (tele)
Recognise (125px/m): 30.3m (wide) / 80m (tele)
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface: 1 input (RCA Port) / 1 output (RCA Port) / Audio Compression: G.711a; G.711Mu; G726; ACC; G.723
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage: MicroSD Card (up to 256GB) / NAS / FTP /SFTP
ePoE: Yes
Infrared System: 3 x Infrared LED, 120m range, Auto/manual/Zoomprio on/off control
Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 areas), Smart Infrared, Abandoned Object, Moving Object
Lens / Iris: 8 ~ 32.0mm F1.6 Motorised Varifocal Lens with Auto Iris
Min Illumination: 0.002 Lux / F16 (Color)
Pan/Tilt/Rotation: Pan: 0° ~ 355°, Tilt: 0° ~ 65°, Rotation: 0° ~ 355°
Picture Control: Mirror / Flip (0°, 90°, 180°, 270°) (Supports 90°/270° with 4M resolution and lower)
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
RAM / ROM: 1GB / 128MB
S/N Ratio: > 56dB
Smart Scene Adaptive (SSA): N/A
Streaming Method: Multicast
Video Interface: N/A
Event Trigger: Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access
Face Attributes: Age, Gender, Expression, Glasses, Face Mask, Facial Hair
Face Detection: Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Heat Map: Yes
Intelligent Search: Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
People Counting: Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
