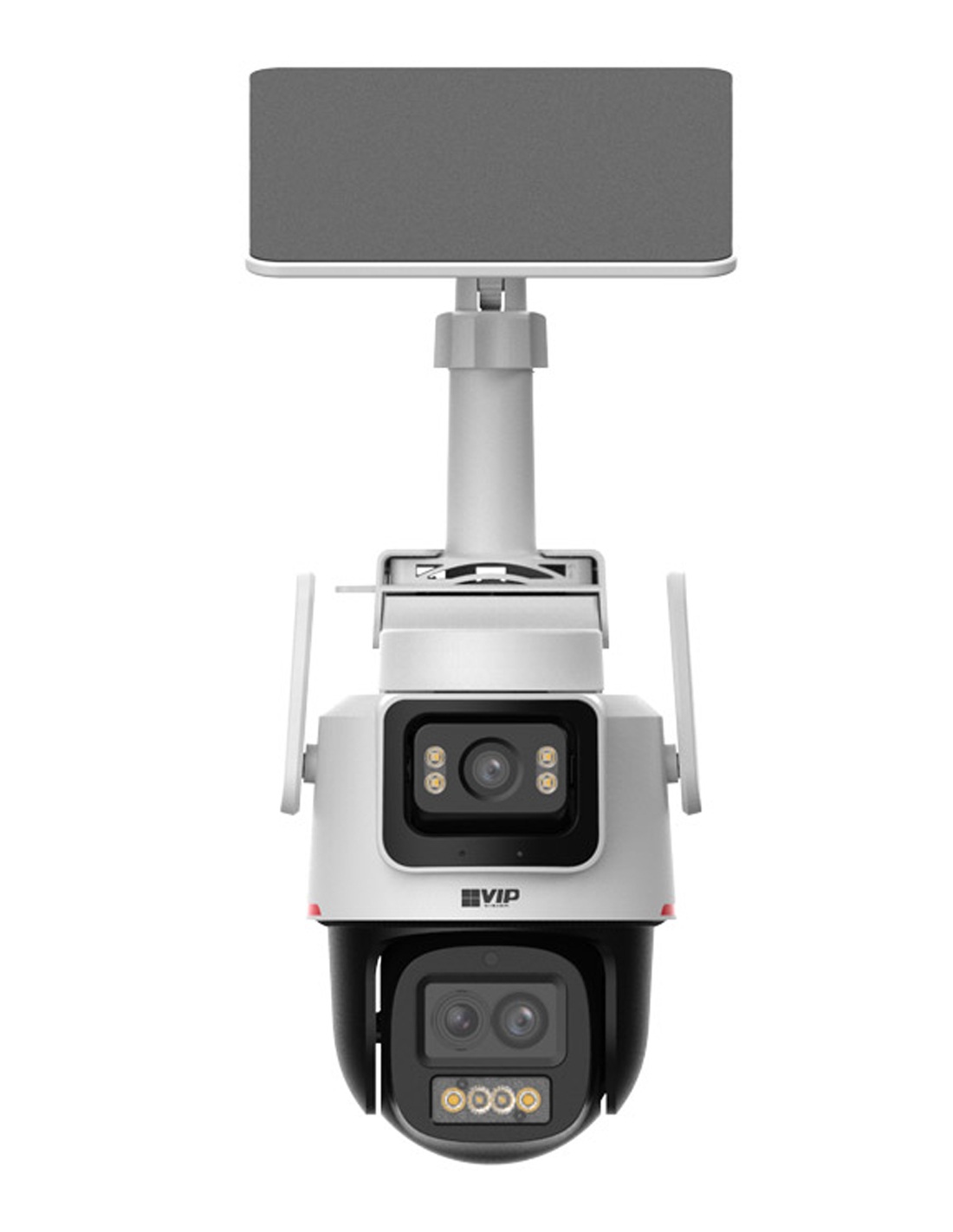

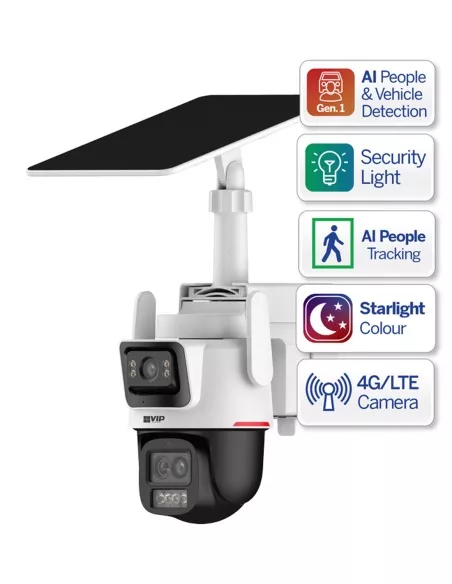

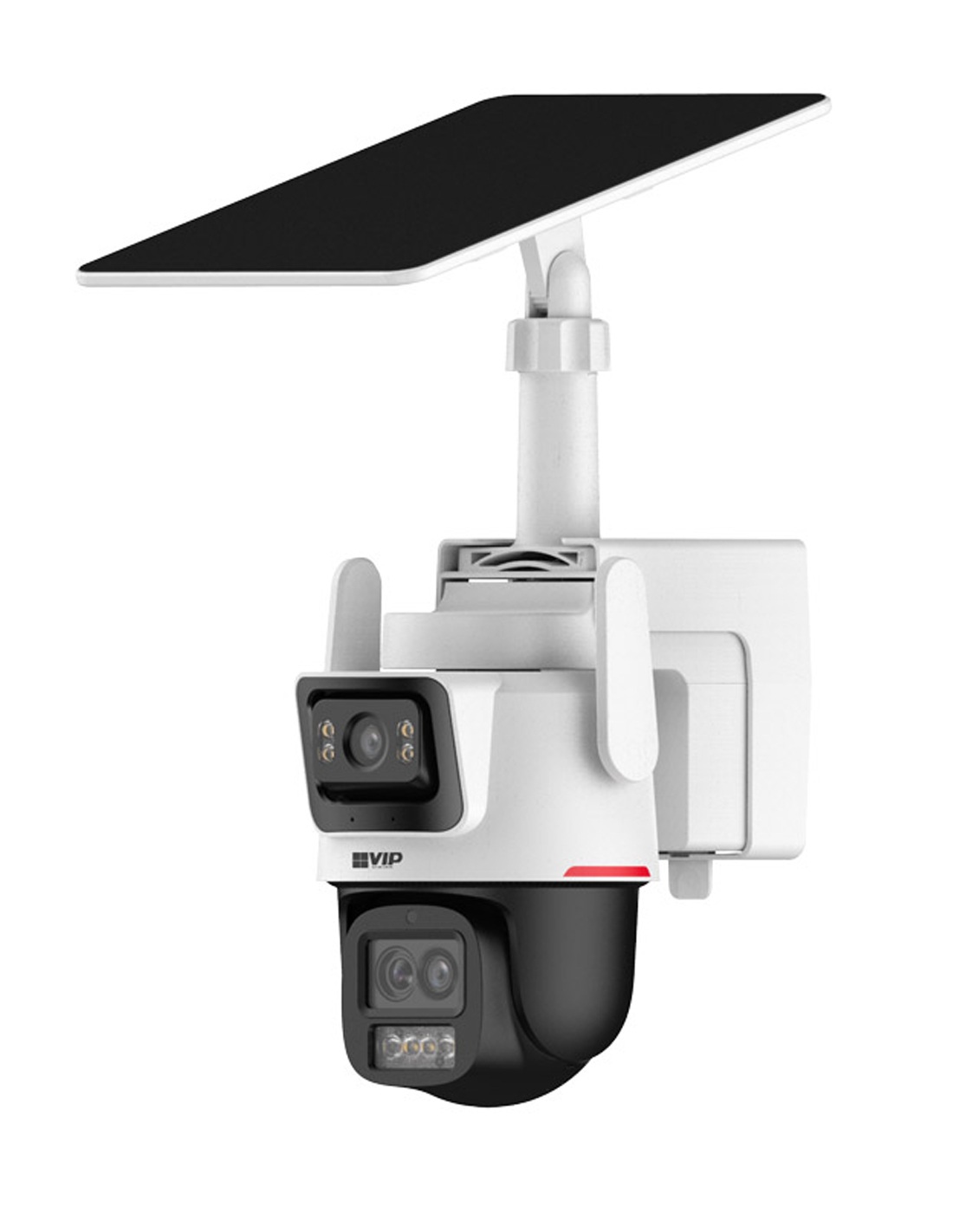

VIP Vision AI Solar Battery 3MP HD 4G Multi-Vision PTZ with 6x Hybrid Zoom - VSIPSLR-3P3F
VSIPSLR-3P3F
In Stock - Ready to Ship
$ 660.00
inc-GST
or 4 interest-free payments of $165.00 with
VSIPSLR-3P3F is a solar powered 4G security camera designed for reliable off-grid surveillance. It combines a 3MP overview camera with a Hybrid Zoom PTZ that auto-tracks people on remote sites with no power, Wi-Fi or NBN. The system records continuously in low-power mode, then increases frame rate on human detection and activates a spotlight and siren to deter intruders. Ideal for farms, construction sites, compounds and remote assets.
- Solar 4G CCTV with AI auto-tracking Hybrid Zoom PTZ
- All-in-one: solar panel, battery, 4G modem and 128GB storage
- Active deterrence: spotlight and siren on people detection
VIP Vision Solar 4G Multi-Vision PTZ with Hybrid Zoom (3MP + 3MP)
Model VSIPSLR-3P3F
Deploy AI-powered security to sites with no mains power or fixed internet. The VSIPSLR-3P3F combines a 3MP overview turret with a 3MP Hybrid-Zoom PTZ, an integrated 4G modem, 8 W solar panel and 65 Wh lithium battery. It records continuously in low-power mode and wakes to full frame-rate on detections—perfect for farms, compounds, construction and temporary deployments.
Key Features & Benefits
- Dual 3MP imaging — 3.0MP@15fps overview + 3.0MP@15fps PTZ for detail
- Hybrid Zoom PTZ — twin lenses (3.6 mm & 8.4 mm) switch to zoom on people during AI auto-tracking
- Always-On Video — continuous 1 fps low-power recording; boosts to 15 fps on events
- 4G/LTE onboard — remote view via DMSS app; no Wi-Fi/NBN required
- Active deterrence — warm LED spotlight + built-in siren reacts to AI detections
- Solar + battery — 8 W integrated panel and 65 Wh lithium pack for 24/7 operation
- Smart H.265+ — efficient bandwidth and storage
- AI SMD 3.0 — people/vehicle recognition reduces false alarms; people-only auto-tracking
- IP66 weatherproof — ruggedised for outdoor installs
- Edge storage — microSD up to 512 GB; 128 GB included
4G, solar and ready to deploy.
A genuine all-in-one — camera, PTZ, 4G modem, solar panel and lithium battery in one unit for rapid, cable-free installations.
Real-World Applications
Remote & rural assets — tanks, gates, sheds and stock yards with no grid power.
Construction & civil sites — quick-deploy time-lapse & security that moves as the site evolves.
Temporary events — festivals, pop-ups and worksites needing short-term CCTV with minimal setup.
Critical infrastructure — telecom huts, utilities and roadside assets needing proactive deterrence.
Car parks & compounds — active spotlight/siren response to human intrusion after hours.
Quick Specs
| Imagers & Resolution | Overview: 3.0MP (2304×1296); PTZ: 3.0MP (2304×1296) @ 15 fps |
|---|---|
| Lenses | Overview: 2.8 mm F1.0 • PTZ: 3.6 mm & 8.4 mm F1.0 (Hybrid Zoom) |
| Field of View | Overview: H94°/V52°/D110° • PTZ (3.6 mm): H82°/V44°/D96° • PTZ (8.4 mm): H15.1°/V8.4°/D17.8° |
| PTZ Range / Speed | Pan 0–350° (endless) / Tilt 0–90° • Preset/Manual: 40°/s (pan/tilt) |
| Illumination | Warm LED spotlight (overview 30 m, PTZ 50 m) |
| AI & Detections | SMD 3.0 people/vehicle; auto-tracking (people only); tripwire/intrusion |
| Video Modes | Always-On 1 fps low-power; Event boost to 15 fps; Smart H.265+ |
| Connectivity | 4G/LTE (FDD: B1/3/5/7/8/20/28; TDD: B38/40/41) • DMSS mobile app |
| Power System | 8 W integrated solar panel • 65 Wh lithium battery • USB-C charge support |
| Storage | microSD up to 512 GB • 128 GB included |
| Weather / Temp | IP66 • −10°C to +50°C (cam/panel) • Battery −20°C to +60°C |

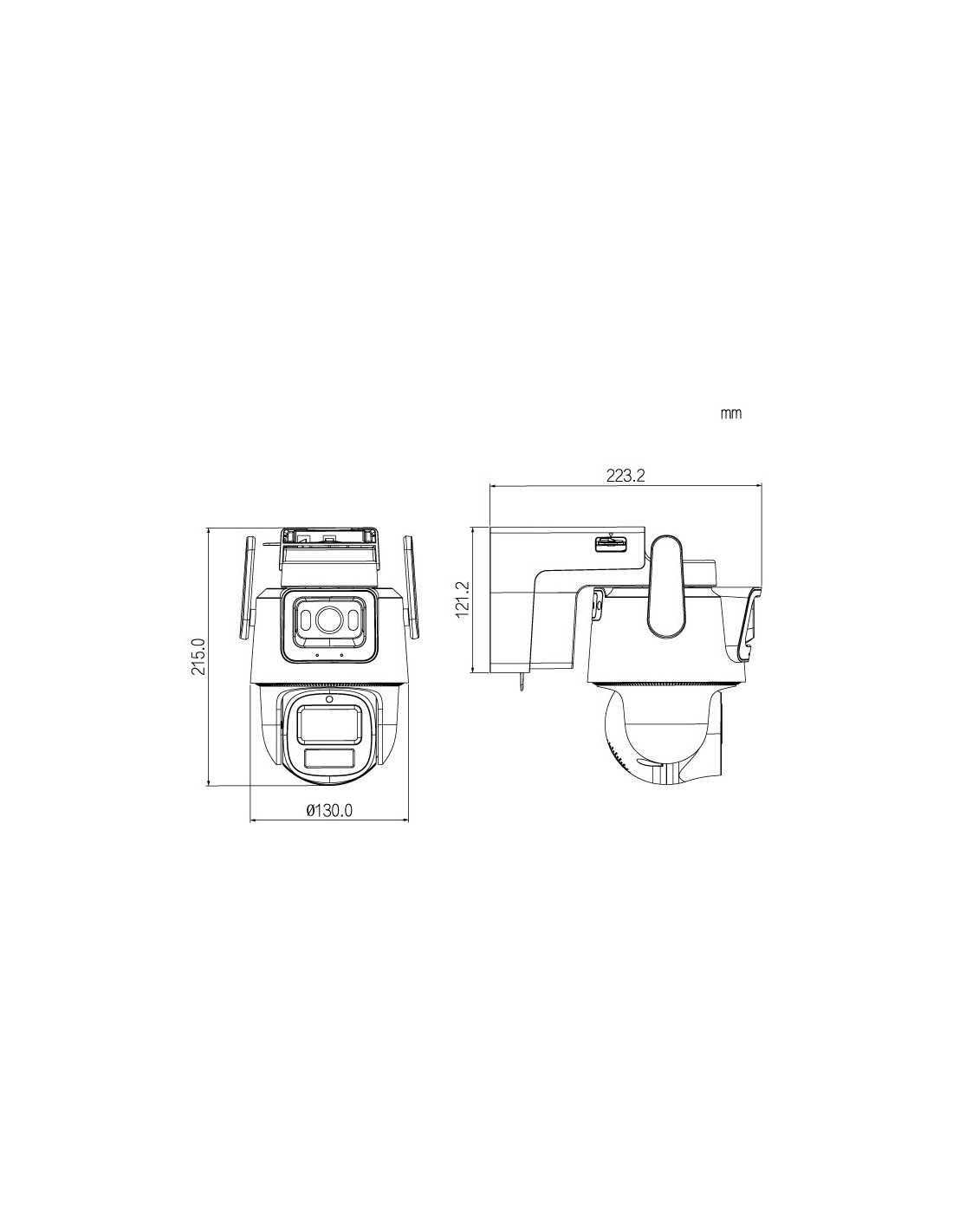

| Dimensions / Weight | 223.2 × 130.0 × 215.0 mm • 1.8 kg |
What’s in the Box
- VSIPSLR-3P3F Solar 4G Multi-Vision PTZ camera (integrated solar panel + lithium battery)
- 128 GB microSD (included for edge recording)
- Built-in LED spotlight and siren
- Quick-start guide & mounting hardware (as supplied)
Quick Start Guide
VSIPSLR-3P3F Quick Start Guide
Order the VSIPSLR-3P3F today to secure any site with AI people tracking, active deterrence and truly off-grid 4G connectivity.
- Dimensions
- 223.2 mm x 130.0 mm x 215.0 mm
- Ethernet
- N/A
- Housing
- Plastic
- Net Weight
- 1.8 kg
- Operating Conditions
- Camera & Solar Panel: –10 °C ~ +50 °C / ?95% RH, battery: –20 °C ~ +60 °C / ?95% RH
- Power Supply
- 65Wh lithium battery / 8W solar panel / Supports USB Type-C power supply
- Ingress Protection
- IP66, TVS 2000V Lightning Proof, Surge Protection, Voltage Transient Protection
- Vandal Resistance
- N/A
- Bit Rate
- H265: 54 kbps–1280 kbps
- Frame Rate (Main)
- Overview: 3.0MP/1080p/720p/640 x 360 (15 fps), PTZ, 3.0MP/1080p/720p/640 x 360 (15 fps)
- Frame Rate (Sub)
- N/A
- Frame Rate (Third)
- N/A
- Max. User Access
- N/A
- Power Consumption
- Super Power Saving Mode: 40 mW (4G keep-alive), Always-on-Video Mode: 170 mW (1 frame every 2 seconds, SD card recording, 4G keep-alive), Performance Mode 1: 2.4 W (4G streaming, SD card recording, PTZ static, illuminator off), Performance Mode 2: 3.7 W (
- Video Compression
- Smart H.265+
- Resolution
- Overview: 3.0MP (2304 x 1296) to 640 x 360, PTZ: 3.0MP (2304 x 1296) to 640 x 360
- Series
- Specialist AI Series
- Focus
- Overview: Fixed / 1.0m Min. Focus Distance PTZ: Auto/Semi-Auto/Manual Control, 3.6 mm: 1.7m, 8.4 mm: 6m Min. Focus Dist
- Interoperability
- N/A
- Effective Pixels
- Overview: 2304 (H) x 1296 (V) PTZ: 2304 (H) x 1296 (V)
- Image Sensor
- Overview: 1/2.8’’ CMOS, PTZ: 1/2.8’ CMOS
- RS485
- N/A
- Alarm Interface
- Built-in White LED Spotlight & Deterrence Siren
- Camera Type
- Solar
- Max. Resolution
- 3.0 Megapixel
- Field of View
- Overview: Horizontal: 94°, Vertical: 52°, Diagonal: 110°, PTZ: 3.6mm Lens: Horizontal: 82°, Vertical: 44°, Diagonal: 96°, 8.4mm Lens: Horizontal: 15.1°, Vertical: 8.4°, Diagonal: 17.8°
- Lighting Compensation
- Digital WDR
- Pan / Tilt Range
- Pan: 0 ~ 350° (endless) / Tilt: -0 ~ 90°
- Day/Night
- Color and B&W Day/Night
- Detect (25px/m)
- Overview: 40m, PTZ: 51m (W), 1200m (T)
- Gain Control
- Auto
- Identify (250px/m)
- Overview: 4m, PTZ: 5m (W), 12m (T)
- Lens Type
- Fixed
- Noise Reduction
- 3D DNR
- Observe (63px/m)
- Overview: 16m, PTZ: 20m (W), 47m (T)
- Recognise (125px/m)
- Overview: 8m, PTZ: 10m (W), 24m (T)
- White Balance
- Auto
- Audio Interface
- Built-in Mic & Loudspeaker
- Bit Rate Control
- Variable bit rate (VBR)
- Edge Storage
- MicroSD card slot (up to 512GB), includes 128GB microSD card
- ePoE
- No
- Infrared System
- Overview: 4 x LED Spotlight (Warm White) 30m range, PTZ: 4 x LED Spotlight (Warm White) 50m range
- Lens / Iris
- Overview: 2.8mm F1.0 Fixed Lens PTZ: 3.6mm & 8.4mm F1.0 Fixed Lenses
- Min Illumination
- 0.0005 [email protected] (Color, 30 IRE); 0 lux (Illuminator on)
- Pan/Tilt/Rotation
- Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
- Picture Control
- 180° Image Rotation
- Protocol
- N/A
- RAM / ROM
- Overview: 256 MB / 256 MB, PTZ: 256 MB / 256 MB
- S/N Ratio
- > 56dB
- Smart Scene Adaptive (SSA)
- N/A
- Streaming Method
- N/A
- Video Interface
- N/A
- Auto Tracking
- Supported
- Modes / Presets
- Up to 50 presets / 8 Tour (32 presets per tour)
- PTZ Speed
- Preset: Pan: 40°/s, Tilt: 40°/s, Manual: Pan: 40°/s, Tilt: 40°/s
- Start-up Action
- Supported
- Heat Map
- N/A
- People Counting
- N/A
- Perimeter Protection
- Tripwire & Intrusion (Add recognition of humans & vehicles)
- Digital Zoom
- Supported
- Event Triggers
- Filter motion detection alarms, recognises humans and vehicles from other moving objects
- Face Capture
- N/A
- Face Recognition
- N/A
- Image Stabilisation
- N/A
- IVS Functions
- Motion Detection
- Metadata
- Search via people or vehicle detection events
- Optical Defog
- N/A
- Privacy Masking
- N/A
- Region of Interest
- N/A
- Management Software
- DMSS (Android & IOS)
- 4G Carrier Frequency
- B1/3/5/7/8/20/28 (FDD), B38/40/41 (TDD)
- Transmission Power
- 4G: Power Class 3: 23 dBm ± 2.7 dB
