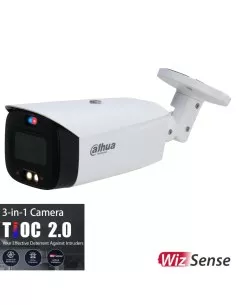

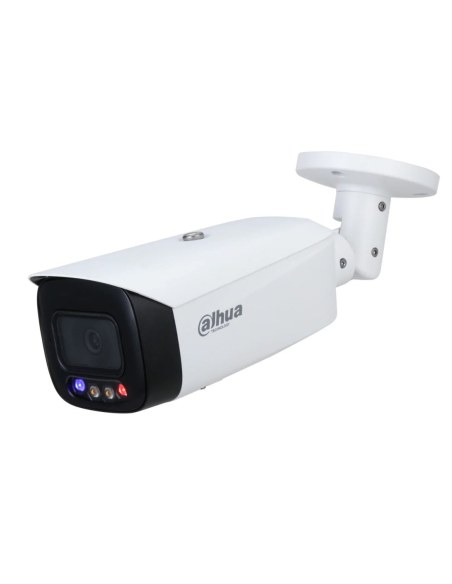

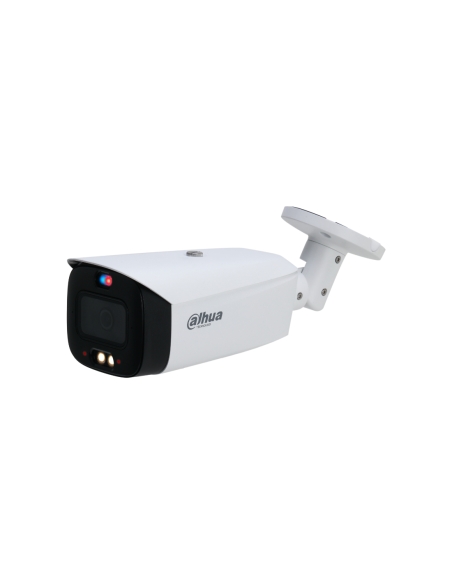

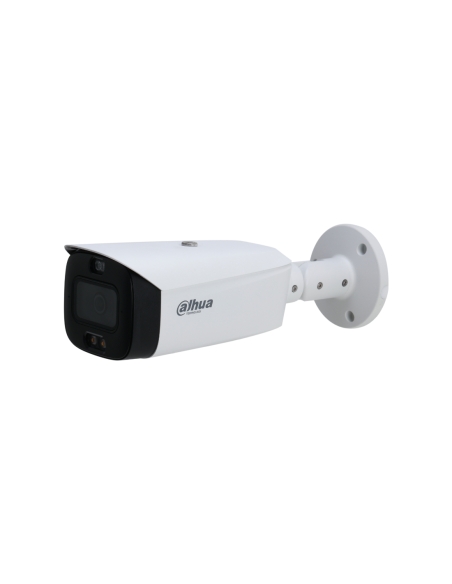

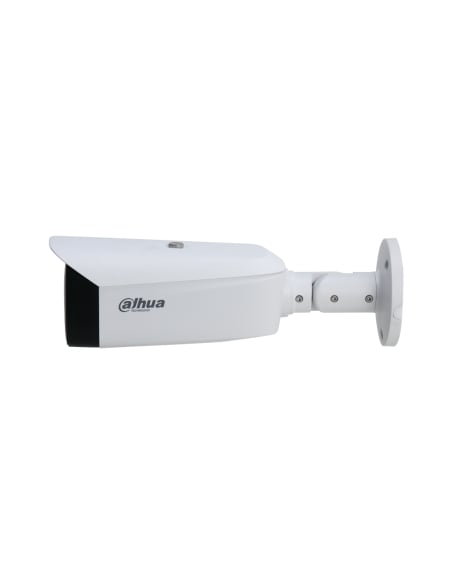

DH-IPC-HFW3549T1P-AS-PV-0280B Dahua 5MP TiOC

Dahua 5MP TiOC 1.0 Active Deterrence IP Bullet DH-IPC-HFW3549T1P-AS-PV-0280B

Dahua 5MP TiOC 1.0 Active Deterrence IP Bullet Fixed 2.8mm Camera DH-IPC-HFW3549T1P-AS-PV-0280B

Name: Dahua 5MP TiOC 1.0 Active Deterrence IP Bullet Fixed 2.8mm Camera DH-IPC-HFW3549T1P-AS-PV-0280B
Brand: Dahua Australia
SKU: DH-IPC-HFW3549T1P-AS-PV-0280B
Price: 229.9 AUD
Availability: InStock

Reference DH-IPC-HFW3549T1P-AS-PV-0280B

In Stock - Ready to Ship

$ 229.90

inc-GST

5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592x1944) @20 fps, and supports 4MP (2688x1520) @25/30 fps
H.265 codec, high compression rate, low bit rate
Built-in warm illuminator, and the max. illumination distance: 40 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection
Max. 256 G Micro SD card, built-in Mic and speaker
SMD Plus
Red and blue flashlight alarm

Dahua 5MP TiOC 1.0 Active Deterrence IP Bullet Fixed 2.8mm Camera

DH-IPC-HFW3549T1P-AS-PV-0280B

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to act fast on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.

With an advanced deep learning algorithm, the Dahua WizSense 3 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. In addition, full-color technology provides a better image effect in the condition of low illuminance.

Features:

· 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

· Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps

· H.265 codec, high compression rate, low bit rate

· Built-in warm illuminator, and the max. illumination distance: 40 m

· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

· Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicles and humans)

· Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

· Supports sound and light alarm linkage. When an alarm is triggered, the camera links the sound alarm and lights flash.

· Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period.

· Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic, and speaker

· 12V DC/PoE power supply

· IP67 protection

· SMD Plus

· Red and blue flashlight alarm

Functions:

SMD Plus

With the intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarms.

Smart H.265+ & Smart H.264+

With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Full-colour

With a high-performance sensor and large aperture lens, Dahua Full colour technology can display clear colorful images in an environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.

Siren and Light Active Deterrence

Dahua siren and light active deterrence network camera support light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection and supports customized voice importing.

Perimeter Protection

With a deep learning algorithm, Dahua Perimeter Protection technology can recognize humans and vehicles accurately. In restricted areas (such as pedestrian areas and vehicle areas), the false alarms of intelligent detection based on the target type (such as tripwire, intrusion, fast-moving, parking detection, loitering detection, and gathering detection) are reduced.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.

Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to the outdoor environment with unstable voltage.

Specifications:

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2960 (H) × 1668 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 [email protected] (Color, 30 IRE)
0.0003 [email protected] (B/W, 30 IRE)
0 lux (illuminator on)

S/N Ratio

﹥ 56 dB

Illumination Distance

30 m (IR)
30 m (warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)
2 (warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Field of View

2.8 mm: H: 97°; V: 70°; D: 128°
3.6 mm: H: 78°; V: 58°; D: 102°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.5 m
3.6 mm: 2.2 m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66.0 m

26.4 m

13.2 m

6.6 m

3.6 mm

78.0 m

31.2 m

15.6 m

7.8 m

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

SMD 4.0

Less false alarms, longer detection distance

Smart Search

Work together with Smart NVR to perform refined intelligent search, event extraction, and merging to event videos.

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Mainstream: 2880 × 1620/2960 × 1668 @(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation

Yes

White Balance

Auto; natural; streetlamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP

User/Host

20 (Total bandwidth: 72 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8/9/11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

iOS; Android

Certification

CE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5 VDC

Alarm Output

1 channel out: 300mA 12 VDC

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 3.3 W (12 VDC); 4.4 W (PoE)

Max. (pulling stream+warning light+speaker+warm light on): 6.8 W (12 VDC); 8.2 W (PoE)

Environment

Operating Conditions

–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH

Storage Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Protection Grade

IP67

Structure

Casing

Metal + plastic

Dimensions

288.4 mm × 94.4 mm × 84.7 mm
(11.35" × 3.72" × 3.33") (L × W × H)

Net Weight

1.0 kg (2.20 lb)

Gross Weight

1.23 kg (2.71 lb)

Camera Installation Guide

Bullet Network Camera Installation Guide (PDF)

Download (1.87MB)

Quick Start Guide

Dahua Bullet Network Camera Quick Start Guide (PDF)

Download (723.05KB)

HFW3549T1-AS-PV datasheet

Dahua 5MP TiOC 1.0 Active Deterrence IPC-HFW3549T1-AS-PV-S4 datasheet (PDF)

Download (632.82KB)
