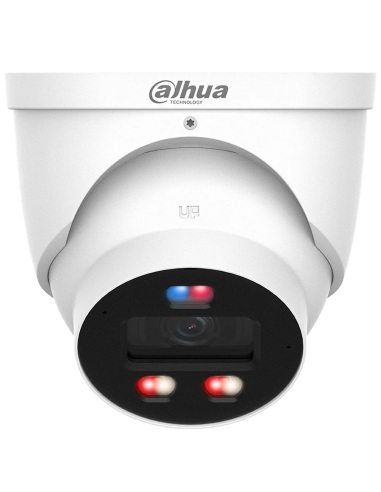

Dahua 6MP TIOC AcuPick Pro Fixed Turret Camera with AI, White - DH-IPC-HDW3649H-AS-PV-PRO-ANZ
Dahua DH-IPC-HDW3649H-AS-PV-PRO-ANZ: a white 6MP WizSense TiOC PRO metal turret with a 1/1.8" sensor and F1.0 lens for colour in very low light, 30 m IR and warm light, a siren and red-blue strobe, and two-way talk.
- ✓6MP, 3288 × 1850, 1/1.8" sensor, F1.0 (2.8 or 3.6 mm)
- ✓Colour to 0.0002 lux; 30 m IR and warm light
- ✓Siren, voice messages and red-blue strobe
- ✓Two-way talk: dual mic and speaker
- ✓SMD 4.0, perimeter, stay and loitering, AcuPick
- ✓microSD up to 512 GB, IP67, PoE or 12 VDC
Description

6MP on a big 1/1.8" sensor.
Colour in very low light, siren and strobe on cue.
This is the DH-IPC-HDW3649H-AS-PV-PRO-ANZ: a white metal 6MP turret with a 1/1.8" sensor and F1.0 lens, two multi-core IR and warm lights to 30 m, a red and blue strobe with a siren, and two-way talk.
In one sentence: the DH-IPC-HDW3649H-AS-PV-PRO-ANZ is a Dahua WizSense 3 Series 6MP (3288 × 1850) TiOC PRO fixed turret with a 1/1.8" sensor, F1.0 lens, 30 m IR and warm light, siren and red-blue strobe, two-way audio, SMD 4.0, AcuPick and IP67.
Camera only. Recorder and cabling are separate.
This listing is one white camera. It needs PoE or a 12 V supply for power and somewhere to store the footage. Dahua makes it with a 2.8 mm or a 3.6 mm lens: confirm with us which lens is in stock when you order.
- DH-IPC-HDW3649H-AS-PV-PRO-ANZ turret camera
- A PoE NVR or PoE switch, or a 12 VDC supply
- Cat5e or Cat6 cable to the camera
- A recorder, NAS or microSD card (up to 512 GB) for the footage

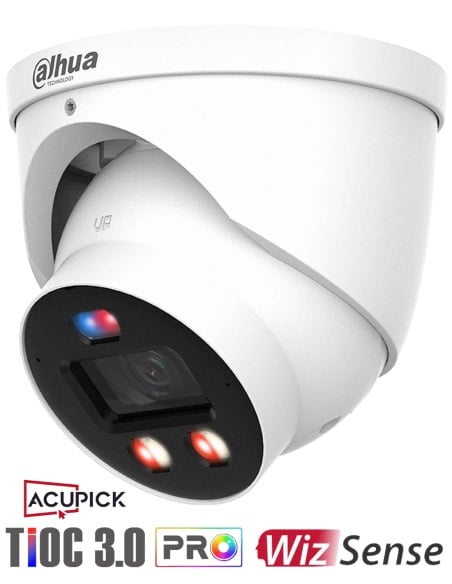

What PRO adds.
Dahua's TiOC PRO with WizColor pairs a large 1/1.8" sensor with an F1.0 lens and AI image processing, so it holds colour down to 0.0002 lux from street and moon light before the lights come on. On a perimeter event it can switch on its warm light, flash red and blue and play a siren or a recorded warning. SMD 4.0 keeps animals and moving leaves from setting it off.

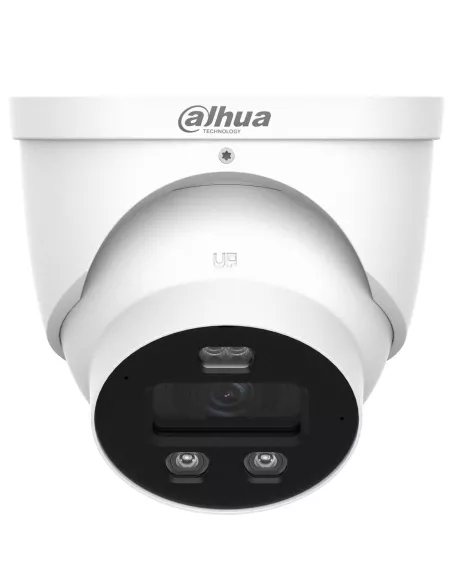

Front
1/1.8" sensor, F1.0 lens.
The sensor records 3288 × 1850 (16:9) at up to 25/30 fps. Colour holds down to 0.0002 lux and black and white to 0.0001 lux at F1.0, and 120 dB WDR keeps detail against bright doorways and headlights.

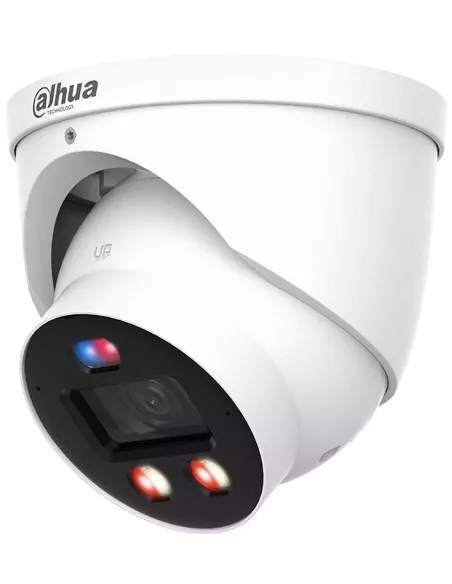

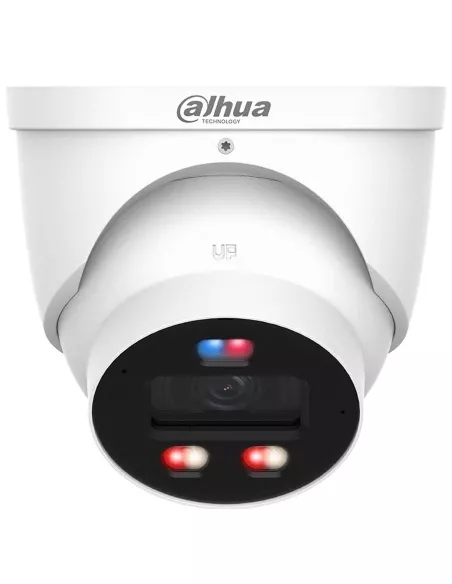

Lights and deterrence
Two multi-core lights, a strobe and a siren.
Each of the two multi-core lights holds IR and warm light, both reaching 30 m. Above the lens sits the red and blue warning light. The built-in speaker (up to 110 dB at 10 cm in Dahua's lab test) plays a siren, a built-in voice or a message you import.

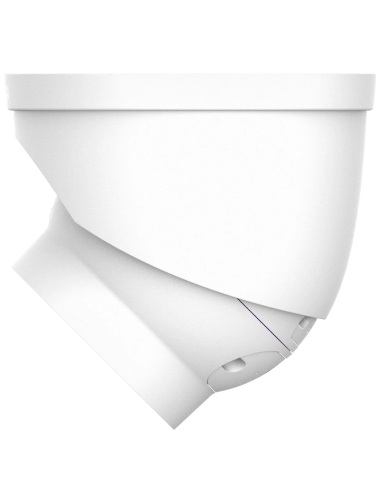

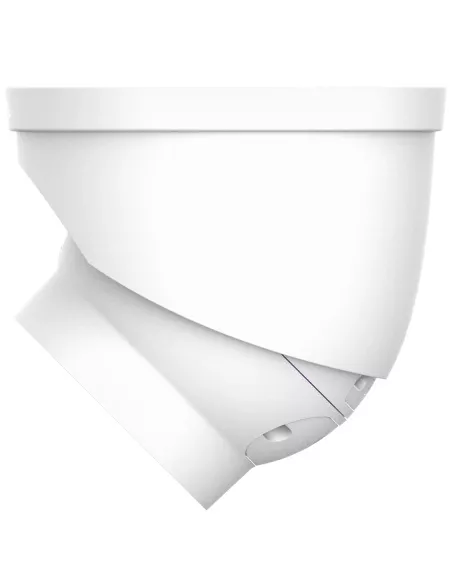

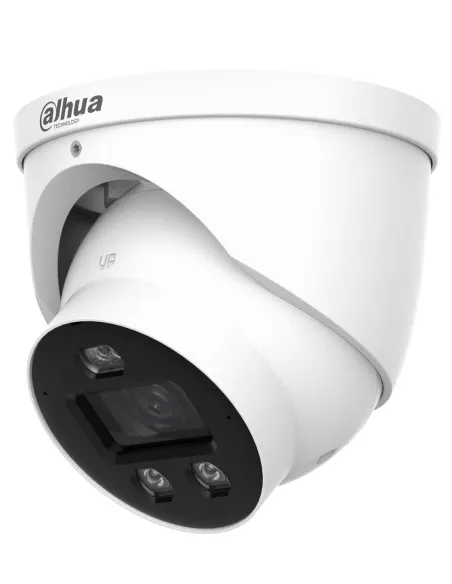

Housing
Metal, IP67, three-axis ball.
Metal casing, Ø 122 × 116.1 mm and 0.8 kg. Pan 0–360°, tilt 0–78° and rotate 0–360° to frame the view. Rated IP67 and −40 °C to +60 °C.
How it goes in
From cable to first alert.
01
Run one cable
Cat5e or Cat6 to a PoE NVR or PoE switch. The camera draws up to 10 W on PoE. A 12 VDC supply also works.
02
Fix the base
Three Ø 4.5 mm holes on an 84 mm circle, or Dahua's PFA137 junction box. Pan, tilt and rotate the ball to frame the scene.
03
Add it to the recorder
Set the password on first login, then add the camera to a Dahua NVR, DSS or Smart PSS Lite, and to the DMSS app.
04
Draw the rules
Set tripwire, intrusion, stay or loitering rules for people, vehicles or both, then choose what the light, strobe and siren do.
At a glance
DH-IPC-HDW3649H-AS-PV-PRO-ANZ
Show specs
Resolution
6MP, 3288 × 1850 at up to 25/30 fps
Lens
Fixed F1.0, 2.8 mm or 3.6 mm (confirm with us)
Field of view
2.8 mm: 109° horizontal; 3.6 mm: 93° horizontal
DORI (detect)
2.8 mm: 70.2 m; 3.6 mm: 85.6 m
Image sensor
1/1.8" progressive CMOS, WizColor with AI-ISP
Low light
Colour 0.0002 lux, B/W 0.0001 lux at F1.0; 0 lux with the lights on
Lights
2 multi-core lights (IR + warm): IR up to 30 m, warm light up to 30 m, Smart Dual Light
Deterrence
Red and blue warning light, siren and voice messages (custom import), one-tap arm and disarm
WDR
120 dB, plus BLC, HLC, 3D NR and defog
Compression
H.265, H.264, AI coding with Smart H.265+/H.264+; MJPEG on the sub stream
Streams
3 streams, 3 kbps to 16384 kbps
Perimeter
Tripwire and intrusion with human and vehicle sorting; stay and loitering detection
Face detection
Full-image face detection and face snapshots (Dahua's 2025 datasheet)
Smart detection
SMD 4.0; AI SSA
Search
AcuPick with an AcuPick-capable Dahua recorder
Audio
Built-in dual mic and speaker (two-way talk); 1 in, 1 out (RCA)
Alarm
1 in (wet contact, 5 mA 3–5 VDC), 1 out (wet contact, 300 mA 12 VDC)
Storage
microSD up to 512 GB, NAS, FTP/SFTP
Network
1 × RJ45 10/100; ONVIF Profile S, G, T and M
Power
12 VDC or PoE; up to 8.2 W (12 V) or 10 W (PoE)
Protection
IP67, metal casing
Size and weight
Ø 122 × 116.1 mm, 0.8 kg
Operating range
−40 °C to +60 °C, humidity 95% or less
Software
DMSS (iOS, Android), Smart PSS Lite, DSS, DoLynk Care
Colour
White
Warranty
Dahua 3-year manufacturer warranty, handled in Australia through InFront

Ø 122.0 × 116.1 mm. Three Ø 4.5 mm mounting holes on an Ø 84 mm circle. Units mm [inch].
Pair it with
What this camera does not include
Recorder
A Dahua WizSense PoE NVR
Powers and records the camera on one cable. Choose an AcuPick-capable model to search the footage for people and vehicles.
Power
A PoE switch
If the recorder has no free PoE ports. Allow 10 W for this camera with the lights and siren in use.
Cabling
Cat5e or Cat6 cable
One run per camera, up to the usual 100 m Ethernet limit.
Mounting

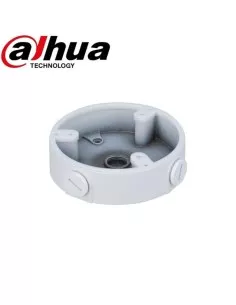

Dahua PFA137 junction box
Dahua's optional box for this camera. It hides the cable joint under the base on walls and eaves.
Where it is used
Where a PRO turret earns its keep.
Dim driveways and streets
Street and moon light is often enough for colour, before the warm light comes on.
Side gates and back yards
Tripwire on the gate, with a siren that tells them they have been seen.
Shopfront entries
Loitering alerts at the door after hours, and a voice warning at the roller door.
Warehouses and yards
Vehicle and human sorting on gates and loading docks, 30 m of light at night.
Reception and front doors
Face snapshots of who came in, sent with the event to the recorder.
Strata common areas
Bin rooms and car park entries recording to the building NVR, with a spoken warning.
2.8 mm or 3.6 mm lens
| 2.8 mm lens | 3.6 mm lens | |
|---|---|---|
| Horizontal view | 109° | 93° |
| Diagonal view | 131° | 111° |
| Detect (DORI) | 70.2 m | 85.6 m |
| Recognise (DORI) | 14.0 m | 17.1 m |
| Identify (DORI) | 7.0 m | 8.6 m |
| Close focus | 3.2 m | 4.4 m |
Both lenses are columns of the same Dahua DH-IPC-HDW3649H-AS-PV-PRO datasheet. Everything else is the same. Confirm with us which lens is in stock.
Common questions
What does PRO mean on this camera?
It is Dahua's TiOC PRO with WizColor: a larger 1/1.8" sensor, F1.0 lens and AI image processing for colour in very low light, two multi-core lights, and more AI rules than the standard TiOC S2.
How is it different from the DH-IPC-HDW3649H-AS-PV-ANZ-S2?
The S2 has a 1/2.7" sensor, 3072 × 2048 video, colour to 0.005 lux and microSD up to 256 GB. This PRO has a 1/1.8" sensor, 3288 × 1850 video, colour to 0.0002 lux, microSD up to 512 GB, and adds stay, loitering and face detection.
Is a recorder included?
No. This listing is the camera only. It records to a Dahua NVR, a NAS or a microSD card of up to 512 GB.
How is it powered?
By PoE or by 12 VDC. It draws up to 10 W on PoE or 8.2 W on 12 VDC with the warm light, siren, strobe and analytics all running.
How far does it see at night?
Up to 30 m with IR and up to 30 m with warm light. Smart Dual Light keeps it on IR until a person or vehicle appears, then switches the warm light on. In colour it works down to 0.0002 lux with no light of its own.
Which lens should I choose, 2.8 mm or 3.6 mm?
2.8 mm covers 109° across and detects out to 70.2 m. 3.6 mm covers 93° and detects out to 85.6 m. Dahua makes both, so confirm with us which lens is in stock when you order.
Does it recognise faces?
It detects faces and takes face snapshots across the whole image, as listed on Dahua's 2025 datasheet. It does not name people. Matching faces against a list needs a recorder or software that does face recognition.
What sets off the siren and strobe?
Perimeter events: a tripwire crossing or an intrusion into a zone you draw, filtered for people, vehicles or both. You choose the light, strobe and sound for each rule, and can disarm them with one tap in DMSS.
Can I talk through the camera?
Yes. It has a built-in dual microphone and a speaker, so you can listen and talk back from the DMSS app or a Dahua recorder.
Is it a dome or a turret?
A turret. Dahua calls this housing an eyeball: a ball in a metal cup with no dome cover, so the lens and lights sit in the open and the ball can be aimed in three axes.
Will it work with a non-Dahua recorder?
It supports ONVIF Profile S, G, T and M, so most ONVIF recorders can record it. AcuPick needs an AcuPick-capable Dahua recorder, and Dahua lists DMSS, Smart PSS Lite, DSS and DoLynk Care as its software.
What warranty does it have?
Dahua gives its 3 Series network cameras a 3-year (36-month) manufacturer warranty under Dahua Australia's warranty policy. Claims are handled in Australia through InFront Technologies: call 1300 736 970 or email [email protected].
Supported by InFront Technologies.
Help choosing the lens, recorder or switch: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Low-voltage camera. PoE (up to 10 W) or 12 VDC (up to 8.2 W). There is no mains connection on the camera. A new power point for a 12 V supply needs a licensed electrician.
Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Audio, siren and faces. Recording conversations and collecting face images are covered by state and territory surveillance and privacy laws, and a siren near homes should respect local noise rules. Check them, and use signage, before you switch these on.
What it does not do. No optical zoom, no Wi-Fi, and the lens is fixed at the size you order. Face detection captures faces; it does not identify people on its own.
Figures. From Dahua's DH-IPC-HDW3649H-AS-PV-PRO datasheet (Rev 002, 2025), linked from the IPC-HDW3649H-AS-PV-PRO-ANZ page on the Dahua Australia website.
