Dahua DH-IPC-HDW3667EM-S-IL-ANZ-BLK 6MP Smart Dual Light Fixed Eyeball WizSense Camera (Black)

SKU DH-IPC-HDW3667EM-S-IL-ANZ-BLK In Stock - Ready to Ship
$162.50 inc GST

Dahua DH-IPC-HDW3667EM-S-IL-ANZ-BLK: a black 6MP WizSense metal eyeball with Smart Dual Light, so it records in colour when a person or vehicle appears and stays on IR the rest of the night.

  • ✓6MP, 3288 × 1850, F1.4 lens (2.8 or 3.6 mm)
  • ✓Smart Dual Light: 30 m IR and 30 m warm light
  • ✓SMD 4.0, tripwire and intrusion, AcuPick
  • ✓Built-in microphone
  • ✓Black IP67 metal housing, PoE 802.3af or 12 VDC
  • ✓microSD up to 512 GB



Description

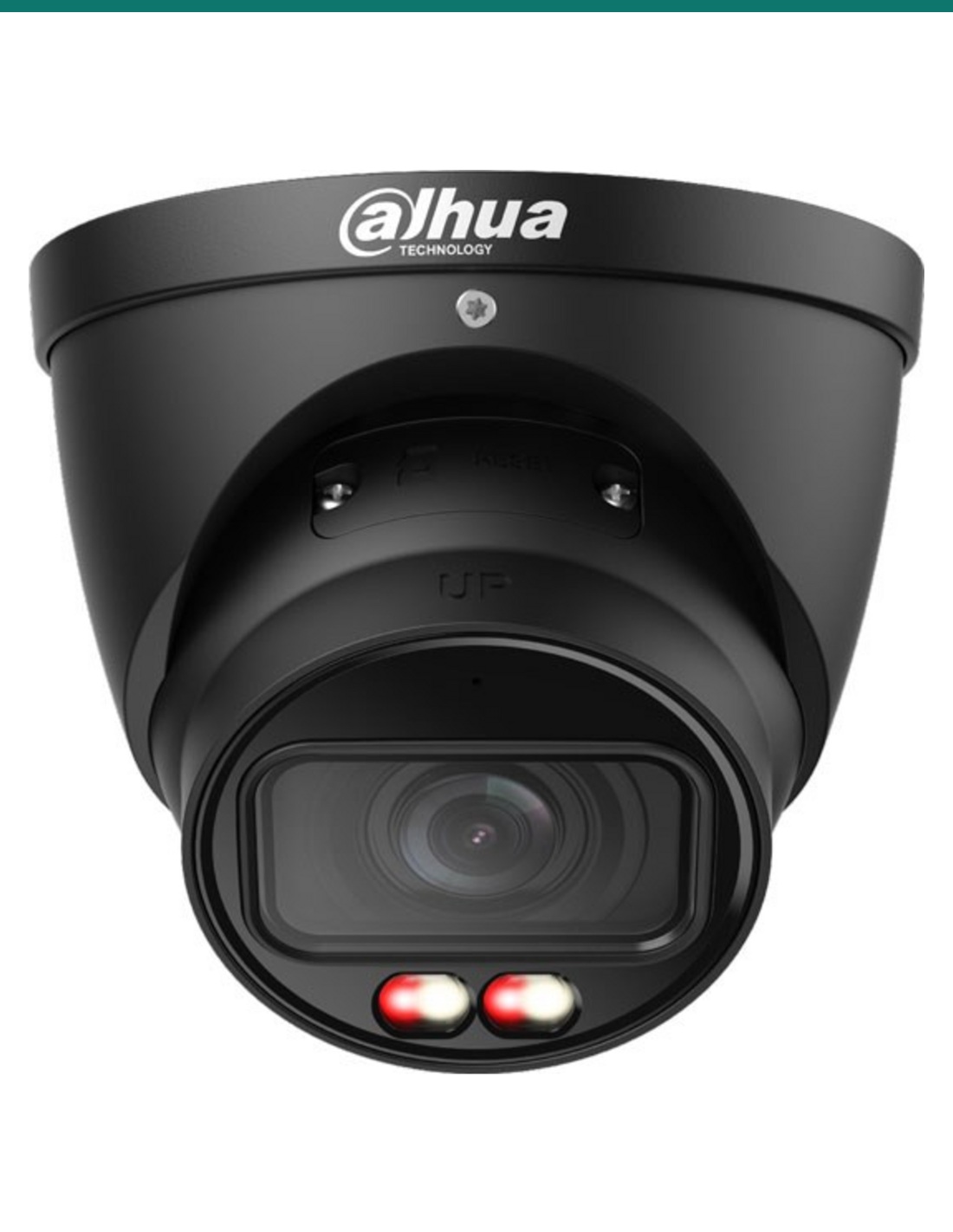

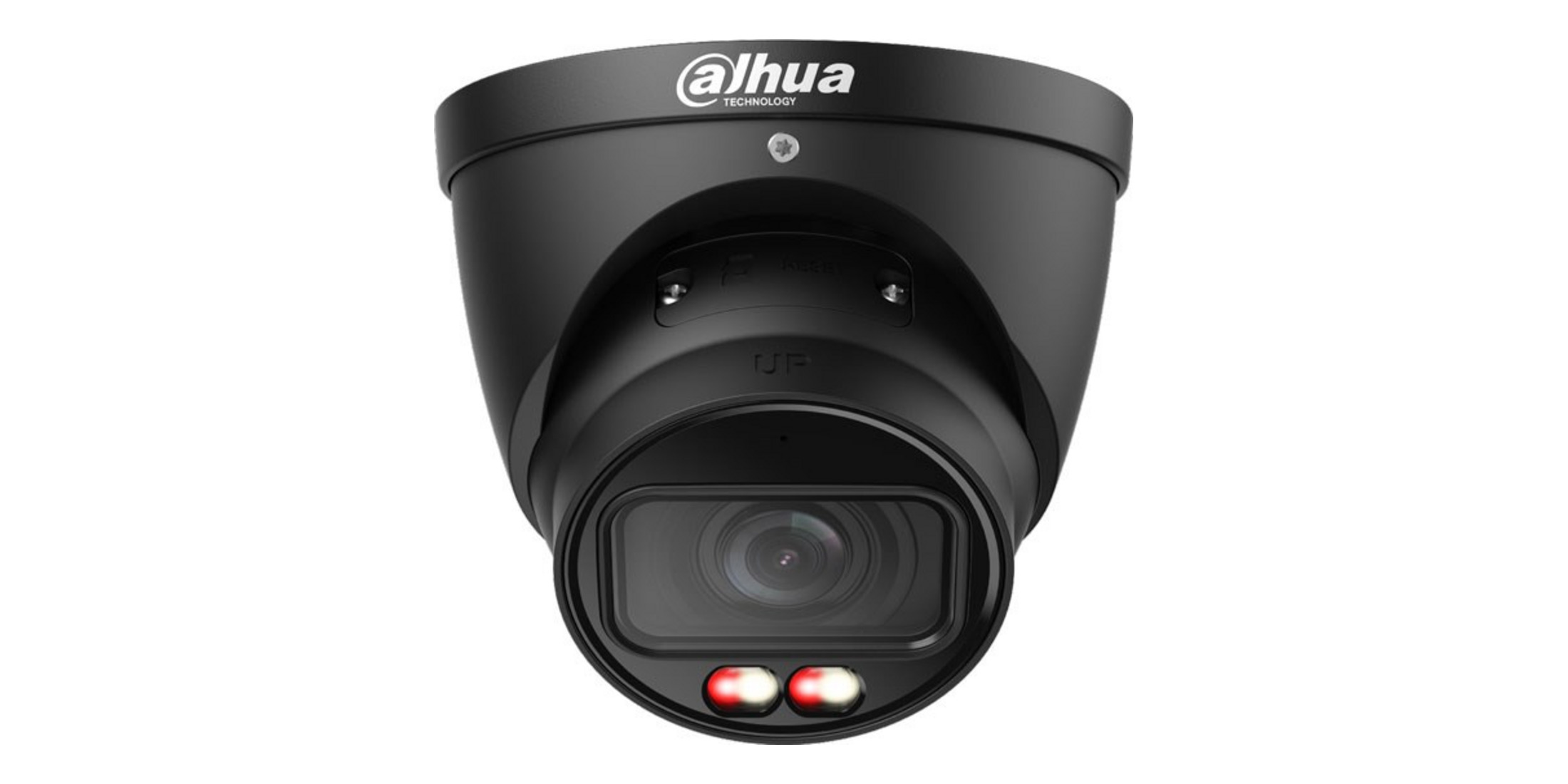

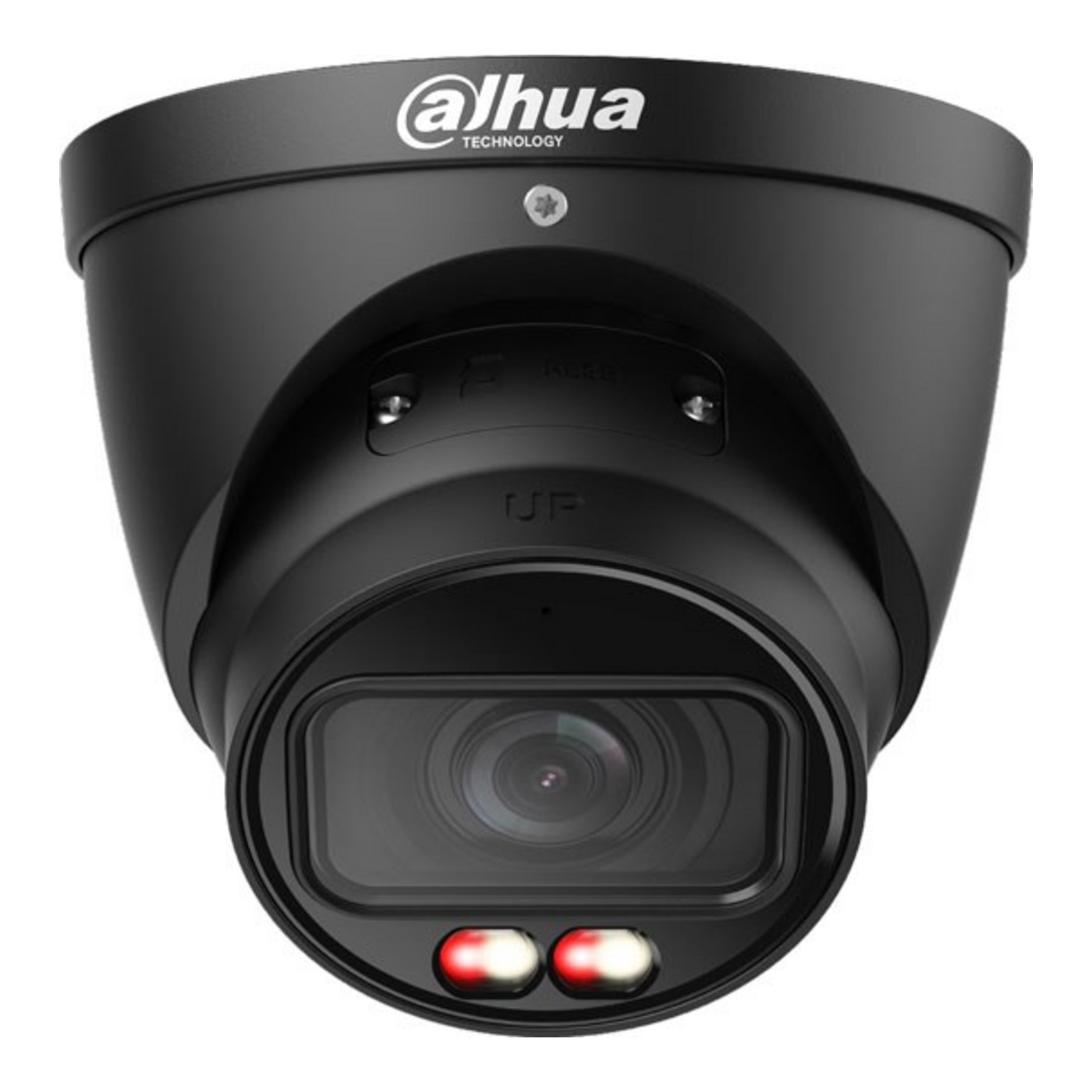

Dahua DH-IPC-HDW3667EM-S-IL-ANZ-BLK black 6MP Smart Dual Light eyeball camera, front view
Dahua · WizSense 3 Series · Smart Dual Light · Black

6MP colour when it counts.
IR by default, warm light on target.

This is the black DH-IPC-HDW3667EM-S-IL-ANZ-BLK: a metal 6MP eyeball that watches in infrared at night and switches its warm light on when a person or vehicle walks in, so the footage that matters is in colour. The black housing suits dark eaves and cladding.

In one sentence: the DH-IPC-HDW3667EM-S-IL-ANZ-BLK is a black Dahua WizSense 3 Series 6MP (3288 × 1850) fixed eyeball with an F1.4 lens, Smart Dual Light (30 m IR and 30 m warm light), SMD 4.0, AcuPick, a built-in mic, IP67 and 802.3af PoE.

Camera only. Recorder and cabling are separate.

This listing is one black camera. It needs PoE or a 12 V supply for power and somewhere to store the footage. Dahua makes it with a 2.8 mm or a 3.6 mm lens: confirm with us which lens is in stock when you order.

In the box
  • DH-IPC-HDW3667EM-S-IL-ANZ-BLK eyeball camera (black)
You also need
  • A PoE NVR or an 802.3af PoE switch, or a 12 VDC supply
  • Cat5e or Cat6 cable to the camera
  • A recorder, NAS or microSD card (up to 512 GB) for the footage

Light only when it is needed.

Smart Dual Light keeps the IR on at night and turns the warm light on only when it detects a target, then back to IR when the target leaves. You get colour footage of the event without lighting up the yard all night.

DH-IPC-HDW3667EM-S-IL-ANZ-BLK close-up of the lens window and the two multi-core lights below it

Lens and light

30 m of IR, 30 m of warm light.

Two multi-core lights sit under the F1.4 lens. Each gives IR or warm light, out to 30 m. Colour holds down to 0.005 lux, and a built-in microphone records sound with the video.

DH-IPC-HDW3667EM-S-IL-ANZ-BLK top of the black metal housing with the Dahua logo

Housing

Black metal, IP67.

93.6 mm high, Ø 106 mm and 0.53 kg. Rated IP67, −40 °C to +60 °C. The ball pans 360°, tilts 0–80° and rotates 360°.

How it goes in

From cable to first alert.

01

Run one cable

Cat5e or Cat6 to a PoE NVR or an 802.3af switch. The camera draws up to 9.5 W on PoE. A 12 VDC supply also works.

02

Fix the base

Four Ø 4.5 mm holes on a 69 mm circle. Pan, tilt and rotate the ball to frame the scene, then tighten it.

03

Add it to the recorder

Set the password on first login, then add the camera to a Dahua NVR, DSS or Smart PSS Lite, and to the DMSS app.

04

Set the rules

Draw tripwire or intrusion zones for people, vehicles or both, and choose when the warm light comes on.

Pair it with

What this camera does not include

Recorder

A Dahua WizSense PoE NVR

Powers and records the camera on one cable, and adds AcuPick searches for people and vehicles in the footage.

Power

An 802.3af PoE switch

If the recorder has no free PoE ports. Allow 9.5 W for this camera with the warm light on.

Cabling

Cat5e or Cat6 cable

One run per camera, up to the usual 100 m Ethernet limit.

Mounting

Dahua PFA139 junction box

Dahua's optional box for this camera. It hides the cable joint under the base. Dahua also lists the PFB2204W wall mount.

Where it is used

Where a black dual-light eyeball fits.

Dark eaves and cladding

The black housing blends into charcoal soffits and modern facades.

Granny flats and units

Light only when needed, so neighbours are not lit up all night.

Shops and cafés

Entries, counters and rear lanes with sound recorded too.

Offices

Reception, car parks and side doors on the building NVR.

Warehouses and yards

People and vehicle sorting on gates and roller doors.

Strata common areas

Bin rooms, lift lobbies and car park ramps.

2.8 mm or 3.6 mm lens

2.8 mm lens3.6 mm lens
Horizontal view110°86°
Diagonal view132°100°
Detect (DORI)84.8 m98.7 m
Recognise (DORI)17.0 m19.7 m
Identify (DORI)8.5 m9.9 m
Close focus1.4 m1.9 m

Both lenses are columns of the same Dahua DH-IPC-HDW3667EM-S-IL-ANZ datasheet; the black version differs only in colour. Confirm with us which lens is in stock.

Common questions

What is Smart Dual Light?

The camera uses IR at night as normal. When it detects a target, it switches the warm light on and records in full colour, then goes back to IR when the target leaves, so the light is not on all night. It can also be set to auto or manual control.

Is this the same camera as the white one?

Yes, the same DH-IPC-HDW3667EM-S-IL-ANZ camera and datasheet, in a black housing. Choose black when you want it to blend into dark eaves or cladding.

Is a recorder included?

No. This listing is the camera only. It records to a Dahua NVR, a NAS or a microSD card of up to 512 GB.

How is it powered?

By PoE (802.3af) or 12 VDC. It draws up to 9.5 W on PoE or 7.4 W on 12 VDC with the warm light and analytics running.

How far does it see at night?

Up to 30 m with IR and up to 30 m with warm light. In colour it works down to 0.005 lux at F1.4, and with its lights on it records at 0 lux.

Which lens should I choose, 2.8 mm or 3.6 mm?

2.8 mm covers 110° across and detects out to 84.8 m. 3.6 mm covers 86° and detects out to 98.7 m. Dahua makes both, so confirm with us which lens is in stock when you order.

Does it record sound?

Yes. It has a built-in microphone. There is no speaker, so it cannot talk back or sound a siren.

What does SMD 4.0 do?

It sorts motion by target type and ignores things like animals, so motion alerts are kept for people and vehicles. With a Dahua AI NVR you can also pick those targets out of the recordings.

Will it work with a non-Dahua recorder?

It supports ONVIF Profile S, G, T and M, so most ONVIF recorders can record it. AcuPick needs a Dahua back-end device such as a WizSense NVR.

What size is it and how does it mount?

93.6 mm high and Ø 106 mm, 0.53 kg, in an IP67 metal housing rated −40 °C to +60 °C. The base has four Ø 4.5 mm holes on a 69 mm circle, and the ball pans 360°, tilts 80° and rotates 360°.

What warranty does it have?

Dahua gives its 3 Series network cameras a 3-year (36-month) manufacturer warranty under Dahua Australia's warranty policy. Claims are handled in Australia through InFront Technologies: call 1300 736 970 or email [email protected].

Who can install the cable?

Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Plugging a patch lead into an existing outlet does not.

Supported by InFront Technologies.

Help choosing the lens, recorder or switch: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Low-voltage camera. PoE (802.3af, up to 9.5 W) or 12 VDC (up to 7.4 W). There is no mains connection on the camera. A new power point for a 12 V supply needs a licensed electrician.

Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Audio. Recording conversations is covered by state and territory surveillance laws. Check them, and use signage, before you switch the microphone on.

What it does not do. No speaker or siren, no alarm inputs or outputs, no optical zoom and no Wi-Fi.

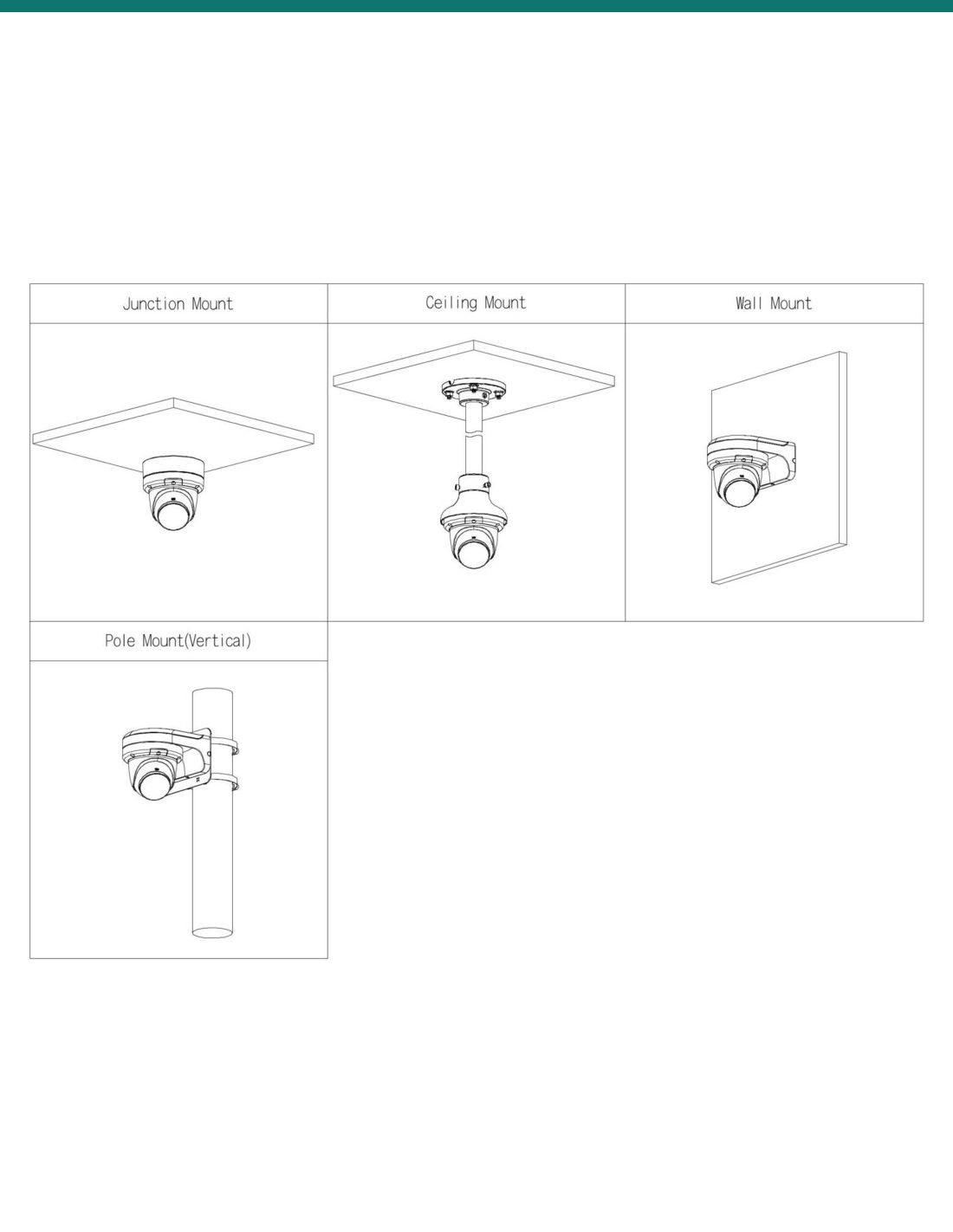

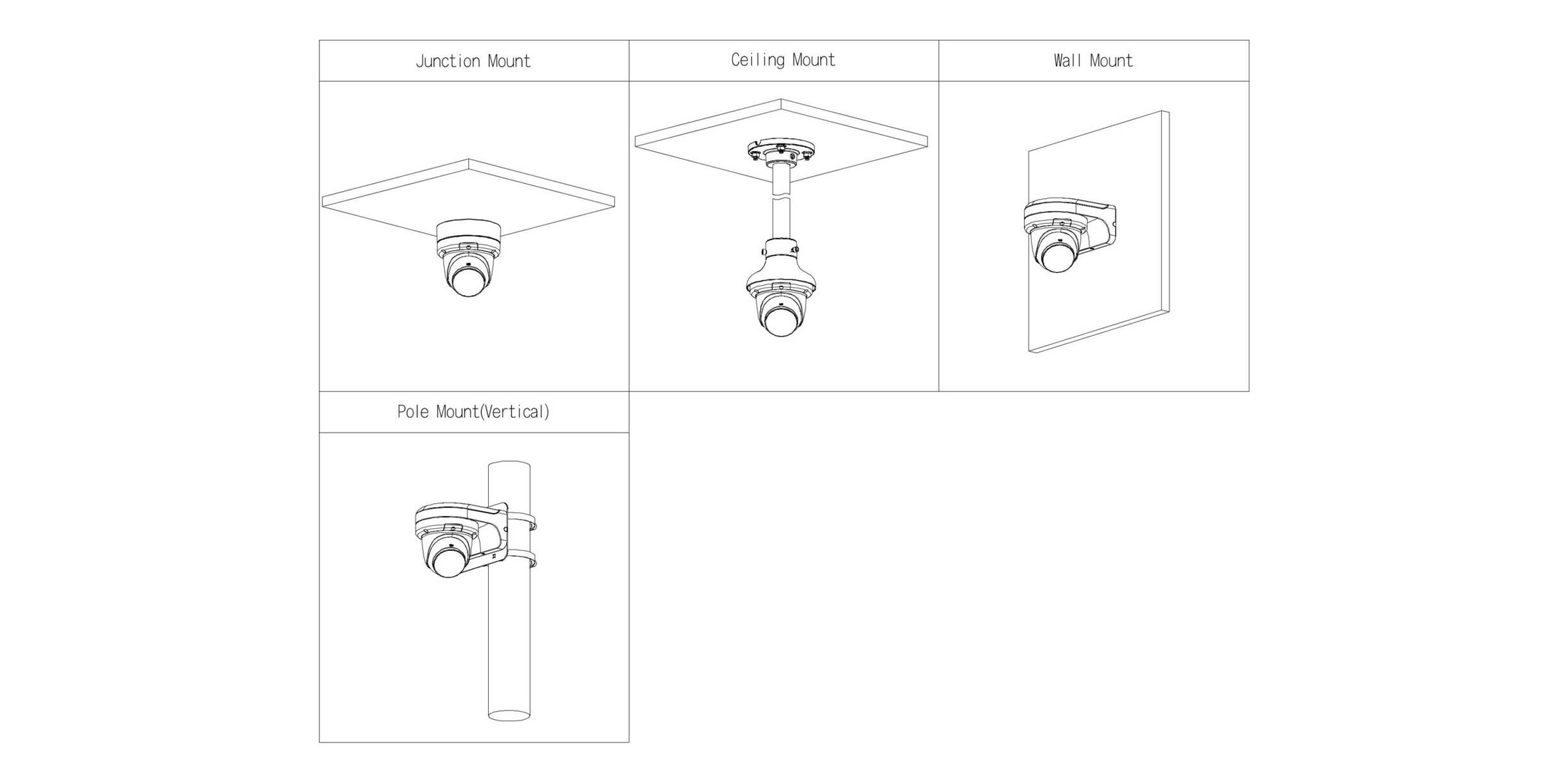

Figures. From Dahua's DH-IPC-HDW3667EM-S-IL-ANZ datasheet (Rev 002.000) and dimension drawing. The black version differs only in colour.

Net Weight
0.53 kg (1.17 lb)
Power Supply
12 VDC/PoE (802.3af)
Type
IP CAMERA DH-IPC-HDW3667EM-S-IL-ANZ-BLK
Operating temperature
−40 °C to +60 °C (−40 °F to +140 °F)
Colour
Black
Power Consumption
Basic: 3.7 W (12 VDC); 5.3 W (PoE); Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on)
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
Housing Colour
Black
Brand
Dahua
Certifications
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Storage
FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Interoperability
ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
Image Sensor
1/2.7" CMOS
Video Frame Rate
Main stream: 3288 × 1850@(1–25/30 fps); Sub stream: 1920 × 1080@(1–25/30 fps); Third stream: 1920 × 1080@(1–25/30 fps)
Network Port
RJ-45 (10/100 Base-T)
Max. Resolution
3288 (H) × 1850 (V)
Field of View
2.8 mm: H: 110°; V: 58°; D: 132°; 3.6 mm: H: 86°; V: 49°; D: 100°
Min. Illumination
0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on)
Built-in Mic
Yes, built-in Mic
Protection
IP67
Operating Humidity
≤95% (RH), non-condensing
Day/Night
Auto(ICR)/Color/B/W
Lens Type
Fixed-focal
Noise Reduction
3D NR
Bit Rate Control
VBR;CBR;ABR
S/N Ratio
≥56 dB
DORI Distance
2.8 mm: Detect 84.8 m, Observe 33.9 m, Recognize 17.0 m, Identify 8.5 m; 3.6 mm: Detect 98.7 m, Observe 39.5 m, Recognize 19.7 m, Identify 9.9 m
Privacy Masking
8 areas
Product Dimensions
93.6 mm × Φ106.0 mm (3.69" × Φ4.17")
WDR
120 dB
Focal Length
2.8 mm; 3.6 mm
Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.4 m (4.59 ft); 3.6 mm: 1.9 m (6.23 ft)
Lens Mount
M12
Illuminator On/Off Control
Auto;Manual
Audio Compression
PCM; G.711a; G.711Mu; G.726; G.723
ROM
256 MB
RAM
1 GB
Scanning System
Progressive
Illumination Distance
Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm light)
Illuminator Number
2 (Multi-core (IR + warm) light)
Max. Aperture
F1.4
IVS (Perimeter Protection)
Intrusion, tripwire (classification and accurate detection of vehicle and human)
AI SSA
Adopt deep learning algorithms to adjust image parameters to suit conditions
AI Coding
AI H.265; AI H.264
Stream Capability
3 streams
BLC
Yes
HLC
Yes
Management Software
Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client
iOS;Android
Gross Weight
0.71 kg (1.57 lb)
SMD
SMD 4.0
Warranty
3 Year Australian Warranty
AcuPick
Uses deep learning algorithms to match targets, such as people and motor vehicles, in live and recorded videos
Angle Adjustment
Pan: 0°–360°; Tilt: 0°–80°; Rotation: 0°–360°
Smart Illumination
Yes
Smart Dual Light
Yes
LDC
Yes
Dual Power Backup
When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Casing Material
Metal
Description
6MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera (Black)
Optional Accessories
PFA139 Junction Box; PFB2204W Wall Mount; PFA106 Ceiling Mount; PFB220C Ceiling Mount; PFA152-E Pole Mount; PFM900-E Integrated Mount Tester; TF-P100 TLC SD Card
Megapixels
6 MP
