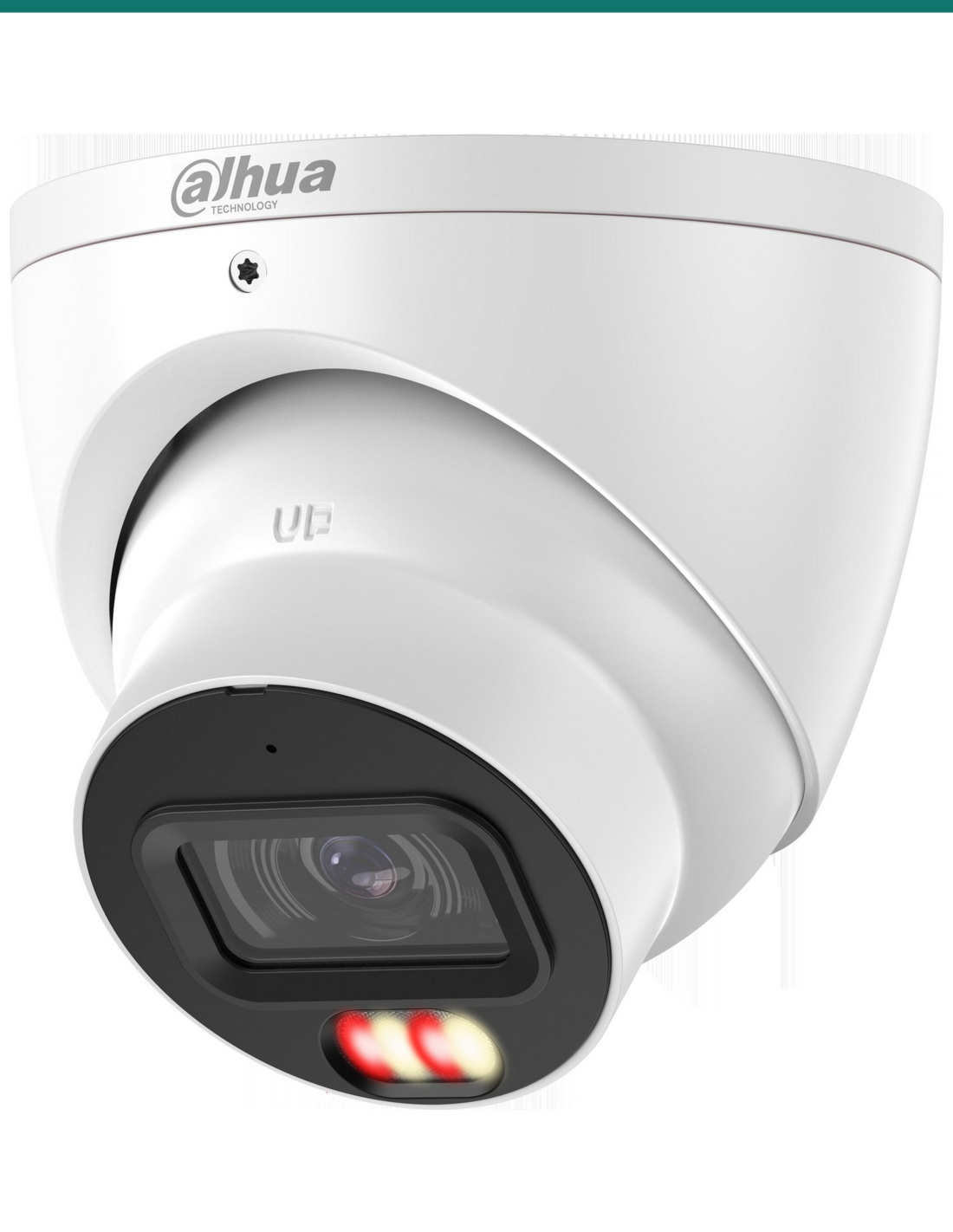

DH-IPC-HDW3667EM-S-IL-ANZ front product view

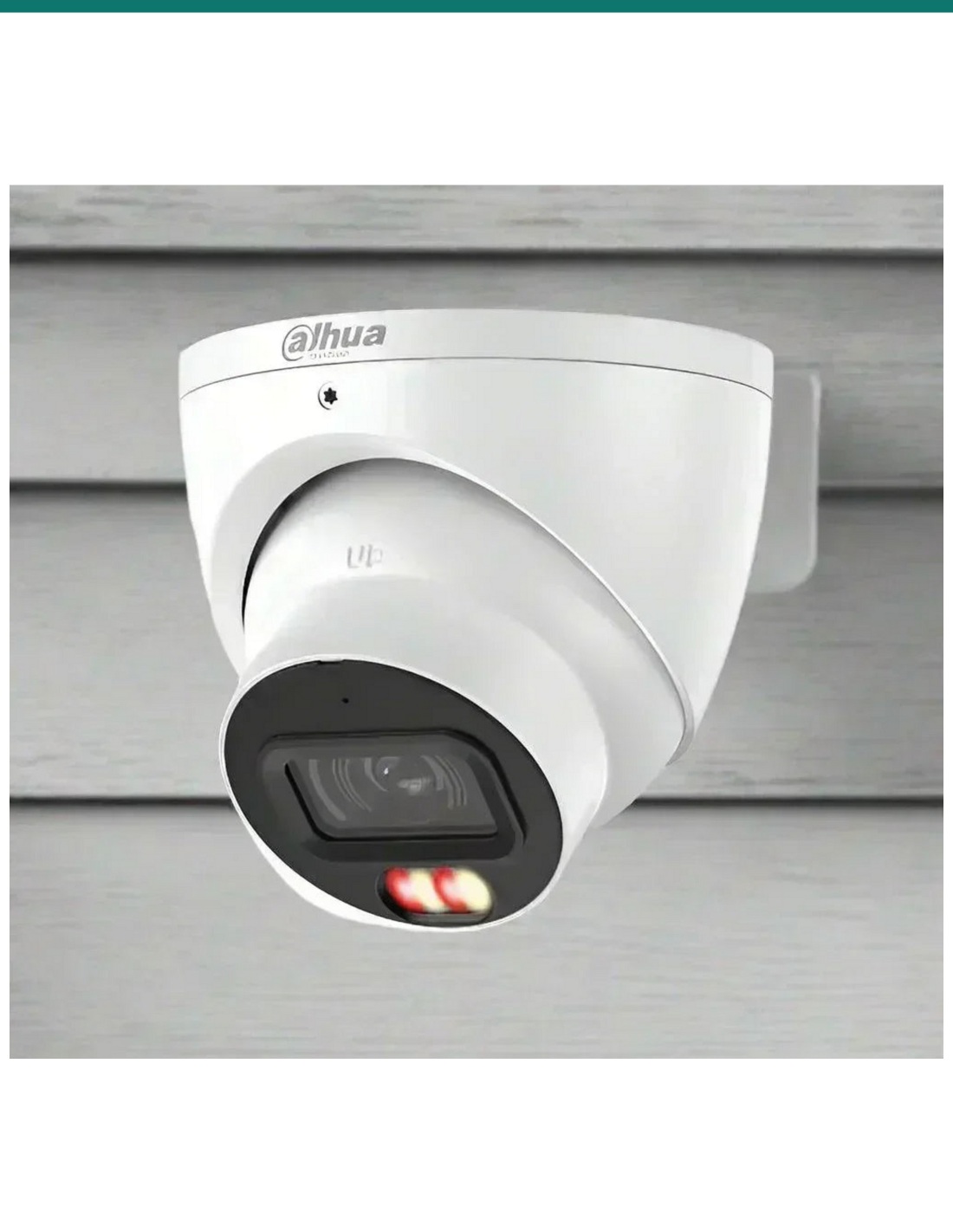

DH-IPC-HDW3667EM-S-IL-ANZ installed view

Dahua DH-IPC-HDW3667EM-S-IL-ANZ 6MP Smart Dual Light Fixed Eyeball WizSense Camera

Name: Dahua DH-IPC-HDW3667EM-S-IL-ANZ 6MP Smart Dual Light Fixed Eyeball WizSense Camera
Brand: Dahua Australia
SKU: DH-IPC-HDW3667EM-S-IL-ANZ
Price: 162.38 AUD
Availability: InStock

Reference: DH-IPC-HDW3667EM-S-IL-ANZ

In Stock - Ready to Ship

$ 162.38

inc-GST

6MP colour when it counts.

Dahua WizSense fixed-focal eyeball with Smart Dual Light and AcuPick AI for residential and commercial ANZ installs.

✓6 MP 3288×1850 @ 25/30 fps, H.265 / AI coding
✓Smart Dual Light — 30 m IR + 30 m warm white
✓AcuPick, SMD 4.0, human & vehicle perimeter AI
✓Fixed 2.8/3.6 mm, IP67, built-in mic, PoE / 12 VDC

DH-IPC-HDW3667EM-S-IL-ANZ — 6MP Smart Dual Light eyeball on white

Dahua · WizSense 3 Series · Smart Dual Light

6MP colour when it counts.
IR by default. Warm light on target.

The Dahua DH-IPC-HDW3667EM-S-IL-ANZ is a 6 MP WizSense fixed-focal eyeball with Smart Dual Light — infrared for discreet night coverage and warm-white LEDs that switch on when a human or vehicle is detected, locking the scene in full colour. AcuPick and SMD 4.0 cut the false alarms on Australian eaves, soffits and walls.

Product shot may differ from the actual product.

ADD-ON CAMERA — NEEDS NVR / RECORDER

This is a network camera only. It records to a compatible NVR, NAS or microSD card — it is not a standalone kit with a recorder in the box.

In the box

DH-IPC-HDW3667EM-S-IL-ANZ camera
Mounting hardware (per Dahua packing)
Quick start guide

What you also need (sold separately)

PoE NVR or PoE switch + 12 VDC / PoE power
Cat 5e/Cat 6 Ethernet cable
Optional junction box / wall / pole mount (PFA139, PFB204W, PFA152-E)
Optional microSD up to 512 GB

Unsure what’s compatible? See Compatible hardware below or contact us before ordering.

Fixed-focal 6MP WizSense for everyday ANZ sites.

Choose 2.8 mm for a wide entry/driveway view or 3.6 mm for a tighter corridor — then let Smart Dual Light and AcuPick do the night work without flooding the neighbours with white light all evening.

Genuine Dahua ANZ model, shipped, supported and warrantied in Australia by Infront Technologies.

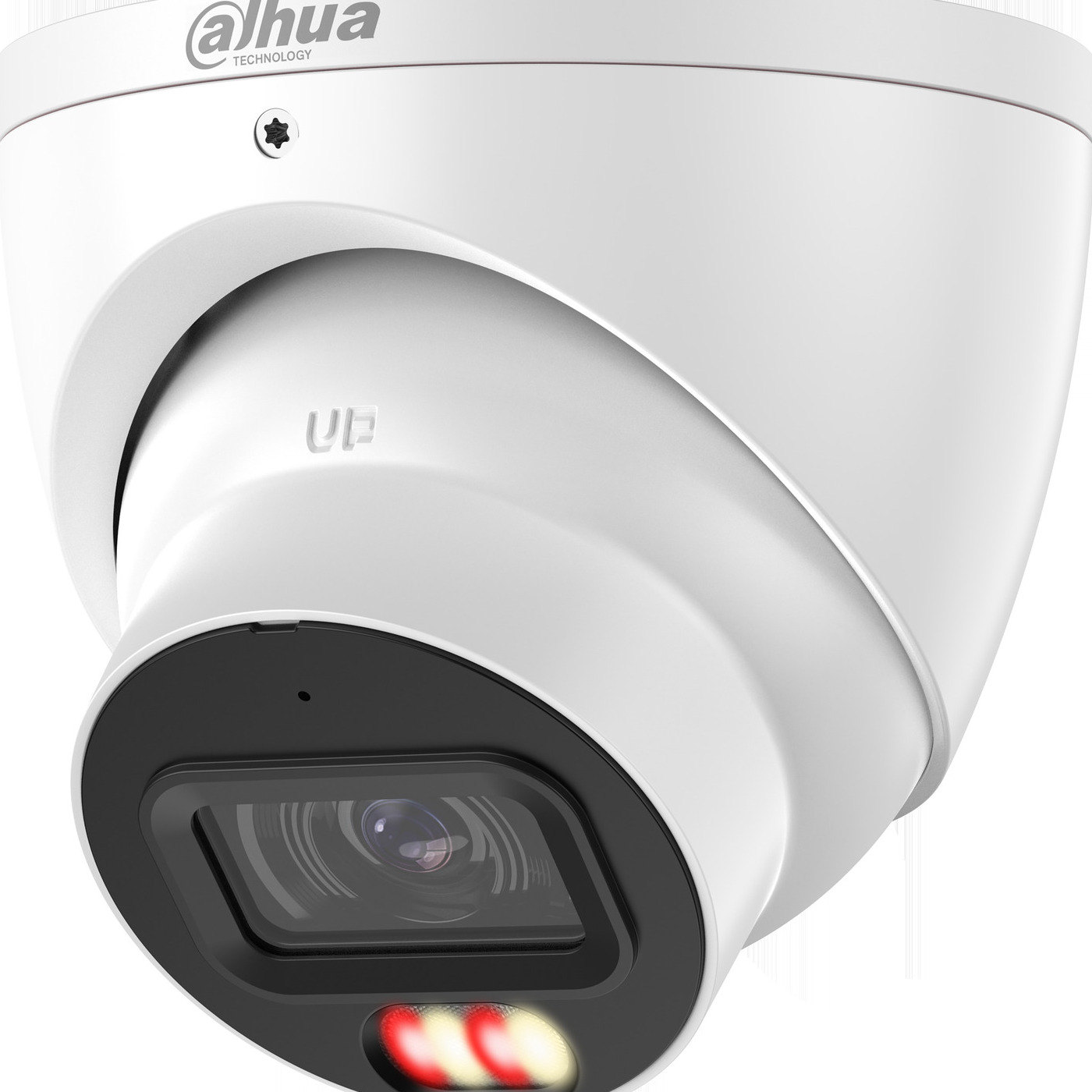

DH-IPC-HDW3667EM-S-IL-ANZ — front view with dual-light LEDs

CLARITY · 01

Smart Dual Light. 6MP detail that stays in colour.

A 6 MP 1/2.7" CMOS sits behind an F1.4 fixed-focal lens (2.8 mm or 3.6 mm) and outputs up to 3288 × 1850 at 25/30 fps. Smart Dual Light pairs IR and warm-white LEDs to 30 m each: IR by default at night; warm light when a target appears.

H.265 with Smart H.265+ and AI coding keeps bit-rate low, while 120 dB WDR, 3D NR, HLC and BLC handle backlit doorways and headlight glare.

DETECTION · 02

AcuPick + WizSense AI. Find the target, skip the noise.

On-board WizSense deep-learning runs SMD 4.0 and Perimeter Protection — intrusion and tripwire that classify humans and vehicles. SMD areas can also be set inside warm-light zones that support alarm triggers.

AcuPick matches people and vehicles across live and recorded video so you can locate a target in seconds, and AI SSA keeps the picture clean as light and weather change.

Imaging at a glance

6MP

Resolution

2.8/3.6

mm fixed

30 m

IR / warm

120 dB

WDR

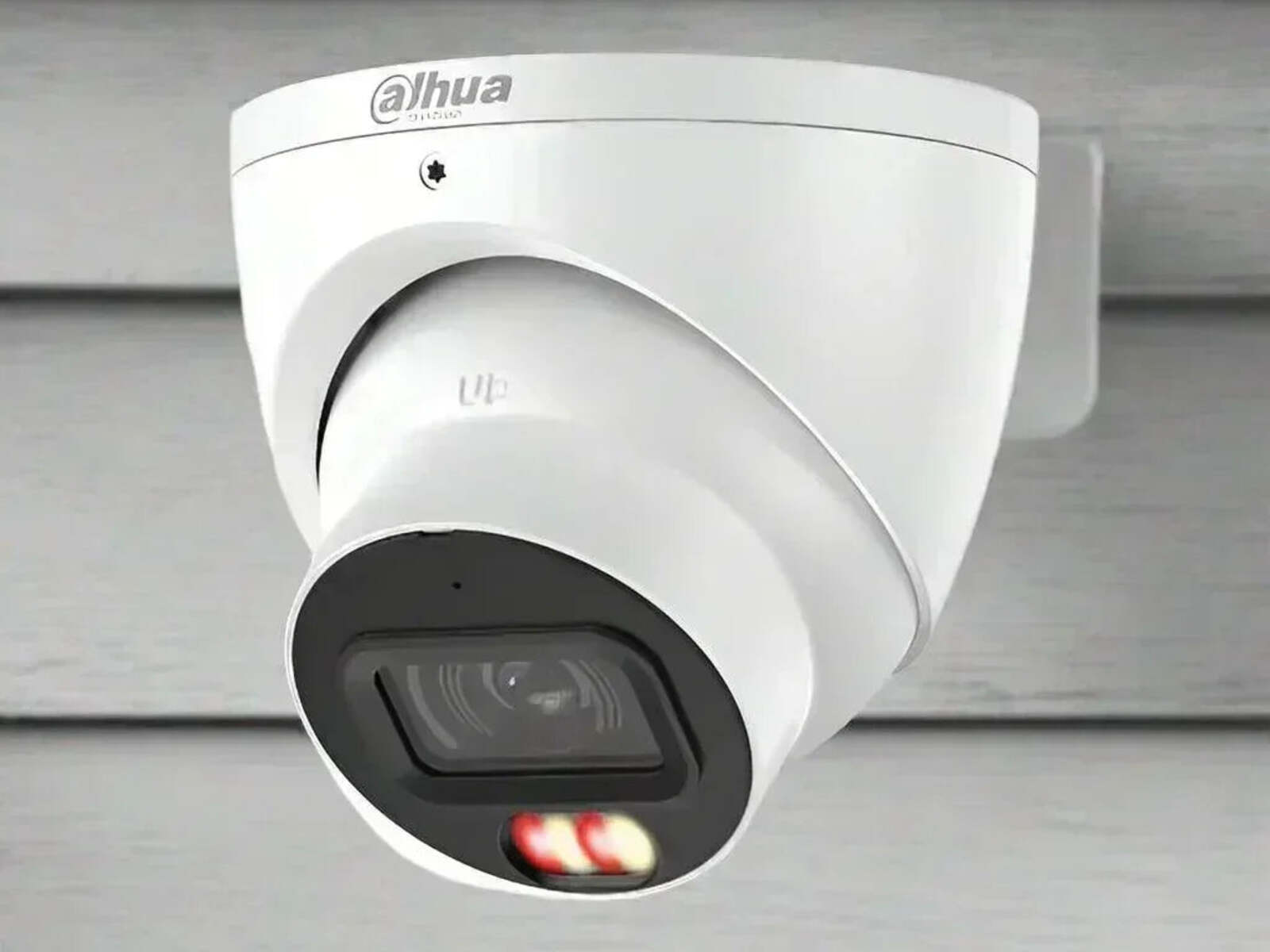

DH-IPC-HDW3667EM-S-IL-ANZ — installed turret under eaves

BUILD · 03

IP67 metal body. One cable does it all.

A metal housing rated IP67 and an operating range of −40 °C to +60 °C suit Australian outdoor eaves and walls. Body size is 93.6 mm × Ø106.0 mm.

Single-cable PoE (802.3af) or 12 VDC powers the unit (max 9.5 W on PoE with warm light and intelligence on), a built-in mic adds audio, and microSD up to 512 GB covers edge recording.

How it works

From PoE to recording in four steps.

Power over Ethernet

Run one Cat 6 cable from the camera to any 802.3af PoE switch or NVR port (or use a 12 VDC adapter).

Discover & activate

ConfigTool, SmartPSS Lite or the NVR finds the camera on the LAN; set the admin password and IP.

Aim & tune AI

Set pan/tilt/rotation on the three-axis mount, draw tripwire / intrusion rules and enable human & vehicle filtering.

Record & view

Record to NVR, NAS or microSD; view live via DMSS, SmartPSS Lite or any ONVIF client.

At a glance

Key specs — DH-IPC-HDW3667EM-S-IL-ANZ

Form factorFixed eyeball / turret

Image sensor1/2.7" Progressive Scan CMOS

Resolution6 MP — 3288 × 1850 @ 25/30 fps

LensFixed-focal 2.8 mm / 3.6 mm, F1.4, M12

Field of view2.8 mm H:110° V:58°; 3.6 mm H:86° V:49°

IlluminationSmart Dual Light — IR to 30 m, warm light to 30 m

Min illumination0.005 lux colour @ F1.4; 0 lux (light on)

WDR120 dB

CompressionH.265 / H.264 / MJPEG; AI H.265 / AI H.264

AIWizSense, AcuPick, SMD 4.0, AI SSA, perimeter protection

AudioBuilt-in microphone

Onboard storagemicroSD up to 512 GB; NAS

Network1 × RJ45 10/100 Base-T

ONVIFProfile S / G / T / M, CGI

Power12 VDC / PoE (802.3af)

Power consumptionMax 7.4 W (12 VDC) / 9.5 W (PoE)

Operating temperature−40 °C to +60 °C, ≤95% RH

Environmental ratingIP67 (metal housing)

Dimensions93.6 mm × Ø106.0 mm

Weight0.53 kg net / 0.71 kg gross

Warranty3-year Australian warranty

Specs per Dahua datasheet Rev 002.000. Verify current datasheet for your firmware revision.

Physical

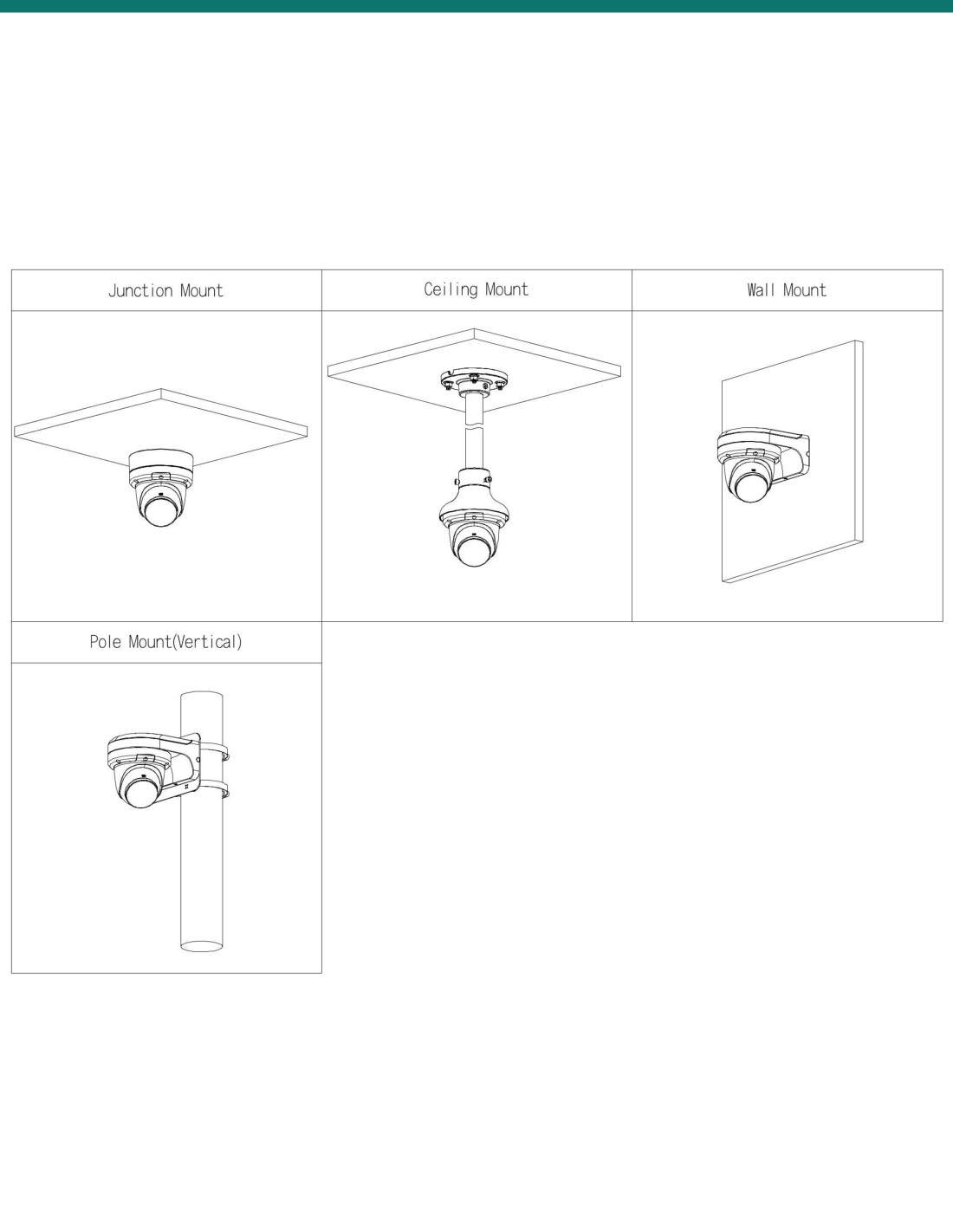

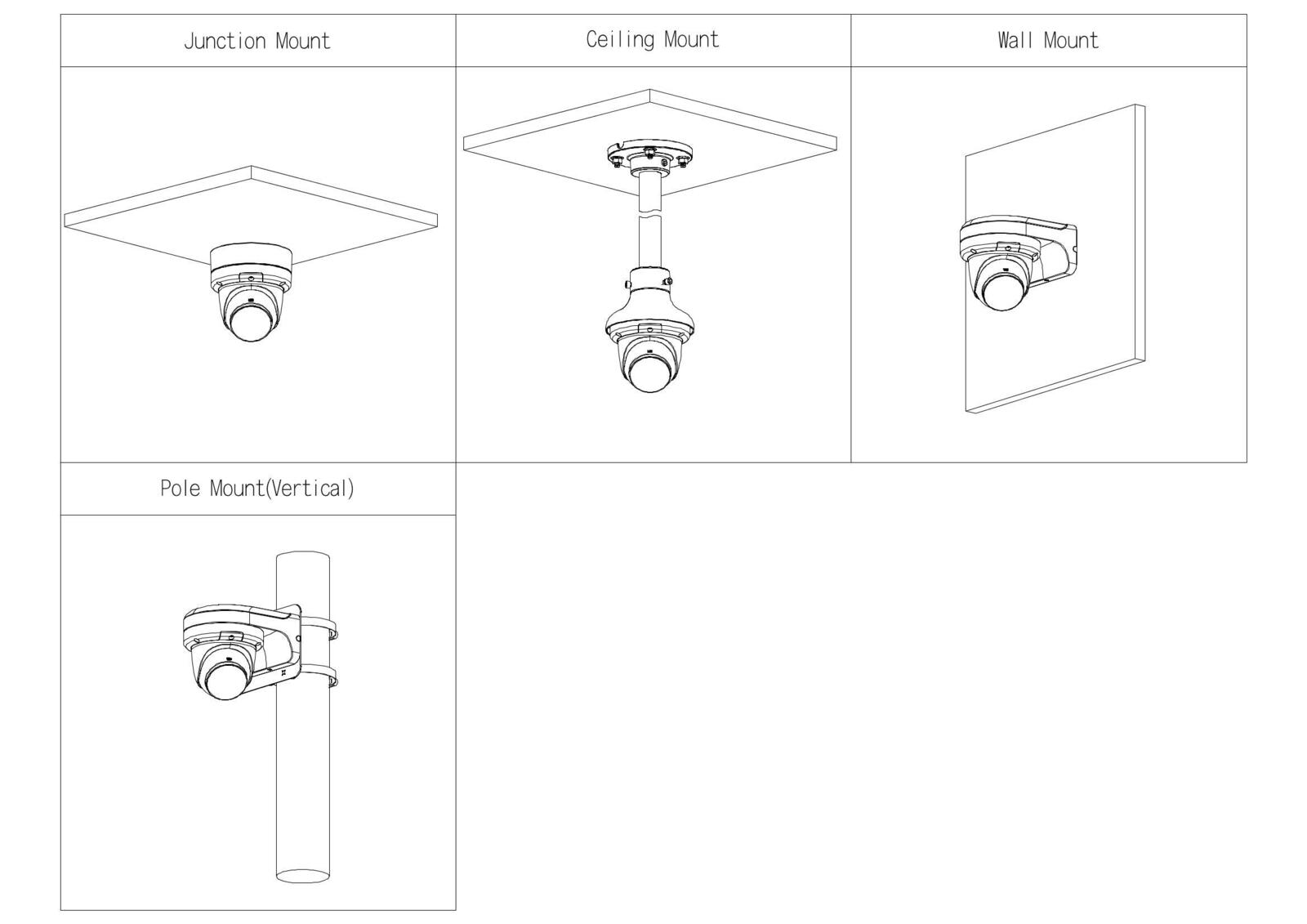

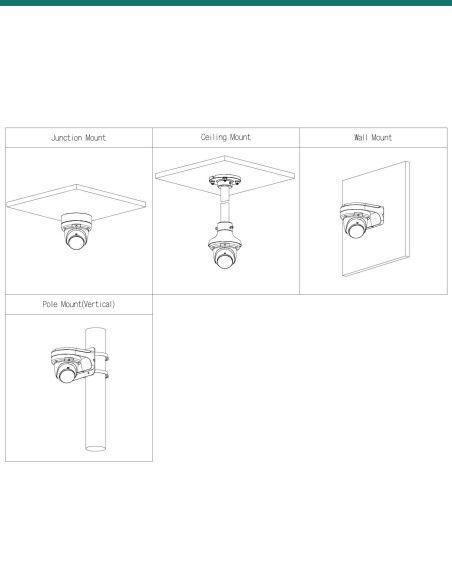

Dimensions & mounting

Technical drawing courtesy of Dahua. Body 93.6 mm × Ø106.0 mm (Rev 002.000).

Pair it with

Compatible hardware

RECORD

Dahua WizSense PoE NVR

A WizSense AI NVR supplies PoE and unlocks AcuPick search and perimeter analytics.

MOUNT

Junction / wall / pole

Optional PFA139, PFB204W, PFA106, PFB220C or PFA152-E per Dahua accessory list.

EDGE STORAGE

microSD up to 512 GB

Surveillance-grade card for edge recording and network-loss buffering.

Answers

Frequently asked questions

Is this a fixed lens or a zoom camera?

Fixed-focal. Order the 2.8 mm or 3.6 mm variant for the field of view you need. For motorised zoom, see the related DH-IPC-HDW3667T-ZS-IL-ANZ.

Will the warm white light stay on all night?

By default the camera uses IR at night and switches to warm white when a target is detected. Modes are configurable in the camera UI.

Will it work with a non-Dahua NVR?

Yes via ONVIF Profile S/G/T/M for basic recording. Full AcuPick search and WizSense analytics need a compatible Dahua WizSense NVR.

How do I power it?

PoE (IEEE 802.3af) over Cat 6 is the usual install path (max 9.5 W), or a separate 12 VDC supply with Ethernet for data.

Does it record audio?

Yes — built-in microphone for one-way audio capture. There is no built-in speaker on this model.

Ready for reliable 6MP dual-light coverage?

Genuine Dahua, shipped Australia-wide by Infront Technologies. Call 1300 736 970 or email [email protected].

Installation & safety notice

Low-voltage product (SELV). The DH-IPC-HDW3667EM-S-IL-ANZ is a 12 VDC / PoE IP camera. There is no mains wiring inside the device — it can be powered from a PoE switch or PoE NVR port, or from a plug-in 12 V DC adapter in an existing GPO. No electrician is required to power the unit.

When a licensed tradesperson is required. Concealed structured data cabling between the camera, the PoE switch/NVR and any remote rack is customer cabling under AS/CA S009 and must be performed by an ACMA-registered cabler. New GPOs, rack mains or any modification to premises wiring is the work of a licensed electrician under AS/NZS 3000 Wiring Rules.

Specifications & imagery in good faith. Specifications, firmware features and imagery can change without notice at the manufacturer’s discretion. Product appearance and packaging may differ from marketing images. By ordering you confirm the product is fit for your intended use and that any concealed cabling or third-party integration will be performed by an appropriately licensed tradesperson.

Net Weight: 0.53 kg (1.17 lb)
Power Supply: 12 VDC/PoE (802.3af)
Type: IP CAMERA DH-IPC-HDW3667EM-S-IL-ANZ
Operating temperature: −40 °C to +60 °C (−40 °F to +140 °F)
Power Consumption: Basic: 3.7 W (12 VDC); 5.3 W (PoE); Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on)
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
Brand: Dahua
Certifications: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Storage: FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Interoperability: ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
Image Sensor: 1/2.7" CMOS
Video Frame Rate: Main stream: 3288 × 1850@(1–25/30 fps); Sub stream: 1920 × 1080@(1–25/30 fps); Third stream: 1920 × 1080@(1–25/30 fps)
Network Port: RJ-45 (10/100 Base-T)
Max. Resolution: 3288 (H) × 1850 (V)
Field of View: 2.8 mm: H: 110; V: 58; D: 132; 3.6 mm: H: 86; V: 49; D: 100
Min. Illumination: 0.005 [email protected] (Color, 30 IRE); 0.0005 [email protected] (B/W, 30 IRE); 0 lux (Illuminator on)
Built-in Mic: Yes, built-in Mic
Protection: IP67
Operating Humidity: ≤95% (RH), non-condensing
Day/Night: Auto(ICR)/Color/B/W
Lens Type: Fixed-focal
Noise Reduction: 3D NR
Bit Rate Control: VBR;CBR;ABR
S/N Ratio: ≥56 dB
DORI Distance: 2.8 mm: Detect 84.8 m, Observe 33.9 m, Recognize 17.0 m, Identify 8.5 m; 3.6 mm: Detect 98.7 m, Observe 39.5 m, Recognize 19.7 m, Identify 9.9 m
Privacy Masking: 8 areas
Product Dimensions: 93.6 mm × Φ106.0 mm (3.69" × Φ4.17")
WDR: 120 dB
Focal Length: 2.8 mm; 3.6 mm
Iris Control: Fixed
Close Focus Distance: 2.8 mm: 1.4 m (4.59 ft); 3.6 mm: 1.9 m (6.23 ft)
Lens Mount: M12
Illuminator On/Off Control: Auto;Manual
Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723
ROM: 256 MB
RAM: 1 GB
Scanning System: Progressive
Illumination Distance: Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm light)
Illuminator Number: 2 (Multi-core (IR + warm) light)
Max. Aperture: F1.4
IVS (Perimeter Protection): Intrusion, tripwire (classification and accurate detection of vehicle and human)
AI SSA: Adopt deep learning algorithms to adjust image parameters to suit conditions
AI Coding: AI H.265; AI H.264
Stream Capability: 3 streams
BLC: Yes
HLC: Yes
Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client: iOS;Android
Gross Weight: 0.71 kg (1.57 lb)
SMD: SMD 4.0
Warranty: 3 Year Australian Warranty
AcuPick: Uses deep learning algorithms to match targets, such as people and motor vehicles, in live and recorded videos
Angle Adjustment: Pan: 0–360; Tilt: 0–80; Rotation: 0–360
Smart Illumination: Yes
Smart Dual Light: Yes
LDC: Yes
Dual Power Backup: When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Casing Material: Metal
Description: 6MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
Optional Accessories: PFA139 Junction Box; PFB204W Wall Mount; PFA106 Ceiling Mount; PFB220C Ceiling Mount; PFA152-E Pole Mount; PFM900-E Integrated Mount Tester; TF-P100 TLC SD Card
Megapixels: 6 MP
