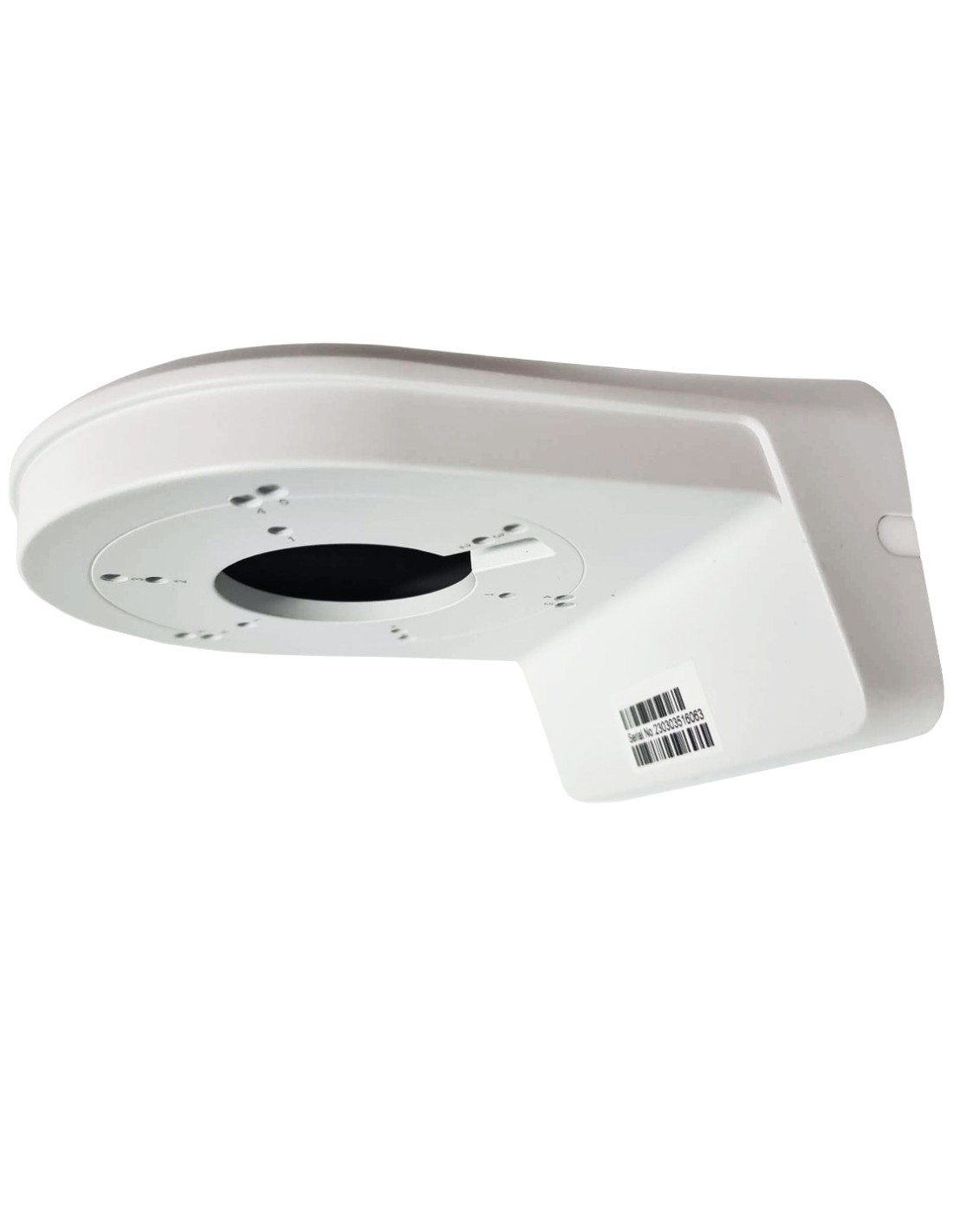

IVSEC IFTB810 wall bracket for 850 and 880 dome cameras

IVSEC IV2457X sold as IFTB810, from below at an angle (IVSEC product photo)

IVSEC IV2457X (IFTB810) close-up of the camera plate

IVSEC IV2457X (IFTB810) dimension drawing

1 / 4

IVSEC Wall Bracket for 850/880 Dome AI Security Cameras - IFTB810

Name: IVSEC Wall Bracket for 850/880 Dome AI Security Cameras - IFTB810
Brand: IVSEC
SKU: IFTB810
Price: 68.5 AUD
Availability: InStock

SKU IFTB810 In Stock - Ready to Ship

$68.50 inc GST

IVSEC IFTB810: a white 90 degree wall bracket that puts an IVSEC 850 or 880 dome on a wall, or a bullet with the IFTB800 added, with the cable covered.

✓IVSEC IV2457X 90 degree wall bracket
✓Suits IVNC-850D and IVNC-880D-AI domes
✓Bullets with the IFTB800 junction box
✓132 × 155 × 75 mm (drawing), 0.66 kg
✓ADC12 aluminium alloy, IP66
✓1.5 kg load rating

IVSEC IFTB810 white wall bracket for 850 and 880 domes, showing the camera plate

IVSEC · 850 and 880 Series · Wall bracket

Put an 850 or 880 dome
on a wall.

The IFTB810 is the IVSEC IV2457X 90 degree wall bracket, fitted to the IVSEC 850 and 880 Series domes. It gives the camera a flat plate standing out from the wall, with the cable connectors protected inside.

In one sentence: the IVSEC IFTB810 is our code for the IVSEC IV2457X 90 degree wall bracket: white ADC12 aluminium alloy, 132 × 155 × 75 mm on the drawing, IP66 and a 1.5 kg load rating, for IVSEC IVNC-850D and IVNC-880D-AI dome cameras.

Wall bracket only. The camera is sold separately.

This listing is the IFTB810 bracket with its fixings, for the 850 and 880 domes. For the 850 and 880 bullets, add the IFTB800 junction box too.

In the box

IFTB810 wall bracket
Screws
Allen key

You also need

An IVSEC IVNC-850D or IVNC-880D-AI dome
The IFTB800 junction box if it is for a bullet
Wall plugs or anchors and outdoor silicone

Domes are made for ceilings. This puts one on a wall.

The 850 and 880 domes normally sit on a soffit. The IFTB810 holds the dome level on a plate standing out from the wall at 90 degrees, and covers the cable connectors on the way in. For a bullet, fit the IFTB800 junction box to the bracket first.

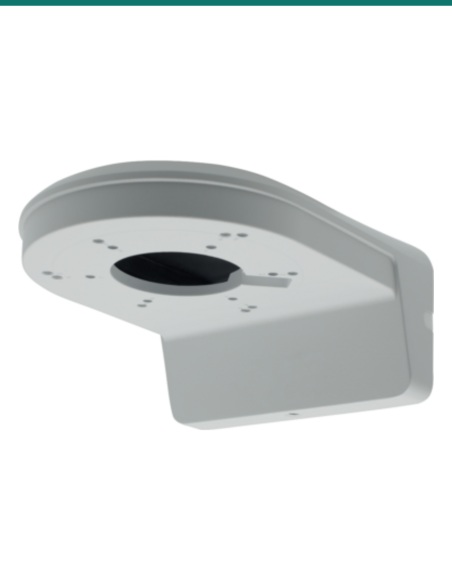

IVSEC product photo of the IV2457X (sold here as IFTB810) from below at an angle, showing the camera plate and drop face

Shape

Plate out front, wall face behind.

The camera plate stands out from the wall on a sloped drop face that hides the cable. ADC12 aluminium alloy with stainless steel 304 screws, rated IP66. IVSEC's photo of the IV2457X.

Camera plate

Screw holes around a cable opening.

The dome screws to this plate and its cable passes through the centre opening into the bracket. Rated to carry 1.5 kg.

How it goes in

From bare wall to mounted dome.

Plan the spot

Choose a wall spot with a clear view for the 850 or 880 camera and a cable path back to the recorder.

Fix the bracket

Mark and drill, then fix the bracket to the wall with fixings that suit the surface. Seal around the wall face with outdoor silicone.

Bring the cable in

Feed the network cable from the wall into the bracket and up through the plate. For a bullet, fit the IFTB800 to the plate first.

Mount the camera

Connect the camera, tuck the connectors in, screw the camera on and aim it.

At a glance

IFTB810

Show specs

Type

90 degree wall bracket

IVSEC model

IV2457X (IFTB810 is the InFront Technologies stock code)

Suits

IVSEC IVNC-850D and IVNC-880D-AI domes

Bullets

IVNC-850B and IVNC-880B-AI with the IFTB800 junction box added

IVSEC IV2457X list

NC000XA, NC110X series, NC119XA, NC319XA, NC340XA, NC543ADX

Colour

White

Housing

ADC12 aluminium alloy

Fixing screws

Stainless steel 304

Size

132 × 155 × 75 mm (W × L × H) on IVSEC's drawing; the IV2457X spec table prints 44 × 66 × 90 mm, which does not match the drawing

Load rating

1.5 kg

Weight

0.66 kg

Weather rating

IP66; seal the wall face with silicone

Operating range

−20 °C to 60 °C, humidity 95% or less

In the box

Bracket, screws, Allen key

Packaging (H × W × L)

90 × 140 × 170 mm

Warranty

3 years

IVSEC IFTB810 dimension drawing: 132 mm wide, 155 mm deep, 75 mm high

IVSEC IV2457X dimension drawing, measurements in mm and inches.

Pair it with

What goes with it

Camera

IVSEC 850 or 880 dome

The IVNC-850D or IVNC-880D-AI.

For bullets

IFTB800 junction box

Fits to the IFTB810 so an IVNC-850B or IVNC-880B-AI bullet can go on the wall arm.

Sealing

Outdoor silicone

Run a bead around the wall face to keep water out of the cable entry.

Where it is used

Where a wall-mounted dome makes sense.

Homes without eaves

An 850 or 880 dome on a flat wall where there is no soffit.

Garages and carports

On the wall above the door, looking over the driveway.

Side paths

Along the side of the house, mounted on the wall.

Shops and offices

Over counters and entries along a wall.

Warehouses

On walls and columns where the roof is too high.

Bullets on a wall arm

With the IFTB800 added, for 850 and 880 bullets.

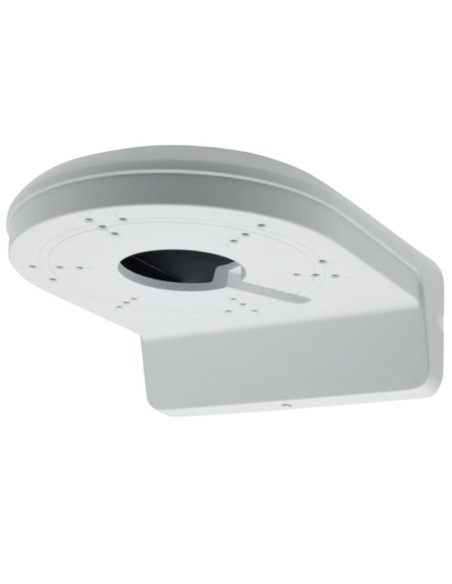

IFTB810 or IV2456X

	IFTB810 (this bracket)	IV2456X medium wall mount
Size	132 × 155 × 75 mm on IVSEC's IV2457X drawing	80 × 187 × 164 mm
Load rating	1.5 kg	0.5 kg
Weight	0.66 kg	1.0 kg
Suits	IVSEC 850 and 880 domes (bullets with the IFTB800)	NC000XA, NC110, NC119XA, NC312XE, NC512, NC319XA, NC340XA, NC550ADX, NC544
Weather rating	IP66	IP66
Warranty	3 years	3 years

IFTB810 figures from IVSEC's IV2457X datasheet and drawing; IV2456X from its IVSEC datasheet.

Common questions

Which cameras does the IFTB810 suit?

The IVSEC IVNC-850D and IVNC-880D-AI domes. The IVNC-850B and IVNC-880B-AI bullets fit too once the IFTB800 junction box is added.

Is a camera included?

No. This listing is the bracket with screws and an Allen key. The camera is sold separately.

Why do bullets need the IFTB800?

The bracket plate is made for the dome base. The IFTB800 junction box fits to the bracket and gives a bullet its mounting face.

How big is it?

IVSEC's drawing shows 132 mm wide, 155 mm deep and 75 mm high. The IV2457X spec table prints 44 × 66 × 90 mm, which does not match the drawing or the 90 × 140 × 170 mm box, so go by the drawing. It weighs 0.66 kg.

How much weight will it hold?

1.5 kg, according to IVSEC's IV2457X datasheet. IVSEC gives the IVNC-880D-AI as 0.44 kg.

Is the IFTB810 an IVSEC IV2457X?

Yes. IFTB810 is the InFront Technologies stock code for the IVSEC IV2457X wall bracket. The IVSEC IV2457X datasheet is on the Attachments tab.

Should I seal it?

Yes. Run a bead of outdoor silicone around the wall face so water cannot get in behind it.

Can it go outside?

Yes. It is rated IP66 and for −20 °C to 60 °C with humidity up to 95%.

What is it made of?

ADC12 aluminium alloy with stainless steel 304 screws, in white.

Are wall plugs included?

It comes with screws and an Allen key. Use plugs or anchors that suit your wall.

Will it suit a black 850 or 880 dome?

The bracket is white. It fits the dome base the same way, but ask us if you want the colours to match.

What warranty does it have?

3 years, according to IVSEC's IV2457X datasheet. Warranty service through InFront Technologies.

Supported by InFront Technologies.

Not sure which bracket suits your camera or wall? Call 1300 736 970 or email [email protected]. The IVSEC IV2457X datasheet is on the Attachments tab.

Installation and safety

Mechanical part only. The IFTB810 holds the camera. It carries no power or data; follow the camera guide for its cable connections.

Load. Rated for 1.5 kg. Check the camera weight on its own datasheet before you mount it.

Working at height. Cameras usually go on eaves, high walls or ceilings. Use a stable ladder or platform and fixings that suit the surface.

Cabling. Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.

Sealing. Seal the wall face with outdoor silicone so water does not track in behind the bracket.

Figures. From IVSEC's IV2457X datasheet and dimension drawing (IFTB810 is our code for the IV2457X); the spec table size conflicts with the drawing, so we show the drawing. The 850 and 880 Series fit is from InFront Technologies; IVSEC's own IV2457X list is above.
