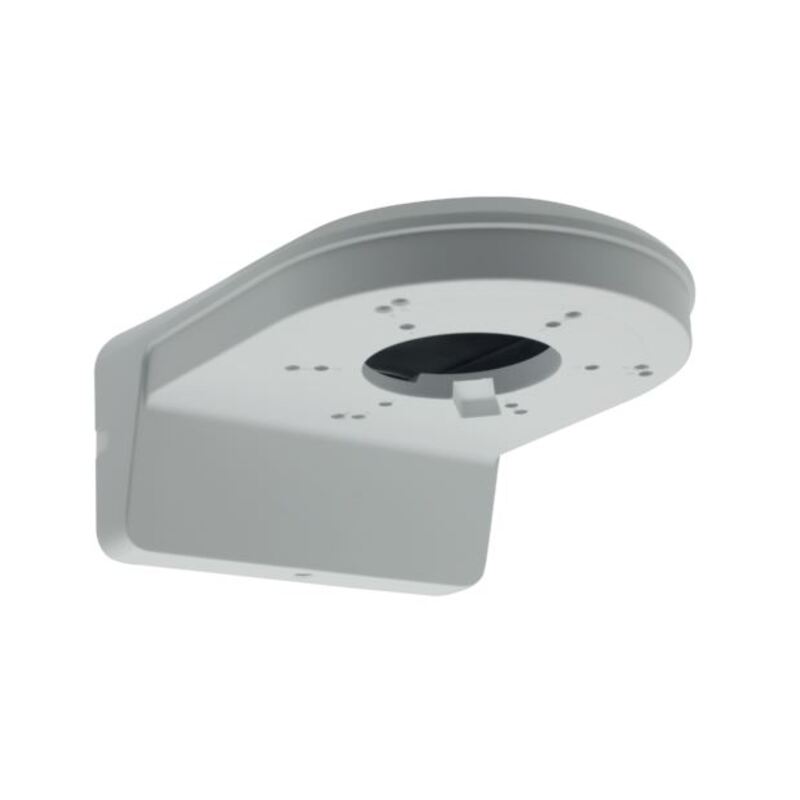

IVSEC IV2457X small 90 degree wall mount in white

IVSEC IV2457X close-up of the camera plate and cable slot

1 / 4

iVSEC IV2457X Small 90 Degree Wall Mount for NC110X, NC323X, NC000X, NC340X, NC119

Name: iVSEC IV2457X Small 90 Degree Wall Mount for NC110X, NC323X, NC000X, NC340X, NC119
Brand: IVSEC
SKU: IV2457X
Price: 38.6 AUD
Availability: InStock

SKU IV2457X In Stock - Ready to Ship

$38.60 inc GST

IVSEC IV2457X: a small 90 degree wall mount that lets a listed IVSEC turret go on a wall, with the cable hidden inside and a 1.5 kg load rating.

✓Small 90 degree wall mount, white
✓ADC12 aluminium alloy, stainless screws
✓IP66, 1.5 kg load rating
✓Cable hidden inside the bracket
✓Listed for NC000XA, NC110X, NC119XA, NC319XA, NC340XA, NC543ADX
✓0.66 kg, 3-year warranty

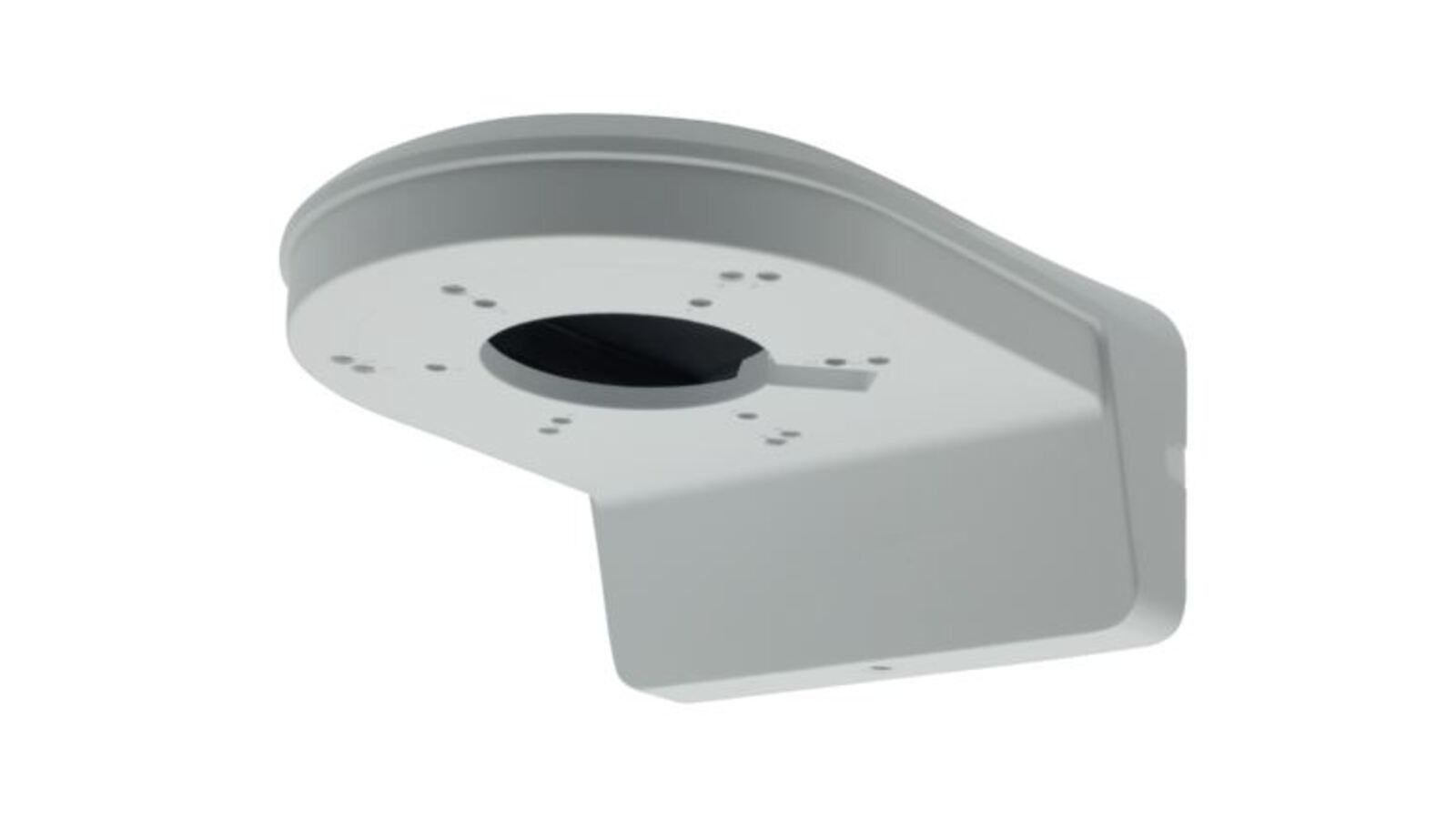

IVSEC IV2457X small 90 degree wall mount in white, showing the camera plate and cable slot

IVSEC · Camera mounting · 90 degree wall mount

A compact wall mount
for IVSEC turrets.

The IVSEC IV2457X is the small 90 degree wall mount. It gives a turret camera a flat plate standing out from the wall, with the cable hidden inside, and is rated to carry 1.5 kg.

In one sentence: the IVSEC IV2457X is a white small 90 degree wall mount in ADC12 aluminium alloy with stainless screws, an IP66 rating and a 1.5 kg load rating, listed for IVSEC NC000XA, NC110X, NC119XA, NC319XA, NC340XA and NC543ADX cameras.

Wall mount only. The camera is sold separately.

This listing is the IV2457X bracket with its fixings. Check your camera against IVSEC's list below before you order.

In the box

IV2457X wall mount
Screws
Allen key

You also need

A compatible IVSEC camera
Wall plugs or anchors for your wall (IVSEC lists screws only)

Smaller than the IV2456X, rated for more weight.

The IV2457X is the compact choice for IVSEC's smaller turrets. The camera screws to the plate, the cable drops through the centre opening into the bracket, and the bracket fixes flat to the wall.

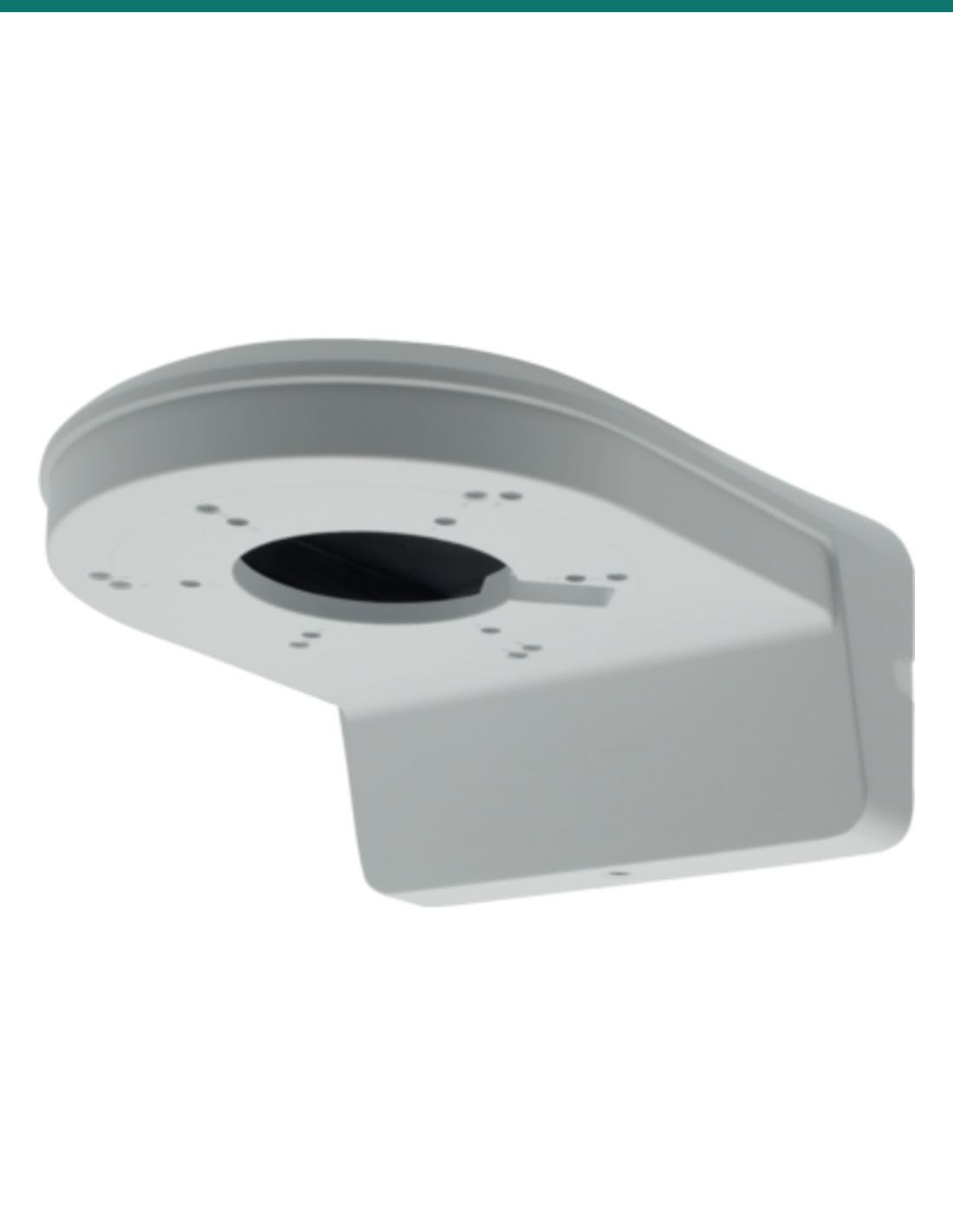

Camera plate

Screw holes around a cable opening.

The camera screws to this plate and its cable passes through the centre opening and slot into the bracket. Close-up from IVSEC's product photo.

Drop face

The cable stays behind the face.

The drop face runs from the wall to the camera plate so the cable is out of sight. ADC12 aluminium alloy with stainless steel 304 screws, rated IP66.

How it goes in

From bare wall to mounted camera.

Check the camera

Confirm your camera is on IVSEC's IV2457X list and choose a wall spot with a clear view.

Fix the bracket

Hold the bracket in place, mark and drill, then fix it to the wall with fixings that suit the surface.

Bring the cable in

Feed the network cable from the wall into the bracket and up through the camera plate, with enough slack to connect.

Mount the camera

Connect the camera, tuck the connectors in, screw the camera to the plate and aim it.

At a glance

IV2457X

Show specs

Type

Small 90 degree wall mount

Colour

White

Housing

ADC12 (die-cast aluminium alloy)

Screws

Stainless steel 304

Size

132 × 155 × 75 mm on IVSEC's drawing (the spec table prints 44 × 66 × 90 mm, which does not match the drawing or the 90 × 140 × 170 mm box)

Load rating

1.5 kg

Weight

0.66 kg

Weather rating

IP66

Operating range

−20 °C to 60 °C, humidity 95% or less

Compatible cameras

NC000XA, NC110X series, NC119XA, NC319XA, NC340XA, NC543ADX (IVSEC datasheet and product page)

In the box

Bracket, screws, Allen key

Packaging (H × W × L)

90 × 140 × 170 mm

Warranty

3 years

IVSEC IV2457X dimension drawing: 132 mm wide, 155 mm deep, 75 mm high

IVSEC dimension drawing, measurements in mm and inches.

Pair it with

What goes with it

Camera

A listed IVSEC camera

NC000XA, NC110X series, NC119XA, NC319XA, NC340XA or NC543ADX. Ask us if yours is not listed.

Larger

IV2456X medium wall mount

The medium 90 degree wall mount, listed for a longer camera list including NC312XE, NC512 and NC550ADX models.

Fixings

Plugs or anchors for your wall

IVSEC lists screws only. Brick, timber and plasterboard each need their own fixings.

Where it is used

Where a small wall mount fits.

Homes without eaves

A compact turret on a flat wall where there is no soffit.

Front doors and porches

Small enough to sit neatly beside a door.

Garages and carports

On the wall looking over the driveway.

Shops and cafes

Over counters and entries along a wall.

Hallways

Looking down corridors in offices and units.

Outdoor walls

Rated IP66 for exposed walls and patios.

IV2457X or IV2456X

	IV2457X (this mount)	IV2456X medium wall mount
Size	132 × 155 × 75 mm on IVSEC's drawing	80 × 187 × 164 mm
Load rating	1.5 kg	0.5 kg
Weight	0.66 kg	1.0 kg
Camera list	NC000XA, NC110X, NC119XA, NC319XA, NC340XA, NC543ADX	NC000XA, NC110, NC119XA, NC3102ADX, NC312XE, NC512, NC319XA, NC340XA, NC550ADX, NC544
Weather rating	IP66	IP66
Warranty	3 years	3 years

Figures from IVSEC's IV2457X and IV2456X datasheets.

Common questions

Which cameras fit the IV2457X?

IVSEC lists the NC000XA, NC110X series, NC119XA, NC319XA, NC340XA and NC543ADX. The product title also names the NC323X, which is not on IVSEC's current list for this mount, so confirm with us before ordering for an NC323X.

Is a camera included?

No. This listing is the wall mount with screws and an Allen key. The camera is sold separately.

How big is it?

IVSEC's drawing shows 132 mm wide, 155 mm deep and 75 mm high. The spec table prints 44 × 66 × 90 mm, which does not match the drawing or the 90 × 140 × 170 mm box, so go by the drawing.

How much weight will it hold?

1.5 kg, according to IVSEC, more than the 0.5 kg of the larger IV2456X.

What does a 90 degree wall mount do?

It gives a turret camera a flat plate standing out from the wall, so a camera made for ceilings can go on a wall.

Does the cable stay hidden?

Yes. The cable passes from the wall through the bracket and up through the camera plate.

Can it go outside?

Yes. IVSEC rates it IP66 and for −20 °C to 60 °C with humidity up to 95%.

What is it made of?

ADC12 aluminium alloy with stainless steel 304 screws, in white. It weighs 0.66 kg.

Are wall plugs included?

IVSEC lists the bracket, screws and an Allen key. Use plugs or anchors that suit your wall.

What is the difference from the IV2456X?

The IV2457X is smaller and rated to 1.5 kg; the IV2456X is the medium size, rated to 0.5 kg, with a longer camera list.

Can it go on a ceiling?

IVSEC's overview mentions walls or ceilings, but it is sold and drawn as a 90 degree wall mount. Ask us before using it on a ceiling.

What warranty does it have?

3 years, according to IVSEC. Warranty service through InFront Technologies.

Supported by InFront Technologies.

Not sure which bracket suits your camera or wall? Call 1300 736 970 or email [email protected]. The IVSEC datasheet is on the Attachments tab.

Installation and safety

Mechanical part only. The IV2457X holds the camera. It carries no power or data; follow the camera guide for its cable connections.

Load. Rated for 1.5 kg. Check the camera weight on its own datasheet before you mount it.

Working at height. Cameras usually go on eaves, high walls or ceilings. Use a stable ladder or platform and fixings that suit the surface.

Cabling. Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.

Figures. From IVSEC's IV2457X datasheet, dimension drawing and product page. The spec table size (44 × 66 × 90 mm) conflicts with the drawing (132 × 155 × 75 mm); we show the drawing.
