iVSEC Large Conduit Box Housing for NC312X, NC512X, NC528X Cameras

SKU IV2422X In Stock - Ready to Ship
$25.90 inc GST

IVSEC IV2422X: a white large conduit junction box that houses the camera cable joins and takes conduit through a G3/4 threaded side entry.

  • ✓134 mm round, 59 mm deep, 0.3 kg
  • ✓G3/4 threaded side entry for conduit
  • ✓ADC12 aluminium alloy, stainless screws
  • ✓IP66, 0.5 kg load rating
  • ✓Listed for IVSEC NC312X, IVNC317X, IVNC512X, NC528XD, NC531X, NC543ADX
  • ✓3-year warranty



Description

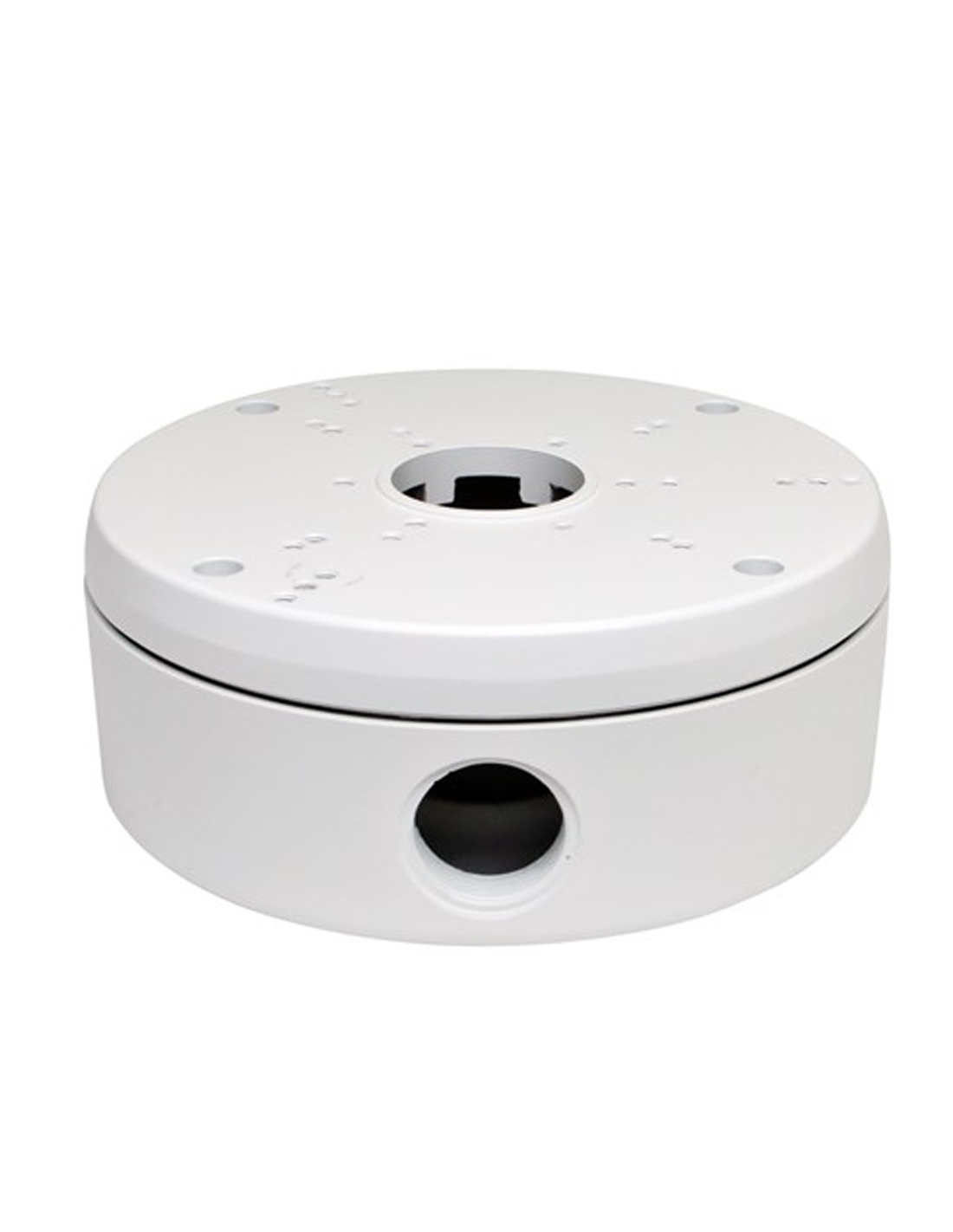

IVSEC IV2422X large conduit box in white, showing the camera mounting face and the threaded side entry
IVSEC · Camera mounting · Conduit box

Hide the cable joins.
A large white conduit box for IVSEC cameras.

The IVSEC IV2422X goes between the wall and the camera. The cable tail and its connectors sit inside the box, and a threaded side entry takes conduit, so nothing hangs on the wall.

In one sentence: the IVSEC IV2422X is a white 134 mm round conduit junction box in ADC12 aluminium alloy with stainless screws, a G3/4 threaded side entry, an IP66 rating and a 0.5 kg load rating, listed for IVSEC NC312X, NC512X, NC528X and NC543ADX cameras.

Conduit box only. The camera is sold separately.

This listing is the IV2422X box with its fixings. Check your camera against IVSEC's list below before you order.

In the box
  • IV2422X large conduit box
  • Screws
  • Allen key
You also need
  • A compatible IVSEC camera
  • Wall plugs or anchors for your wall (IVSEC lists screws only)
  • A G3/4 conduit fitting if the cable runs in conduit

Mount the camera on the box, not straight on the wall.

The camera screws to the face of the IV2422X, and its cable tail, network plug and power socket sit inside the box instead of out in the weather or pushed into the wall cavity. Bring the cable in from the wall behind, or run conduit to the threaded side entry.

Close-up of the IVSEC IV2422X threaded side entry for conduit

Conduit entry

G3/4 threaded side entry.

IVSEC's drawing gives the side entry a G3/4 pipe thread (26.5 mm), so a matching conduit fitting screws straight in. Close-up from IVSEC's product photo.

IVSEC IV2422X mounting face with its ring of screw holes and centre cable opening

Mounting face

A ring of holes for IVSEC camera bases.

The face has screw holes around a centre cable opening for the listed IVSEC turrets and bullets. The box is 134 mm across and 59 mm deep, in ADC12 aluminium alloy with stainless steel screws.

How it goes in

From bare wall to mounted camera.

01

Check the camera

Confirm your camera is on IVSEC's IV2422X list and choose a spot with a clear view and a cable path back to the recorder.

02

Fix the box

Hold the box in place, mark and drill, then screw it to the wall or soffit with fixings that suit the surface.

03

Bring the cable in

Feed the network cable in from behind, or through conduit at the G3/4 side entry, with enough slack to connect the camera.

04

Mount the camera

Connect the camera, tuck the connectors into the box, screw the camera to the face and aim it.

Pair it with

What goes with it

Camera

A listed IVSEC camera

NC312X, IVNC317X, IVNC512X, NC528XD, NC531X or NC543ADX, or the IVNC-880B-AI and IVNC-880D-AI. Ask us if yours is not listed.

Pole

IV2488X pole mount

IVSEC lists the IV2422X on its IV2488X pole mount bracket, for a camera on a post instead of a wall.

Conduit

A G3/4 conduit fitting

To run the cable in conduit, use a fitting that matches the G3/4 thread on the side entry.

Black finish

IV2422X-BLK

The same large conduit box in black, for black IVSEC cameras.

Where it is used

Where a conduit box makes the job neater.

Brick and rendered walls

Where the cable can't be hidden in the wall, the box covers the connectors and takes conduit.

Home eaves

A tidy base for a turret or bullet under the eaves, with the joins out of the rain.

Shops and offices

Surface cable runs in conduit end neatly at the camera instead of a loose loop.

Warehouses and sheds

Steel and block walls where cable runs on the surface in conduit.

Car parks and walkways

Outdoor cameras with an IP66 box protecting the connections.

Pole installs

With the IV2488X pole mount, for cameras on posts and poles.

IV2422X or IV2422X-BLK

IV2422X (this box)IV2422X-BLK
ColourWhiteBlack
Size (H × W × L)59 × 134 × 134 mm59 × 134 × 134 mm
Weight0.3 kg0.3 kg
Weather ratingIP66IP67 on the datasheet, IP66 on IVSEC's product page
Warranty3 years2 years on the datasheet
Camera listWhite NC312X, IVNC317X, IVNC512X, NC528XD, NC531X, NC543ADXBlack and listed NC312, IVNC317, IVNC512, NC528XD, NC531 models

Figures from IVSEC's IV2422X and IV2422X-BLK datasheets and product pages.

Common questions

Which cameras fit the IV2422X?

IVSEC lists the NC312X series, IVNC317X series, IVNC512X series, NC528XD, NC531X series and NC543ADX. Its IVNC-880B-AI and IVNC-880D-AI datasheets also list the IV2422X as an accessory.

Is a camera included?

No. This listing is the conduit box with screws and an Allen key. The camera is sold separately.

What is a conduit box for?

It sits behind the camera so the cable tail and connectors are housed inside it instead of on the wall or in the cavity, and it lets conduit join the camera neatly.

What thread is the side entry?

G3/4 pipe thread, 26.5 mm, according to IVSEC's drawing. Use a conduit fitting with a matching thread.

Can it go outside?

Yes. IVSEC rates it IP66 and for −20 °C to 60 °C with humidity up to 95%.

How big is it?

59 × 134 × 134 mm (H × W × L). The drawing gives the diameter as 134.3 mm. It weighs 0.3 kg.

How much weight will it hold?

0.5 kg, according to IVSEC. Check your camera weight on its datasheet.

What is it made of?

An ADC12 aluminium alloy housing with stainless steel 304 screws.

Are wall plugs included?

IVSEC lists the bracket, screws and an Allen key. Use plugs or anchors that suit your wall; brick, timber and plasterboard all need different fixings.

Can I put it on a pole?

Yes. IVSEC lists the IV2422X as compatible with its IV2488X pole mount bracket.

Is there a black version?

Yes. The IV2422X-BLK is the same size in black, listed for black and other NC312, IVNC317, IVNC512, NC528XD and NC531 models.

What warranty does it have?

3 years, according to IVSEC's datasheet. Warranty service through InFront Technologies.

Supported by InFront Technologies.

Not sure which bracket suits your camera or wall? Call 1300 736 970 or email [email protected]. The IVSEC datasheet is on the Attachments tab.

Installation and safety

Mechanical part only. The IV2422X holds the camera. It carries no power or data; follow the camera guide for its cable connections.

Load. Rated for 0.5 kg. Check the camera weight on its own datasheet before you mount it.

Working at height. Cameras usually go on eaves, high walls or ceilings. Use a stable ladder or platform and fixings that suit the surface.

Cabling. Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.

Figures. From IVSEC's IV2422X datasheet and product page, and its IVNC-880B-AI and IVNC-880D-AI datasheets.
