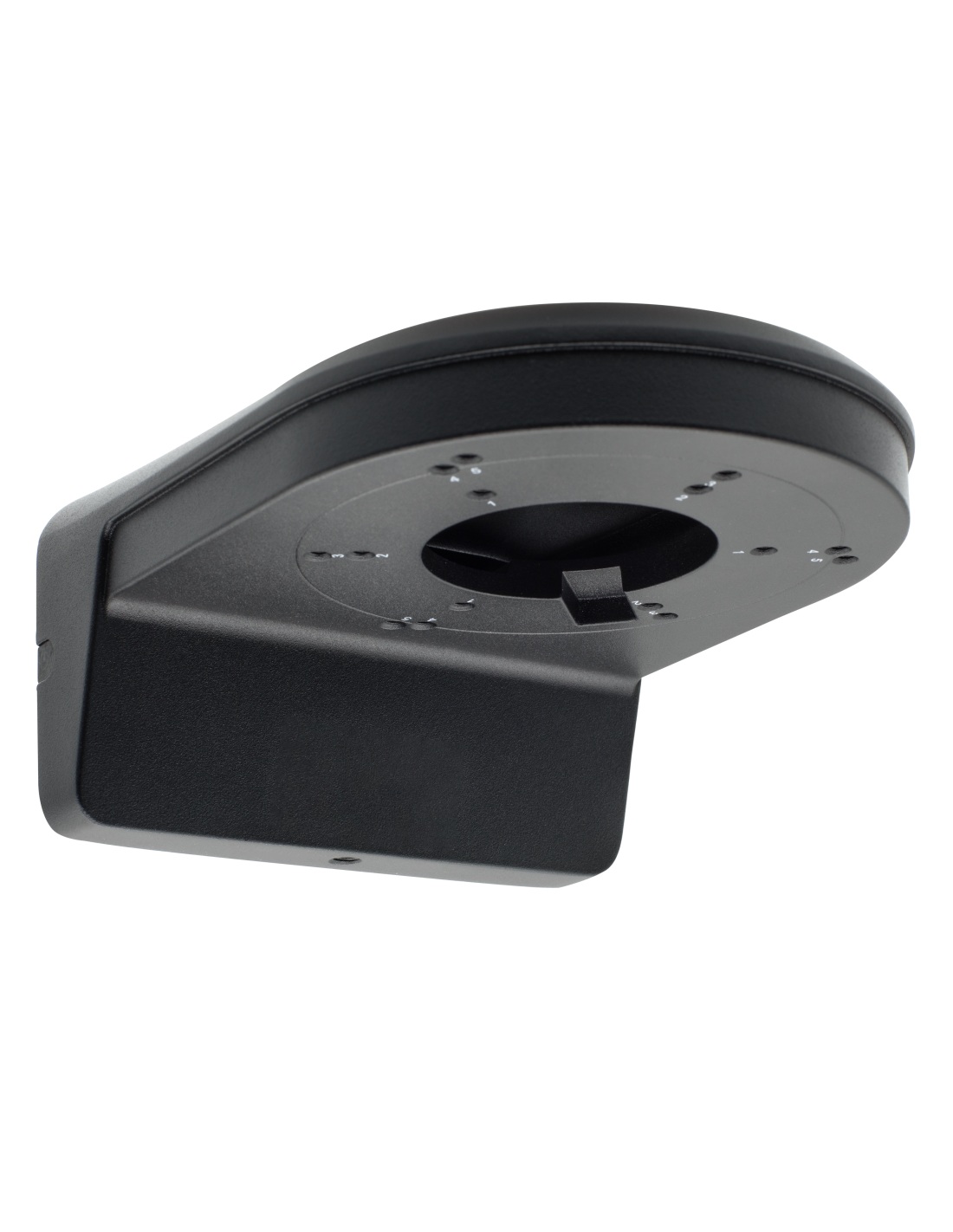

IVSEC IV2456X-BLK medium 90 degree wall mount in black

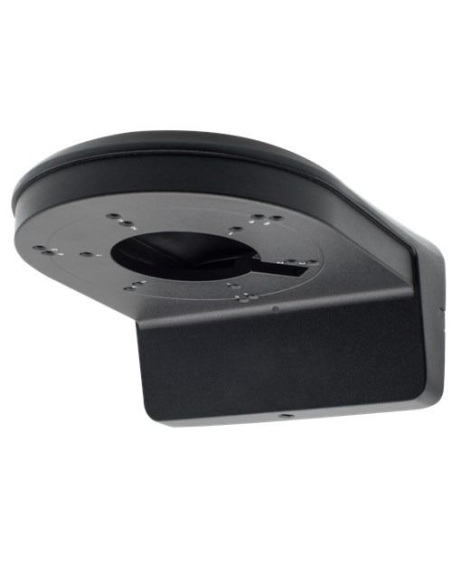

IVSEC IV2456X-BLK from the other side with the cable slot cover fitted

IVSEC IV2456X-BLK close-up of the camera plate and cable slot

1 / 4

IVSEC MEDIUM 90 DEGREE WALL MOUNT FOR NC312X AND NC512X

Name: IVSEC MEDIUM 90 DEGREE WALL MOUNT FOR NC312X AND NC512X
Brand: IVSEC
SKU: IV2456X-BLK
Price: 37.1 AUD
Availability: InStock

SKU IV2456X-BLK In stock

$37.10 inc GST

IVSEC IV2456X-BLK: a black medium 90 degree wall mount that lets a listed IVSEC turret or dome go on a wall, with the cable hidden inside.

✓Black, 80 × 187 × 164 mm, 1.0 kg
✓ADC12 aluminium alloy, stainless screws
✓IP66, 0.5 kg load rating
✓Cable hidden inside the bracket
✓Listed for NC000XA, NC110, NC119XA, NC312XE, NC512, NC319XA, NC340XA, NC550ADX
✓3-year warranty

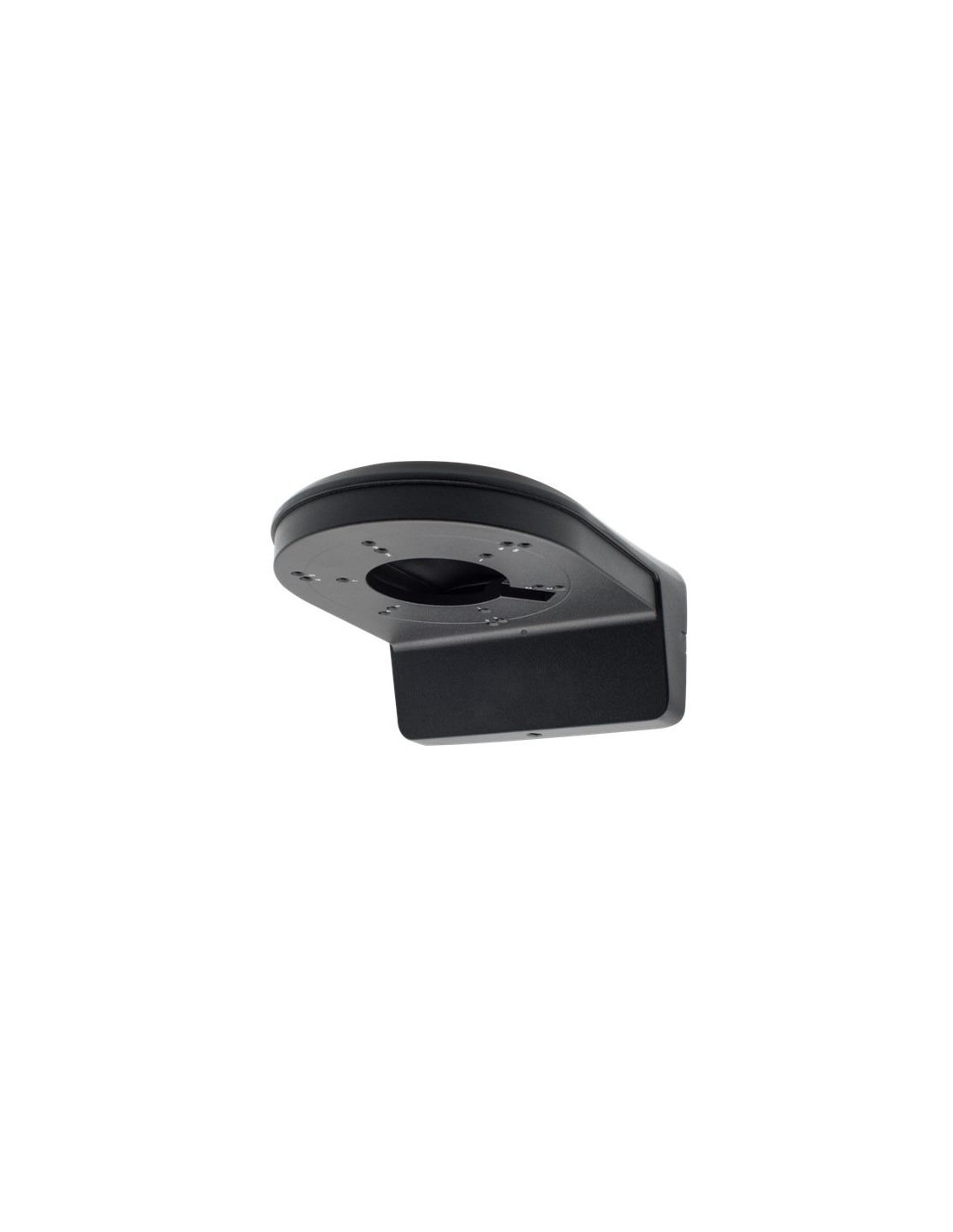

IVSEC IV2456X-BLK medium 90 degree wall mount in black, showing the camera plate and cable slot

IVSEC · Camera mounting · 90 degree wall mount

Black cameras on a wall.
A medium 90 degree wall mount in black.

The IVSEC IV2456X-BLK turns a ceiling-style camera into a wall camera. It fixes to the wall and gives the camera a flat plate to mount on, with the cable hidden inside.

In one sentence: the IVSEC IV2456X-BLK is a black medium 90 degree wall mount in ADC12 aluminium alloy, 80 × 187 × 164 mm, with stainless screws, an IP66 rating and a 0.5 kg load rating, listed for IVSEC NC000, NC110, NC312, NC512 and NC550 cameras.

Wall mount only. The camera is sold separately.

This listing is the IV2456X-BLK bracket with its fixings. Check your camera against IVSEC's list below before you order.

In the box

IV2456X-BLK wall mount
Screws
Allen key

You also need

A compatible IVSEC camera
Wall plugs or anchors for your wall (IVSEC lists screws only)

A flat plate for the camera, sideways off the wall.

Turret and dome cameras are made to sit on a flat surface. The IV2456X-BLK gives them one, standing out from the wall at 90 degrees, so the camera can be mounted the right way up on a wall and the cable stays inside the bracket.

Camera plate

Screw holes around a cable opening.

The camera screws to this plate, and its cable drops through the centre opening and slot into the bracket. Close-up from IVSEC's product photo.

Other side

Cable slot with its cover fitted.

IVSEC's second view shows the bracket from the other side with the cable slot covered. The drop face hides the cable on its way from the wall to the camera.

How it goes in

From bare wall to mounted camera.

Check the camera

Confirm your camera is on IVSEC's IV2456X-BLK list and choose a wall spot with a clear view.

Fix the bracket

Hold the bracket in place, mark and drill, then fix it to the wall with fixings that suit the surface.

Bring the cable in

Feed the network cable from the wall into the bracket and up through the camera plate, with enough slack to connect.

Mount the camera

Connect the camera, tuck the connectors in, screw the camera to the plate and aim it.

At a glance

IV2456X-BLK

Show specs

Type

Medium 90 degree wall mount

Colour

Black

Housing

ADC12 (die-cast aluminium alloy)

Screws

Stainless steel 304

Size (H × W × L)

80 × 187 × 164 mm (drawing: 187 × 163.7 mm)

Load rating

0.5 kg

Weight

1.0 kg

Weather rating

IP66

Operating range

−20 °C to 60 °C, humidity 95% or less

Compatible cameras

NC000XA, NC110ADX, NC110XC, NC110XC-BLK, NC119XA, NC3102ADX, NC312XE, NC512ADX, NC512ADX-BLK, NC512XD, NC512XD-BLK, NC319XA, NC340XA, NC550ADX (IVSEC datasheet)

Camera families

NC000X, NC110X, NC119X, NC312, NC319X, NC340X, NC512, NC550 series (IVSEC product page)

In the box

Bracket, screws, Allen key

Packaging (H × W × L)

90 × 190 × 170 mm

Warranty

3 years

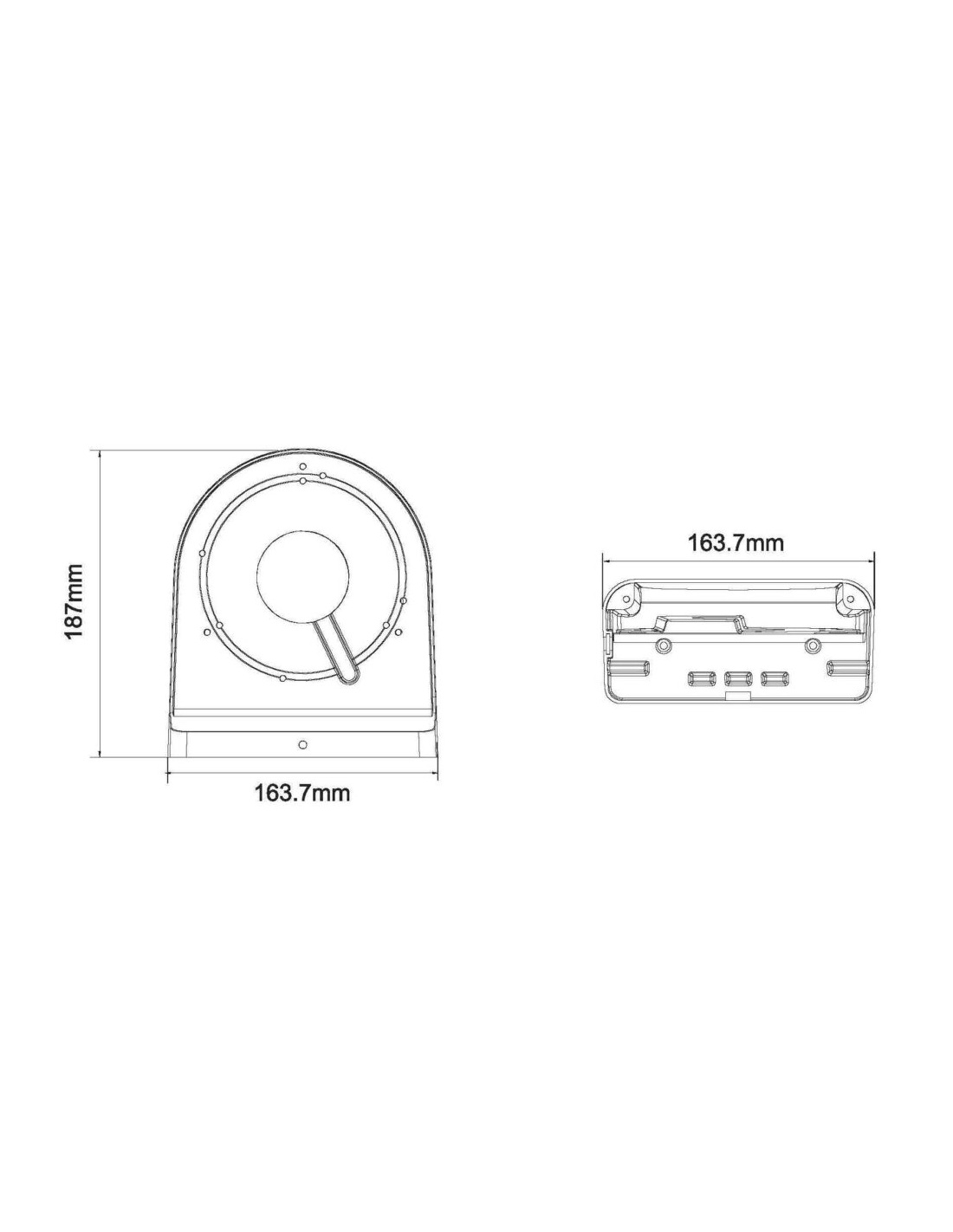

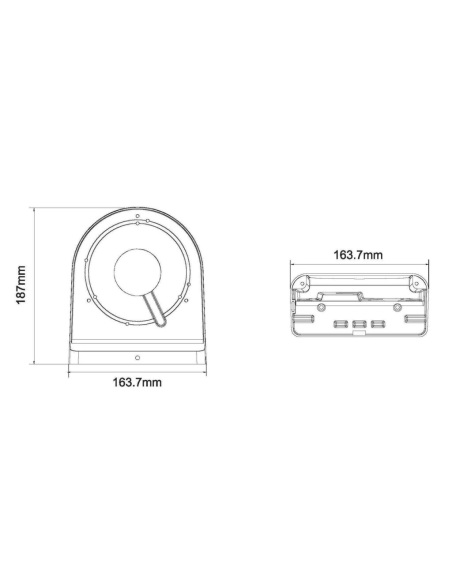

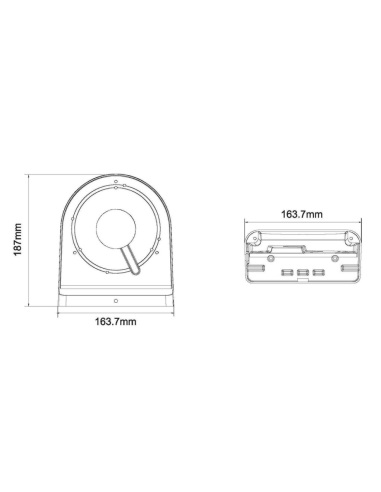

IVSEC IV2456X-BLK dimension drawing: 187 mm by 163.7 mm

IVSEC dimension drawing, measurements in mm.

Pair it with

What goes with it

Camera

A listed IVSEC camera

NC000XA, NC110, NC119XA, NC3102ADX, NC312XE, NC512, NC319XA, NC340XA or NC550ADX. Ask us if yours is not listed.

Smaller

IV2457X small wall mount

A smaller 90 degree wall mount, listed for NC000XA, NC110X, NC119XA, NC319XA, NC340XA and NC543ADX.

White finish

IV2456X

The same medium wall mount in white.

Where it is used

Where a 90 degree wall mount fits.

Homes without eaves

Turret cameras on a flat wall where there is no soffit to mount under.

Garages and sheds

On the wall above a door, looking out over the driveway.

Shops and offices

Along a wall over counters and entries.

Hallways and corridors

Wall-mounted cameras looking down a corridor.

Warehouses

On columns and walls where the roof is too high.

Outdoor walls

Rated IP66 for exposed walls and patios.

IV2456X-BLK or IV2457X

	IV2456X-BLK (this mount)	IV2457X small wall mount
Size (H × W × L)	80 × 187 × 164 mm	75 × 132 × 155 mm on IVSEC's drawing
Load rating	0.5 kg	1.5 kg
Weight	1.0 kg	0.66 kg
Colour	Black	White
Camera list	NC000XA, NC110, NC119XA, NC3102ADX, NC312XE, NC512, NC319XA, NC340XA, NC550ADX	NC000XA, NC110X, NC119XA, NC319XA, NC340XA, NC543ADX
Weather rating	IP66	IP66

Figures from IVSEC's IV2456X-BLK and IV2457X datasheets.

Common questions

Which cameras fit the IV2456X-BLK?

IVSEC lists the NC000XA, NC110ADX, NC110XC, NC110XC-BLK, NC119XA, NC3102ADX, NC312XE, NC512ADX, NC512ADX-BLK, NC512XD, NC512XD-BLK, NC319XA, NC340XA, NC550ADX.

Is a camera included?

No. This listing is the wall mount with screws and an Allen key. The camera is sold separately.

What does a 90 degree wall mount do?

It gives a turret or dome camera a flat plate standing out from the wall, so a camera made for ceilings can go on a wall.

How big is it?

80 × 187 × 164 mm (H × W × L) and 1.0 kg. IVSEC's drawing shows 187 by 163.7 mm.

How much weight will it hold?

0.5 kg, according to IVSEC. Check your camera weight on its datasheet.

Does the cable stay hidden?

Yes. IVSEC describes cable management inside the bracket, so the cable runs from the wall to the camera out of sight.

Can it go outside?

Yes. IVSEC rates it IP66 and for −20 °C to 60 °C with humidity up to 95%.

What is it made of?

ADC12 aluminium alloy with stainless steel 304 screws, in black.

Are wall plugs included?

IVSEC lists the bracket, screws and an Allen key. Use plugs or anchors that suit your wall.

What is the difference from the IV2457X?

The IV2456X-BLK is the medium size, 80 × 187 × 164 mm and rated to 0.5 kg. The IV2457X is smaller, rated to 1.5 kg, and listed for a shorter camera list.

Is there a white version?

Yes. The IV2456X is the same bracket in white.

What warranty does it have?

3 years, according to IVSEC. Warranty service through InFront Technologies.

Supported by InFront Technologies.

Not sure which bracket suits your camera or wall? Call 1300 736 970 or email [email protected]. The IVSEC datasheet is on the Attachments tab.

Installation and safety

Mechanical part only. The IV2456X-BLK holds the camera. It carries no power or data; follow the camera guide for its cable connections.

Load. Rated for 0.5 kg. Check the camera weight on its own datasheet before you mount it.

Working at height. Cameras usually go on eaves, high walls or ceilings. Use a stable ladder or platform and fixings that suit the surface.

Cabling. Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.

Figures. From IVSEC's IV2456X-BLK datasheet and product page. The datasheet prints one model as NX512XD-BLK; we have listed it as NC512XD-BLK.
