• IV2493X corner adaptor mount
• Screws
• Allen key

• An IVSEC junction box or wall mount from the list below
• The camera
• Fixings rated for your wall

01

Fix the adaptor

Hold the IV2493X on the corner at the camera height and fix both flanges into solid wall with fixings rated for the load.

02

Fit the box or arm

Fix the IVSEC junction box or wall mount to the front plate.

03

Bring the cable through

Feed the cable from the wall through the plate's opening and make the joints inside the box.

04

Fit the camera

Fit the camera and aim it along the wall you want to cover.

Small box

IV2477X junction box

For small IVSEC turret and bullet cameras. The black IV2477X-BLK is covered too.

Large box

IV2422X junction box

IVSEC's large conduit box, on its list for this adaptor.

Wall arms

IV2455X, IV2456X, IV2457X

IVSEC's 90° wall mounts, all on its list.

Dual camera

IV2491X wall arm

Carries IVSEC's IV2490X dual camera box on a corner.

Homes

Watch the side path and the backyard from one corner of the house.

Warehouses

Cover two sides of the building from each corner.

Car parks

Look down two rows of bays from a building corner.

Shops

See the frontage and the side lane from the corner.

Schools

Cover walkways meeting at a corner of a building block.

Factories

Corners of sheds where the walls are too long for one camera.

What does the IV2493X do?

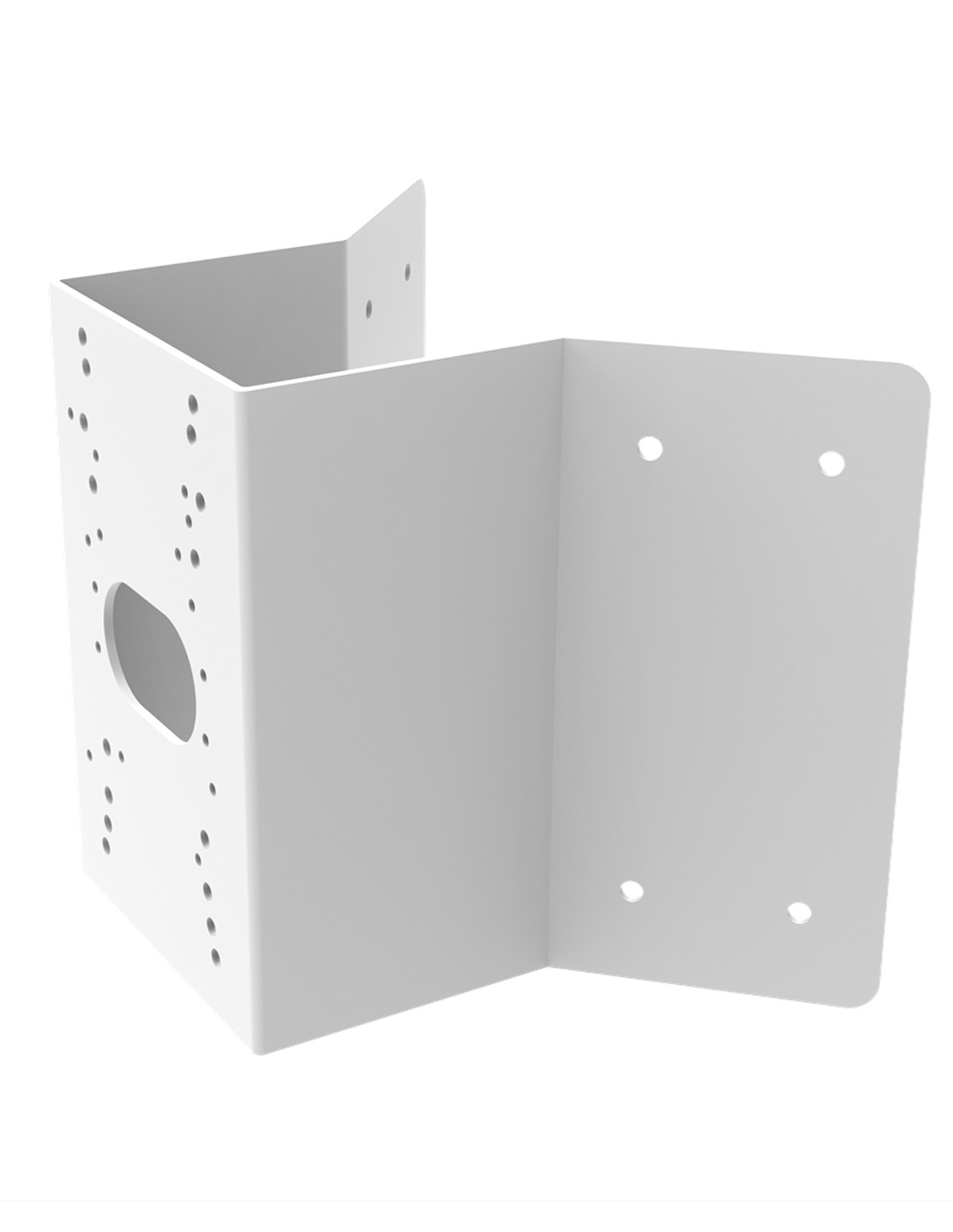

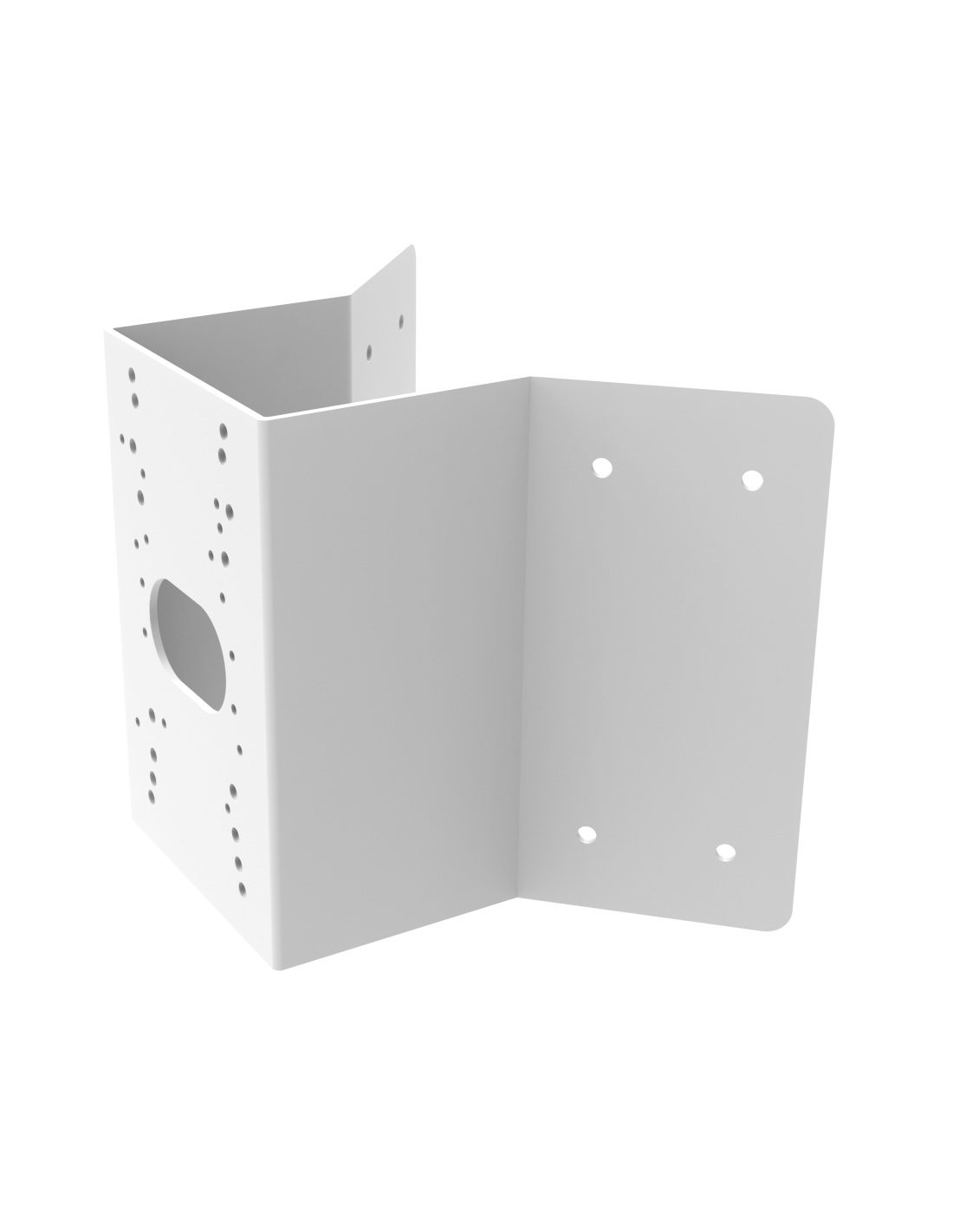

It lets an IVSEC junction box or wall mount fix to an outside corner of a building, so the camera can look along both walls.

Which boxes and mounts fit?

IVSEC lists IV2422X*, IV2433X, IV2455X, IV2456X*, IV2457X*, IV2477X* and IV2491X. An asterisk covers that model family, such as the -BLK versions.

Can a camera fit straight onto it?

It is made to carry one of IVSEC's junction boxes or wall mounts, which then carries the camera.

How much weight can it carry?

6.0 kg, per IVSEC's datasheet.

How much does it weigh?

0.4 kg.

Can it go outside?

Yes. It is rated IP66 and for −20 °C to 60 °C.

What is it made of?

ADC12 die-cast alloy with stainless steel 304 screws, finished in white.

What comes in the box?

The bracket, screws and an Allen key.

Does it work on an inside corner?

It is designed for outside building corners. Ask us about inside corners.

Can I put IVSEC's dual camera set on it?

Yes. The IV2491X wall arm, which carries the IV2490X dual camera box, is on IVSEC's list.

What does IN2433X mean on the datasheet?

IVSEC prints IN2433X on its list. IVSEC's mount range uses the IV2433X code for its large adaptor box, so read it as IV2433X and ask us if unsure.

What warranty does it have?

IVSEC gives it a 3 year warranty.
