iVSEC Large Conduit Box Housing Types for Black NC312X, NC51 2X, NC531, NC528X - IV2422X-BLK

Name: iVSEC Large Conduit Box Housing Types for Black NC312X, NC51 2X, NC531, NC528X - IV2422X-BLK
Brand: IVSEC
SKU: IV2422X-BLK
Price: 35.1 AUD
Availability: InStock

SKU IV2422X-BLK In Stock - Ready to Ship

$35.10 inc GST

IVSEC IV2422X-BLK: the black large conduit junction box that houses the camera cable joins and takes conduit through a G3/4 threaded side entry.

✓Black, 134 mm round, 59 mm deep, 0.3 kg
✓G3/4 threaded side entry for conduit
✓ADC12 aluminium alloy, stainless screws
✓Outdoor rated, 0.5 kg load rating
✓Listed for IVNC512ADX-BLK, IVNC512XD-BLK and other NC312, IVNC317, NC528XD, NC531 models

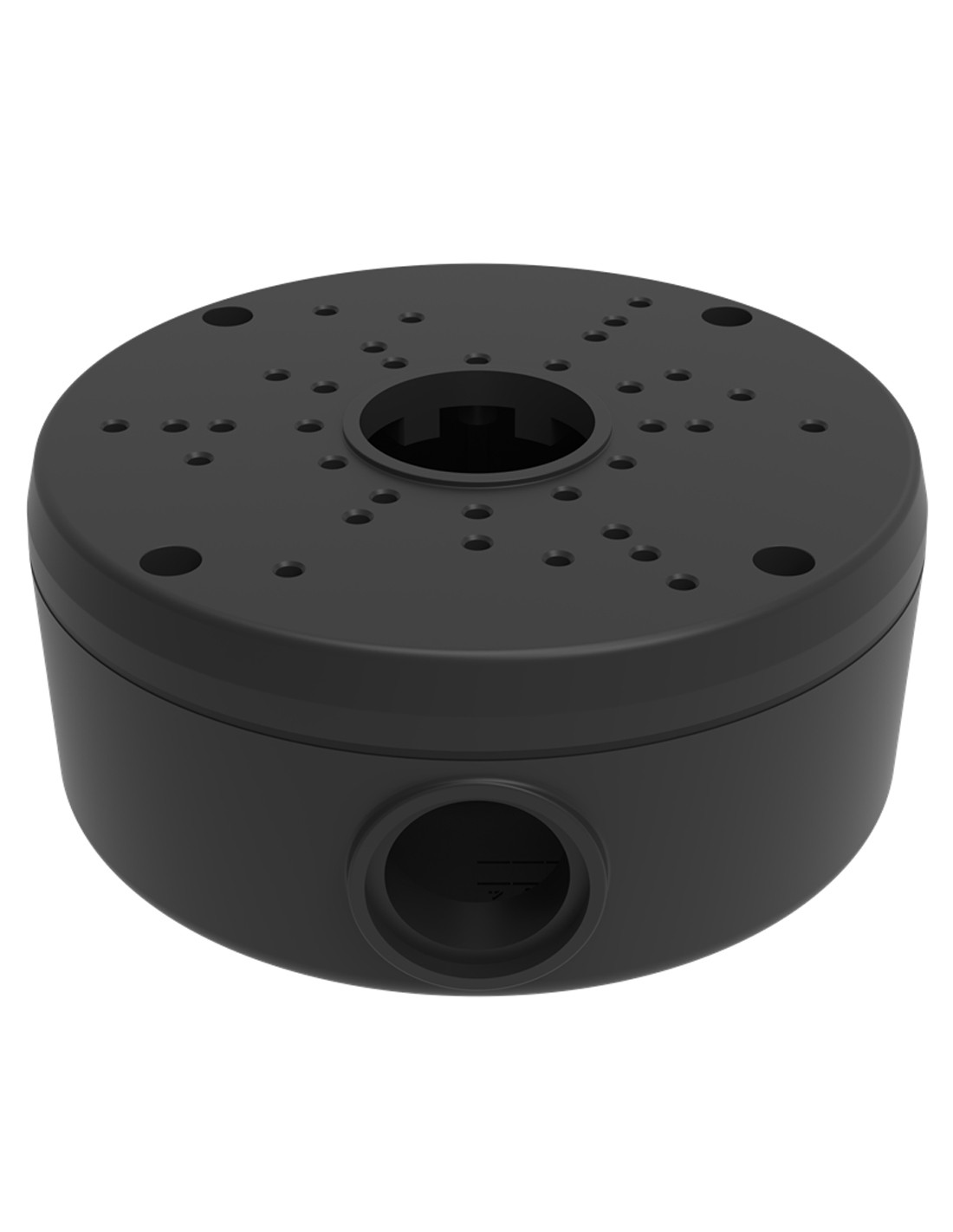

IVSEC IV2422X-BLK large conduit box in black, showing the camera mounting face and the threaded side entry

IVSEC · Camera mounting · Conduit box

Black cameras, black box.
A large conduit box that matches.

The IVSEC IV2422X-BLK is the black version of IVSEC's large conduit box. It houses the camera cable joins between the wall and the camera and takes conduit at a threaded side entry.

In one sentence: the IVSEC IV2422X-BLK is a black 134 mm round conduit junction box in ADC12 aluminium alloy with stainless screws, a G3/4 threaded side entry and a 0.5 kg load rating, listed for black and other NC312, IVNC512, NC528XD and NC531 cameras.

Conduit box only. The camera is sold separately.

This listing is the black IV2422X-BLK box with its fixings. Check your camera against IVSEC's list below before you order.

In the box

IV2422X-BLK large conduit box
Screws
Allen key

You also need

A compatible IVSEC camera
Wall plugs or anchors for your wall (IVSEC lists screws only)
A G3/4 conduit fitting if the cable runs in conduit

A black base for a black camera.

The camera screws to the face of the box and the cable tail and connectors sit inside it, out of the weather. On dark walls and eaves, the black finish keeps the camera and its base the same colour.

IVSEC IV2422X-BLK black conduit box from the side, showing the threaded entry

Side view

Threaded side entry for conduit.

IVSEC's drawing gives the side entry a G3/4 pipe thread (26.5 mm). The box stands 59 mm off the wall.

Mounting face

Holes for the listed IVSEC cameras.

Screw holes around a centre cable opening, 134 mm across. ADC12 aluminium alloy with stainless steel 304 screws. Close-up from IVSEC's product photo.

How it goes in

From bare wall to mounted camera.

Check the camera

Confirm your camera is on IVSEC's IV2422X-BLK list and choose a spot with a clear view and a cable path back to the recorder.

Fix the box

Hold the box in place, mark and drill, then screw it to the wall or soffit with fixings that suit the surface.

Bring the cable in

Feed the network cable in from behind, or through conduit at the G3/4 side entry, with enough slack to connect the camera.

Mount the camera

Connect the camera, tuck the connectors into the box, screw the camera to the face and aim it.

At a glance

IV2422X-BLK

Show specs

Type

Large conduit junction box

Colour

Black

Housing

ADC12 aluminium alloy

Fixing screws

Stainless steel 304

Size (H × W × L)

59 × 134 × 134 mm (drawing: 134.3 mm diameter)

Cable entry

Side entry with G3/4 pipe thread (26.5 mm)

Load rating

0.5 kg

Weight

0.3 kg

Weather rating

IP67 on the datasheet, IP66 on IVSEC's product page

Operating range

−20 °C to 60 °C, humidity 95% or less

Compatible cameras

NC312ADX, NC312XD, IVNC317ADX, IVNC317XC, IVNC512ADX, IVNC512ADX-BLK, IVNC512XD, IVNC512XD-BLK, NC528XD, NC531ADX, NC531XB (IVSEC datasheet)

In the box

Bracket, screws, Allen key

Packaging (H × W × L)

100 × 150 × 150 mm

Warranty

2 years on the datasheet (confirm with us)

IVSEC IV2422X-BLK dimension drawing: 134.3 mm diameter, 59 mm deep, G3/4 pipe thread

IVSEC dimension drawing (same housing as the white IV2422X), measurements in mm.

Pair it with

What goes with it

Camera

A listed IVSEC camera

Including the IVNC512ADX-BLK and IVNC512XD-BLK in black, plus NC312, IVNC317, NC528XD and NC531 models on IVSEC's list.

Conduit

A G3/4 conduit fitting

To run the cable in conduit, use a fitting that matches the G3/4 thread on the side entry.

White finish

IV2422X

The same large conduit box in white, for white cameras.

Where it is used

Where the black box fits in.

Dark eaves and fascias

Black cameras on dark trim, with a base that does not stand out.

Modern homes

Black window frames and cladding, with the cable joins hidden in the box.

Shopfronts

Black awnings and signage, with conduit running neatly to the camera.

Hospitality

Cafes and bars with dark interiors and exposed services.

Brick and block walls

Where the cable has to run on the surface in conduit.

Outdoor walkways

Weather-rated housing protecting the connectors outside.

IV2422X-BLK or IV2422X

	IV2422X-BLK (this box)	IV2422X
Colour	Black	White
Size (H × W × L)	59 × 134 × 134 mm	59 × 134 × 134 mm
Weight	0.3 kg	0.3 kg
Weather rating	IP67 on the datasheet, IP66 on the product page	IP66
Warranty	2 years on the datasheet	3 years
Camera list	Black and listed NC312, IVNC317, IVNC512, NC528XD, NC531 models	NC312X, IVNC317X, IVNC512X, NC528XD, NC531X, NC543ADX

Figures from IVSEC's IV2422X-BLK and IV2422X datasheets and product pages.

Common questions

Which cameras fit the IV2422X-BLK?

IVSEC lists the NC312ADX, NC312XD, IVNC317ADX, IVNC317XC, IVNC512ADX, IVNC512ADX-BLK, IVNC512XD, IVNC512XD-BLK, NC528XD, NC531ADX and NC531XB.

Is a camera included?

No. This listing is the black conduit box with screws and an Allen key. The camera is sold separately.

What is the difference from the IV2422X?

The colour, and the paperwork: same size and weight, but the black version's datasheet lists IP67 and a 2-year warranty, while the white one lists IP66 and 3 years.

Is it IP66 or IP67?

IVSEC's datasheet says IP67 and its product page says IP66, so plan on IP66. Either way it is rated for outdoor use.

What warranty does it have?

The datasheet lists 2 years for the black version. Ask us to confirm before you rely on it; warranty service is through InFront Technologies.

What thread is the side entry?

G3/4 pipe thread, 26.5 mm, according to IVSEC's drawing. Use a conduit fitting with a matching thread.

How big is it?

59 × 134 × 134 mm (H × W × L), 134.3 mm in diameter on the drawing, and 0.3 kg.

How much weight will it hold?

0.5 kg, according to IVSEC. Check your camera weight on its datasheet.

What is it made of?

An ADC12 aluminium alloy housing in black with stainless steel 304 screws.

What temperatures is it rated for?

−20 °C to 60 °C, with humidity up to 95%, according to IVSEC.

Are wall plugs included?

IVSEC lists the bracket, screws and an Allen key. Use plugs or anchors that suit your wall.

Can I use it with a white camera?

If the camera is on the list it will fit, but the white IV2422X matches a white camera better.

Supported by InFront Technologies.

Not sure which bracket suits your camera or wall? Call 1300 736 970 or email [email protected]. The IVSEC datasheet is on the Attachments tab.

Installation and safety

Mechanical part only. The IV2422X-BLK holds the camera. It carries no power or data; follow the camera guide for its cable connections.

Load. Rated for 0.5 kg. Check the camera weight on its own datasheet before you mount it.

Working at height. Cameras usually go on eaves, high walls or ceilings. Use a stable ladder or platform and fixings that suit the surface.

Cabling. Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.

Figures. From IVSEC's IV2422X-BLK datasheet and product page. The datasheet and product page differ on the IP rating (IP67 and IP66).
