iVSEC 820 8MP Smart IP Camera Series
iVSEC Large Adaptor Box for Pendant IV2444X or Wall Mount IV2455X - IV2433X
$25.90 inc GST
IVSEC IV2433X: the large adaptor box that links a listed IVSEC camera to the IV2444X pendant or IV2455X wall mount, with the cable joins inside.
- ✓For the IV2444X pendant or IV2455X wall mount
- ✓G1 threaded spigot
- ✓134 mm round, 79 mm deep, 0.3 kg
- ✓ADC12 aluminium alloy, stainless screws
- ✓IP66, 0.5 kg load rating
- ✓Listed for NC312X, NC512X, NC543ADX
IVSEC · Camera mounting · Adaptor box
The joint between
camera and pendant or wall arm.

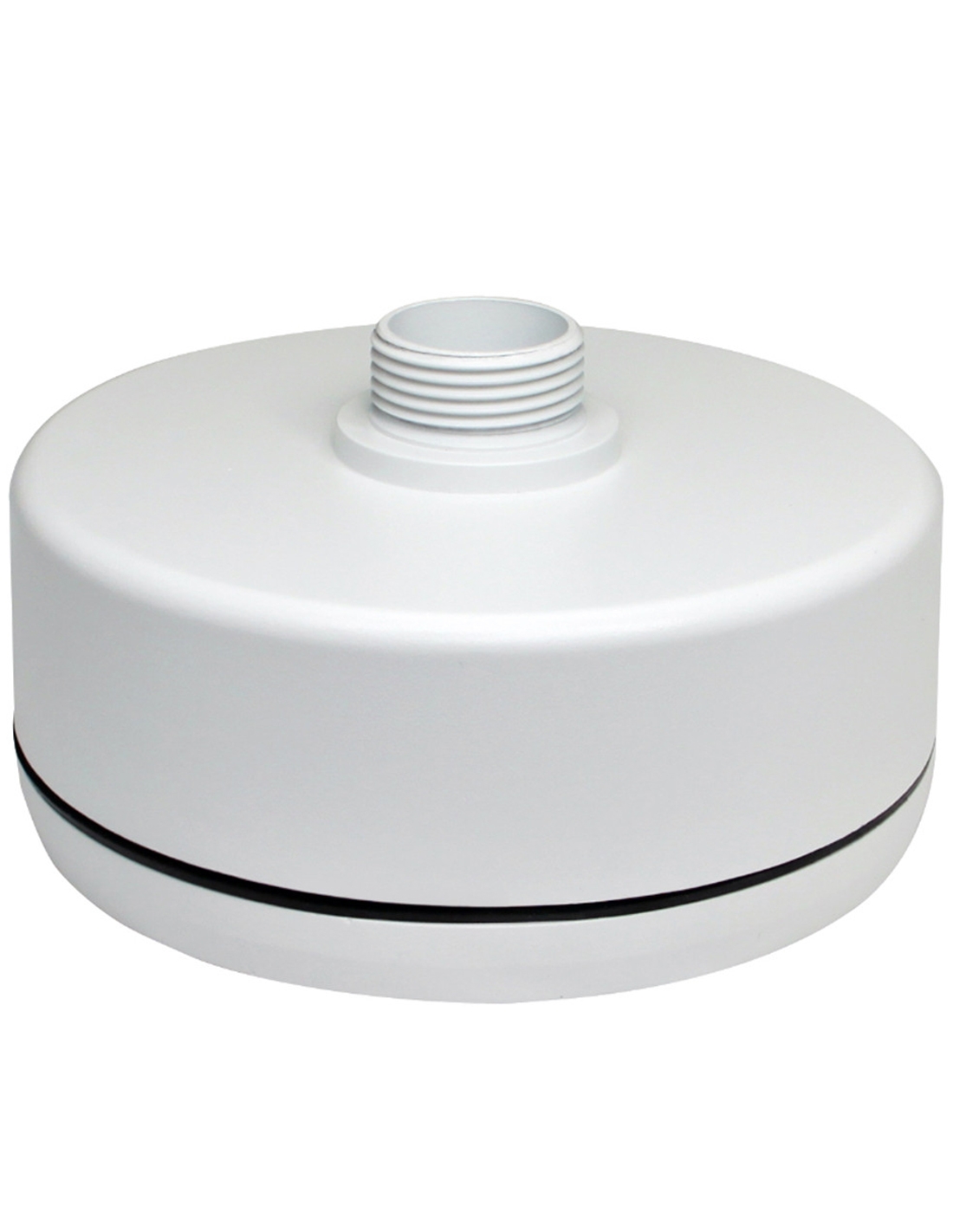

The IVSEC IV2433X is a large adaptor box with a threaded spigot. The camera mounts on the box, and the box screws onto IVSEC's IV2444X pendant or IV2455X wall arm.
In one sentence: the IVSEC IV2433X is a white 134 mm round adaptor box in ADC12 aluminium alloy with a G1 threaded spigot, an IP66 rating and a 0.5 kg load rating, linking listed IVSEC cameras to the IV2444X pendant or IV2455X wall mount.
Adaptor box only. The pendant or wall arm is separate.
The IV2433X needs an IV2444X pendant or an IV2455X wall mount to hang the camera. Both are sold separately, as is the camera.
In the box
- IV2433X large adaptor box
- Screws
- Allen key
You also need
- An IV2444X pendant mount or IV2455X wall mount
- A compatible IVSEC camera
- Fixings for the ceiling or wall
Hang the camera out from the wall or down from the ceiling.
Screw the camera to the face of the IV2433X, then thread the box onto the end of an IV2444X pendant or IV2455X wall arm. The cable runs down the arm and through the spigot, so the joins stay inside.
Threaded spigot
A G1 thread for the pendant or arm.
IVSEC's drawing gives the spigot a G1 pipe thread (33.2 mm). It joins the box to the IV2444X pendant or IV2455X wall mount, with the cable passing through. Close-up from IVSEC's product photo.
Housing
134 mm across, 79 mm deep.
ADC12 aluminium alloy with stainless steel 304 screws, rated IP66 for outdoor use from −20 °C to 60 °C. It weighs 0.3 kg and is rated to carry 0.5 kg.
How it goes in
Arm, box, camera.
01
Fit the arm
Fix the IV2444X pendant to the ceiling or the IV2455X wall mount to the wall, with the cable fed through it.
02
Thread on the box
Pass the cable through the spigot and screw the IV2433X onto the end of the arm.
03
Connect the camera
Connect the camera, then tuck the cable tail and connectors into the box.
04
Mount and aim
Screw the camera to the face of the box with the supplied screws and aim it.
At a glance
IV2433X
Show specs
Type
Large adaptor box for pendant or wall mount
Works with
IV2444X pendant mount, IV2455X wall mount (IVSEC datasheet)
Compatible cameras
NC543ADX (datasheet); NC312X, NC512X, NC543ADX (IVSEC product page)
Also listed for
IVNC-880B-AI and IVNC-880D-AI (IVSEC's 880 datasheets list the IV2433X as an accessory)
Colour
White
Housing
ADC12 aluminium alloy
Fixing screws
Stainless steel 304
Size (H × W × L)
79 × 134 × 134 mm (drawing: 134.3 mm diameter)
Spigot
G1 pipe thread (33.2 mm)
Load rating
0.5 kg
Weight
0.3 kg
Weather rating
IP66
Operating range
−20 °C to 60 °C, humidity 95% or less
In the box
Bracket, screws, Allen key
Packaging (H × W × L)
90 × 150 × 150 mm
Warranty
3 years
IVSEC dimension drawing, measurements in mm.
Pair it with
It needs one of these
Ceiling
IV2444X pendant mount
Hangs the box and camera down from a ceiling, 294 mm long.
Wall
IV2455X wall mount
Holds the box and camera out from a wall on a 90 degree arm.
Camera
A listed IVSEC camera
NC312X, NC512X or NC543ADX, or the IVNC-880B-AI and IVNC-880D-AI. Ask us if yours is not listed.
Where it is used
Where a pendant or arm mount helps.
High ceilings
With the IV2444X pendant, bring the camera down below beams and lights.
Warehouses
Cameras hung from the roof structure over aisles and docks.
Building corners
With the IV2455X arm, hold the camera out so it sees along the wall.
Car parks
Cameras clear of the wall or ceiling for a wider view of the bays.
Shopping centres
Pendant cameras over walkways and entries.
Schools and halls
Out-of-reach mounting under eaves and in high spaces.
IV2433X or IV2422X
| IV2433X (this box) | IV2422X | |
|---|---|---|
| Job | Adaptor box for the IV2444X pendant or IV2455X wall arm | Conduit box fixed to the wall (or IV2488X pole mount) |
| Size (H × W × L) | 79 × 134 × 134 mm | 59 × 134 × 134 mm |
| Thread | G1 spigot (33.2 mm) | G3/4 side entry (26.5 mm) |
| Weight | 0.3 kg | 0.3 kg |
| Load rating | 0.5 kg | 0.5 kg |
| Weather rating | IP66 | IP66 |
Figures from IVSEC's IV2433X and IV2422X datasheets.
Common questions
What does the IV2433X do?
It joins a camera to IVSEC's IV2444X pendant or IV2455X wall mount. The camera screws to the box, and the box threads onto the arm.
Can I mount it straight on a wall?
It is made to thread onto the IV2444X or IV2455X. For a camera straight on the wall, the IV2422X conduit box is the better fit.
Which cameras fit it?
IVSEC lists the NC543ADX on the datasheet, and the NC312X, NC512X and NC543ADX on its product page. Its IVNC-880B-AI and IVNC-880D-AI datasheets also list the IV2433X.
Is the pendant or wall arm included?
No. The IV2444X pendant and IV2455X wall mount are sold separately, and so is the camera.
What thread is the spigot?
G1 pipe thread, 33.2 mm, according to IVSEC's drawing.
How big is it?
79 × 134 × 134 mm (H × W × L), 134.3 mm in diameter on the drawing, and 0.3 kg.
How much weight will it hold?
0.5 kg, according to IVSEC. Check your camera weight on its datasheet.
Can it go outside?
Yes. IVSEC rates it IP66 and for −20 °C to 60 °C with humidity up to 95%.
What is it made of?
An ADC12 aluminium alloy housing with stainless steel 304 screws, in white.
What comes in the box?
The adaptor box, screws and an Allen key, according to IVSEC.
Does the cable stay hidden?
Yes, if it runs down the pendant or arm. It passes through the spigot into the box, where the connectors are tucked away.
What warranty does it have?
3 years, according to IVSEC's datasheet. Warranty service through InFront Technologies.
Supported by InFront Technologies.
Not sure which bracket suits your camera or wall? Call 1300 736 970 or email [email protected]. The IVSEC datasheet is on the Attachments tab.
Installation and safety
Mechanical part only. The IV2433X holds the camera. It carries no power or data; follow the camera guide for its cable connections.
Load. Rated for 0.5 kg. Check the camera weight on its own datasheet before you mount it.
Working at height. Cameras usually go on eaves, high walls or ceilings. Use a stable ladder or platform and fixings that suit the surface.
Cabling. Concealed data cabling to the camera is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.
Figures. From IVSEC's IV2433X datasheet and product page, and its IVNC-880B-AI and IVNC-880D-AI datasheets.
