VIP Vision AC-W Series Card & Bluetooth Reader (Slimline) - AC-WRB-CB
AC-WRB-CB
In Stock - Ready to Ship $ 89.00
inc-GST
or 4 interest-free payments of $22.25 with
- 13.56MHz MIFARE card and fob reading (≤5cm, 0.1s read time)
- Bluetooth smartphone unlock from 0.2m to 10m
- Connects via RS-485 or Wiegand 34
- IP66 rated for indoor or outdoor use
- Operates from -30°C to +70°C

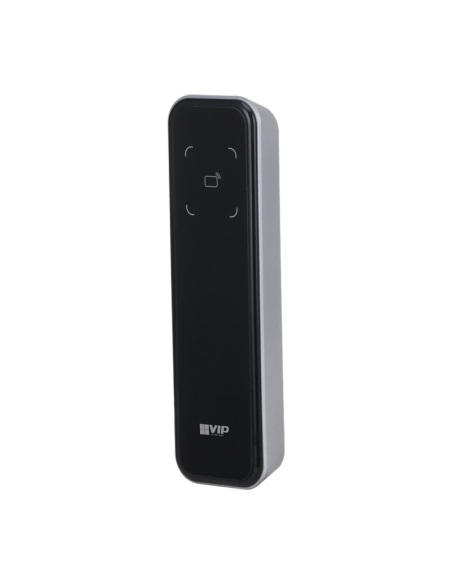

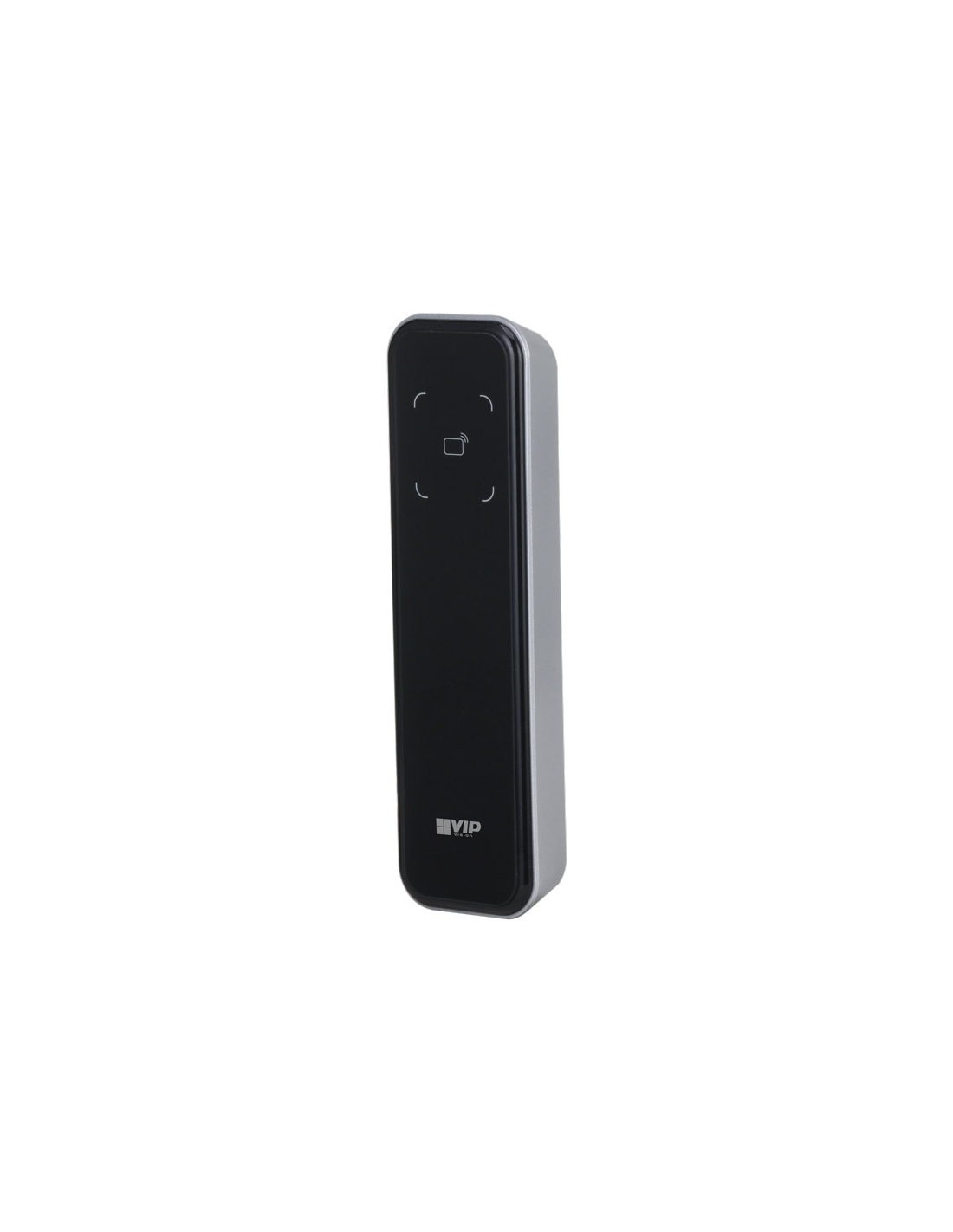

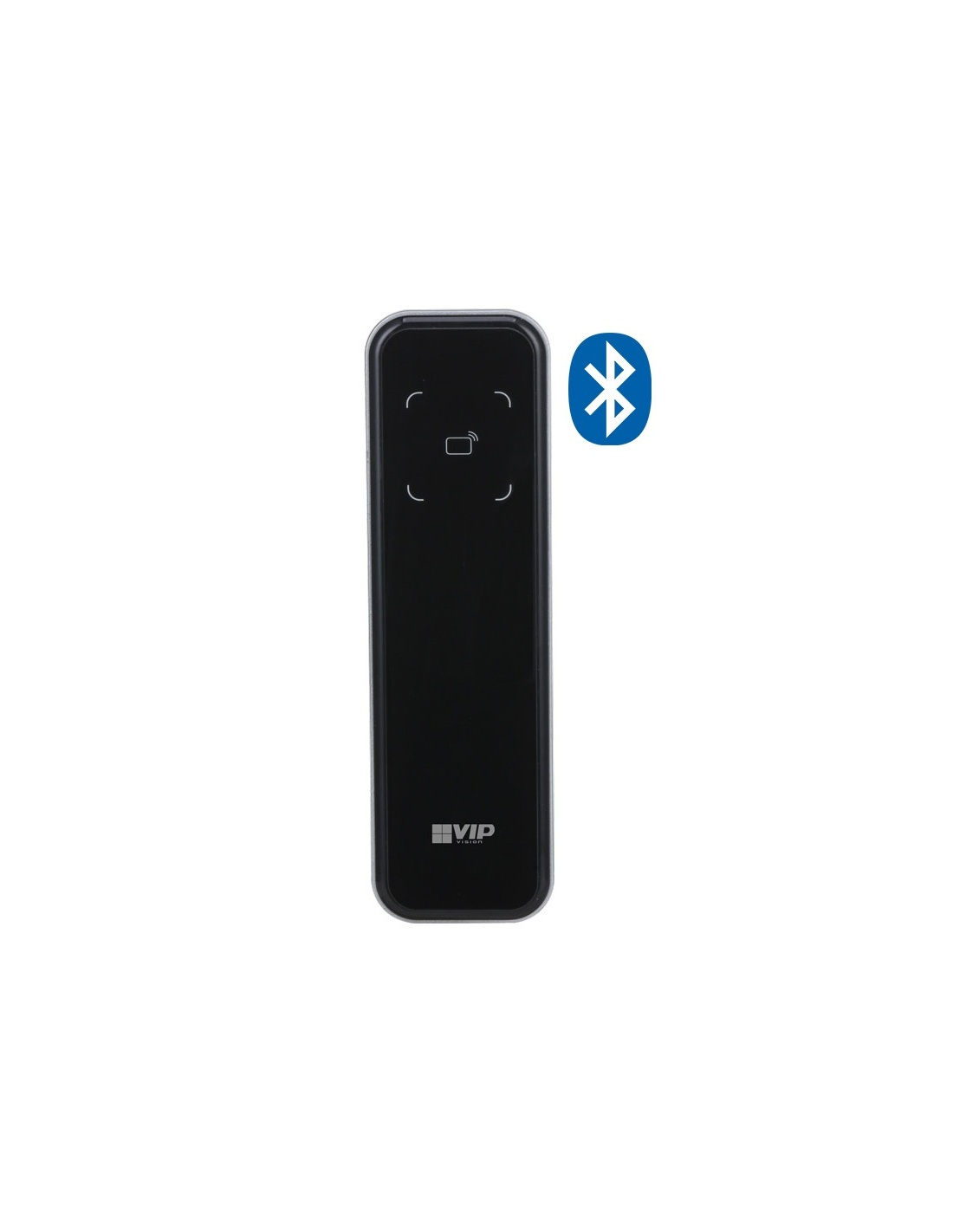

VIP Vision AC-W Series Card & Bluetooth Reader (Slimline)
4 Years Warranty!
AC-WRB-CB
A slimline reader that opens doors with a 13.56MHz card or a smartphone over Bluetooth, from 0.2m up to 10m away. Designed for the VIP Vision AC-W Series access control system.
Features:
• 13.56MHz MIFARE card and fob reading (≤5cm, 0.1s read time)
• Bluetooth smartphone unlock from 0.2m to 10m
• Connects via RS-485 or Wiegand 34
• IP66 rated for indoor or outdoor use
• Operates from -30°C to +70°C
• Built-in tamper switch and buzzer
• Compact slimline (135 x 40 x 15mm) housing, 12VDC powered
Ideal for:
Office entries, gates, comms rooms, apartment lobbies and staff-only areas.
Full specifications are listed in the Data Sheet tab. Need help choosing or planning an install? Our technical team at InFront Technologies is happy to help.

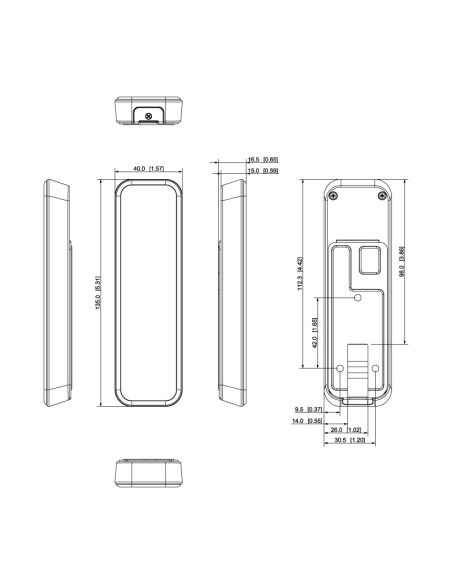

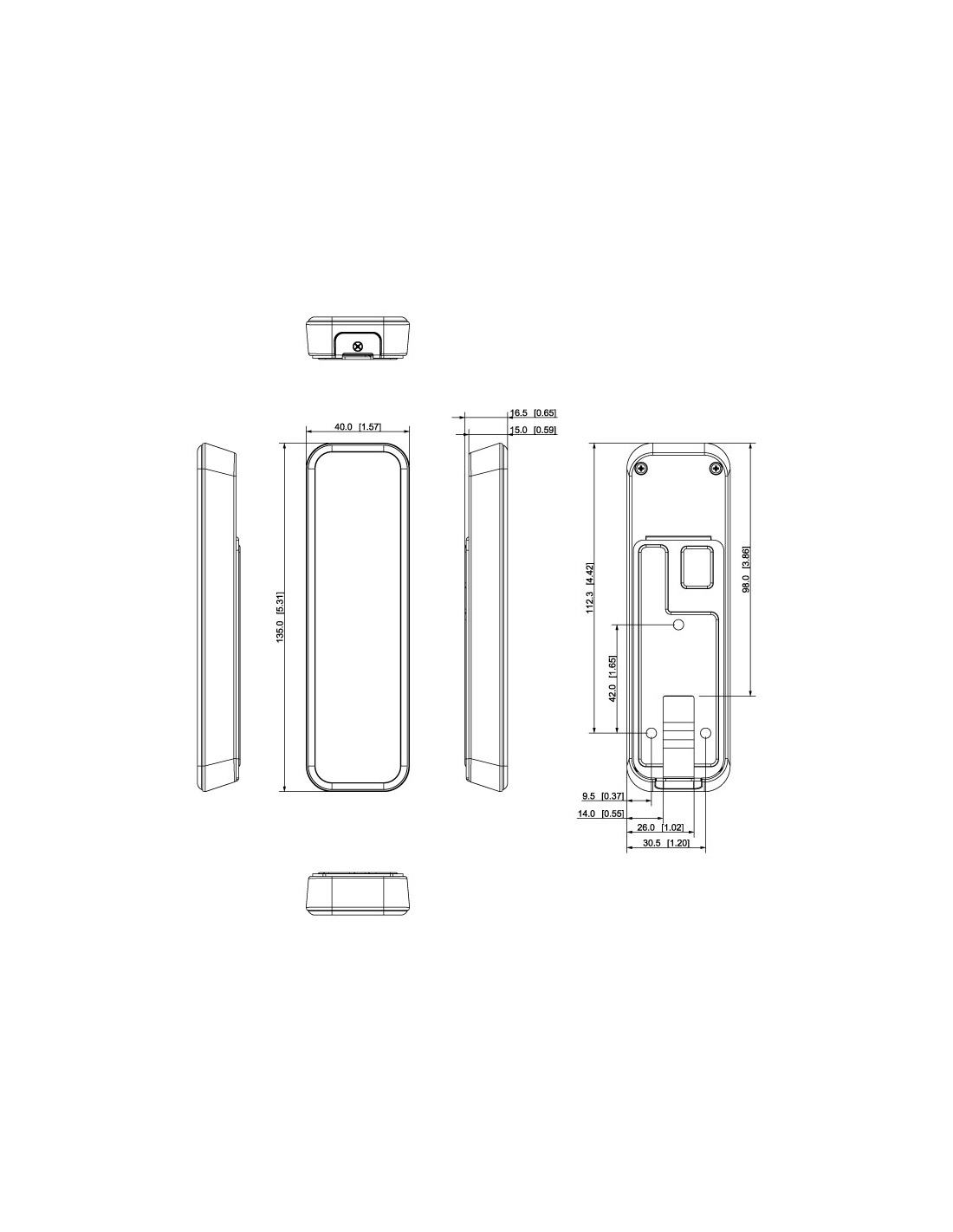

- Dimensions
- 135 x 40 x 15mm
- Net Weight
- 0.16kg
- Operating Conditions
- -30°~+70° C / Less than 95% RH
- Power Supply
- 12VDC 0.5A, Consumption: ≤0.9W (Standby), ≤1.7W
- Audio
- Buzzer
- Communication
- RS-485 / Wiegand 34
- Light
- Blue Backlight
- RFID Format
- 13.56MHz (Mifare)
- Fingerprint Scan
- -
- Ingress Protection
- IP66 (when fitted as per product installation guidelines)
- Keypad
- -
- Product
- Card/Bluetooth Reader
- RFID Read Range
- ≤5cm (RFID), 0.2m ~10m (Bluetooth)
- RFID Read Time
- 0.1s
- Tamper Switch
- Yes
- Vandal Protection
- -
