VIP Vision AC-W Series Access Control Battery Backup Cabinet - AC-WSB

VIP Vision AC-W Series Access Control Battery Backup Cabinet

4 Years Warranty!

AC-WSB

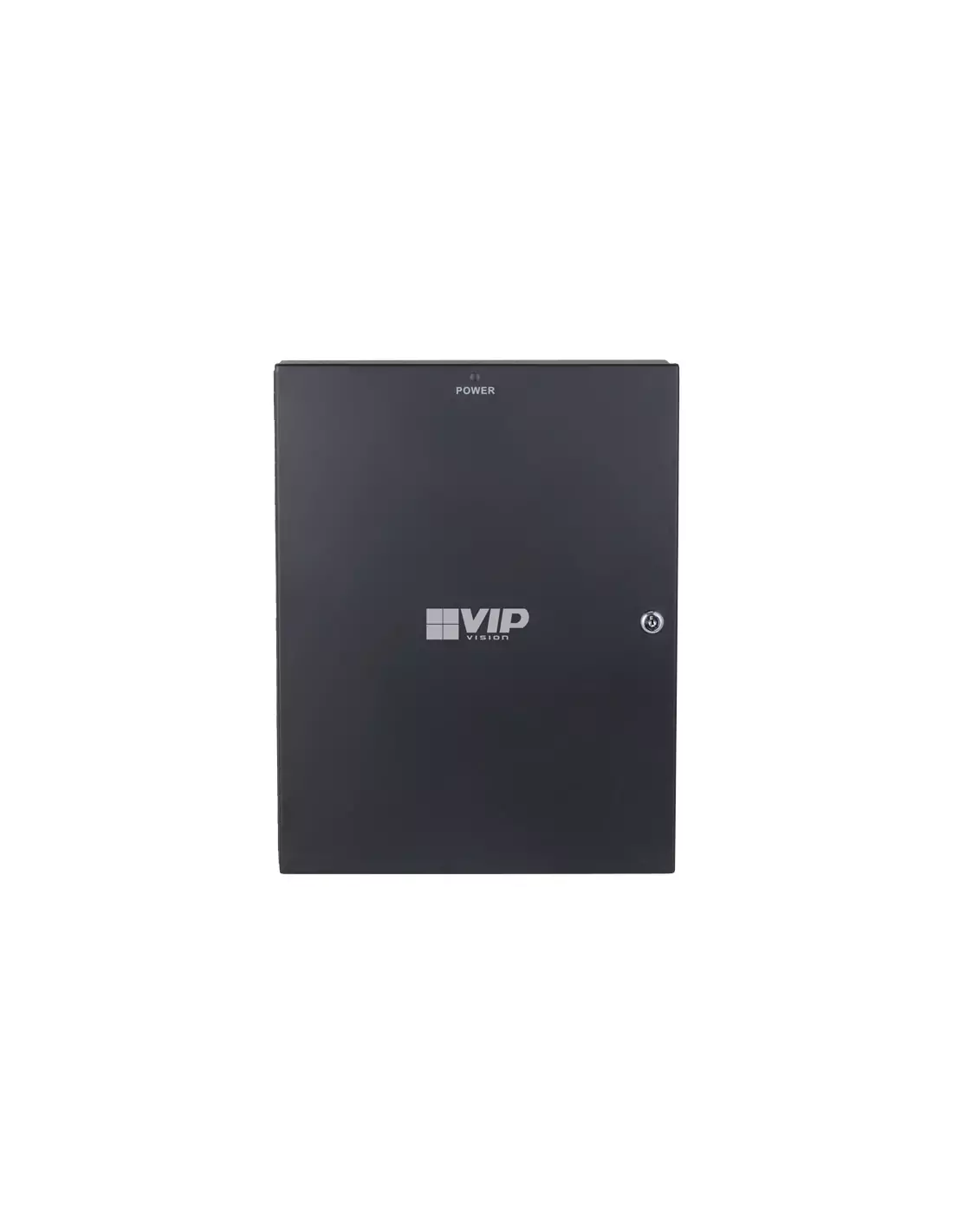

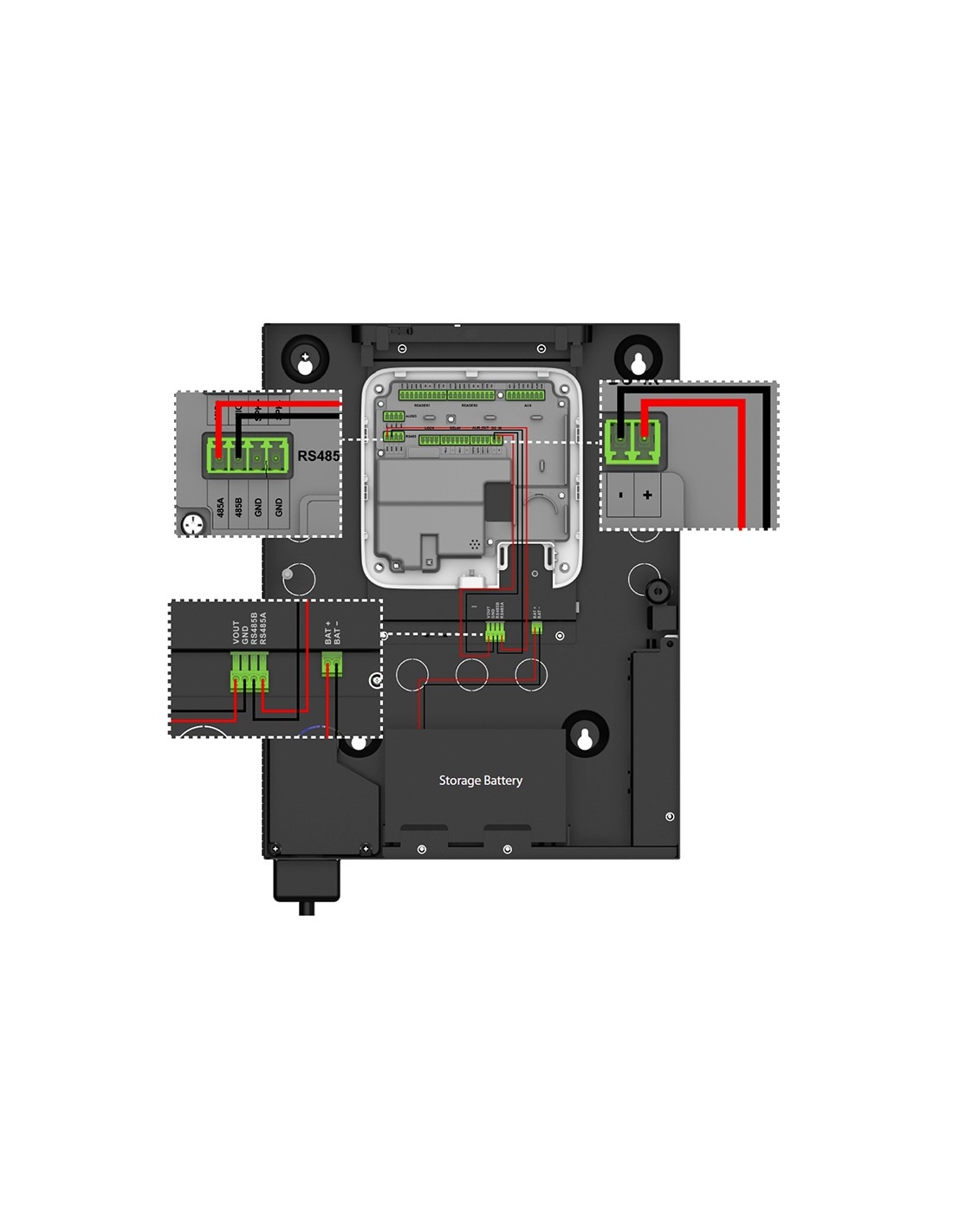

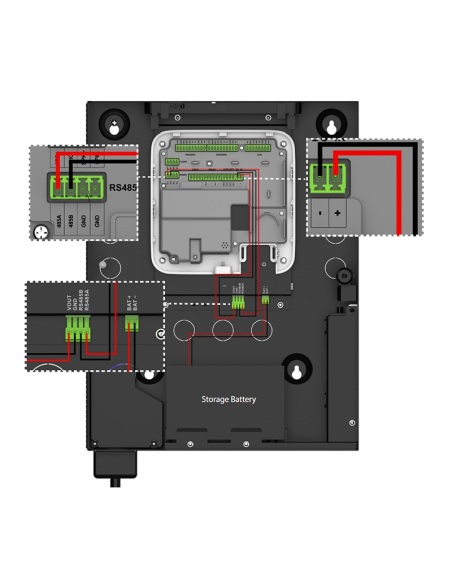

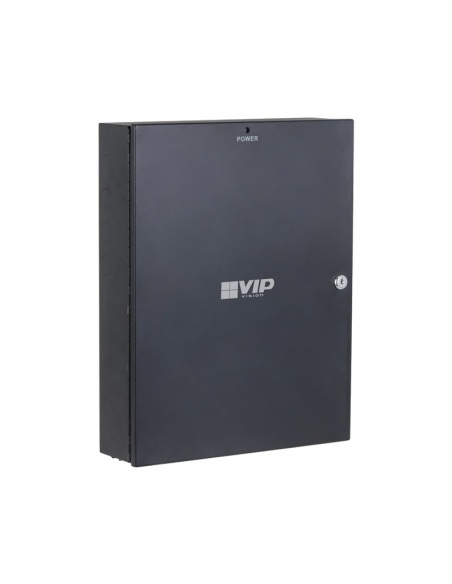

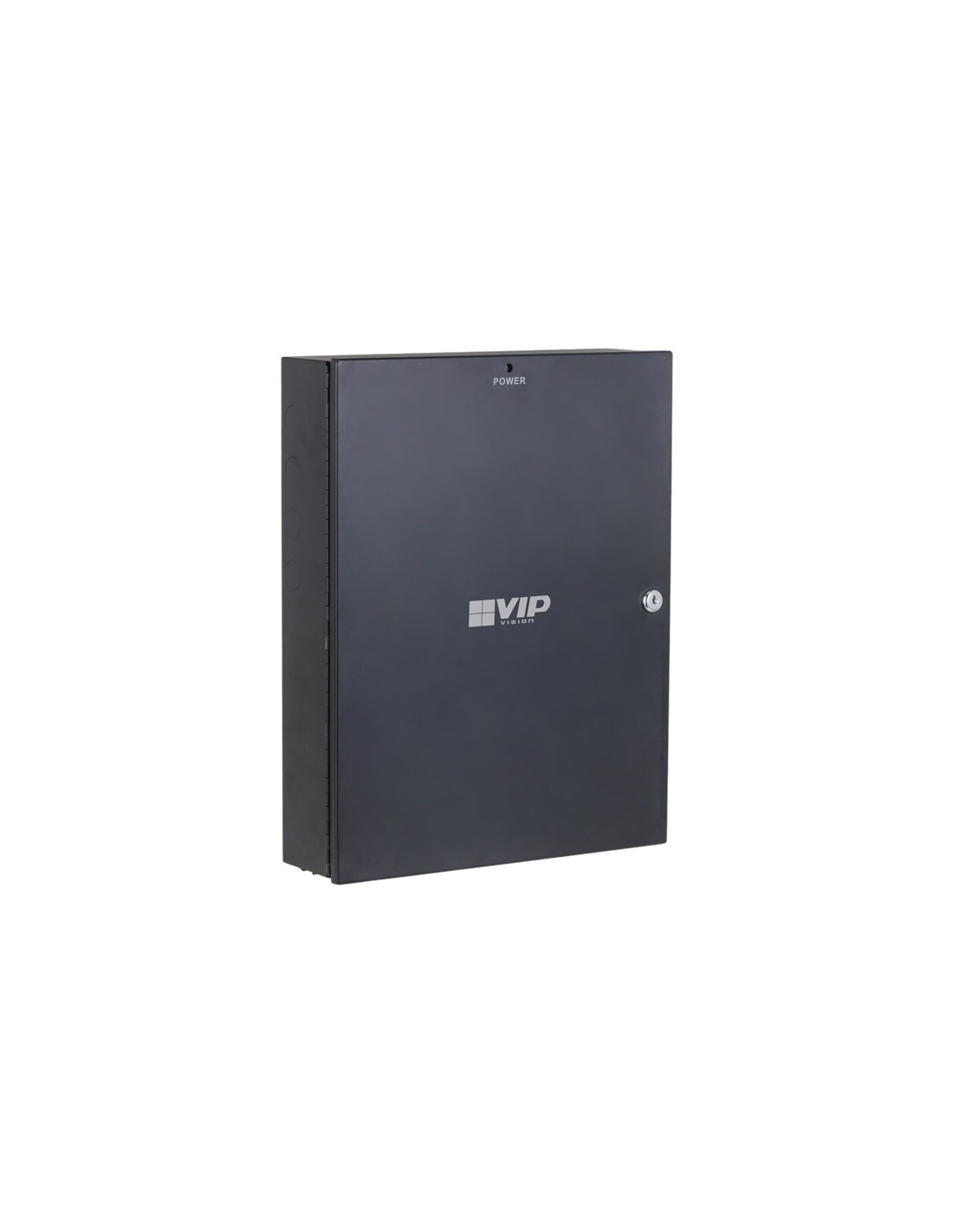

Keep your doors working when the power goes out. This lockable, monitored steel enclosure houses an AC-W Series controller with a 12V 7Ah backup battery, circuit breaker and power supply, and reports power and tamper events back to the system.

Features:

• Houses an AC-W Series controller (e.g. AC-WCM)

• Takes a 12VDC 7Ah backup battery

• 100–240VAC input, 15VDC up to 4A output

• Built-in air circuit breaker for electrical protection

• Reports mains failure, mains restore and tamper via RS-485

• Lockable galvanised steel housing for indoor use

Ideal for:

Any AC-W access control install where doors must stay secure and operational through power outages.

Full specifications are listed in the Data Sheet tab. Need help choosing or planning an install? Our technical team at InFront Technologies is happy to help.
