VIP Vision AC-W Series Card & Keypad Reader (Square) - AC-WRA-CK
AC-WRA-CK
In Stock - Ready to Ship $ 73.51
inc-GST
or 4 interest-free payments of $18.38 with
- 13.56MHz MIFARE card and fob reading (≤5cm, 0.1s read time)
- 12-key backlit touch keypad for PIN entry
- Connects via RS-485 or Wiegand 34
- IP66 rated for indoor or outdoor use
- Operates from -30°C to +70°C

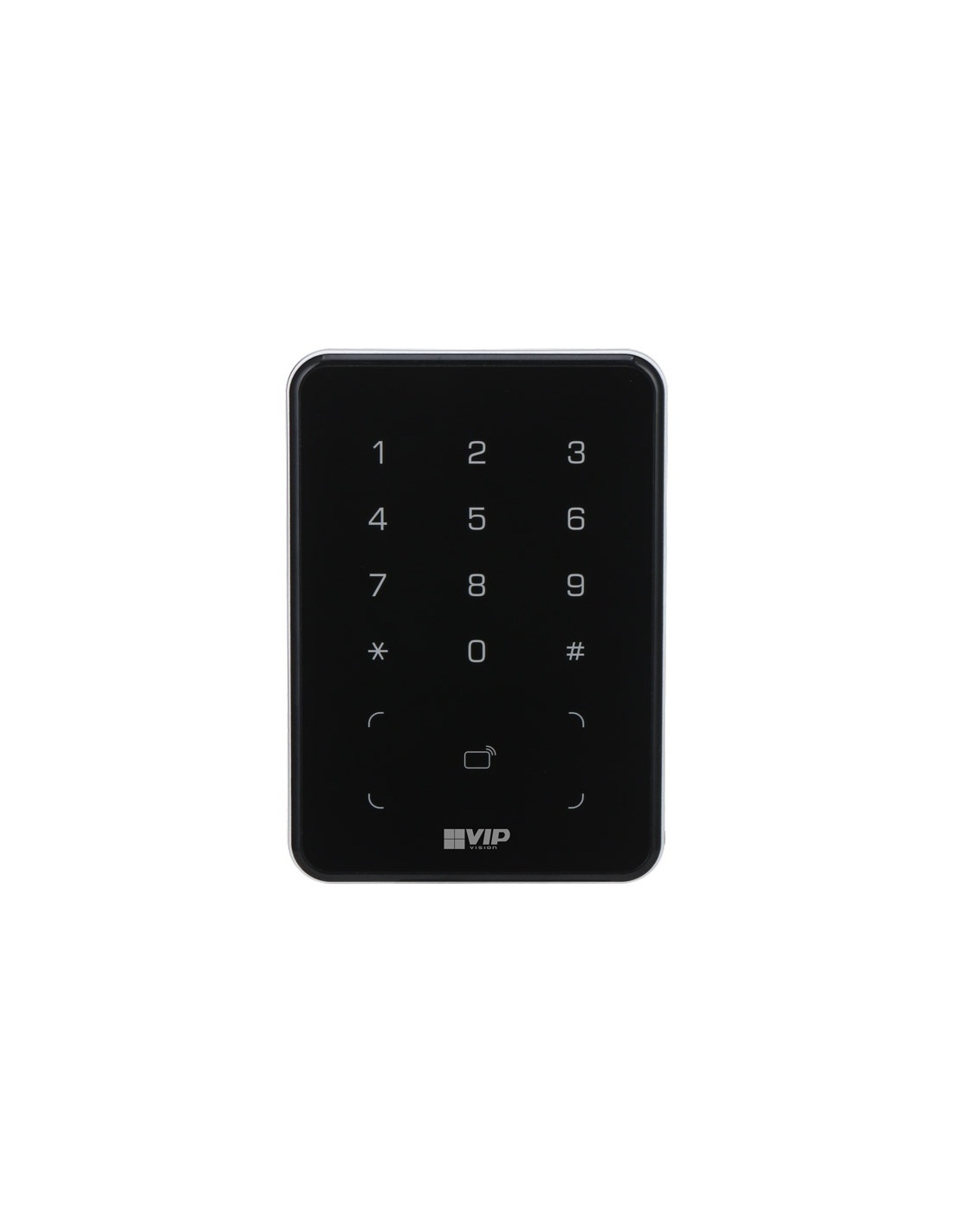

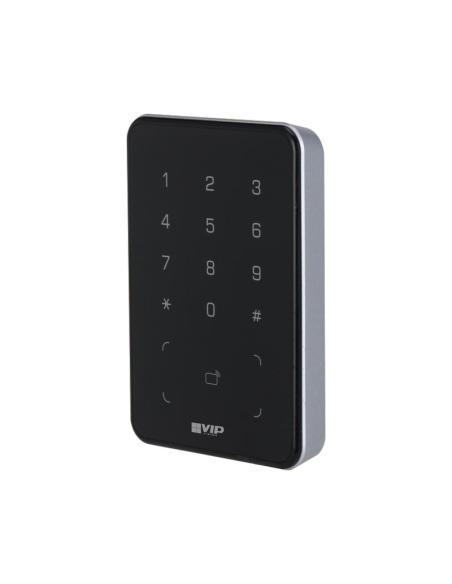

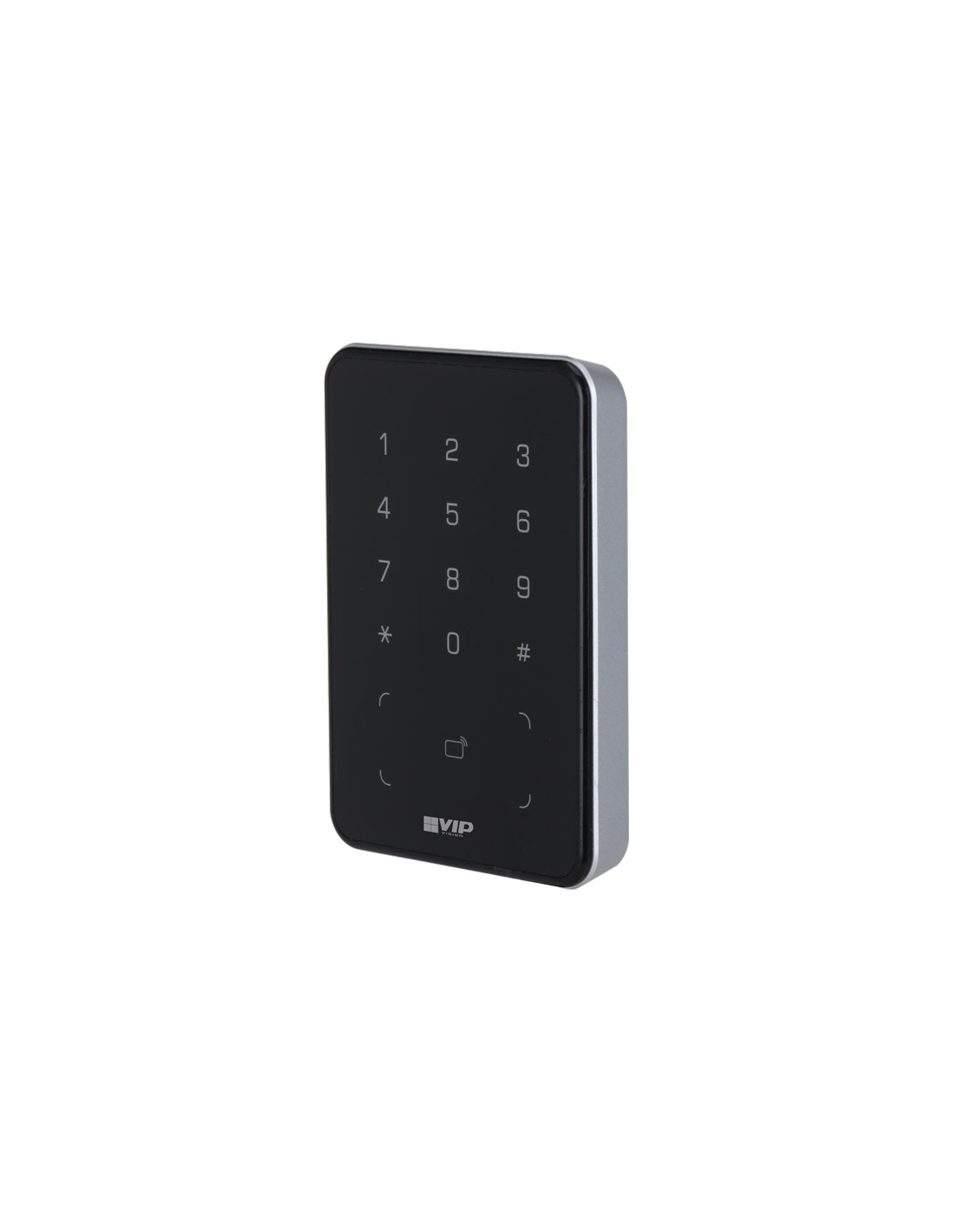

VIP Vision AC-W Series Card & Keypad Reader (Square)
4 Years Warranty!
AC-WRA-CK
A stylish card and PIN reader with a tempered glass front and backlit touch keypad. Open doors with a 13.56MHz card, a PIN code, or both for higher security. Designed for the VIP Vision AC-W Series access control system.
Features:
• 13.56MHz MIFARE card and fob reading (≤5cm, 0.1s read time)
• 12-key backlit touch keypad for PIN entry
• Connects via RS-485 or Wiegand 34
• IP66 rated for indoor or outdoor use
• Operates from -30°C to +70°C
• Built-in tamper switch and buzzer
• Compact square (123 x 86 x 15mm) housing, 12VDC powered
Ideal for:
Office entries, gates, comms rooms, apartment lobbies and staff-only areas.
Full specifications are listed in the Data Sheet tab. Need help choosing or planning an install? Our technical team at InFront Technologies is happy to help.

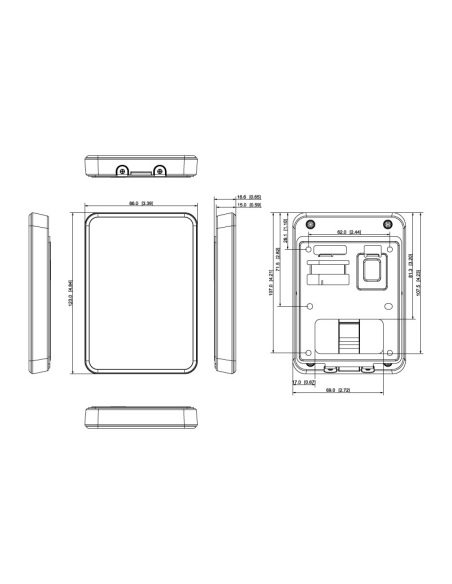

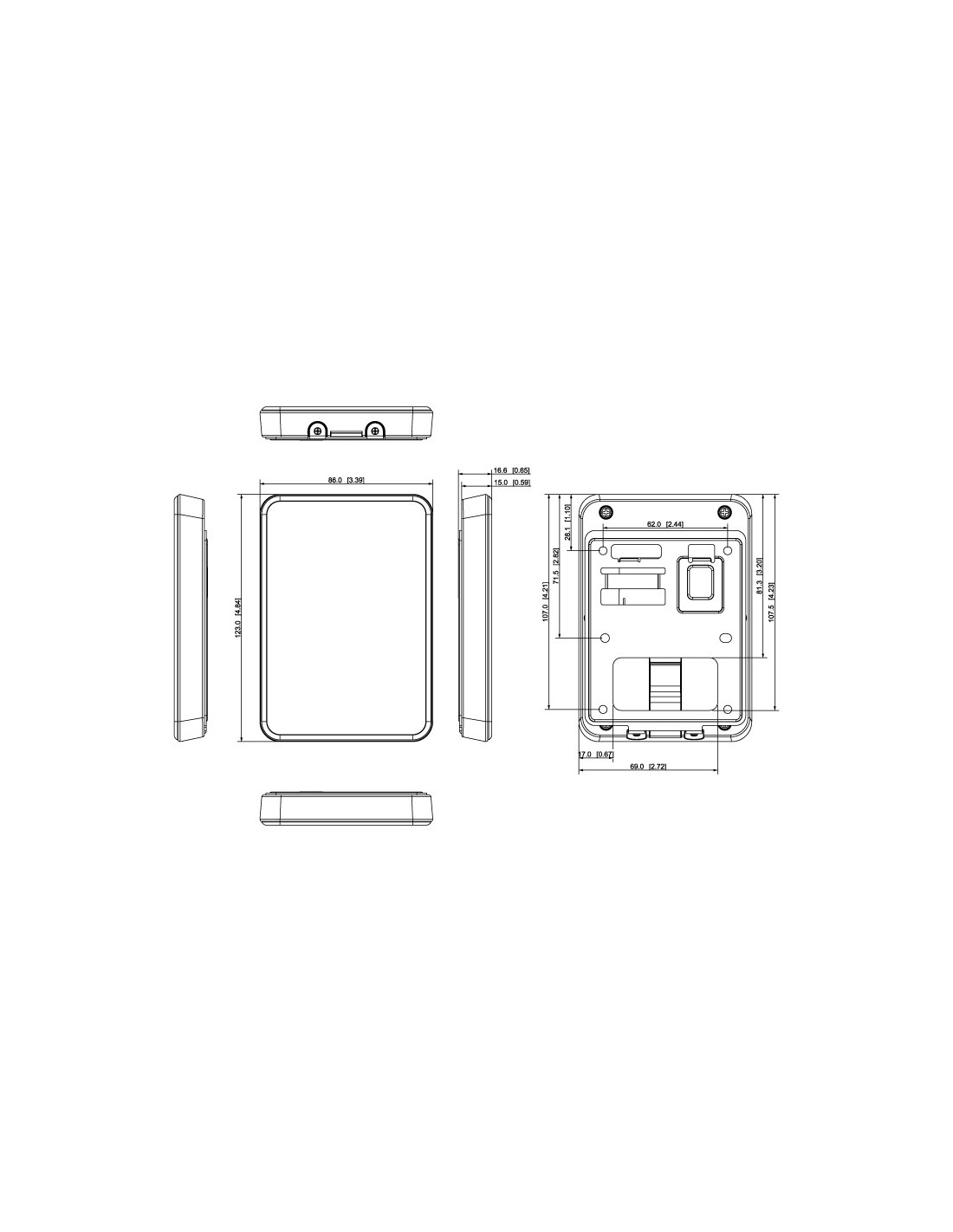

- Dimensions
- 123 x 86 x 15mm
- Net Weight
- 0.35kg
- Operating Conditions
- -30°~+70° C / Less than 95% RH
- Power Supply
- 12VDC 0.5A, Consumption: ≤0.9W (Standby), ≤1.7W
- Audio
- Buzzer
- Communication
- RS-485 / Wiegand 34
- Light
- Blue Backlight
- RFID Format
- 13.56MHz (Mifare)
- Fingerprint Scan
- -
- Ingress Protection
- IP66 (when fitted as per product installation guidelines)
- Keypad
- 12 Touch Keys (0-9,*,#)
- Product
- Card/Keypad Reader
- RFID Read Range
- ≤5cm
- RFID Read Time
- 0.1s
- Tamper Switch
- Yes
- Vandal Protection
- -
