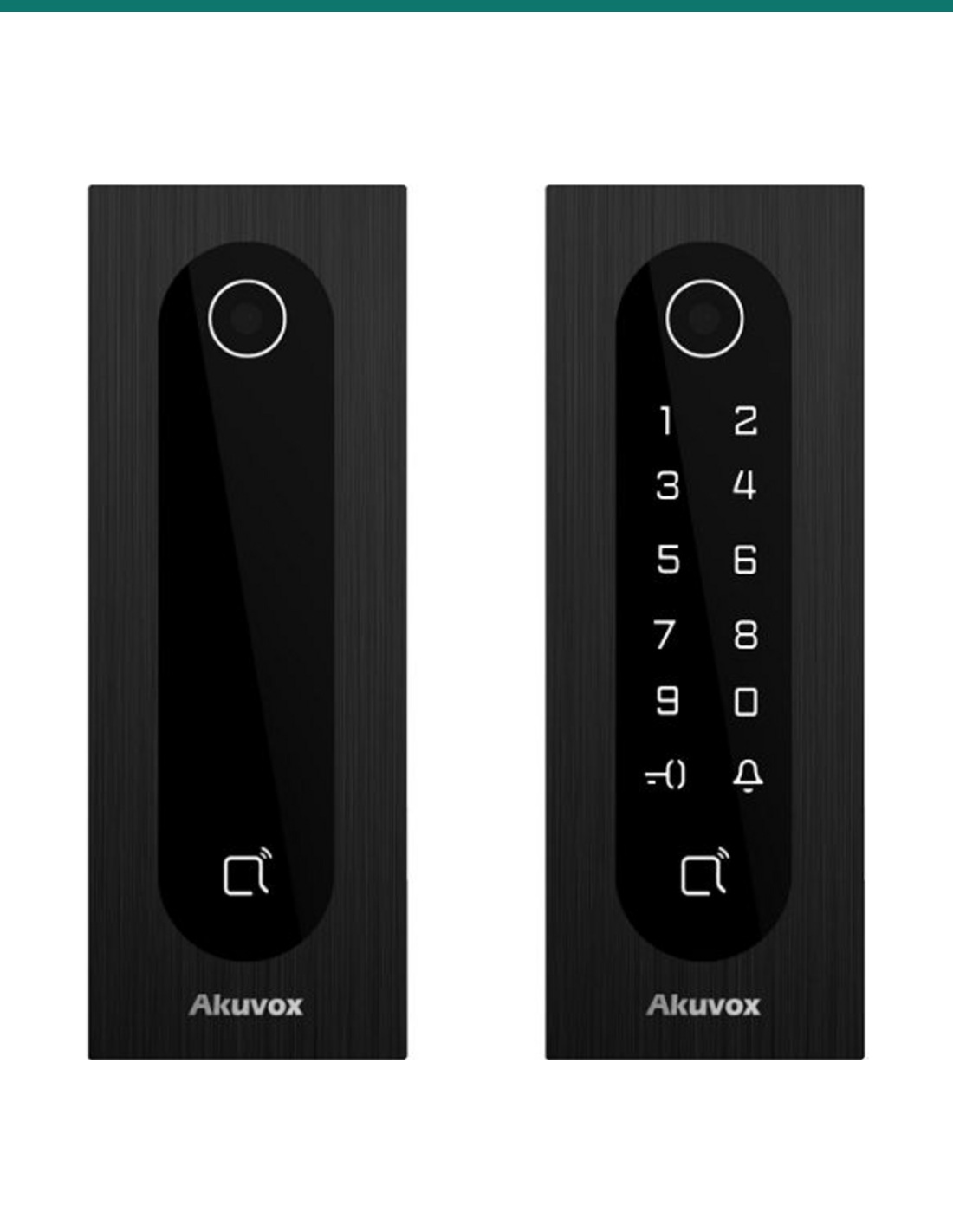

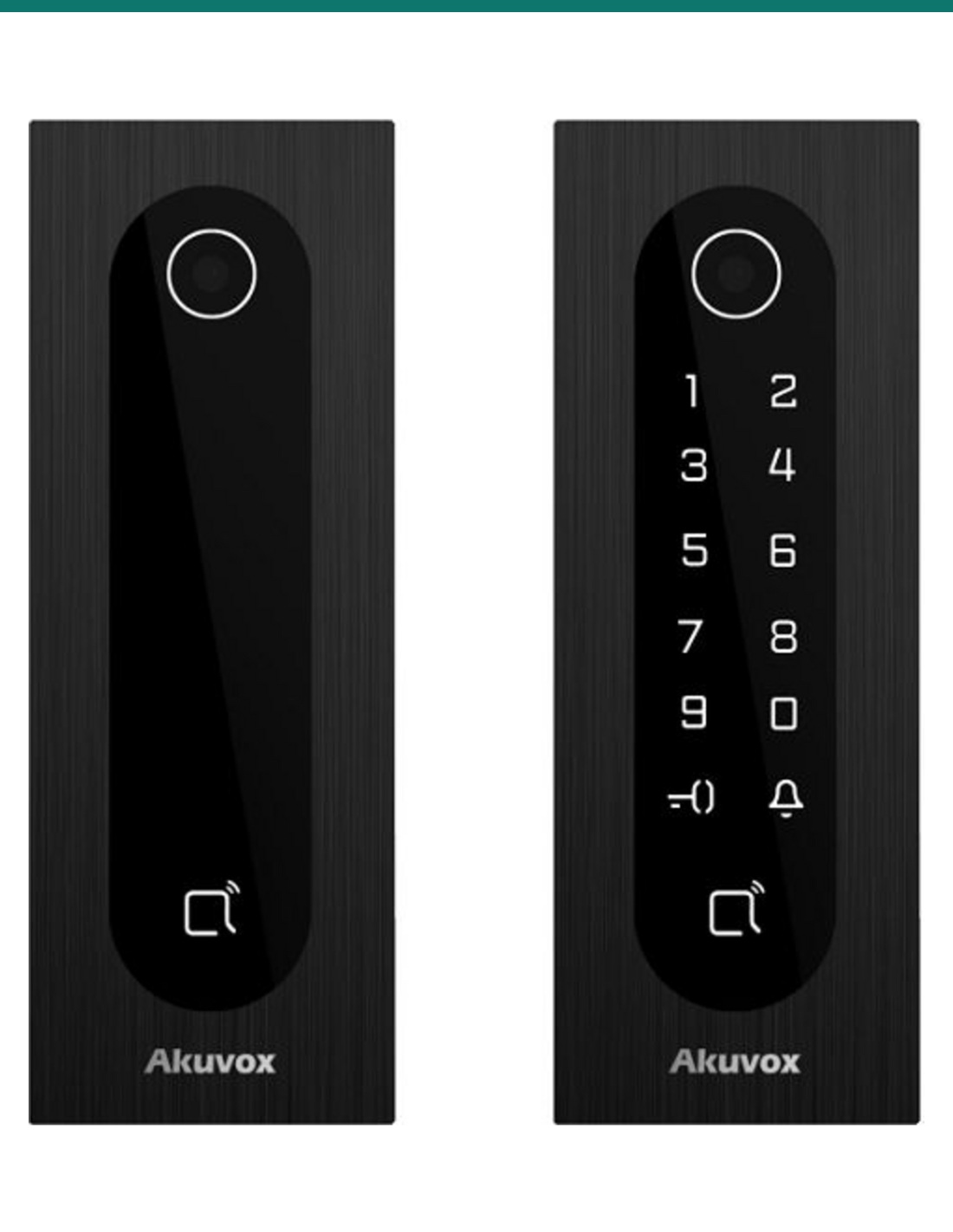

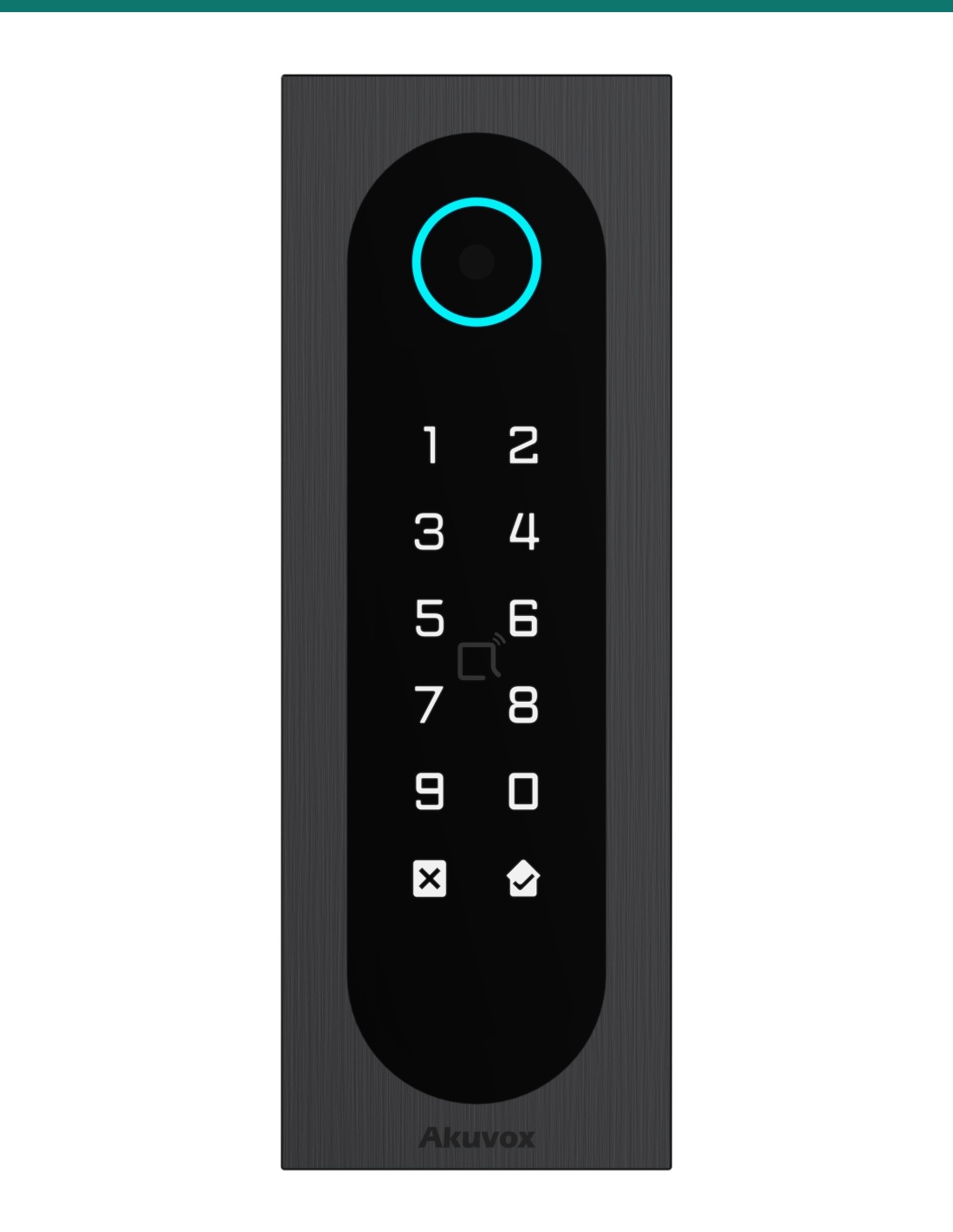

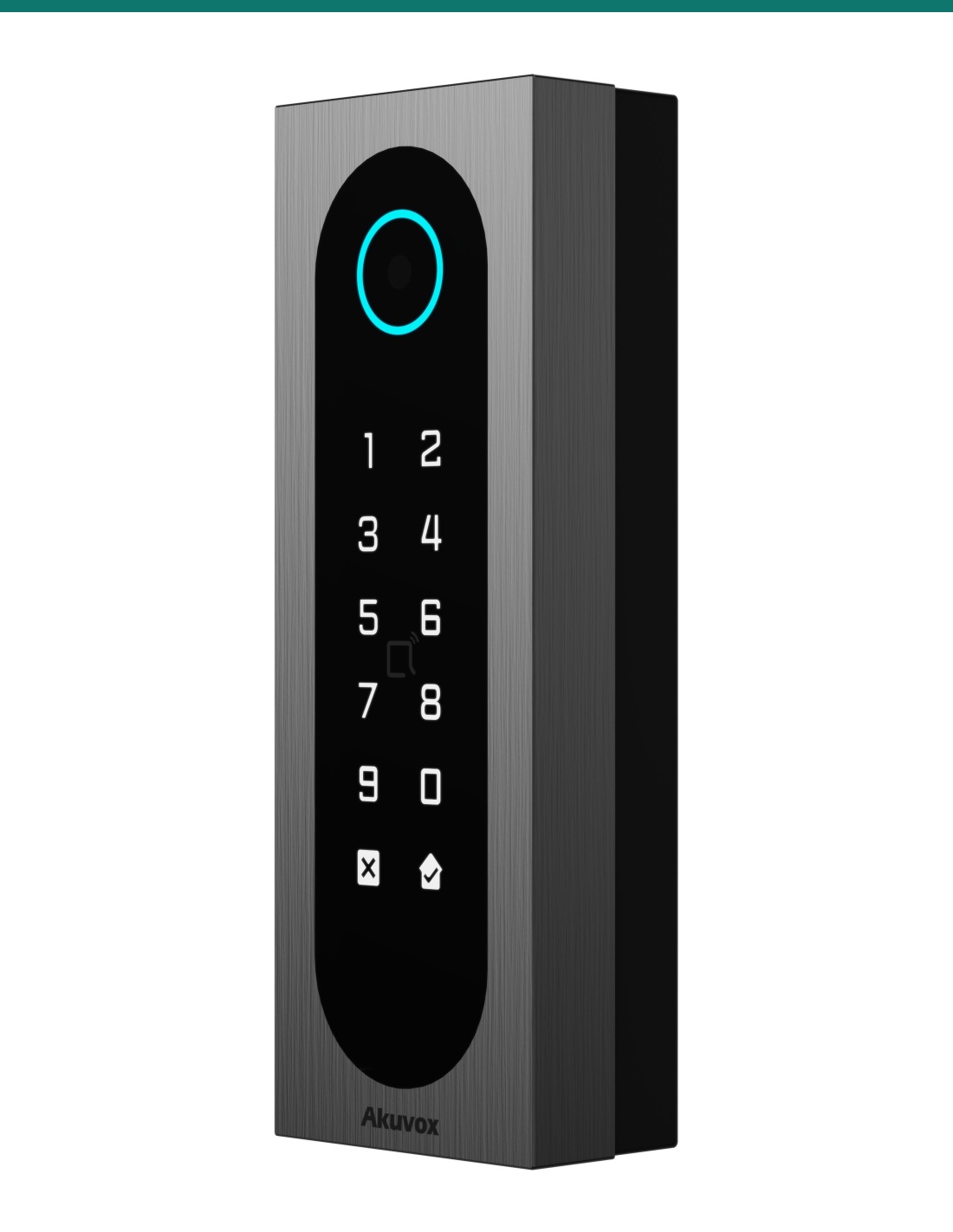

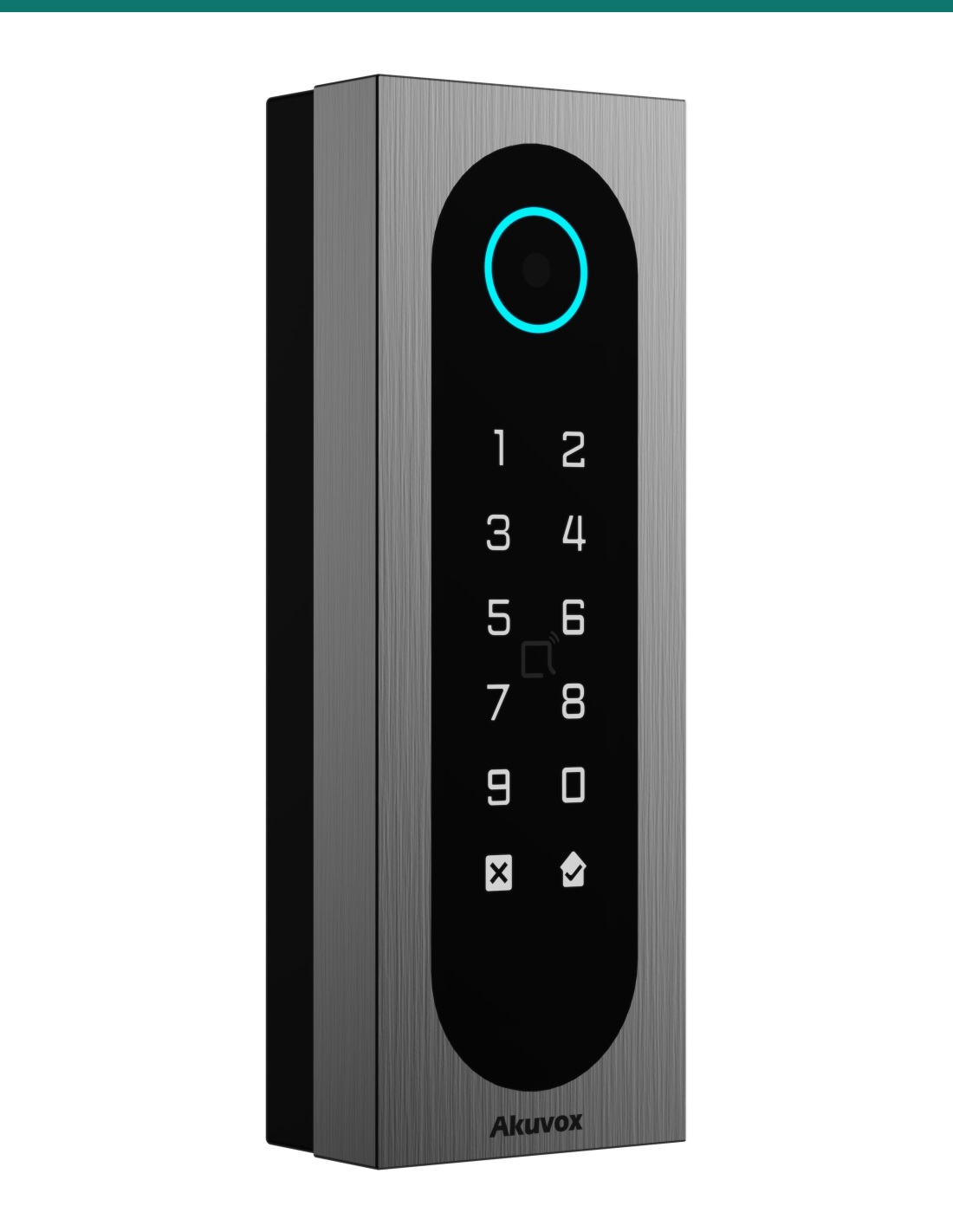

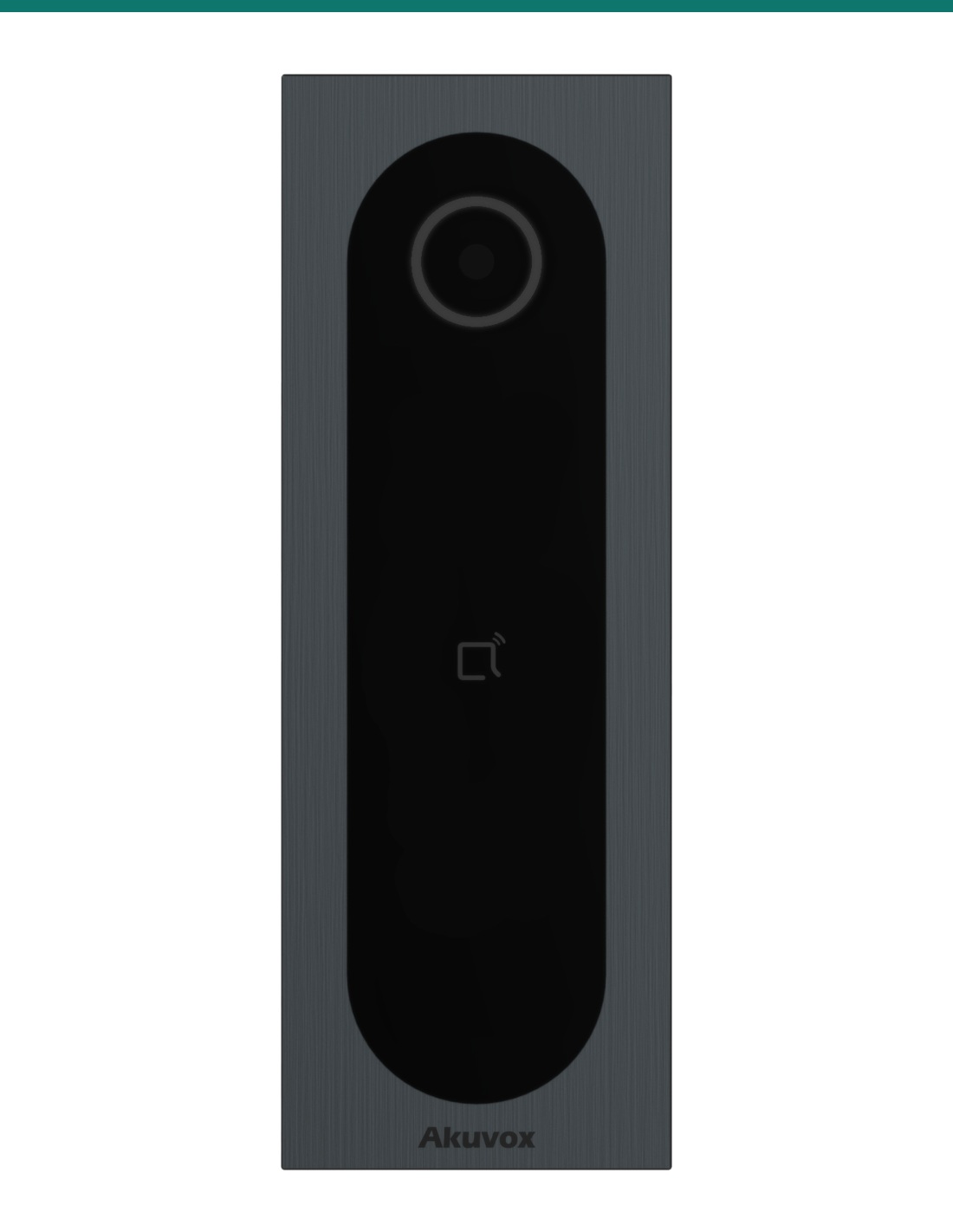

Akuvox A08S Slim Keypad, QR and Bluetooth Access Control Terminal — AK-A08

SKU AK-A08 In Stock - Ready to Ship
$498.50 inc GST

Akuvox A08S is a 50 mm-wide access terminal that fits on a door frame or mullion. Behind the glass are a touch keypad, a QR scanner, Bluetooth 5.0 and a 13.56 MHz / 125 kHz card reader with NFC, plus a full single-door controller with Wiegand, RS485 and OSDP. IP65, IK09, PoE.

  • ✓PIN, QR code, Bluetooth, 13.56 MHz / 125 kHz card and NFC in one slim unit
  • ✓Built-in door controller: 1 relay, 2 inputs, 12 V 600 mA output
  • ✓Wiegand, RS485 and OSDP for third-party access systems
  • ✓PoE 802.3af or 12 V DC · IP65 · IK09 · 140 × 50 × 26.7 mm


Akuvox · A08S · Slim access terminal

Every credential, 50 mm wide.
Fits a door frame or mullion.

The AK-A08 is Akuvox’s A08S: a slim glass-fronted terminal in a dark grey aluminium frame. It takes PINs, QR codes, Bluetooth phones, RFID cards and NFC, and runs the door itself — in a body narrow enough for a glass-door mullion.

This SKU is the access terminal only.

You receive the A08S terminal. The in-wall box, Bkey fobs, cards, exit button, lock and lock power supply are sold separately.

In the box
  • Akuvox A08S access control terminal
  • Mounting hardware
  • Quick-start guide
What you also need (sold separately)
  • PoE 802.3af switch or injector (or a 12 V DC supply)
  • Cards, Bkey fobs or the Akuvox app for users
  • Electric strike or maglock with its own power supply
  • A08 in-wall box for flush mounting

One slim reader for every kind of user.

Staff tap a card or wave a phone, visitors scan a QR code, contractors key in a PIN. The A08S handles all of them, logs every entry and connects to Akuvox Cloud or your existing access system.

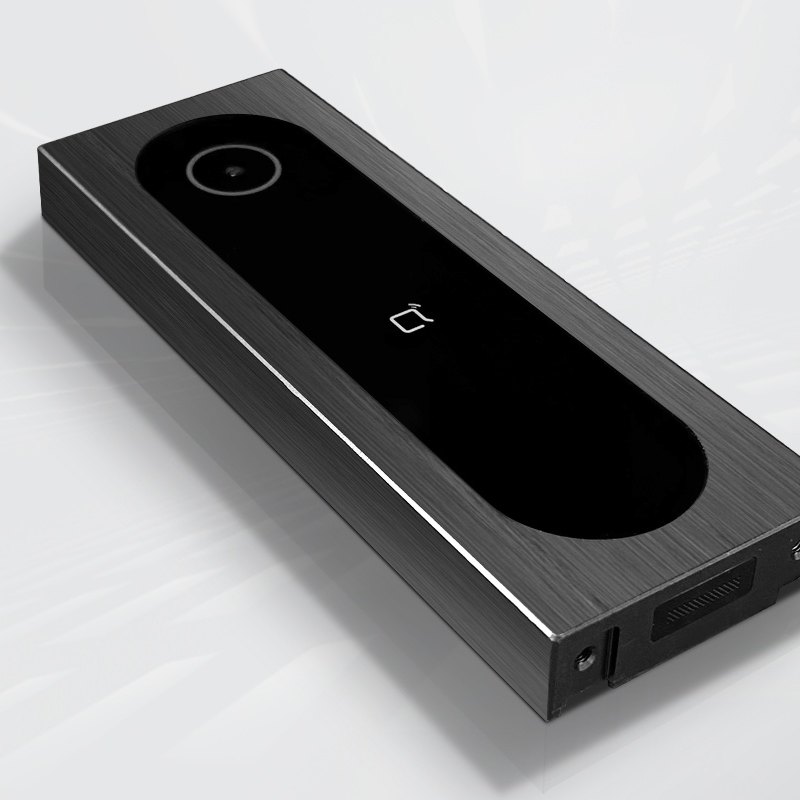

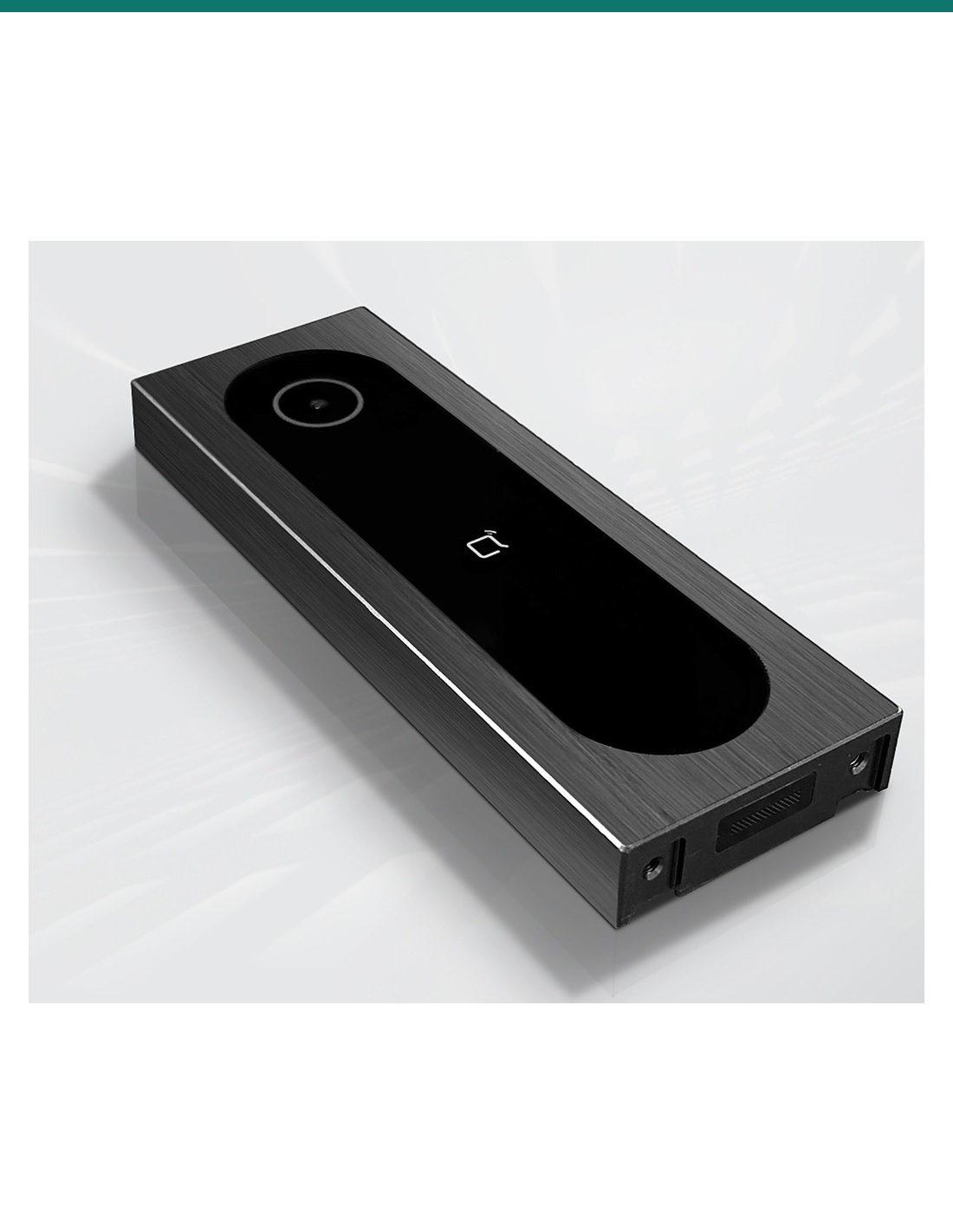

Akuvox A08S slim glass and aluminium access terminal

Design

Glass and aluminium, 50 mm wide.

Toughened glass over a dark grey aluminium frame, 140 × 50 × 26.7 mm. It flush-mounts in the A08 in-wall box or surface-mounts on a frame or mullion.

Rated IP65 and IK09, so it handles weather and knocks on an outdoor entry from −20 °C to +55 °C.

Credentials

PIN, QR, Bluetooth, card and NFC.

The touch keypad lights up for PIN entry and the built-in scanner reads QR codes for visitors. Bluetooth 5.0 lets phones and Akuvox Bkey fobs unlock hands-free.

The 13.56 MHz and 125 kHz reader takes most building cards, and Android phones unlock over NFC. It holds 20,000 users, 100,000 cards, 20,000 PINs and 100,000 logs.

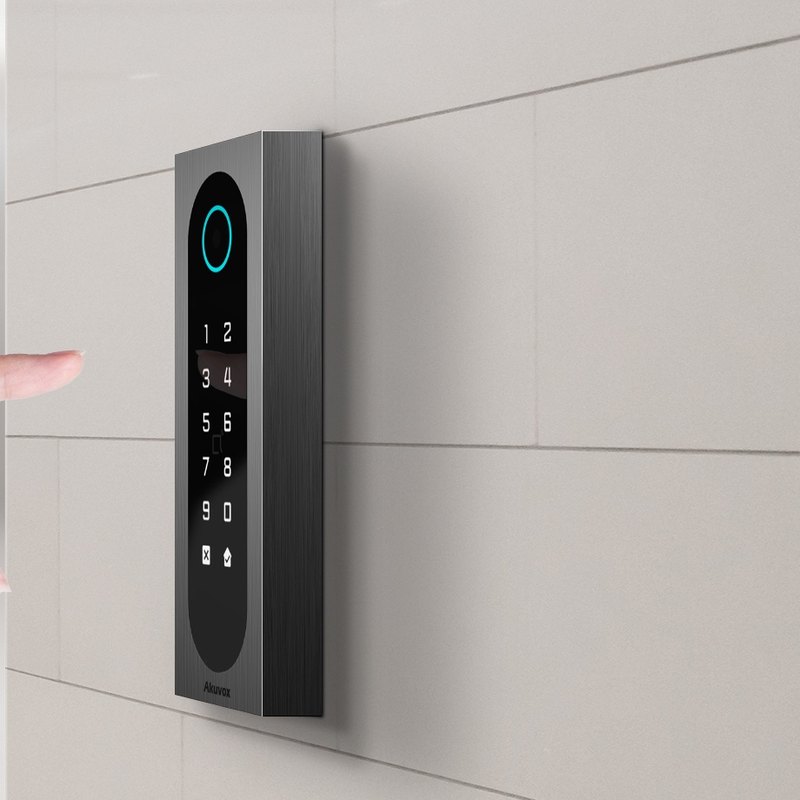

Fingertip on the Akuvox A08S touch keypad

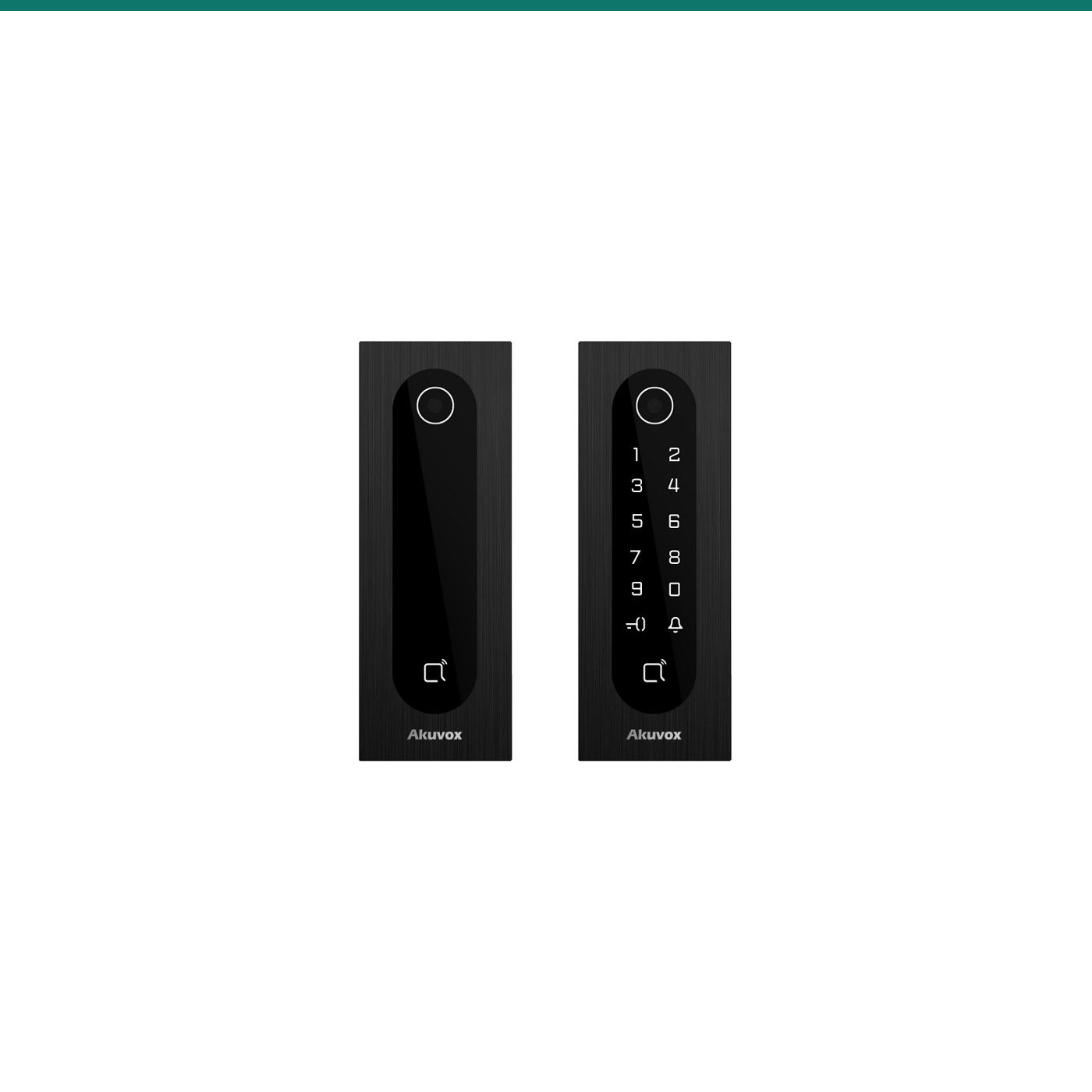

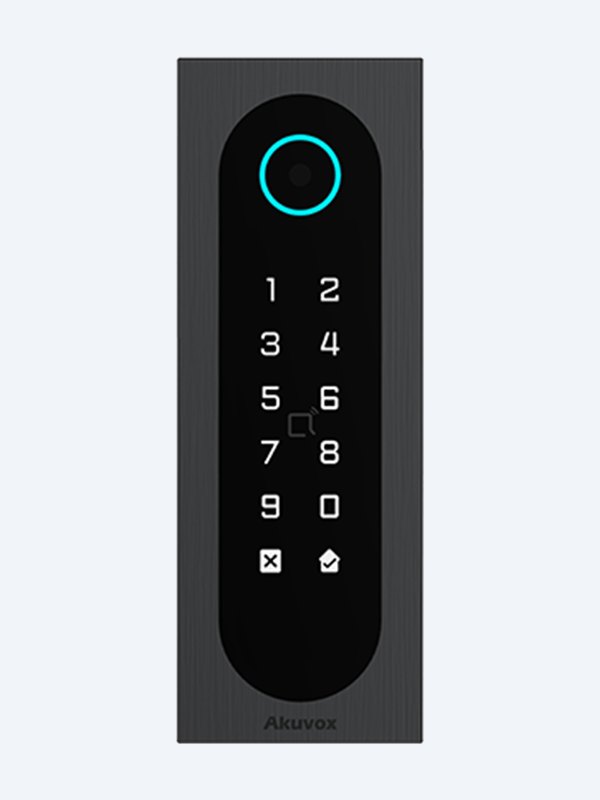

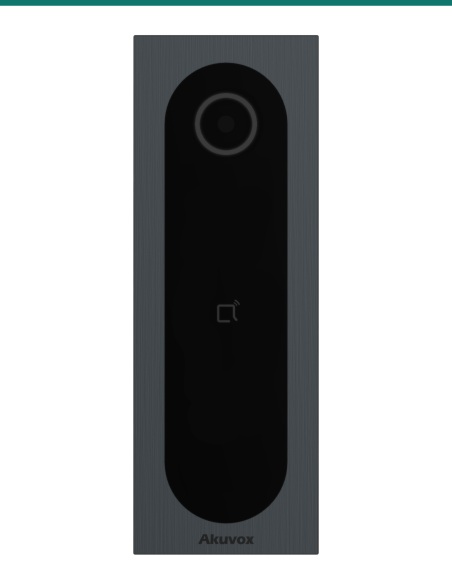

Akuvox A08S front view

Integration

Controller, reader or both.

One relay, two inputs and a 12 V 600 mA output run a door on their own. A tamper alarm covers removal.

Wiegand (in or out), RS485 and OSDP let the A08S work as a reader for an Akuvox A094S/A095S or a third-party controller.

How it works

From door frame to managed access.

01

Mount

Flush-mount in the A08 in-wall box, or surface-mount on a door frame or mullion.

02

Wire

Run PoE to the RJ45, wire the relay to the lock supply and the inputs to the exit button and door sensor.

03

Enrol

Add users with PINs, cards, phones and Bkeys in the web portal, Akuvox Cloud or ACMS.

04

Test

Check each credential type, scan a test QR code and confirm the log records every entry.

Pair it with

Builds a complete slim-door system

Flush

A08 in-wall box

Recesses the 50 mm-wide reader almost flush with the wall or frame.

Bluetooth

Akuvox Bkey fob

Hands-free Bluetooth credential, no phone needed.

Credentials

MIFARE cards and fobs

Akuvox 13.56 MHz cards and fobs for staff and residents.

Exit

Akuvox exit button

Wire a press-to-exit button to an input for free exit.

Works with

Platforms and integrations

Akuvox Cloud

Manage users, credentials and entry logs remotely through Akuvox Cloud management.

Akuvox SDMC and ACMS

Run the terminal from Akuvox’s on-premise device management and access control management software.

OSDP and Wiegand controllers

In reader mode it connects to an Akuvox A094S / A095S or a third-party panel over OSDP (RS485) or Wiegand.

Watch

See it in action

Akuvox A08 access control terminal overview
Unlocking the A08 with PIN and QR code

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Will it fit on a glass-door mullion?

Yes. It is 50 mm wide and 26.7 mm deep, and can be surface-mounted on a frame or mullion, or recessed with the A08 in-wall box.

Which cards does this version read?

13.56 MHz and 125 kHz cards, plus NFC on Android phones. For HID iCLASS and SEOS cards choose the A08S HID iCLASS version.

How many users and credentials does it hold?

20,000 users and 20,000 PINs, with 100,000 cards and 100,000 access log entries in the capacity table.

Can it connect to my existing access controller?

Yes. Switch it to reader mode and connect over Wiegand, or OSDP on RS485, to an Akuvox A094S / A095S or a third-party panel.

Does it work with the Akuvox Bkey?

Yes. Bluetooth 5.0 supports Akuvox Bkey fobs and enrolled phones for wave-to-unlock.

How is it powered?

From IEEE 802.3af PoE or a 12 V DC supply. It also provides a 12 V 600 mA power output.

Is it suitable outdoors?

Yes. Toughened glass and aluminium, IP65 and IK09, working from −20 °C to +55 °C.

A slim, award-winning reader.

The A08 range won an iF Design Award in 2025. Choose this standard A08S for 13.56 MHz and 125 kHz cards; the HID iCLASS version suits sites already on HID credentials.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE or a 12 V DC supply. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Power
PoE 802.3af or 12 V DC
Colour
Black glass, dark grey frame
Capacity
20,000 users, 100,000 cards, 20,000 PINs, 100,000 logs
Power Output
12 V, 600 mA
Working Temperature
−20 °C to +55 °C
Brand
Akuvox
Bluetooth
BLE 5.0
Management
Web portal, Akuvox Cloud, SDMC, ACMS
Protection
IP65, IK09
Size
140 × 50 × 26.7 mm (H × W × D)
Warranty
Australian warranty
Product Type
Slim IP access control terminal
Model
A08S
Finish
Toughened glass touch keypad, aluminium frame
Relay Outputs
1
Inputs
2
RF Reader
13.56 MHz and 125 kHz
Unlock
PIN, QR code, Bluetooth, RFID card, NFC (Android)
Interfaces
Wiegand in/out, RS485, OSDP
Speaker
8 Ω / 0.5 W
Akuvox EB11 silver stainless press-to-exit button with blue LED
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox EB11 Silver Stainless Steel Press-to-Exit Button with Blue LED — AK-EB11-SILVER

Akuvox
AK-EB11-SILVER
$ 25.00
Akuvox EB11 is a brushed stainless steel exit button with a vandal-resistant push button and blue LED ring. Clear “PRESS TO EXIT” wording, IK10 impact rating and a tall 115 × 70 mm plate for single-gang wall boxes.✓Vandal-resistant mechanical push button with blue LED✓Brushed 1.7 mm stainless steel plate, “PRESS TO EXIT” print✓IK10...
Akuvox DESFire EV3 white 8K card
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox DESFire EV3 White 13.56 MHz 8K Encrypted ISO Card — AK-CARD-EV3

Akuvox
AK-CARD-EV3
$ 11.60
Akuvox DESFire EV3 is an 8K, 13.56 MHz MIFARE DESFire EV3 card for sites that need a credential that is hard to clone. Akuvox devices read it in AES file-encryption mode once the card keys are set. Sold as a single card.✓MIFARE DESFire EV3, 8K memory, 13.56 MHz ISO 14443A✓Encrypted DESFire reading on supported Akuvox door phones and...
Akuvox F08 white MIFARE 1K key fob — front Akuvox F08 white MIFARE 1K key fob — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox F08 White 13.56 MHz MIFARE 1K Key Fob — AK-FOB-F08

Akuvox
AK-FOB-F08
$ 1.40
Akuvox F08 is a white teardrop key fob with a 13.56 MHz MIFARE 1K-compatible chip. Clip it on a key ring and tap it on an Akuvox door phone or access terminal. Sold as a single fob.✓Fudan F08 chip, MIFARE Classic 1K compatible, 13.56 MHz✓ISO 14443A · 1K EEPROM · 100,000 write cycles✓White PVC teardrop with key-ring hole, 40.9 × 32.5 ×...
Akuvox S50 black MIFARE Classic 1K card — front Akuvox S50 black MIFARE Classic 1K card — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox S50 Black 13.56 MHz MIFARE Classic 1K ISO Card — AK-CARD-S50

Akuvox
AK-CARD-S50
$ 6.20
Akuvox S50 is a 13.56 MHz MIFARE Classic 1K card in standard ISO card size, slot-punched for a lanyard. It is Akuvox’s everyday card for its door phones and access terminals. Sold as a single card.✓MIFARE Classic 1K (S50), 13.56 MHz, ISO 14443A✓Reads on Akuvox door phones and access terminals with 13.56 MHz readers✓Slot-punched PVC...

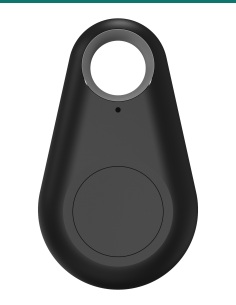

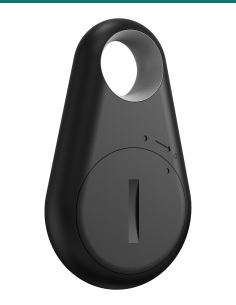

Akuvox Bkey Bluetooth key fob — front Akuvox Bkey Bluetooth key fob — front 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox Bkey Black Bluetooth Door-Opening Key Fob — AK-BKEY

Akuvox
AK-BKEY
$ 19.50
Akuvox Bkey is a Bluetooth key fob with one button. Press it as you approach and a compatible Akuvox door phone or access terminal unlocks — up to 15 m away on long-range models. Encrypted BLE, a CR2032 battery and a key-ring loop. Sold as one fob.✓Press-to-open over encrypted Bluetooth Low Energy✓Akuvox-tested range up to 15 m (R29C, X915...
Akuvox A08S in-wall flush-mounting box — right three-quarter view Akuvox A08S in-wall flush-mounting box — right three-quarter view 2
  • New
CompareComparing Quick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

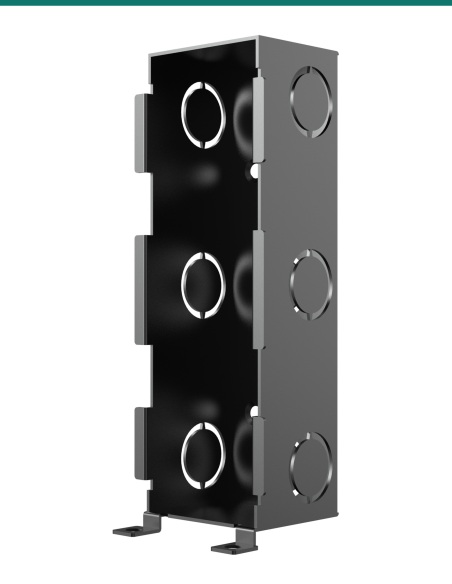

Akuvox A08S Black In-Wall Flush-Mounting Box — AK-A08-INWALL
