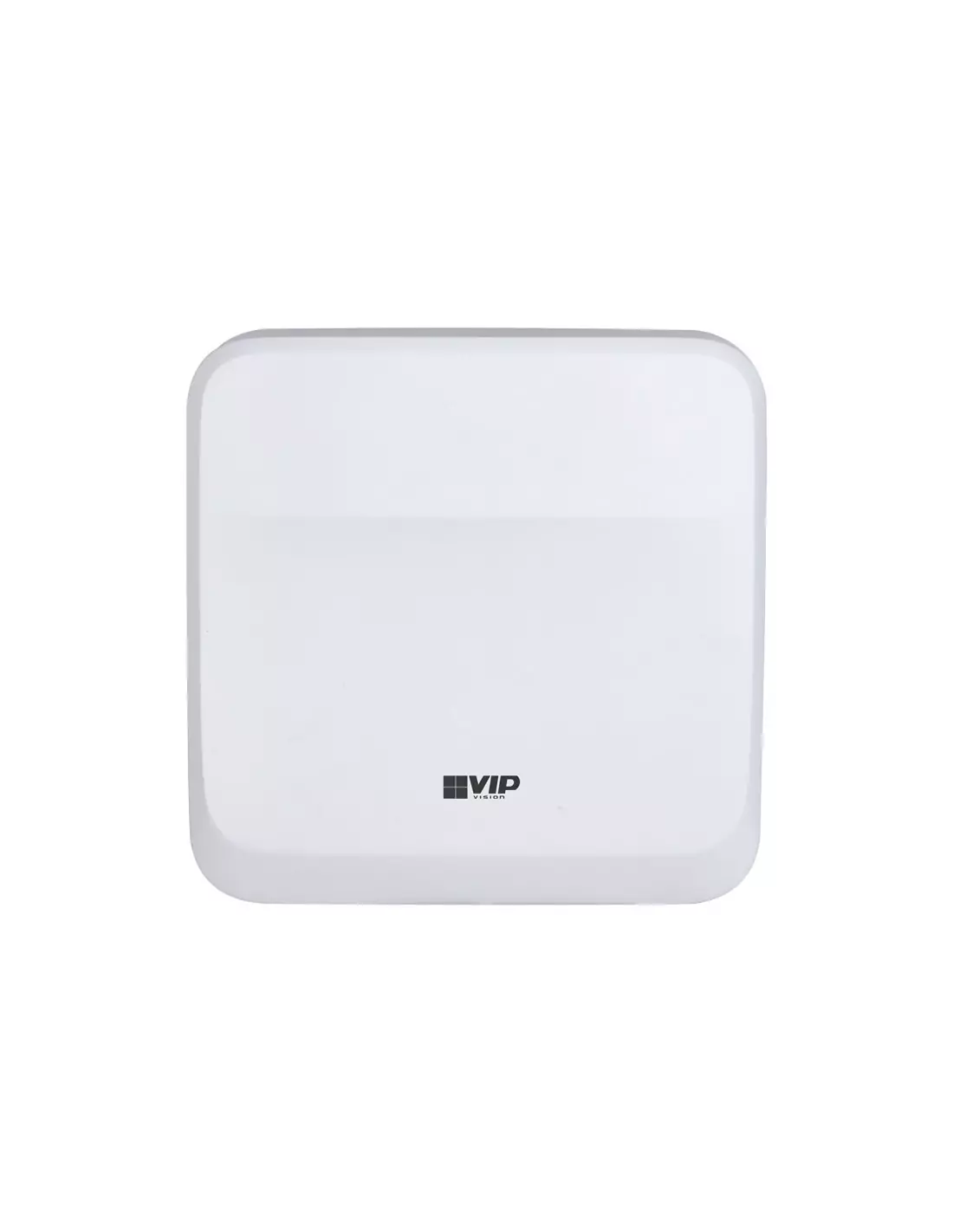

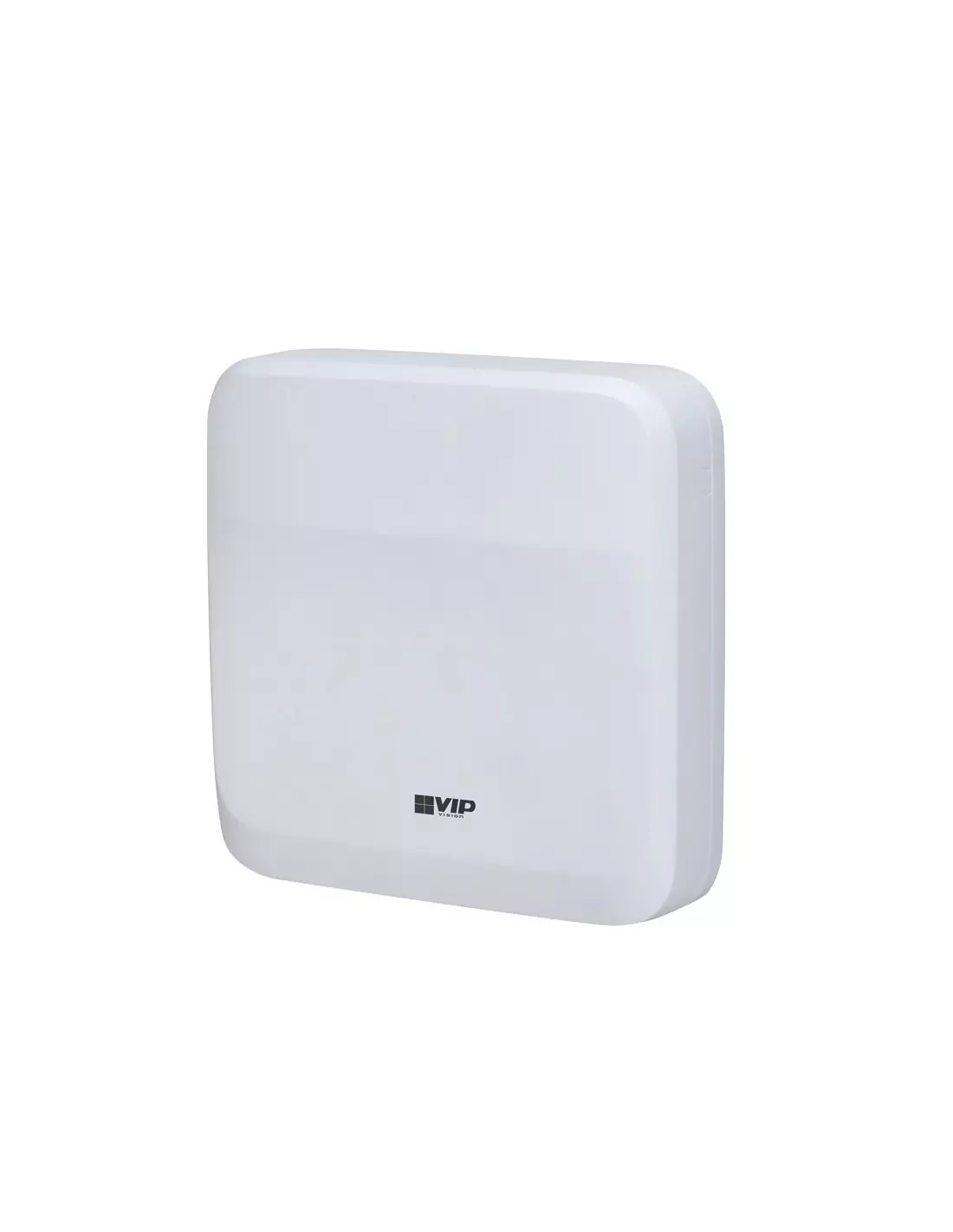

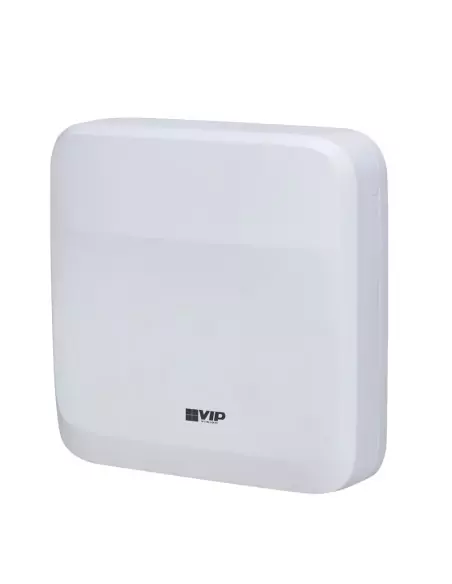

VIP Vision AC-W Series 2-Door Web Access Controller - AC-WCM
AC-WCM
In Stock - Ready to Ship $ 369.00
inc-GST
or 4 interest-free payments of $92.25 with
- Controls 2 doors with 2 reader ports (RS-485 / Wiegand 34)
- PoE (802.3at) or 12VDC power: can power strikes and readers
- 5,000 cards as main controller, 50,000 as sub controller
- Stores up to 300,000 events
- Anti-passback, multi-door interlock, first-person and multi-person unlock
VIP Vision AC-W Series 2-Door Web Access Controller
4 Years Warranty!
AC-WCM
The heart of a VIP Vision AC-W access control system. This controller runs two doors, powers the readers and locks via PoE, and is managed from a web browser with no software to install.
Features:
• Controls 2 doors with 2 reader ports (RS-485 / Wiegand 34)
• PoE (802.3at) or 12VDC power: can power strikes and readers
• 5,000 cards as main controller, 50,000 as sub controller
• Stores up to 300,000 events
• Anti-passback, multi-door interlock, first-person and multi-person unlock
• Tamper, duress, door-held-open and intrusion alarms
• Up to 128 schedules and 128 holiday periods
• Battery backup via the AC-WSB cabinet
Ideal for:
Offices, clinics, schools, warehouses and multi-tenant buildings.
Full specifications are listed in the Data Sheet tab. Need help choosing or planning an install? Our technical team at InFront Technologies is happy to help.

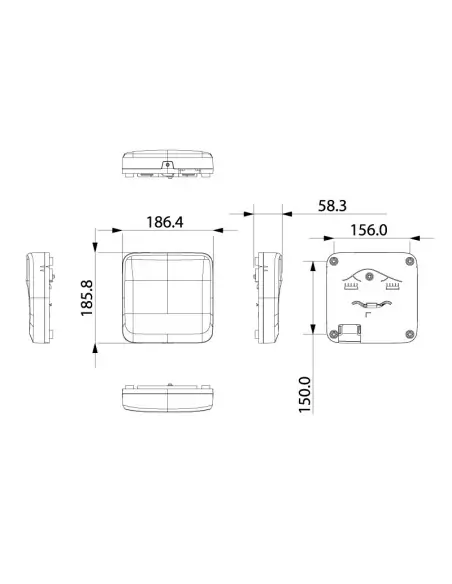

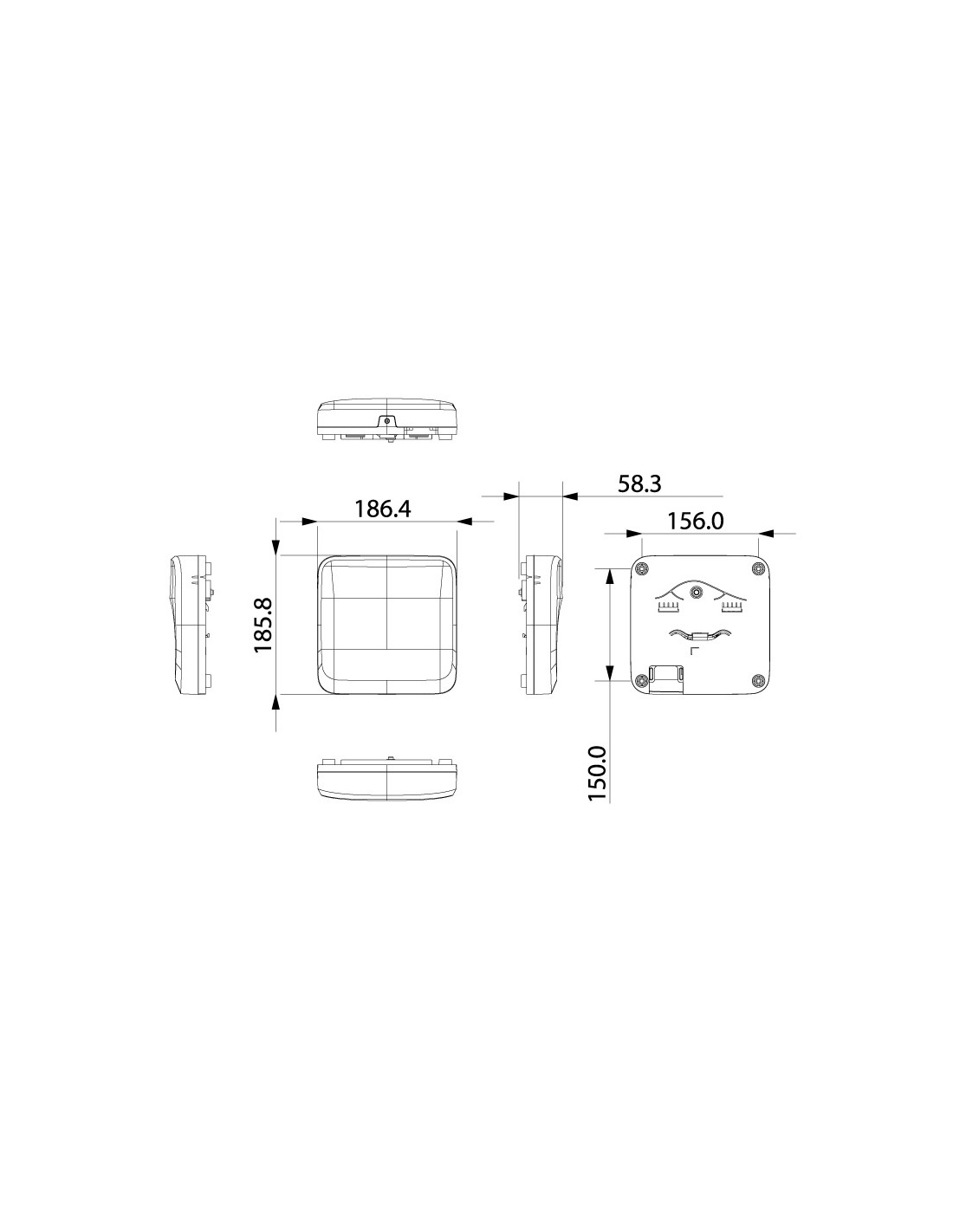

- Dimensions
- 186 x 186 x 58mm
- Access Control
- First-Person Unlock, Multi-Person Unlock, Multi-Door Interlock, Global Anti-Passback, Global External Alarm, Blocklist/Allowlist, Real-time Monitoring, Multi-Factor Authentication, Web Configuration, Network Software Updates, Multi-User Authentication (vi
- Alarm Function
- Door Sensor Timeout, Tamper Alarm, Duress Alarm via Card or Fingerprint, Intrusion Alarm, Illegal Card
- Battery Backup
- Supports battery backup (via AC-WSB)
- Battery Up-time
- 6~12 hours (system dependent)
- Card Memory
- 5,000 (as Main Controller), 50,000 (as Sub Controller)
- Ethernet
- RJ-45 (10/100Base-T)
- Event Memory
- Up to 300,000 Events
- Housing
- Plastic (PC and ABS)
- Input Ports

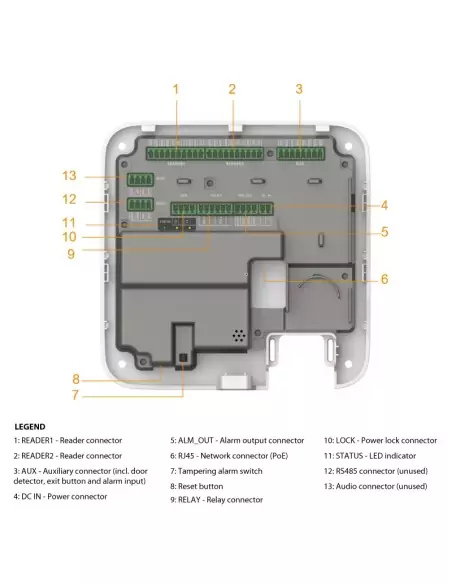

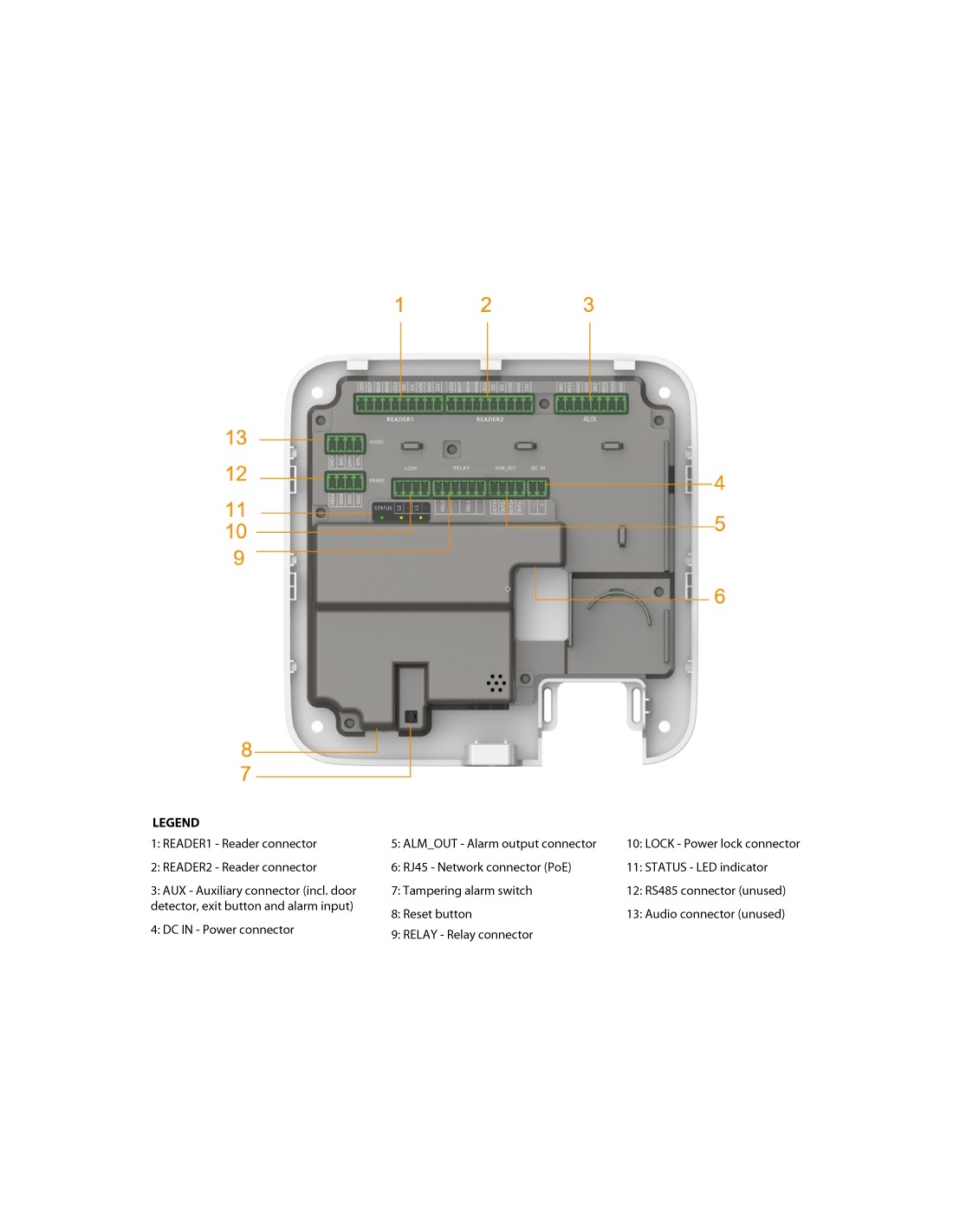

- 2 x Door Status, 2 x Lock Control, 2 x Exit Button, 2 x Alarm Input/Output, 1 x RJ-45, 2 x Wiegand, 3 x RS-485
- Main Processor
- Embedded Processor
- Memory
- Embedded
- Net Weight
- 0.99kg
- Operating Conditions
- -10° ~ +55° C / Less than 95% RH / Indoors only
- Output Ports
- 2 x Door lock, 2 x Alarm output
- Period
- Schedule up to 128 General Purpose Periods and up to 128 Holiday Periods
- Power Supply
- 12VDC / PoE (802.3at)
- Reader Interface
- RS485 / Wiegand 34
- Reader Ports
- 2
- RTC
- Configure via Web Interface
- User Management
- General, VIP, Guest, Patrol, Blocklist, Other
