VIP Vision Pinhole Series 4.0MP Pinhole Camera - VSIPPH-4L

VIP Vision Pinhole Series 4.0MP Pinhole Camera - Lens Module - VSIPPH-4L

Name: VIP Vision Pinhole Series 4.0MP Pinhole Camera - Lens Module - VSIPPH-4L
Brand: VIP Vision
SKU: VSIPPH-4L
Price: 242.5 AUD
Availability: InStock

Reference VSIPPH-4L

In Stock - Ready to Ship

$ 242.50

inc-GST

Stream up to 4.0MP (2688 x 1520) at 25fps
2.8mm fixed lens with a wide 101° viewing angle
Low light colour at 0.005 lux
Backlight/highlight compensation with true WDR (120dB)
Day/night (electronic), 3D noise reduction & auto white balance
Smart detection support incl. face detection, tripwire & intrusion
Audio & alarm input/output
MicroSD card slot for at-the-edge recording, up to 256GB
Power via 12VDC or Power over Ethernet (802.3af)

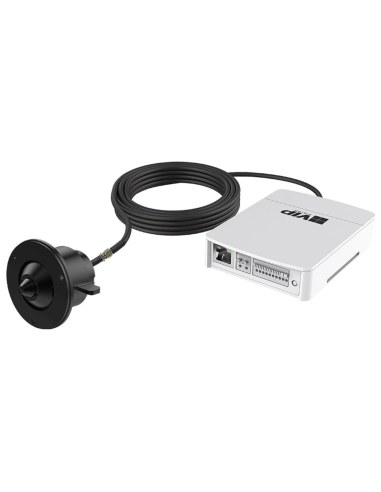

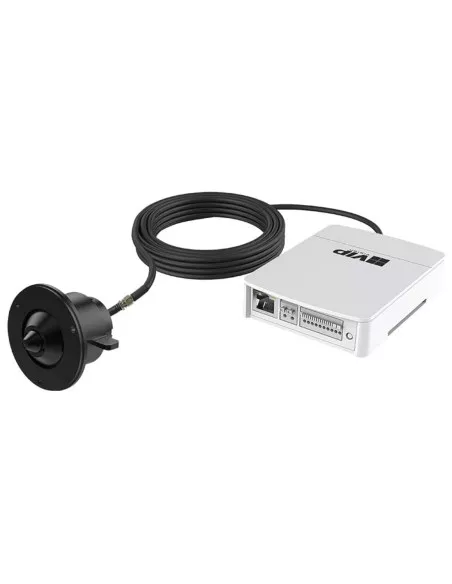

*Requires the VSIPPH-4M main control unit.

VIP Vision Pinhole Series 4.0MP Pinhole Camera - Lens Module

VSIPPH-4L

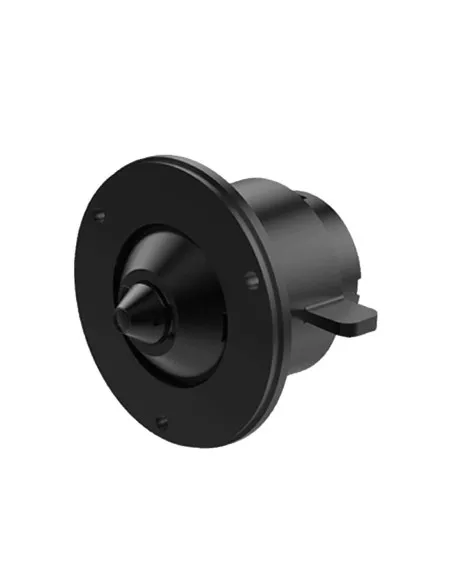

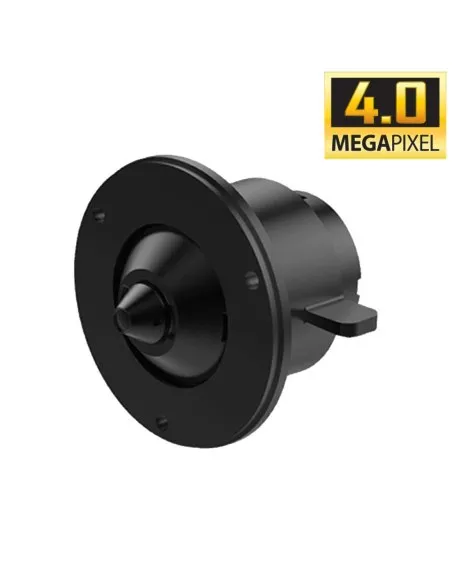

The VSIPPH-4L is a pinhole camera lens, requiring a VIP Vision main control unit. Designed for low-profile surveillance applications, Pinhole Series cameras are ideal for controlled ingress points, in-shelf surveillance, vehicles, ATMs & more.

Camera Features:

• Stream up to 4.0MP (2688 x 1520) at 25fps

• 2.8mm fixed lens with a wide 101° viewing angle

• Low light colour at 0.005 lux

• Backlight/highlight compensation with true WDR (120dB)

• Day/night (electronic), 3D noise reduction & auto white balance

• Smart detection support incl. face detection, tripwire & intrusion

• Audio & alarm input/output

• MicroSD card slot for at-the-edge recording, up to 256GB

• Power via 12VDC or Power over Ethernet (802.3af)

*Requires the VSIPPH-4M main control unit.

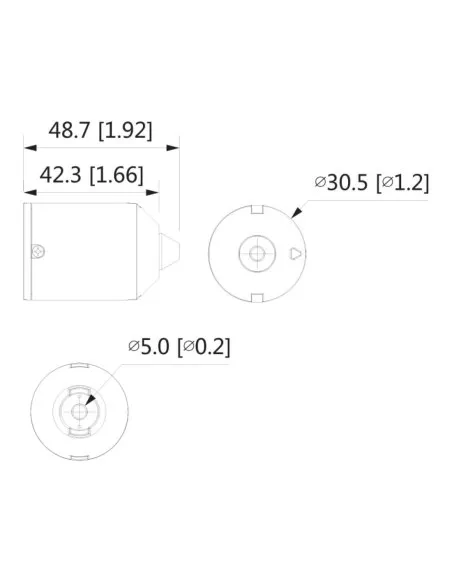

Dimensions: Camera: Ø30.5 mm x 48.7 mm / Control Unit: 100 x 83 x 24mm
Ethernet: RJ45 (10/100 Base-T)
Housing: Metal
Net Weight: 0.21kg
Operating Conditions: -40° ~ +60° C / ≤95% RH
Power Supply: 12VDC / PoE (802.3af)
Ingress Protection: N/A
Vandal Resistance: N/A
Bit Rate: H.265: 3~20480Kbps / H.264: 3~20480Kbps
Frame Rate (Main): 4.0MP (1 ~ 25fps)
Frame Rate (Sub): D1 (1 ~ 25fps)
Frame Rate (Third): 1080p (1 ~ 25fps)
Max. User Access: 10 Users / 20 Users
Power Consumption: Basic: 2.4W (12VDC), 3W (PoE) / Max. (AI + WDR): 3.9W (12VDC), 4.8W (PoE)
Video Compression: H.265 / H.264 / H.264H / H.264B / MJPEG (sub stream)
Resolution: 4.0MP (2688 x 1520) to CIF (352 x 288)
Series: Pinhole Series
Weather Resistance: No
Focus: Fixed / 0.8m Min. Focus Distance
Interoperability: ONVIF (Profile S/Profile G/Profile T) / CGI / P2P / Milestone / Genetec
Effective Pixels: 2688 (H) x 1520 (V)
Image Sensor: 1/2.7” 4.0 Megapixel Progressive Scan CMOS
RS232: 1 Port
RS485: N/A
Alarm Interface: 2 Inputs (5mA 3V-5VDC) / 2 Output (1000mA 30VDC / 500mA 50VDC)
Camera Type: Pinhole
Max. Resolution: 4.0 Megapixel
Field of View: Horizontal: 101°, Vertical: 57°
Lighting Compensation: BLC / HLC / WDR (120dB)
Day/Night: Auto (Electronic) / Colour / B&W
Detect (25px/m): 61m
Gain Control: Auto / Manual
Identify (250px/m): 6m
Lens Type: Fixed
Noise Reduction: 3D DNR
Observe (63px/m): 24m
Recognise (125px/m): 12m
Tri-Axis Mounting: No
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Audio Interface: 1 Input, 1 Output (3.5mm jack) / Compression: G.711a; G.711Mu; PCM; G.726; G.723
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage: MicroSD Card (up to 256GB) / FTP / SFTP / NAS
ePoE: No
Infrared: No
Infrared System: N/A
Intelligent Functions: Face Detection, Tripwire, Intrusion, Fast Moving, Loitering Detection, People Gathering, Parking Detection, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
IVS: Yes
Lens / Iris: 2.8mm F2.0 Fixed Lens
Min Illumination: 0.005 Lux at F2.0 (Colour) / 0.0005 Lux at F2.0 (B&W)
Pan/Tilt/Rotation: N/A
Picture Control: Mirror / Flip (0°, 90°, 180°, 270°)
Protocol: IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
RAM / ROM: 1GB / 128MB
RTMP Support: No
S/N Ratio: > 56dB
Smart Scene Adaptive (SSA): Yes
Streaming Method: Unicast / Multicast
Ultra Low Light Colour: Yes
Video Interface: N/A
