VIP Vision IP PTZ Control Keyboard - VSIPPTZKBV2
    VIP Vision IP PTZ Control Keyboard - VSIPPTZKBV2
    VIP Vision IP PTZ Control Keyboard - VSIPPTZKBV2
    VIP Vision IP PTZ Control Keyboard - VSIPPTZKBV2

    VIP Vision IP PTZ Control Keyboard - VSIPPTZKBV2

    VSIPPTZKBV2
    In Stock - Ships from Sydney
    $394.17
    inc-GST
    • Control a variety of PTZ & DVRs with keyboard
    • Features RS485, RS422, USB, RS232 & RJ45
    • 3D joystick control of PTZ functions
    • Preset position, auto scan, auto pan
    • Auto tour & pattern control
    • 3.2’’ on-keyboard LCD with user menu
    • Operation/procedure tips

    PayPal

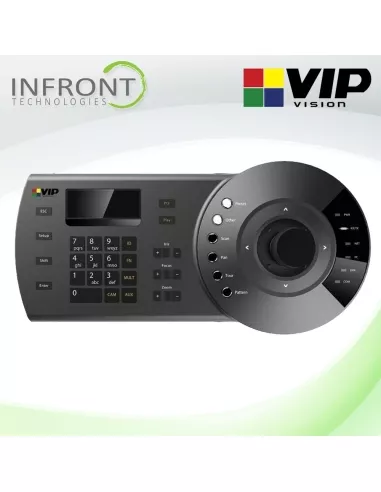

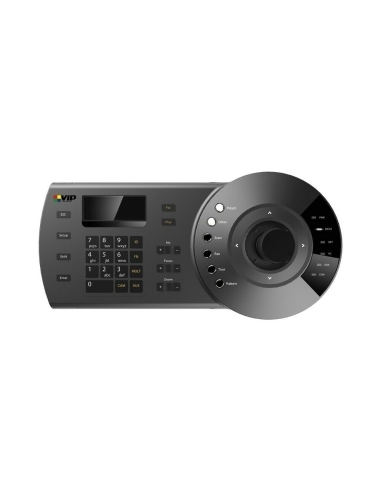

    VIP Vision IP PTZ Control Keyboard



    VSIPPTZKBV2



    The IP PTZ control keyboard is compatible with all VIP Vision, Securview and Watchguard PTZ cameras over a network.

    vip-vision-ip-ptz-control-keyboard-vsipp


    Joystick Features:



    • Control a variety of PTZ cameras and DVRs with this PTZ keyboard
    • Features RS485, RS422, USB, RS232 & RJ45 connections
    • Three dimensional joystick control of PTZ functions
    • Preset position, auto scan, auto pan, auto tour & pattern control
    • 3.2’’ on-keyboard LCD with user menu and operation/procedure tips
    • Interfaces to PTZ domes and DVR/NVR via:
    • Network mode: Control via RJ45 using IP address and ports
    • Direct mode: Control via RS232/RS485 using protocols below:
    • DVR: DH2 / Camera protocols: DH-SD, PELCO-D/-P/-D1/-P1
    • Can connect and control via VIP Vision SmartPSS through USB



    vip-vision-ip-ptz-control-keyboard-vsipp



    Specifications:



    Warranty (Years)4
    Atmosphere Pressure86kpa~106kpa
    Dimension330x160x37.5mm
    Direct InterfaceRS232/RS485
    Joystick3-axis, vector-solving, with twisting, return to-center head
    LCD Display75.2mm x 33.85mm
    Network InterfaceRJ45
    Power Consumption5W
    Power Supplyinput 100V~240V 50Hz / 60Hz,output DC12V/1000mA
    Weight2.5KG
    Working Humidity10%~90%
    Working Temperature-10℃~+55℃



    Brand
    VIP Vision Australia
    Warranty
    4 Year Warranty
