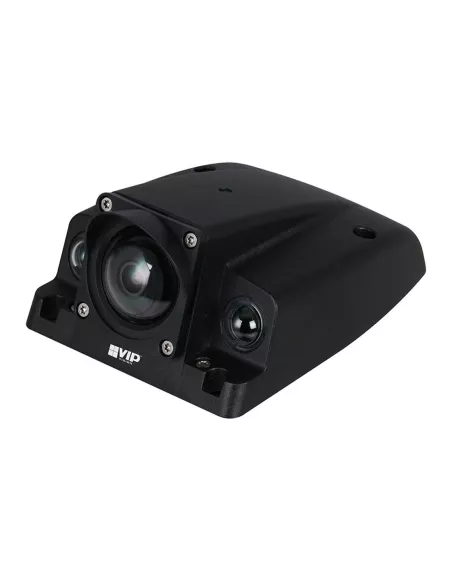

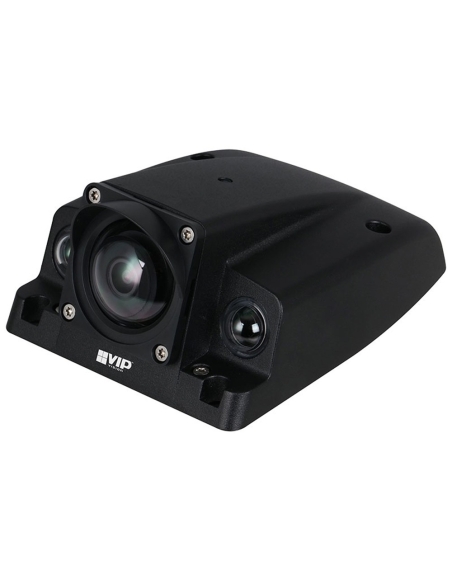

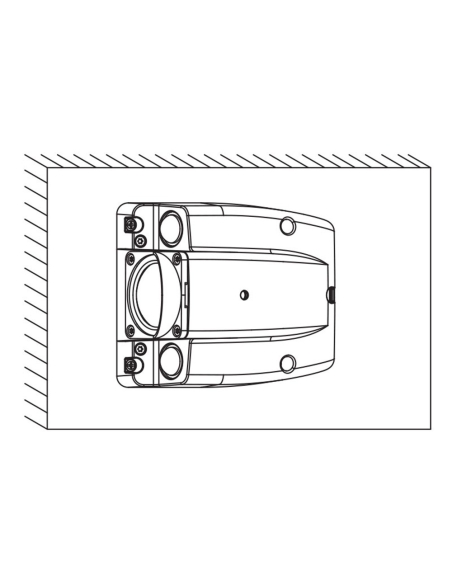

VIP Vision Mobile Series 4.0MP Heavy Duty Vehicle Camera

VIP Vision Mobile Series 4MP Heavy Duty Vehicle VSIP4MPEIRAT

VIP Vision Mobile Series 4MP Heavy Duty Vehicle Camera - VSIP4MPEIRAT

Name: VIP Vision Mobile Series 4MP Heavy Duty Vehicle Camera - VSIP4MPEIRAT
Brand: VIP Vision
SKU: VSIP4MPEIRAT
Price: 698 AUD
Availability: InStock

Reference VSIP4MPEIRAT

In Stock - Ready to Ship

$ 698.00

inc-GST

Streams ~ 4.0MP at 25fps
2.8mm F2.0 fixed lens
104° viewing angle
Smart IR illumination ~ 30m range
Back/highlight compensation
True WDR (120dB)
H.265 encoding
3D digital noise reduction
MicroSD slot up to 128GB
Power over Ethernet
Shock resistant housing
IP6K9K rated
Steam jet spray prevents dust and dirt egress

VIP Vision Mobile Series 4.0MP Heavy Duty Vehicle Camera

4 YEARS WARRANTY!

VSIP4MPEIRAT

Designed for surveillance in buses, trains, and other large vehicles, the VSIP4MPEIRAT delivers high-quality footage with true WDR and back/highlight compensation, all in a highly durable casing resilient against water, dust, and vandalism.

Camera Features:

Streams up to 4.0MP (2688 x 1520) at 25fps

2.8mm F2.0 fixed lens with 104° viewing angle

Smart infrared illumination up to 30m range

Back/highlight compensation & true WDR (120dB)

H.265 encoding for efficient storage & streaming

3D digital noise reduction & auto white balance

MicroSD slot up to 128GB & Power over Ethernet

Shock resistant housing withstands heavy vibration

IP6K9K rated to withstand high pressure

Steam jet spray and prevents dust and dirt egress

Specifications:

Camera
Image Sensor	1/3" 4.0 Megapixel Progressive Scan CMOS
Max. Resolution	4.0 Megapixel
Effective Pixels	2688 (H) x 1520 (V)
RAM / ROM	512MB / 32MB
Ultra Low Light Colour	No
Min Illumination	0.3 Lux at F2.0 (Colour) / 0 Lux at F2.0 (IR On)
S/N Ratio	> 50dB
Infrared	Yes
Infrared System	2 x Infrared LED, 30m range, Auto/Manual on/off control
Lens
Lens Type	Fixed
Lens / Iris	2.8mm F2.0 Fixed Lens
Field of View	Horizontal: 104°, Vertical: 55°
Focus	Fixed
Video
Resolution	4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)	4.0MP (1 ~ 25fps)
Frame Rate (Sub)	D1 (1 ~ 25fps)
Frame Rate (Third)	720p (1 ~ 25fps)
Video Compression	H.265 / H.264
Bit Rate	H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Bit Rate Control	Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night	Auto (IRC) / Colour / B&W
Lighting Compensation	BLC / HLC / WDR (120dB)
White Balance	Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control	Auto / Manual
Noise Reduction	3D DNR
Picture Control	N/A
*IVS*
IVS	Yes
Intelligent Functions	Face Detection, Tripwire, Intrusion, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
Network
Ethernet	RJ45 (10/100 Base-T)
Protocol	HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method	Unicast / Multicast
Max. User Access	10 Users / 20 Users
*Interface*
Video Interface	N/A
Audio Interface	1 Input / 1 Output
Alarm Interface	1 Input / 1 Output
RS485	N/A
Edge Storage	MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability	ONVIF / PSIA / CGI
Environmental
Power Supply	12VDC / PoE (802.3af)
Power Consumption	<6.5W
Operating Conditions	-40° ~ +70° C / Less than 95% RH
Ingress Protection	IP6K9K
Weather Resistance	Yes
Vandal Resistance	IK10
Series	Mobile Series
Camera Type	Vehicle
Housing	Metal
Pan/Tilt/Rotation	N/A
Tri-Axis Mounting	No
ePoE	No

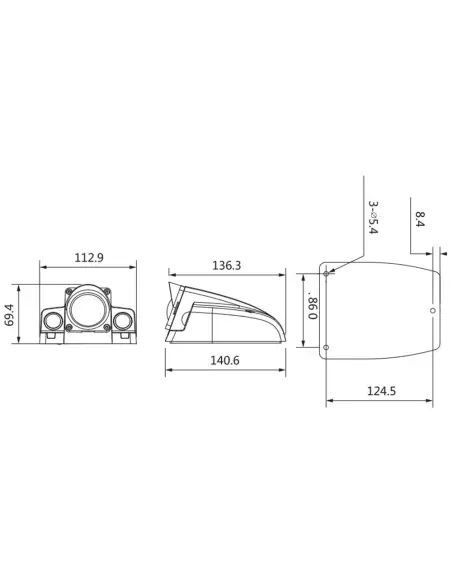

Dimensions	141 x 113 x 69mm
Net Weight	0.59kg
Other
DORI Distance	Distance: 56m / Observe: 22m / Recognise: 11m / Identify: 6m
Warranty (Years)	4

VIP Vision VSIP4MPEIRAT Datasheet (PDF)-1.jpg

Dimensions: 141 x 113 x 69mm
Ethernet: RJ45 (10/100 Base-T)
Housing: Metal
Net Weight: 0.59kg
Operating Conditions: -40° ~ +70° C / Less than 95% RH
Power Supply: 12VDC / PoE (802.3af)
Ingress Protection: IP6K9K
Vandal Resistance: IK10
Bit Rate: H.265: 14 ~ 9984Kbps / H.264: 24 ~ 10240Kbps
Frame Rate (Main): 4.0MP (1 ~ 25fps)
Frame Rate (Sub): D1 (1 ~ 25fps)
Frame Rate (Third): 720p (1 ~ 25fps)
Max. User Access: 10 Users / 20 Users
Power Consumption
Video Compression: H.265 / H.264
Resolution: 4.0MP (2688 x 1520) to CIF (352 x 288)
Series: Mobile series
Weather Resistance: Yes
Focus: Fixed
Interoperability: ONVIF / PSIA / CGI
Effective Pixels: 2688 (H) x 1520 (V)
Image Sensor: 1/3" 4.0 Megapixel Progressive Scan CMOS
RS485: N/A
Alarm Interface: 1 Input / 1 Output
Camera Type: Vehicle
Max. Resolution: 4.0 Megapixel
Field of View: Horizontal: 104°, Vertical: 55°
Lighting Compensation: BLC / HLC / WDR (120dB)
Day/Night: Auto (IRC) / Colour / B&W
Gain Control: Auto / Manual
Lens Type: Fixed
Noise Reduction: 3D DNR
Tri-Axis Mounting: No
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Audio Interface: 1 Input / 1 Output
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage: MicroSD Card (up to 128GB) / NAS / Local PC
ePoE: No
Infrared: Yes
Infrared System: 2 x Infrared LED, 30m range, Auto/Manual on/off control
Intelligent Functions: Face Detection, Tripwire, Intrusion, Abandoned/Missing Object, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
IVS: Yes
Lens / Iris: 2.8mm F2.0 Fixed Lens
Min Illumination: 0.3 Lux at F2.0 (Colour) / 0 Lux at F2.0 (IR On)
Pan/Tilt/Rotation: N/A
Picture Control: N/A
Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
RAM / ROM: 512MB / 32MB
S/N Ratio: > 50dB
Streaming Method: Unicast / Multicast
Ultra Low Light Colour: No
Video Interface: N/A
DORI Distance: Distance: 56m / Observe: 22m / Recognise: 11m / Identify: 6m

VSIP4MPEIRAT Datasheet

VIP Vision VSIP4MPEIRAT Datasheet (PDF)

Download (517.79KB)
