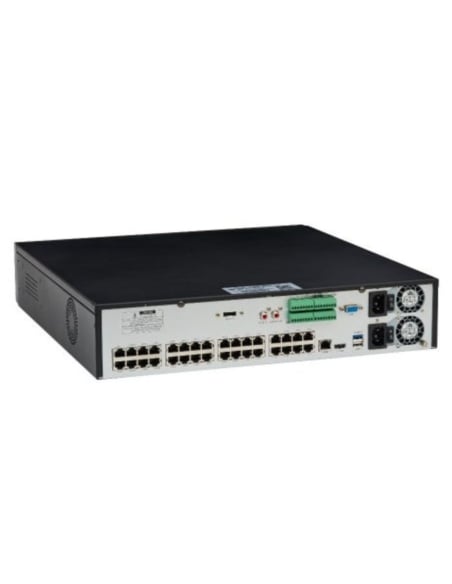

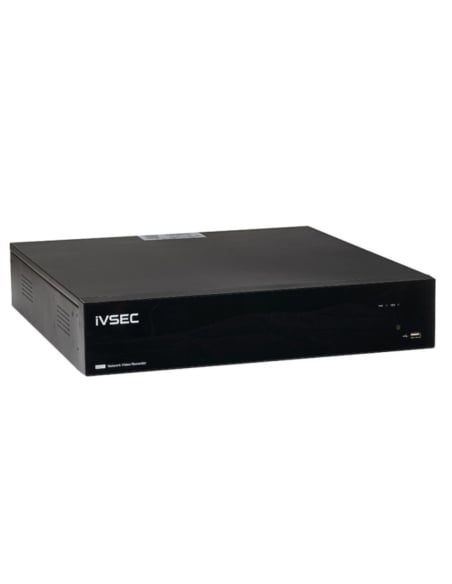

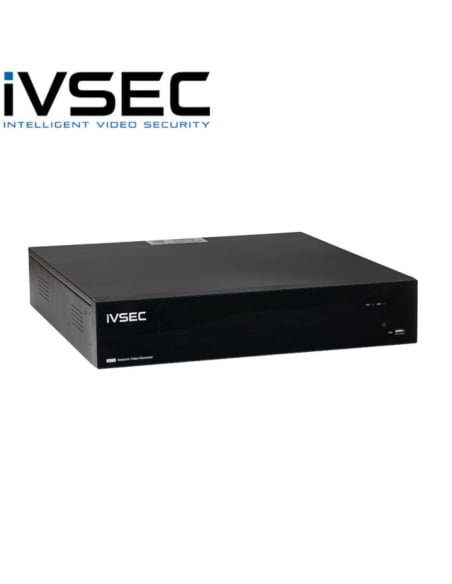

NR6324EXA
The IVSEC NR6324EXA is a network video recorder (NVR) capable of supporting up to 32 IP security cameras and of recording at up to 12-megapixel resolution. It’s easy to install and has an intuitive user interface. When used with IVSEC X series cameras, installation is plug-and-play.
Thanks to the 32 built-in PoE+ ports, you can save on installation costs. They supply both data and power directly to the cameras via a standard CAT5 or CAT6 network cable. Remotely view footage from your security cameras (live or playback) over the internet via your PC, mobile, or tablet. Easily set up the app by simply scanning the QR code which is on your IVSEC network video recorder.
The NR6324EXA features H.265 video compression, the most up-to-date video compression technology. This will save storage space and network bandwidth. Enjoy a 256Mbps bandwidth for all your camera needs, 4 x HDD drive bays allow for plenty of recording retention, holding up to 40TB of footage. RAID adds data redundancy for your security needs. Stay in charge and react promptly with remote mobile access. This NVR has many features that are best demonstrated.
Plug and Play
ONVIF Profile S/G/T
Powerful H.264, H.265 Compression
Easy-to-use Search Methods
Remote Control
Gigabit interface Bays x 4, up to 10TB per HDD
Save a snapshot or a video segment to the cloud (Dropbox or FTP).
HTTPS supports higher cyber security.
Automatic firmware updates via FTP.
USB 3 supports faster backup.
Alarm input and output.
e-SATA support.
| Maximum Channels | 32 |
| Maximum Video Resolution (MP) | 12MP |
| Examples of Channels at a resolution with FPS | 320 Mbps |
| Video Compression | H.264, H.264+, H.265, H.265+ |
| Video Output Resolution | 8MP, 5MP, 3MP , 2MP(1080P), 1.3MP(960P), 1.0MP(720P) |
| Image Display | 1, 4, 6, 8, 9, 10, 12, 13, 14, 16, 17, 19, 20, 22, 25, 32 |
| Intelligent Video (Dependant On Camera) | Perimeter Intrusion Detection, Face Recognition, Human & Vehicle Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection, Video Tampering, License Plate Recognition |
| Search Method | Continuous, Scheduling, Event Triggered By IVS filtering. Snapshot Searching, Tagging footage, Time Lapse, Slice (Multiple Snapshot Thumbnail Search Per Hour), General (Indicated Timeline search). |
| Total Storage Potential (TB) | 40 |
| HDD Bays, Size | Bays x 4, up to 10TB per HDD |
| Software | Device Search, Config Tool, Surveillance Client (CMS, VMS), Mobile app |
| Protocols | TCP, IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP, RTSP, DNS, DDNS, NTP, POE, UPNP, SMTP, SMTP, P2P (QR code) |
| Language | English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Audio Streaming | Audio out |
| Non-Power Over Ethernet Ports | 2 |
| Power Supply | DC 12V, 5A |
| Power Consumption | 12W (Without HDD) |
| Connectors | HDD: 3.5″ SATA HDD Slot x 4, USB2 Female x 2, Gigabit Ethernet: RJ-45 Port x 2, HDMI and VGA, e-Sata x1, Alarm ports 8 in and 1 out, RS485, Audio out, Power input x 2, On-off switch |
| Operating Environment | (-)10°C ~ +50°C (14°F ~ 122°F) Humidity : Less than 90%RH |
| In The Box | Printed quick installation guide, Mouse, HDD screws, and Power supply. |
| Product Dimensions (H x W x L) mm | 66 x 326 x 378 |
| Weight (kg) Net / Gross | 3.50 / 3.40 |
| Warranty | 2 Years Parts |
