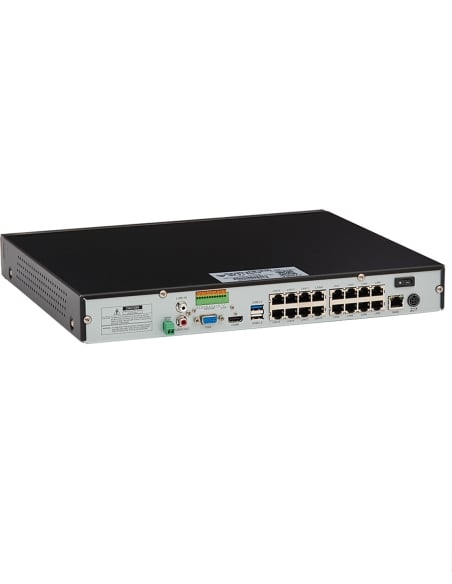

IVSEC NVR 9000 16-channel network video recorder, rear angle with sixteen PoE+ ports

IVSEC · NVR 9000 · 16 channel PoE+

Sixteen PoE+ cameras, two drive bays.
16 channels, up to 12MP, up to 32TB.

Name: iVSEC 16CH NVR AI 12MP CCTV Security Recorder 9000 Series MAX32TB - IVNVR16-9000
Brand: IVSEC
SKU: IVNR16-9000
Price: 1018 AUD
Availability: InStock

The IVSEC NVR 9000 powers and records up to sixteen IP cameras at up to 12MP through sixteen built-in PoE+ ports, with 160 Mbps of incoming bandwidth and two drive bays for up to 32TB. A 4TB drive comes fitted as standard.

In one sentence: the IVSEC NVR 9000 (IVNR16-9000) is a 16-channel network video recorder with sixteen built-in PoE+ ports, 160 Mbps incoming bandwidth, IP cameras up to 12MP and two SATA bays for up to 32TB.

Drives fitted, PoE built in.

The 4TB option comes with the drive installed. In the options above you can choose No HDD, a different first drive, and a second drive for the second bay. The sixteen PoE+ ports power the cameras.

In the box

IVSEC NVR 9000 network video recorder
Hard drive(s) fitted, as chosen in the options
48 V DC power supply
USB mouse
Remote control
Hard drive screws
Printed quick installation guide

You also need

IP cameras, up to sixteen
A Cat5e or Cat6 cable from each camera
A TV or monitor with HDMI or VGA
A network cable to your router, for the IVSEC X app

Room to grow, and two drives.

Start with the cameras you need and add more up to sixteen. With two drive bays there is room for longer recording, and the recorder powers each camera on its own cable.

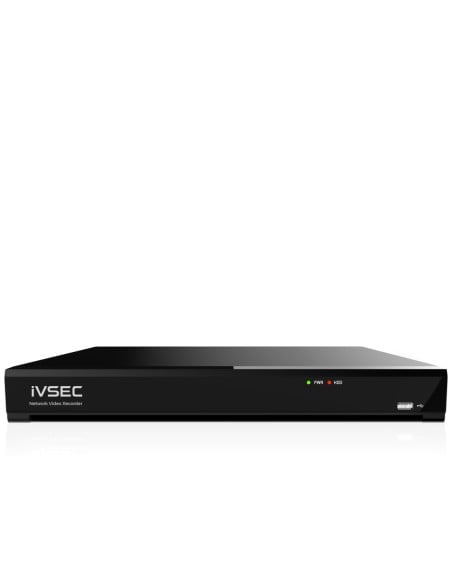

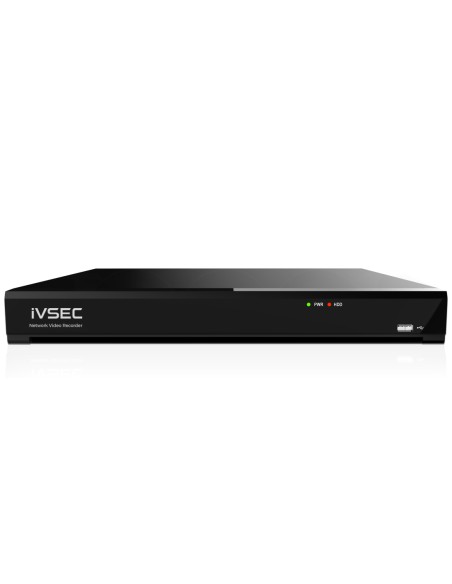

Front of the IVSEC NVR 9000 network video recorder with power and drive lights and USB port

The recorder

Two bays, up to 16TB each.

Two 3.5" SATA bays take up to 16TB each, 32TB in total. H.265 compression keeps recordings small so the drives last longer.

Close-up of the IVSEC NVR 9000 sixteen PoE+ ports, WAN network port and power input

Power over Ethernet

Sixteen PoE+ ports, up to 30 W each.

Each port supplies up to 802.3at (30 W). One cable per camera carries power and video, up to 100 m.

Close-up of the IVSEC NVR 9000 alarm terminals, audio, VGA, HDMI and USB 3.0 and USB 2.0 ports

The connections

Alarm inputs, HDMI, VGA and USB 3.0.

Eight alarm inputs and one output for sensors and sirens, audio out, HDMI and VGA up to 4K, one USB 3.0 and two USB 2.0 ports.

How it goes in

From the box to the app.

Place the recorder

Put the recorder near your router and a TV or monitor. The drives you chose come fitted inside.

Plug in the cameras

Run one network cable from each camera to a PoE port on the back (sixteen PoE+ ports). The recorder powers the camera on the same cable, up to 100 m per run.

Run the wizard

Connect a TV or monitor with HDMI or VGA, plug in the mouse and power. Set the password, date and time; IVSEC X cameras appear by themselves.

Connect the app

Plug the recorder's network port into your router, scan its QR code with the free IVSEC mobile app, then set up your detection alerts.

At a glance

IVNR16-9000

Show specs

Model

IVSEC NVR 9000 network video recorder

Channels

16 IP cameras

PoE ports

16 × PoE+, up to 802.3at (30 W)

Camera resolution

Up to 12MP

Incoming bandwidth

160 Mbps

Compression

H.265, H.264

Video output

HDMI and VGA: 4K, 1080p, 720p

Display

1, 4, 6, 8, 9, 10, 13, 14 or 16 cameras on screen

Event search

Continuous, schedule, PIR, IVS, motion, perimeter intrusion, line crossing, stationary object, pedestrian, face, crossing count

Storage

2 × 3.5" SATA bays, up to 16TB each (32TB)

Ports

Gigabit RJ45, HDMI, VGA, 1 × USB 3.0, 2 × USB 2.0, audio out

Alarm

8 inputs, 1 output

Software

IVSEC X app, PC client (CMS/VMS), device search and config tool

Power

48 V DC, 3.75 A; 10 W without drives

Operating environment

5 °C to 45 °C, 20 to 80% humidity

Size and weight

300 × 302 × 54 mm, 1.54 kg

Warranty

Confirm with us (see the questions below)

Pair it with

Good to add

Cameras

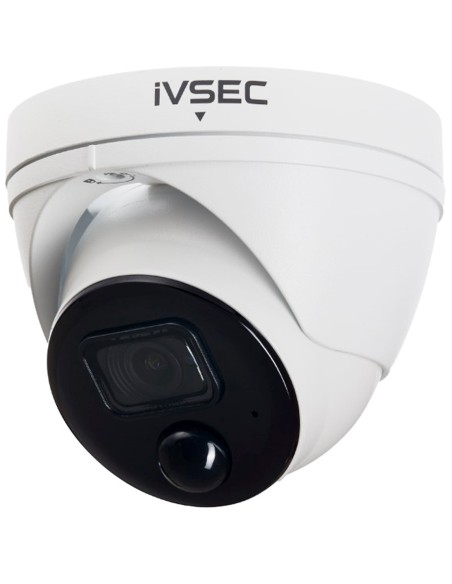

IVSEC 850, 880 and 1250 cameras

The cameras sold with this recorder in IVSEC 16-channel kits. ONVIF cameras from other brands work too.

Cabling

Cat6 cable

One network cable from each camera back to a PoE port, up to 100 m per run. We stock Cat6 leads and bulk cable.

Security

A lockable cabinet

Keep the recorder out of reach so a thief can't take the footage with it. Ask us about the 24SECCAB security cabinet.

Power

A UPS

Keeps the recorder and every PoE camera running through short power cuts, and protects the drive from sudden shutdowns.

Where it is used

Where the NVR 9000 fits.

Large homes and acreage

House, sheds, gates and driveway, with cameras to spare.

Shops and showrooms

Floor, counters, entries, stockroom and car park on one recorder.

Offices

Every entry, reception, corridors and parking.

Warehouses and yards

Roller doors, loading bays, racking and fence lines.

Strata and apartment blocks

Car park, lifts, bin rooms, letterboxes and entries.

Schools, clubs and churches

Halls, grounds and car parks, with two drives for longer recording.

NVR 9000 or NVR 8000

	IVSEC NVR 9000 (this recorder)	IVSEC NVR 8000
Channels and PoE+ ports	16	8
Incoming bandwidth	160 Mbps	128 Mbps
Drive bays	2, up to 16TB each (32TB)	1, up to 16TB
Power supply	48 V, 3.75 A	48 V, 2 A
Size	300 × 302 × 54 mm	300 × 227 × 53 mm

More than eight cameras, or two drives for longer recording: the NVR 9000. Up to eight cameras: the NVR 8000.

Common questions

How many cameras can it record?

Sixteen IP cameras, on the sixteen built-in PoE+ ports.

Does it come with a hard drive?

Yes, the 4TB option comes fitted. In the options above choose No HDD or a 2TB to 14TB first drive, and add a second drive of 2TB to 14TB for the second bay.

How much storage can it hold?

Two 3.5" SATA drives of up to 16TB each, 32TB in total. RAID is not supported.

Do I need a PoE switch?

No. The sixteen PoE+ ports supply up to 802.3at (30 W) each, over the same cable that carries the video.

What resolution can it record?

Up to 12MP per camera, with 160 Mbps of incoming bandwidth across the sixteen channels.

Does it work with other brands?

Yes, ONVIF cameras. IVSEC X range cameras are plug and play; smart features depend on the camera.

Does it have smart detection?

Yes, with cameras that support it: perimeter intrusion, line crossing, stationary object, pedestrian and face detection and crossing count, all searchable on the recorder.

Can I view it on my phone?

Yes, with the free IVSEC X app. Scan the QR code on the recorder to connect; a PC client and web browser access are also available.

How many cameras can I see on the TV at once?

Up to sixteen, on HDMI or VGA up to 4K, in layouts of 1, 4, 6, 8, 9, 10, 13, 14 or 16.

Can I connect alarm sensors?

Yes. It has eight alarm inputs and one alarm output on the rear terminal block.

What comes in the box?

The recorder, a 48 V power supply, a USB mouse, a remote control, hard drive screws and a printed quick installation guide, with the drives you chose fitted.

What warranty does it have?

Please confirm with us on 1300 736 970: IVSEC's spec table for this recorder lists 24 months on parts, while our earlier listing said 3 years. InFront Technologies handles warranty in Australia.

Supported by InFront Technologies.

Not sure which cameras or drive size to choose? Send us your camera list and how long you want to keep footage: call 1300 736 970 or email [email protected].

Installation and safety

Power. The recorder runs from its 48 V plug-in power supply. There is no mains wiring in the recorder; a new power point needs a licensed electrician.

Cabling. Network cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Privacy and audio. Recording people and conversations is covered by state and territory surveillance laws. Point cameras at your own property, put up signage, and check the rules before you record audio.

What it does not do. It has no analogue (coax) inputs and no RAID; each drive records on its own.

Figures. From IVSEC's specification table for this 16-channel recorder. IVSEC does not publish a separate NVR 9000 datasheet PDF; the IVSEC NVR user manual is attached.
