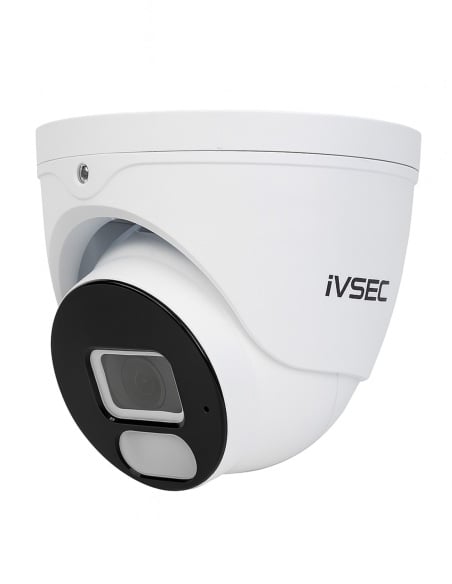

IVSEC 820D 4K turret dome camera with its white light on

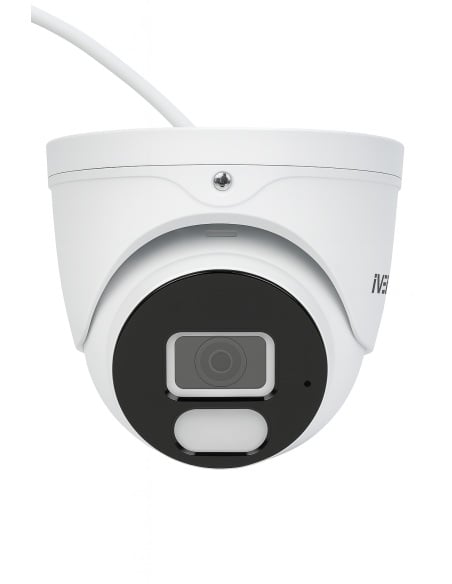

IVSEC 820D 4K turret dome camera, front angle

IVSEC 820D turret dome camera, side angle

Wired PoE camera: cable tail with network connector and 12 V DC socket

1 / 5

IVSEC 4K 8MP Smart IP Dome Camera 2.8mm White LED Spot Light & IR 25M - IVNC-820D

Name: IVSEC 4K 8MP Smart IP Dome Camera 2.8mm White LED Spot Light & IR 25M - IVNC-820D
Brand: IVSEC
SKU: IVNC-820D
Price: 178 AUD
Availability: InStock

SKU IVNC-820D In Stock - Ready to Ship

$178.00 inc GST

IVSEC IVNC-820D: 4K turret dome camera with white light colour night vision, smart human and vehicle detection and a microphone, powered over one network cable.

✓4K output, 2.8 mm lens, 110° view
✓Colour night vision with white light, IR, up to 25 m
✓Smart human and vehicle detection
✓Built-in microphone
✓PoE, IP66 metal housing, microSD to 256 GB
✓Plug and play with IVSEC recorders, 3-year warranty

IVSEC · 820 Series · Smart IP

A 4K camera that sees in colour at night.
IVSEC 820D turret dome, in metal.

The IVSEC 820D is a 4K wired turret dome camera with a white light for colour night vision, smart human and vehicle detection and a built-in microphone, powered over one network cable.

In one sentence: the IVSEC IVNC-820D is a wired 4K PoE turret dome camera with a 2.8 mm 110° lens, white light colour night vision to 25 m, smart human and vehicle detection and a microphone, in an IP66 metal housing.

The network cable is not included.

The camera needs one Cat5e or Cat6 cable back to a PoE recorder or PoE switch, up to 100 m. It takes its power and data through that one cable.

In the box

IVSEC 820D 4K turret dome camera
Mounting screws
Waterproof cable seal
Drill template

You also need

An IVSEC recorder, or another ONVIF recorder
Cat5e or Cat6 cable
A PoE switch or injector if the recorder has no free PoE port

See faces and number plates in colour at night.

When it gets dark the white light switches on with motion, so the footage stays in colour instead of grey infrared. Smart detection sorts people and vehicles from leaves and shadows.

IVSEC 820D 4K turret dome camera switching its white light on for colour night vision

The camera

4K turret dome with a white light.

A 2.8 mm lens with a 110° view, wide enough to cover a yard or a room from the corner. The white light under the lens gives colour footage at night up to 25 m, or switch to infrared.

IVSEC 820 Series camera cable tail with network connector and 12 V DC socket

One cable

Power and video on one run.

The tail has a weatherproof network connector for PoE, plus a 12 V DC socket if you power the camera separately.

How it goes in

From box to phone alerts.

Run the cable

Run Cat5e or Cat6 from the camera position back to a PoE port on the recorder or a PoE switch, up to 100 m.

Mount the camera

Mark the holes with the drill template, fit the waterproof cable seal and fix the camera with the supplied screws.

Plug it in

On an IVSEC recorder the camera is found automatically and starts recording. Other recorders add it over ONVIF.

Aim and set it up

Angle the camera, then set smart detection and the white light mode in the recorder or the IVSEC X app.

At a glance

IVNC-820D

Show specs

Model

IVSEC 820D (IVNC-820D)

Type

Turret dome, white

Resolution

4K (3840 × 2160) output from a 5MP sensor, up to 15 fps

Lens and view

2.8 mm fixed, 110° wide angle

Night vision

Colour with the white light, or infrared, up to 25 m

Smart detection

Human and vehicle, line crossing, perimeter intrusion, motion

Audio

Built-in microphone (records sound)

Storage

microSD up to 256 GB

Power

PoE (802.3af), or 12 V DC

Housing

Metal, IP66, indoor or outdoor

Interoperability

ONVIF

Works with

IVSEC recorders (plug and play), ONVIF recorders

Software

IVSEC X app (iOS and Android) through the recorder

Cable

Not included

Warranty

3 years

Pair it with

Good to add

Recorder

An IVSEC PoE NVR

4, 8 or 16 PoE ports that power the cameras and record around the clock.

Cable

Cat5e or Cat6

One run per camera, up to 100 m. Pre-made 20 m and 30 m Cat5e leads are available.

Storage

A microSD card

Up to 256 GB in the camera, as a backup copy if the recorder is stolen.

Deterrence

The IVSEC 850 Series

Need a siren, red and blue strobes and two-way talk? Look at the 850B and 850D.

Where it is used

Where the 820D fits.

Driveways and gates

Colour night vision to see the car as well as the person.

Front doors

A wide 110° view of the porch, with sound recorded by the microphone.

Shopfronts

Doors and counters, with alerts for people after hours.

Yards and sheds

Roller doors and side paths, in colour with the white light.

Car parks

Line crossing and perimeter alerts for people and vehicles.

Adding to a kit

An extra camera for an IVSEC 820 kit or any IVSEC NVR.

IVNC-820D or IVNC-820B

	IVNC-820D (this camera)	IVNC-820B
Housing	Turret dome	Bullet
Resolution and view	4K, 110°	4K, 110°
Night vision	Colour or IR, up to 25 m	Colour or IR, up to 25 m
Best for	Eaves and ceilings	Walls and long views

The same 820 Series camera in two housings. Bullets stand out and suit walls and long views; turret domes sit lower profile under eaves and ceilings.

Common questions

What is in the box?

The IVSEC 820D camera, mounting screws, a waterproof cable seal and a drill template. The network cable is not included.

Will it work with my recorder?

It is plug and play with IVSEC recorders. Other recorders can add it over ONVIF, though smart detection may only work on an IVSEC recorder.

How is it powered?

Over the network cable (PoE) from the recorder or a PoE switch, or from a 12 V DC plug pack, which is not included.

How far can the cable run?

Up to 100 m of Cat5e or Cat6 from the camera to the PoE port.

Can I see colour at night?

Yes. The white light switches on so the camera records in colour up to 25 m. You can set infrared instead, which records in black and white without a visible light.

Is it really 4K?

It outputs 4K (3840 × 2160) video from a 5MP sensor at up to 15 fps. For a native 8MP sensor at 20 fps, look at the IVSEC 850 Series.

Does it record sound?

Yes. A built-in microphone records audio with the video. There is no speaker, so you can't talk back through it.

What smart detection does it have?

Human and vehicle detection, line crossing and perimeter intrusion, plus standard motion detection.

Can it record without a recorder?

Yes. It takes a microSD card up to 256 GB, so it can record on its own or keep a backup copy.

Is it weatherproof?

Yes. The 820D has a metal housing rated IP66 for outdoor walls, eaves and ceilings.

Should I choose the 820B or the 820D?

They are the same camera inside. Bullets stand out and suit walls and long views; turret domes sit lower profile under eaves and ceilings. Many sites mix the two.

What warranty does it have?

Three years. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.

Supported by InFront Technologies.

Help matching cameras to your recorder or choosing cable: call 1300 736 970 or email [email protected].

Installation and safety

Power. The camera runs on PoE or 12 V DC. There is no mains wiring. A new power point needs a licensed electrician.

Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Privacy and audio. Recording people and conversations is covered by state and territory surveillance laws. Point cameras at your own property, put up signage, and check the rules before you switch on audio.

What it does not do. This is a wired camera: no Wi-Fi, no battery and no 4G, and no siren, strobe or two-way talk.

Figures. From IVSEC's specifications for the 820D camera.
