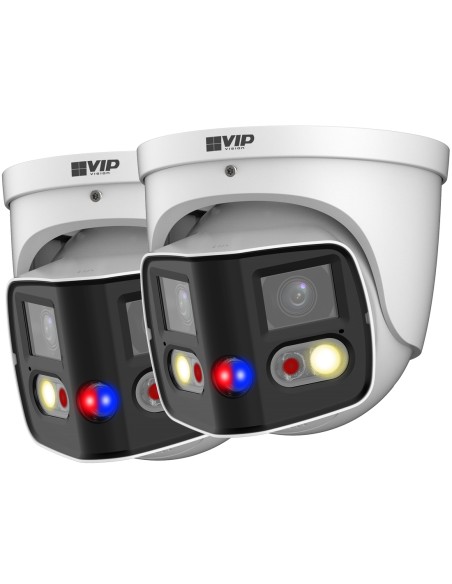

VIP Vision 2-Pack Professional AI 8MP 4K UHD 180° Dual Lens Active Deterrence Dome Camera - VSIPP-8DD-ID3-2PK
- Dual 4.0MP sensors combine for single channel 8.0MP@20fps (4096 x 1860) image
- Twin wide-angle 2.8mm fixed lenses for 180° viewing angle with ePTZ functions
- Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
- Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
- AI SSA (scene adjustment) automatically detects/adjusts lighting modes for optimal image
- 24/7 Colour low light performance at with colour 0.005lx minimum illumination
- 25m infrared range via twin infrared LEDs; 20m twin white LEDs for visible light illumination
- H.265 Encoding for efficient Storage & streaming
- Built-in microphone and loudspeaker for 2-way talking
- MicroSD slot for recording at the edge up to 256GB
- IP67 weather-rated housing

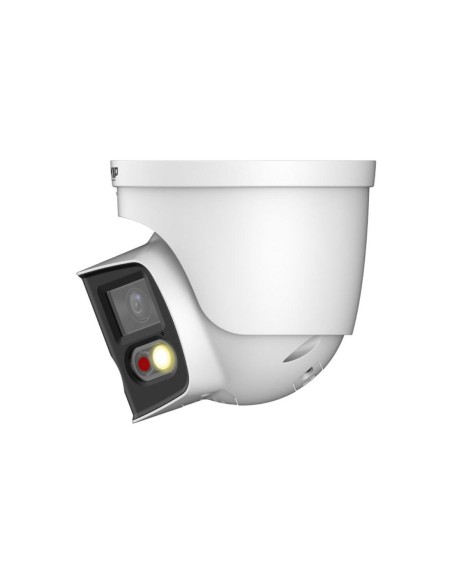

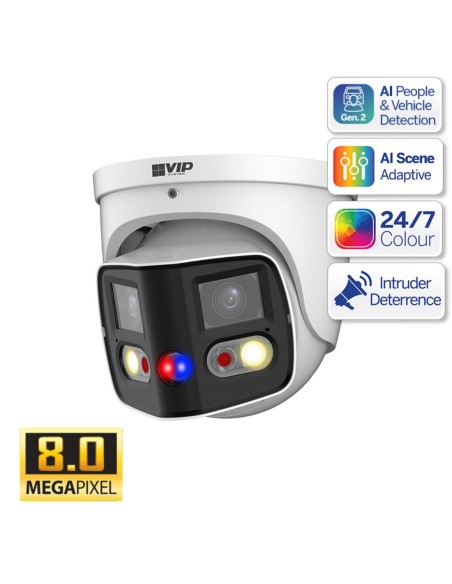

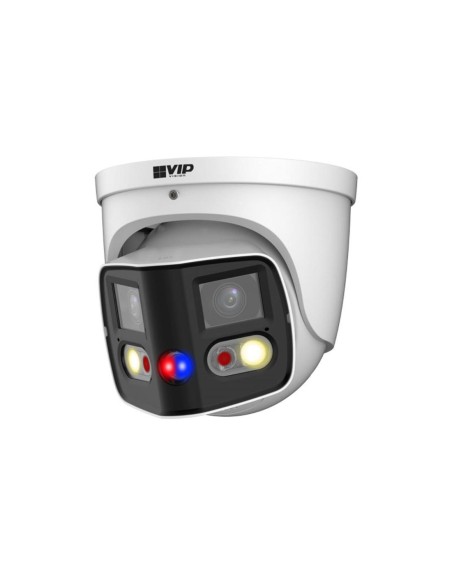

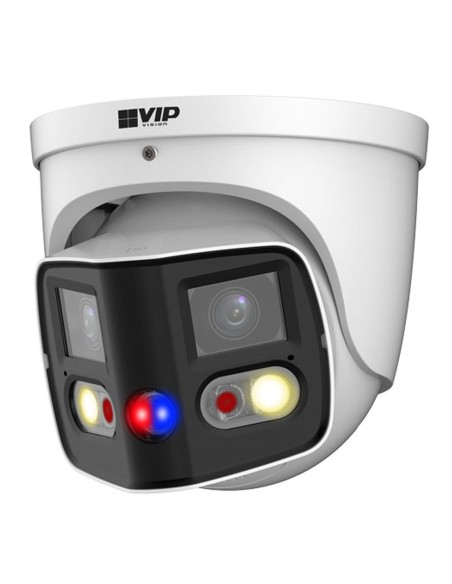

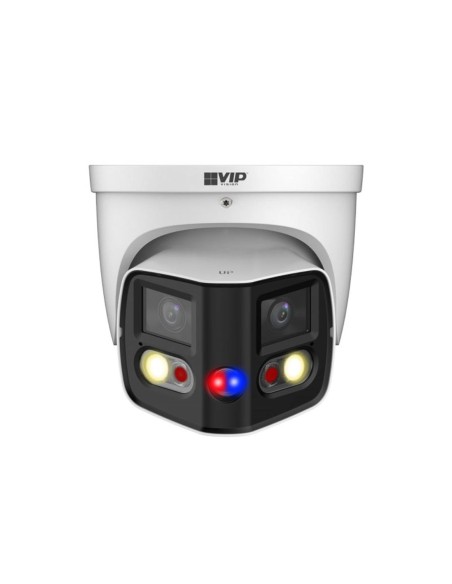

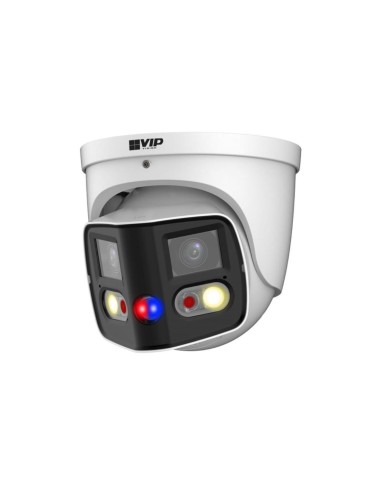

VIP Vision Professional AI 8MP 4K UHD 180° Dual Lens Active Deterrence Dome Camera
VSIPP-8DD-ID3-2PK
The VIP Vision VSIPP-8DD-ID3 in the Pro AI Series delivers 180° site-wide coverage and a suite of AI detection and active deterrence features to secure homes and businesses. Perform the job of multiple cameras in a single camera with a panoramic field of view from twin 4.0 megapixel 2.8mm lenses and unique electronic PTZ mobility functions via your NVR.
This active deterrence model incorporates AI detection and a variety of in-camera features to deter intruders. Upon a human or vehicle detection event, these cameras can trigger a white LED spotlight for security lighting, a flashing blue/red LED strobe, and a loud siren with a programmable message/tone to deter intruders. They are ideal for active security across a variety of residential and commercial applications.
Camera Features:
• Dual 4.0MP sensors combine for single channel 8.0MP@20fps (4096 x 1860) image
• Twin wide-angle 2.8mm fixed lenses for 180° viewing angle with ePTZ functions
• Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• AI SSA (scene adjustment) automatically detects/adjusts lighting modes for optimal image
• 24/7 Colour low light performance at with colour 0.005lx minimum illumination
• 25m infrared range via twin infrared LEDs; 20m twin white LEDs for visible light illumination
• Adjustable lighting modes with backlight/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• H.265 encoding for efficient storage & streaming
• Built-in microphone and loudspeaker for 2-way talking
• MicroSD slot for recording at the edge up to 256GB
• IP67 weather rated housing for outdoor use
Product Specifications:
- Dimensions
- Ø 122mm x 135mm
- Ethernet
- RJ-45 (10/100Base-T)
- Housing
- Metal
- Net Weight
- 0.99kg
- Operating Conditions
- -40°C ~ +60°C / ≤95% RH
- Power Supply
- 12VDC / PoE (802.3af)
- Ingress Protection
- IP67
- Bit Rate
- H.265: 6 ~ 16384Kbps / H.264: 6 ~ 16384Kbps
- Frame Rate (Main)
- 8.0MP (1 ~ 20fps)
- Frame Rate (Sub)
- 1200 x 530 (1 ~ 20fps)
- Frame Rate (Third)
- 1920 x 860 (1 ~ 20fps)
- Max. User Access
- 20 Users (Total bandwidth: 64MB)
- Power Consumption
- Deterrence:
- Video Compression
- H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG
- Resolution
- 8.0MP (4096 x 1860) to 960 x 432
- Series
- Professional AI Series
- Focus
- Auto Focus / 0.8m Min. Focus Distance
- Interoperability
- ONVIF (Profile S, Profile G, Profile T) / CGI
- Effective Pixels
- 4096 (H) x 1860 (V)
- Image Sensor
- Dual 1/2.7” 8.0MP Progressive Scan CMOS
- Alarm Interface
- 1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC
- Camera Type
- Turret
- Max. Resolution
- 8.0 Megapixel
- Field of View
- Horizontal: 180°, Vertical: 86°
- Lighting Compensation
- BLC / HLC / WDR (120dB)
- Day/Night
- Auto (ICR) / Color / B&W
- Gain Control
- Auto
- Noise Reduction
- 3D DNR
- White Balance
- Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
- Audio Interface
- Built-in Mic & Built-in Speaker / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723
- Bit Rate Control
- Constant bit rate (CBR) / Variable bit rate (VBR)
- Edge Storage
- MicroSD Card (up to 256GB) / NAS / FTP / SFTP
- Infrared System
- 2 x Infrared LED, 25m range, Auto/manual on/off control
- Intelligent Functions
- Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog
- Lens / Iris
- 2.8mm F1.4 Fixed Focal Lens with Fixed Iris
- Min Illumination
- 0.005 Lux/F1.4 (Color), 0.0005 lux/F1.4 (B/W, 30 IRE), 0 lux (IR)
- Pan/Tilt/Rotation
- Pan: 0° ~ 360°, Tilt: 0° ~ 77°, Rotation: 0° ~ 360°
- Protocol
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
- RAM / ROM
- 1GB / 128MB
- S/N Ratio
- > 56dB
- Streaming Method
- Multicast
- Event Trigger
- Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
- Intelligent Search
- Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle
- Perimeter Protection
- Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles)
- Active Deterrence
- 1 x Red & Blue Strobe, 1 x Siren Loudspeaker
- White Light LED
- 2 x Warm White LED, 20m range, Auto/manual on/off control
