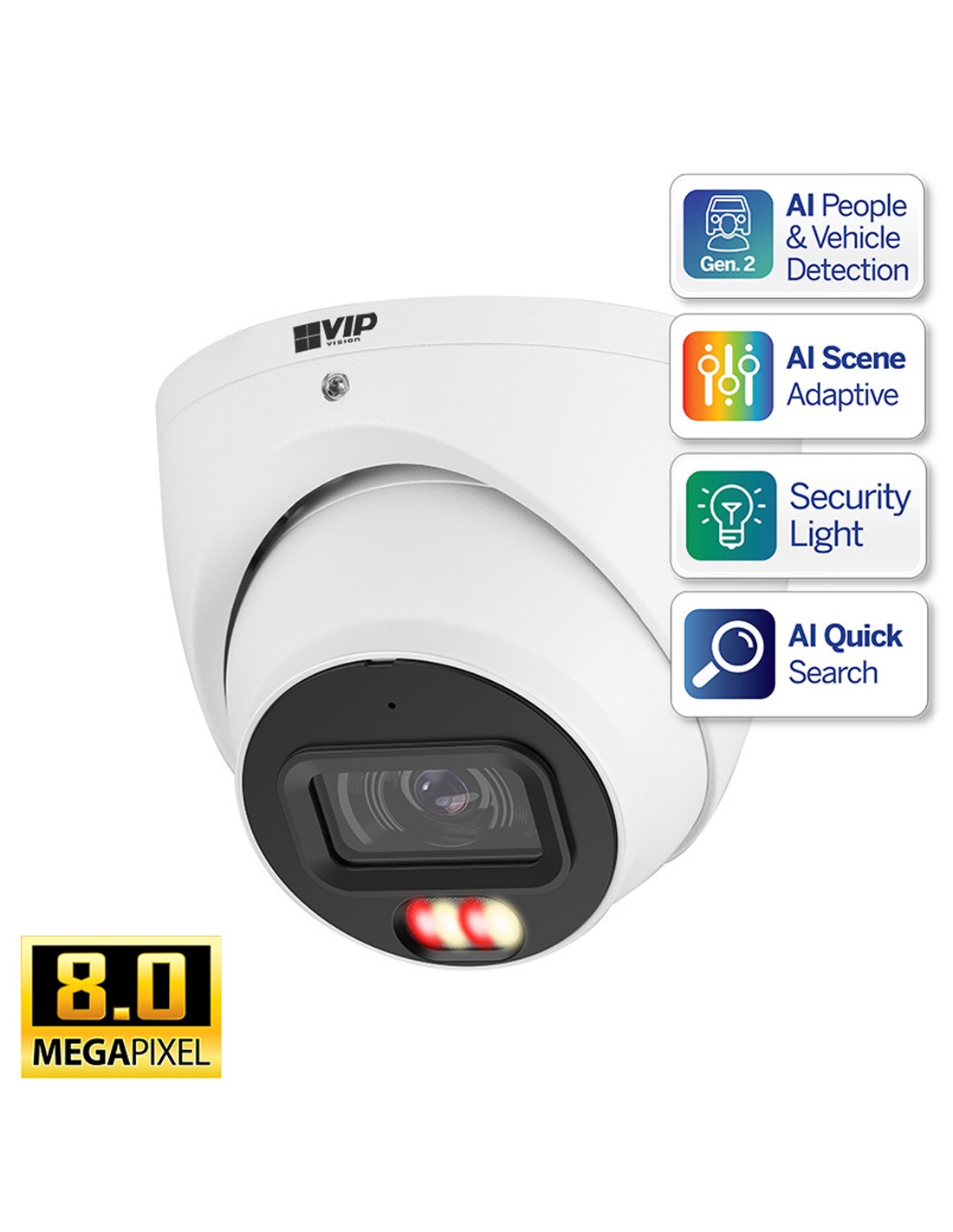

VIP Vision VSIPP-8DIRG-I3 white 8MP turret, front three-quarter view

VSIPP-8DIRG-I3 close-up of the lens window and warm LED and IR window

VSIPP-8DIRG-I3 dimension drawing, 93.6 mm high, 106 mm base, mounting holes on a 69 mm circle

1 / 3

VIP Vision Professional AI Series 8MP Fixed Deterrence Turret - VSIPP-8DIRG-I3

Name: VIP Vision Professional AI Series 8MP Fixed Deterrence Turret - VSIPP-8DIRG-I3
Brand: VIP Vision
SKU: VSIPP-8DIRG-I3
Price: 215 AUD
Availability: InStock

SKU VSIPP-8DIRG-I3 In Stock - Ready to Ship

$215.00 inc GST

VIP Vision VSIPP-8DIRG-I3: a white 8MP metal turret with a 2.8 mm lens, AI people and vehicle detection and two warm LEDs that light the scene in colour when someone is detected.

✓8MP, 3840 × 2160 at 25 fps, 2.8 mm F1.4, 110° view
✓SMD 4.0 and perimeter protection for people and vehicles
✓2 warm LEDs and 2 IR LEDs, 30 m
✓Built-in microphone, microSD up to 512 GB
✓IP67 metal housing, PoE 802.3af up to 9.5 W
✓4-year VIP Vision warranty

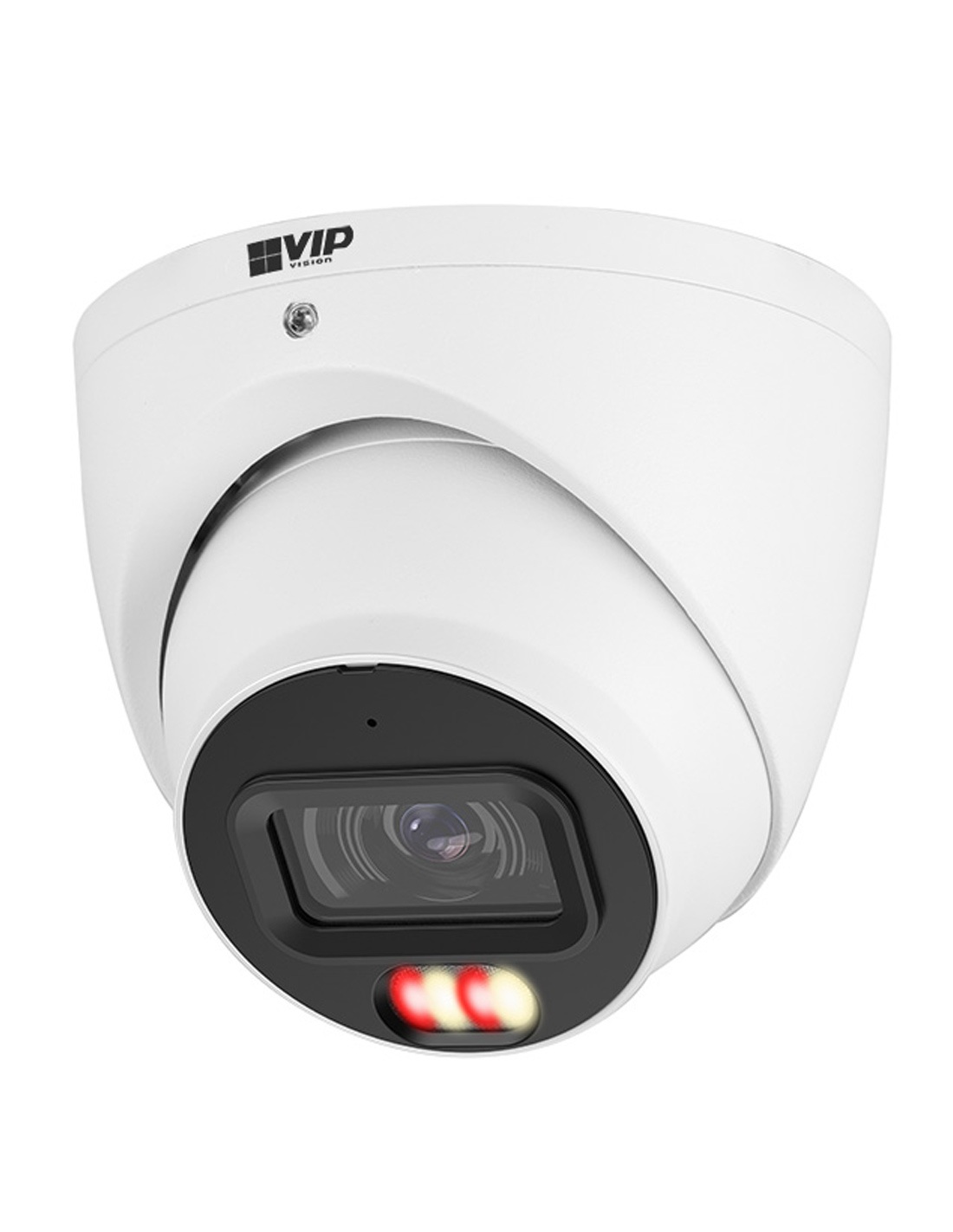

VIP Vision VSIPP-8DIRG-I3 white 8MP turret camera with warm LED lights under the lens

VIP Vision · Professional AI · I3 turret

8MP turret with its own light.
Warm LEDs switch on for people and vehicles.

This is the VSIPP-8DIRG-I3: a white metal 4K turret with a 2.8 mm lens, AI people and vehicle detection, a built-in microphone and two warm LEDs that light the scene in colour when someone is detected.

In one sentence: the VSIPP-8DIRG-I3 is a VIP Vision Professional AI 8MP (3840 × 2160) fixed turret with a 2.8 mm F1.4 lens, a 110° view, AI people and vehicle detection, warm LED plus 30 m IR lighting, a built-in mic and an IP67 metal housing.

Camera only. Recorder and cabling are separate.

This listing is one turret camera. It needs a PoE port or a 12 VDC supply for power, and a recorder, NAS or microSD card for the footage.

In the box

VSIPP-8DIRG-I3 turret camera

You also need

A PoE NVR, or an 802.3af PoE switch
Cat5e or Cat6 cable to the camera
A recorder, NAS or microSD card (up to 512 GB) for the footage
The VSBKTA139 junction box if the cable can't go straight into the wall or ceiling

A security light and a camera in one.

When the camera picks up a person or a vehicle, its two warm LEDs switch on. The intruder knows they have been seen, and the footage turns to full colour. The rest of the night, two IR LEDs cover up to 30 m. Smart Motion Detection 4.0 only flags people and vehicles, which cuts false alarms from other movement.

VSIPP-8DIRG-I3 close-up of the 2.8 mm lens window with the warm LED and IR LED window below it

Lens and lights

2.8 mm, F1.4, 110° across.

3840 × 2160 at up to 25 fps from a 1/2.7" 8MP sensor. The window under the lens holds two warm LEDs and two IR LEDs with a 30 m range. Colour works down to 0.007 lux, and the camera records at 0 lux with the lights on.

Housing

Metal, IP67, −40 °C to 60 °C.

A metal housing of 0.53 kg, rated IP67. The ball pans 0–360°, tilts 0–80° and rotates 0–360° to line up the view. 120 dB true WDR, BLC and HLC keep detail against bright doorways and headlights.

How it goes in

From cable to first alert.

Run one cable

Cat5e or Cat6 to a PoE NVR or an 802.3af switch. The camera draws up to 9.5 W on PoE, or up to 7.4 W from 12 VDC.

Fix the base

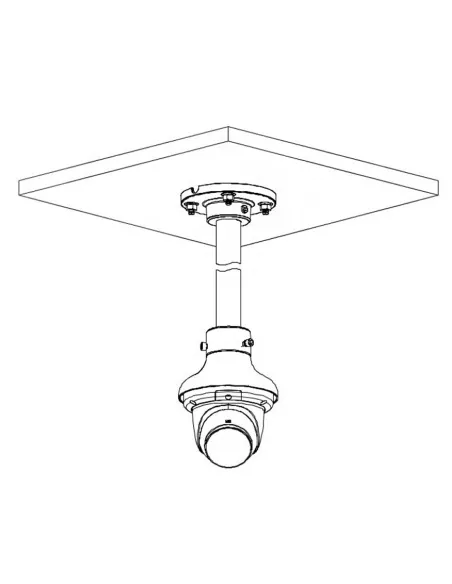

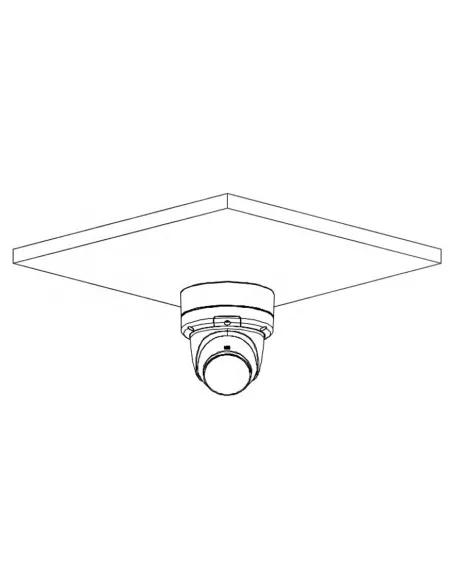

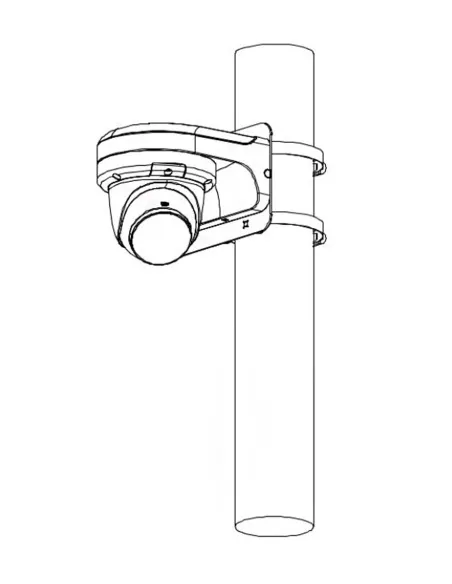

Four Ø4.5 mm holes on a Ø69 mm circle. Use the VSBKTA139 junction box, or a VIP Vision wall, ceiling or pole bracket, where the cable needs cover.

Add it to the recorder

Add it to a VIP Vision NVR or an ONVIF recorder, set a strong password and record the 8MP main stream.

Set the AI rules

Turn on SMD 4.0, or draw tripwire and intrusion zones, tick people, vehicles or both, and choose when the warm LEDs come on.

At a glance

VSIPP-8DIRG-I3

Show specs

Resolution

8MP, 3840 × 2160, up to 25 fps

Lens

2.8 mm F1.4 fixed, 110° horizontal, 58° vertical

Image sensor

1/2.7" 8MP progressive scan CMOS

DORI

Detect 85 m, observe 34 m, recognise 17 m, identify 8 m

Low light

Colour 0.007 lux at F1.4; black and white 0.0007 lux; 0 lux with the lights on

Lighting

2 warm LEDs and 2 IR LEDs, 30 m range, auto or manual on/off

Day and night

Auto (ICR), colour or black and white


120 dB true WDR, BLC, HLC, AI scene adaptive (SSA), 3D DNR

Compression

H.265, H.264, H.264H, H.264B, MJPEG, AI H.265, AI H.264

Streams

Main 8MP at 1–25 fps; sub and third 1080p at 1–25 fps

Bit rate

3 to 16,384 Kbps, CBR or VBR

SMD 4.0 people and vehicle detection; perimeter protection (tripwire, intrusion); AcuPick attribute search

Other functions

Motion detection (4 zones), region of interest (4), privacy masks (8), Smart Infrared

Audio

Built-in microphone; G.711a, G.711Mu, G.726, G.723, PCM; no speaker

Alarm and RS485

None

Storage

microSD up to 512 GB, NAS, FTP, SFTP

Network

RJ45 10/100 Mbps, up to 20 users; ONVIF, P2P, CGI

Power

12 VDC (max 7.4 W) or PoE 802.3af (max 9.5 W)

Protection

IP67, metal housing

Adjustment

Pan 0–360°, tilt 0–80°, rotation 0–360°

Size and weight

Drawing: Ø106 mm base, 93.6 mm high (the spec table prints Ø94 × 106 mm); 0.53 kg

Operating range

−40 °C to 60 °C, humidity 95% or less

Warranty

4 years (VIP Vision Pro AI Series)

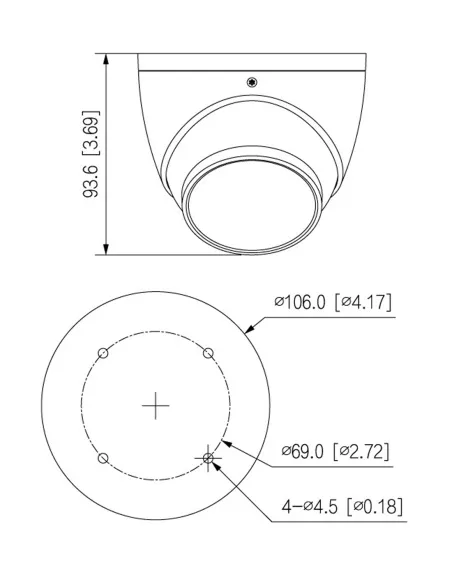

VSIPP-8DIRG-I3 dimensions: 93.6 mm high, Ø106 mm base, four Ø4.5 mm holes on a Ø69 mm circle

93.6 mm high, Ø106 mm base. Four Ø4.5 mm mounting holes on a Ø69 mm circle. Units mm [inch].

Pair it with

What this camera does not include

Recorder

A VIP Vision Professional AI NVR

Powers and records the camera on one cable. VIP Vision lists SMD 4.0, perimeter protection and AcuPick search with its own NVRs.

Power

An 802.3af PoE switch

If the recorder has no PoE ports. Allow 9.5 W for this camera.

Mounting

VSBKTA139 junction box

VIP Vision's listed junction box for this turret. The datasheet also lists the VSBKTB204W wall bracket and ceiling and pole kits.

Storage

A microSD card

Optional, up to 512 GB, for recording in the camera or as a backup.

Where it is used

Where a turret with its own light fits.

Homes

Driveways, side gates and back doors, where a light that switches on for people puts most intruders off.

Shopfronts and entries

Colour footage of faces and clothing at the door, day and night.

Small business car parks

People and vehicle detection on the bays, with 120 dB WDR for headlights.

Warehouses and yards

Roller doors and gates, with tripwire and intrusion rules for after hours.

Strata and apartments

Common areas, bin rooms and garage entries, recording to the building NVR.

Farms and sheds

Machinery sheds and fuel tanks, with IP67 protection and a −40 °C to 60 °C range.

VSIPP-8DIRG-I3 or VSIPP-6DIRG-I3

	VSIPP-8DIRG-I3 (this camera)	VSIPP-6DIRG-I3
Resolution	8MP, 3840 × 2160	6MP, 3288 × 1850
Image sensor	1/2.7" 8MP	1/2.7" 6MP
Colour sensitivity	0.007 lux at F1.4	0.005 lux at F1.4
Lens and view	2.8 mm F1.4, 110°	2.8 mm F1.4, 110°
Lights	2 warm + 2 IR LEDs, 30 m	2 warm + 2 IR LEDs, 30 m
DORI detect / identify	85 m / 8 m	85 m / 8 m
Power, max	7.4 W 12 VDC, 9.5 W PoE	7.4 W 12 VDC, 9.5 W PoE

Both columns come from VIP Vision's Professional AI Series Fixed Turret Dome datasheet (May 2025). The 4MP VSIPP-4DIRG-I3 on the same sheet has a 100° view and 50 m lighting.

Common questions

Does it have a siren or a flashing strobe?

No. Its lights are two warm LEDs and two IR LEDs. For a siren and a red and blue strobe, look at VIP Vision's VSIPP-8DG-ID4 deterrence turret.

Is a recorder included?

No. This listing is the camera only. It records to a PoE NVR, a NAS or FTP server, or a microSD card of up to 512 GB.

How is it powered?

By PoE (IEEE 802.3af), drawing up to 9.5 W. It can also run from 12 VDC at up to 7.4 W, using a supply bought separately.

Does it record in colour at night?

Yes, when the warm LEDs are on. They switch on when a person or vehicle is detected, or you can control them manually. Otherwise the IR LEDs give black-and-white footage out to 30 m.

How far does it see?

With the 2.8 mm lens VIP Vision rates it to detect at 85 m, observe at 34 m, recognise at 17 m and identify at 8 m. The lights reach 30 m.

What does the AI detection do?

Smart Motion Detection 4.0 and perimeter protection (tripwire and intrusion) tell people and vehicles apart from other movement, so you get fewer false alarms. VIP Vision lists these with its own NVRs.

What is AcuPick?

A search on a VIP Vision NVR that finds people or vehicles by attributes such as colour and follows their movements across all AcuPick cameras on the system.

Does it record sound?

Yes. It has a built-in microphone. There is no speaker and no audio input or output connector.

Can it record without an NVR?

Yes. It records to a microSD card of up to 512 GB, or to a NAS, FTP or SFTP server on the network.

Will it work with a non-VIP Vision recorder?

VIP Vision lists ONVIF, so most ONVIF recorders can record its video. SMD 4.0 and AcuPick searches are listed for VIP Vision NVRs.

Can it be mounted outside?

Yes. It has a metal housing rated IP67 and runs from −40 °C to 60 °C at up to 95% humidity.

What is the difference from the VSIPP-6DIRG-I3?

Resolution. This camera is 8MP (3840 × 2160); the 6DIRG-I3 is 6MP (3288 × 1850) and a little more sensitive in colour (0.005 lux). Lens, lights, housing and power are the same.

Supported by InFront Technologies.

Help choosing the recorder, switch or bracket: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Low-voltage camera. PoE (802.3af, up to 9.5 W) or 12 VDC (up to 7.4 W). There is no mains connection on the camera. A new power point for a 12 V supply needs a licensed electrician.

Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Audio and privacy. Recording conversations is covered by state and territory surveillance laws. Check them, and use signage, before you switch the microphone on.

What it does not do. No siren, no strobe, no speaker, no alarm inputs or outputs, and no Wi-Fi.

Figures. From VIP Vision's Professional AI Series Fixed Turret Dome datasheet (May 2025).

Dimensions: ø106mm x 94mm
Ethernet: RJ-45 (10/100Base-T)
Housing: Metal
Net Weight: 0.53kg
Operating Conditions: -40°C ~ +60°C / ?95% RH
Power Supply: 12VDC / PoE (802.3af)
Ingress Protection: IP67
Vandal Resistance: N/A
Bit Rate: H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
Frame Rate (Main): 8.0MP (1 ~ 25fps)
Frame Rate (Sub): 1080p (1 ~ 25fps)
Frame Rate (Third): 1080p (1 ~ 25fps)
Max. User Access: 20 Users
Power Consumption
Video Compression: H.265 / H.264H / H.264 / H.264B / MJPEG
Resolution: 8.0MP (3840 x 2160) to CIF (352 x 288/352 × 240)
Series: Professional AI Series
Focus: Focus / 1.4m Min. Focus Distance
Interoperability: ONVIF / P2P / CGI
Effective Pixels: 3840 (H) x 2160 (V)
Image Sensor: 1/2.7’’ 8.0MP Progressive Scan CMOS
RS485: N/A
Alarm Interface: N/A
Camera Type: Turret
Max. Resolution: 8.0 Megapixel
Field of View: Horizontal: 110°, Vertical: 58°, Diagonal: 132°
Lighting Compensation: BLC / HLC / WDR (120dB) / AI SSA
Day/Night: Auto (ICR) / Color / B&W
Detect (25px/m): 85m
Gain Control: Auto / Manual
Identify (250px/m): 8m
Lens Type: Fixed
Noise Reduction: 3D DNR
Observe (63px/m): 34m
Recognise (125px/m): 17m
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface: Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; G.723; PCM
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR) / Average Bit Rate (ABR)
Edge Storage: MicroSD Card (up to 512GB) / NAS
ePoE: No
Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Lens / Iris: 2.8mm Fixed Focal Lens with Fixed Iris
Min Illumination: 0.007 Lux/F1.4 (Color), 0.0007 lux/F1.4 (B/W, 30 IRE), 0 lux (IR)
Pan/Tilt/Rotation: Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
Picture Control: Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
RAM / ROM: 1GB / 256MB
S/N Ratio: > 56dB
Smart Scene Adaptive (SSA): Yes
Streaming Method: Multicast
Video Interface: N/A
Event Trigger: Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Face Attributes: N/A
Face Detection: N/A
Heat Map: N/A
Intelligent Search: Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
People Counting: N/A
Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles)
AcuPick: Yes
Illumination System: 2x warm LED light, 2 x Infrared LED, 30m range, Auto/manual on/off control
