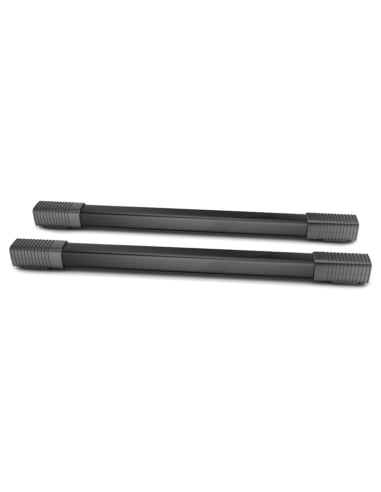

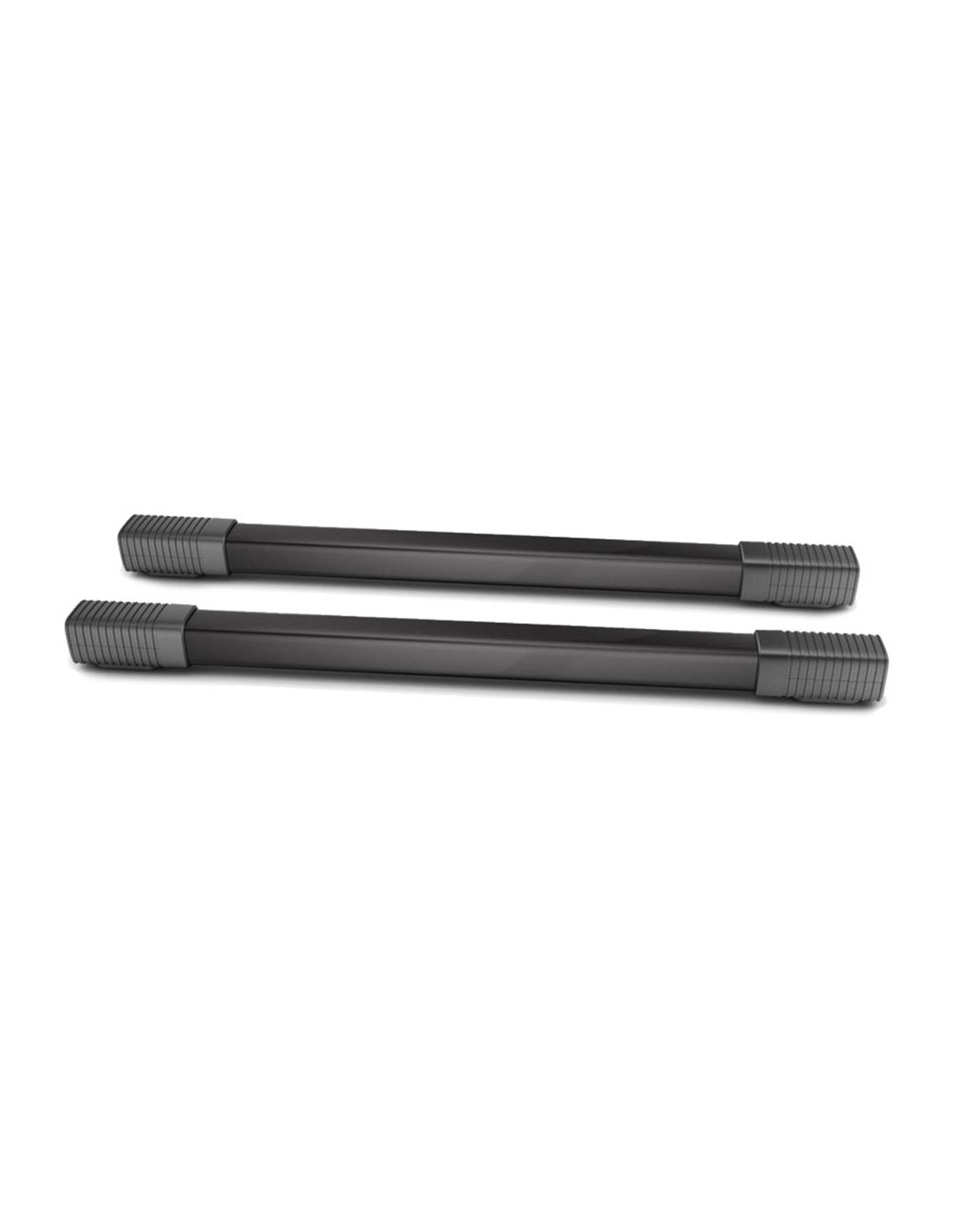

Watchguard 2020 Wireless IR Multi-Beam Sensor - ALC-BEAM1

Name: Watchguard 2020 Wireless IR Multi-Beam Sensor - ALC-BEAM1
Brand: Watchguard
SKU: ALC-BEAM1
Price: 238 AUD
Availability: InStock

Reference ALC-BEAM1

In Stock - Ready to Ship

$ 238.00

inc-GST

Proximity Alarm Beam Sensors to suit 2020 Watch Guard 4G Alarm System
Sold as a Pair - Sender / Transmitter
Sense someone who has passed through the beam (max 6Mtrs)
Wireless Transmission back to the Alarm Panel up to 80 mtrs
Perfect for a gate or entrance
Maximum detection range up to 6m
Wireless frequency: 433.92MHz (±75KHz)
Wireless transmission distance to WG2020 alarm up to 80m
IP66 weather resistant & UV-resistant polycarbonate body for outdoor use
Completely wireless: Battery standby life up to 3 years
2 x CR123A (transmitter), 3 x CR123A (receiver)
Compact housing at 47mm x 47mm x 612mm

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

ALC‑BEAM1 | Watchguard Wireless IR Multi‑Beam Sensor — Perimeter Protection

Active infrared barrier with multi‑beam break detection, wireless pairing to ALM hubs, and outdoor weather resistance.

The ALC‑BEAM1 is a wireless active infrared (AIR) perimeter sensor that creates a multi‑beam barrier between a transmitter and receiver. When two or more aligned beams are interrupted, the sensor triggers an alarm to your Watchguard ALM hub. Designed for outdoor use, ALC‑BEAM1 adds a clean, low‑false‑alarm layer for driveways, gates and building approaches.

Key Features & Benefits

Multi‑beam logic — Requires simultaneous beam breaks to reduce nuisance alarms.
Wireless integration — Pairs with Watchguard ALM‑series hubs for app alerts and event logs.
Outdoor‑ready — Weather‑resistant housing and hoods help shield the optics.
Anti‑tamper — Tamper switch and cover detection help protect against interference.
Alignment aids — Built‑in indicators simplify aiming and walk‑testing.
Battery powered — Long‑life cells support truly wire‑free installation.

Ideal Deployments

Driveways, gates and walkway approaches
Yard perimeters and garden paths
Warehouse service lanes and loading areas

Technical Details — At a Glance

Model: ALC‑BEAM1 • Type: Wireless active infrared multi‑beam barrier
Integration: Pairs with Watchguard ALM wireless alarm hubs
Detection: Multi‑beam break logic (TX/RX pair)
Indicators: Alignment/status LEDs • Protection: Tamper switch
Power: Battery powered (long‑life cells) • Wiring: Wire‑free to hub
Housing: Outdoor weather‑resistant enclosure with sun/rain shields
Mounting: Posts or walls • Adjustable alignment
Colour: Black

Design & Quote: Share your gate width, approach length and hub model. We’ll map beam positions and bundle posts, fixings and accessories around ALC‑BEAM1.

Dimensions: 42 x 47 x 612mm
Housing: Polycarbonate (anti UV) and ABS Plastic
Alarm Detection Range: Up to 6m
Alarm mode Power Consumption: 0.04mA
Beam Receiver Battery: 2 x CR123A batteries
Beam Transmitter Battery: 3 x CR123A batteries
Detector Infrared Beam: 4 beams
Radio frequency: 315MHz or 433MHz
Standby mode Power Consumption: Beam transmitter < 0.03mA, beam receiver
Standby time: 3 years
