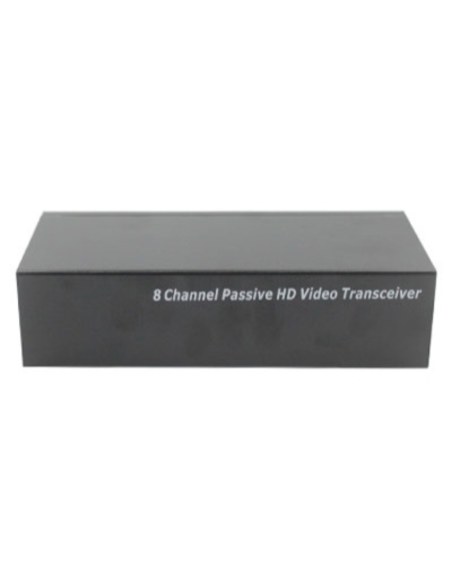

Securview 8 Channel Passive HDCVI / HDTVI / Analogue Balun - VSBALHDP8

VSBALHDP8
In Stock - Ready to Ship
$ 98.00
inc-GST
  • Compatible with up to 8 HDCVI, HDTVI and AHD signals
  • Transmit HD video up to 400m (passive to passive)
  • Transmit HD video up to 600m (passive to active)
  • Compatible with CAT5/CAT5e/CAT6 UTP cable

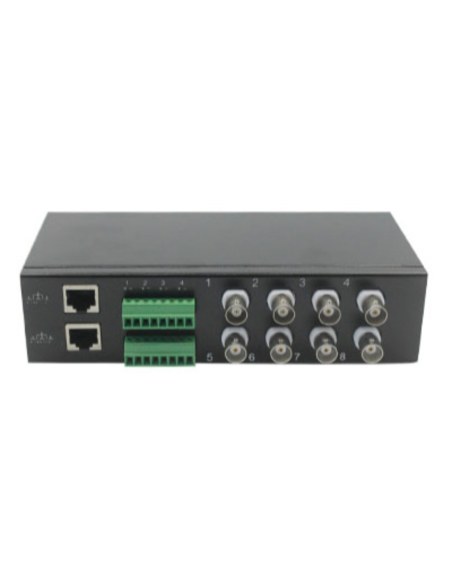

  • RJ45/green terminal block connects UTP cable
  • Compact design with surge protection
  • Passive - no power supply required



Securview 8 Channel Passive HDCVI / HDTVI / Analogue Balun



VSBALHDP8

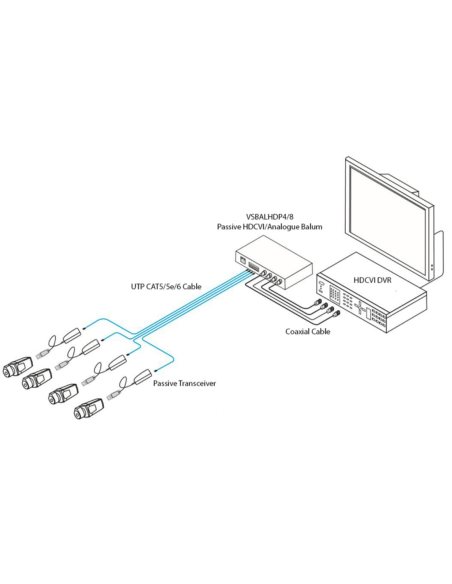

The VSBALHDP8 8 channel video balun minimises the cost of CCTV installations allowing network cabling (CAT5/5e/6) to be used instead of coax cable in HDCVI installations.



Product Features:



• Compatible with up to 8 HDCVI, HDTVI and AHD signals

• Transmit HD video up to 400m (passive to passive)

• Transmit HD video up to 600m (passive to active)

• Compatible with CAT5/CAT5e/CAT6 UTP cable

• RJ45/green terminal block connects UTP cable

• Compact design with surge protection

• Passive - no power supply required



What's Includes:



1 x 8 Channel Passive HDCVI/Analogue Balun

1 x Installation manual

2 x Rack-mount ears

8 x Rack-mount screws

4 x Rubber base pads



Securview VSBALHDP Series Datasheet (PDF).jpg

Dimensions
180 x 100 x 45mm
Weight
0.6kg
UTP Cable Connector
8 pin green terminal block / RJ-45
Channels
8
Interference Rejection
>60dB
Signal Compatibility
HDCVI / HDTVI / AHD
Signal Transmission Band
0-65MHz
Transmission Distance (AHD)
720p: 350m / 1080p: 200m
Transmission Distance (HDCVI)
720p: 400m / 1080p: 250m / 4.0MP: 200m
Transmission Distance (HDTVI)
720p/1080p: 250m
UTP Cable Connector Protection
2KV (different mode) / 4KV (common mode)
Video Connector
BNC-F
Video Connector Protection
2KV (common mode)

Experience your own moment of victory by upgrading your existing analogue surveillance system to high definition with the Securview Victory Series range of security cameras recorders and accessories.

The Victory Series consists of a wide range of professional HD video-over-coaxial cable surveillance solutions built for commercial and residential applications.

The Victory Series is purpose-built to deliver confidence and peace of mind in your surveillance system. The range features up to 1080p full HD recording, enabling you to capture large images with fine detail.

Don’t be left wondering when you need to rely on your CCTV, ensure you have usable video evidence when it matters most.
