Securview Ethernet over Coax Converter Pair - VSEOCPAIRV2
Securview Ethernet over Coax Converter Pair - VSEOCPAIRV2
Securview Ethernet over Coax Converter Pair - VSEOCPAIRV2
Securview Ethernet over Coax Converter Pair - VSEOCPAIRV2

Securview Ethernet over Coax Converter Pair - VSEOCPAIRV2

VSEOCPAIRV2
In Stock - Ready to Ship
$ 54.95
inc-GST
  • 1 X RJ45 10/100Mpbs port, 1x BNC port
  • Supports IEEE802.3 & IEEE802.3u standards
  • Supports RG59 coaxial cable: 400m/100Mbps, 1000/10mbps
  • Supports MDI/MDIX self-adaption
  • Supports Long range  power supply transmission via coaxial cable
  • Two inverters included

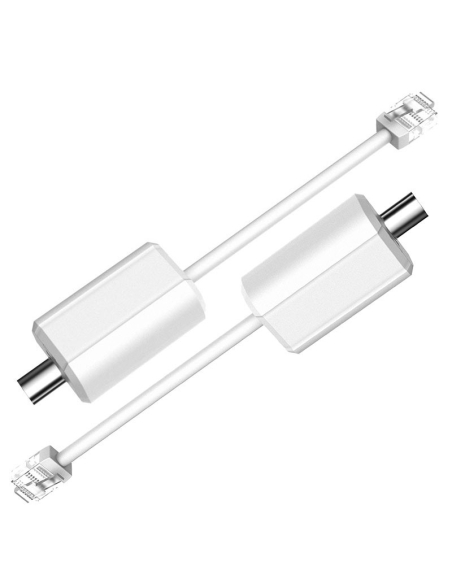

Securview Ethernet over Coax Converter Pair



4 Years Warranty



VSEOCPAIRV2

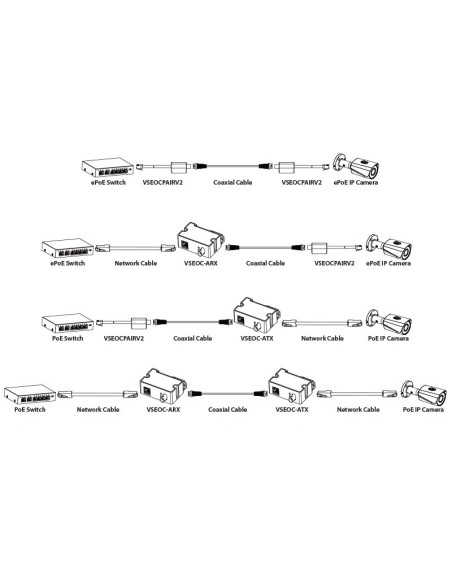

Convert RJ45 network connections to and from the coaxial cable with VSEOPAIRV2. With these converters, you can repurpose existing coaxial cabling to be used with IP Security systems, including PoE.



Product Features:



  • 1 X RJ45 10/100Mpbs port, 1x BNC port
  • Supports IEEE802.3 & IEEE802.3u standards
  • Supports RG59 coaxial cable: 400m/100Mbps, 1000/10mbps
  • Supports MDI/MDIX self-adaption
  • Supports Long range  power supply transmission via coaxial cable
  • Two inverters included



Dimensions
56mm x 27mm x 21mm
Operating Environment
-40°C-60°C /
Weight
28g
Power Consumption
Network Protocol
IEEE802.3, IEEE802.3u
Ports
1 x 10/100 Mbps Base-TX, 1 x BNC
Surge Protection
Common Mode: 6KV / Differential Mode: 2KV
PoE Protocol
Based on the power input from the ePoE switch
Transmission Bandwidth
RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
