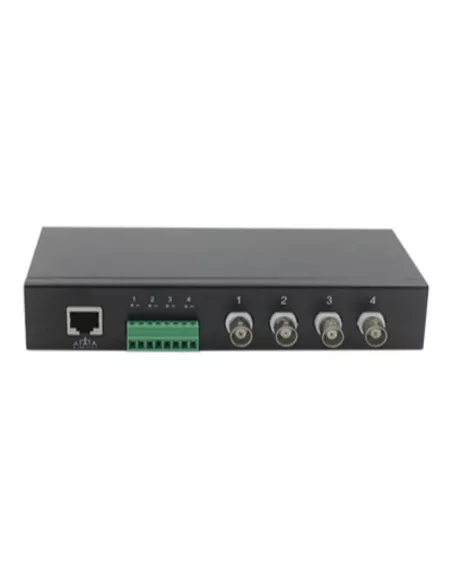

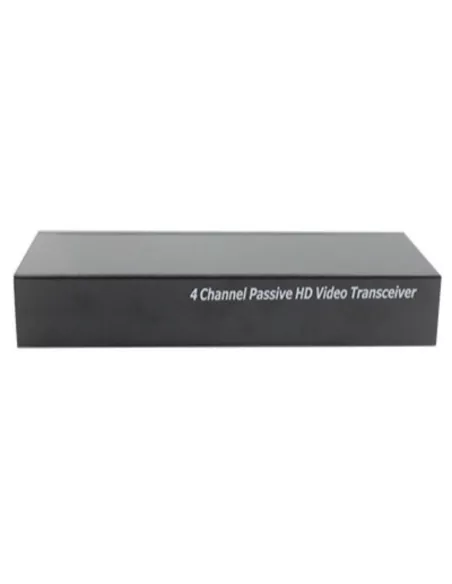

Securview 4 Channel Passive HDCVI / HDTVI / Analogue Balun - VSBALHDP4

VSBALHDP4
In Stock - Ready to Ship
$ 58.00
inc-GST
  • Compatible with up to 4 HDCVI, HDTVI and AHD signals
  • Transmit HD video up to 400m (passive to passive)
  • Transmit HD video up to 600m (passive to active)
  • Compatible with CAT5/CAT5e/CAT6 UTP cable
  • RJ45/green terminal block connects UTP cable
  • Compact design with surge protection
  • Passive - no power supply required



Securview 4 Channel Passive HDCVI / HDTVI / Analogue Balun



VSBALHDP4

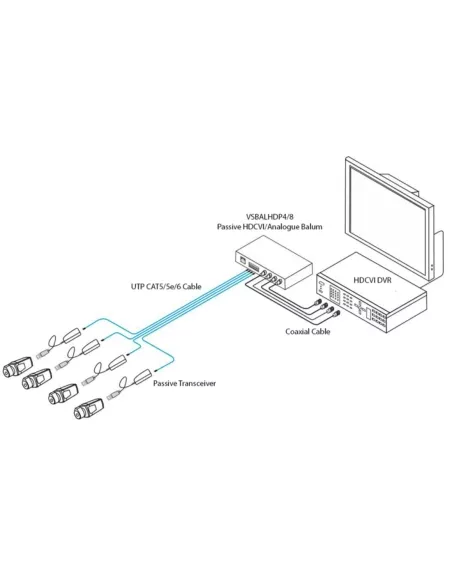

The VSBALHDP4 4 channel video balun minimises the cost of CCTV installations allowing network cabling (CAT5/5e/6) to be used instead of coax cable in HDCVI installations.



Product Features:



• Compatible with up to 4 HDCVI, HDTVI and AHD signals

• Transmit HD video up to 400m (passive to passive)

• Transmit HD video up to 600m (passive to active)

• Compatible with CAT5/CAT5e/CAT6 UTP cable

• RJ45/green terminal block connects UTP cable

• Compact design with surge protection

• Passive - no power supply required



What's Includes:



1 x 4 Channel Passive HDCVI/Analogue Balun

1 x Installation manual

2 x Rack-mount ears

8 x Rack-mount screws

4 x Rubber base pads



Dimensions
180 x 100 x 45mm
Weight
0.4kg
UTP Cable Connector
8 pin green terminal block / RJ-45
Channels
4
Interference Rejection
>60dB
Signal Compatibility
HDCVI / HDTVI / AHD
Signal Transmission Band
0-65MHz
Transmission Distance (AHD)
720p: 350m / 1080p: 200m
Transmission Distance (HDCVI)
720p: 400m / 1080p: 250m / 4.0MP: 200m
Transmission Distance (HDTVI)
720p/1080p: 250m
UTP Cable Connector Protection
2KV (different mode) / 4KV (common mode)
Video Connector
BNC-F
Video Connector Protection
2KV (common mode)
