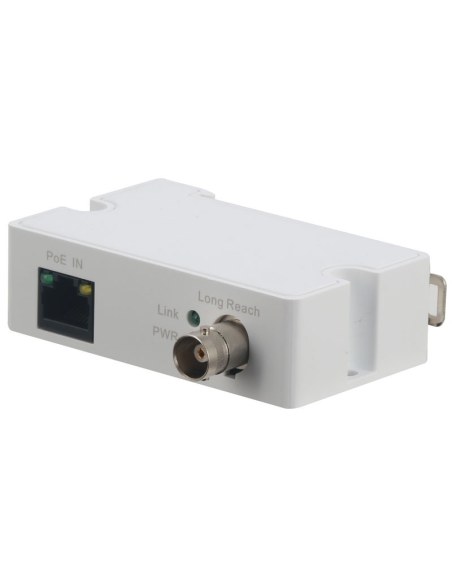

    Securview Ethernet over Coax Receiver - VSEOC-ARX

    VSEOC-ARX
    In Stock - Ready to Ship
    $ 59.10
    inc-GST
    • Convert RJ45 network connections to coaxial cable with the VSEOC-ATX. With these converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.
    • Receiver ONLY - Extend IP over Coax Cable
    • 1 X RJ45 10/100Mpbs port, 1x BNC port
    • Supports IEEE802.3 & IEEE802.3u standards
    • Supports RG59 coaxial cable: 400m/100Mbps, 1000/10mbps
    • Supports MDI/MDIX self-adaption
    • Supports Long range  power supply transmission via coaxial cable
    • Din Rail mountable
    • Supports PoE

    Various Payment Types at Checkout.

    All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



    Ethernet over Coax Receiver VSEOC-ARX, RJ45 Ethernet PoE - BNC coaxial cable



    4 Years Warranty



    VSEOC-ARX

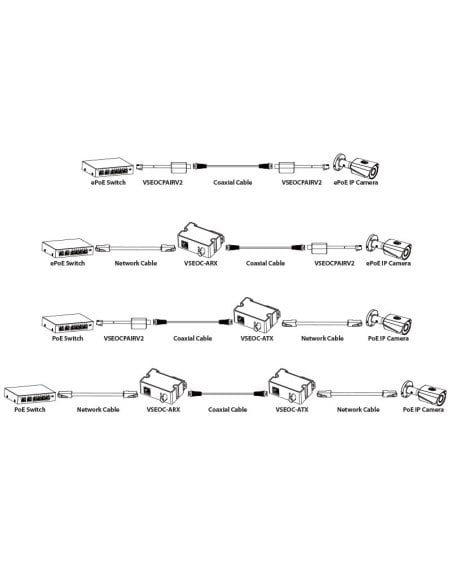

    Convert network connections running over coaxial back to RJ45 with the VSEOC-ARX. With these converters, you can repurpose existing coaxial cabling to be used with IP security systems, including PoE.



    Product Features



    • 1 X RJ45 10/100Mpbs port, 1x BNC port
    • Supports IEEE802.3 & IEEE802.3u standards
    • Supports RG59 coaxial cable: 400m/100Mbps, 1000/10mbps
    • Supports MDI/MDIX self-adaption
    • Supports Long range  power supply transmission via coaxial cable



    Securview HDCVI Accessories Brochure (PDF)-1.jpgSecurview HDCVI Accessories Brochure (PDF)-2.jpg

    Dimensions
    79mm x 52mm x 23mm
    Operating Environment
    -30°C-65°C /
    Weight
    61g
    Power Consumption
    Network Protocol
    IEEE802.3, IEEE802.3u, IEEE802.3x
    Installation
    DIN rail mountable
    Ports
    1 x 10/100 Mbps Base-TX, 1 x BNC
    Surge Protection
    Common Mode: 4KV / Differential Mode: 2KV
    PoE Protocol
    IEEE802.3af, IEEE802.3at
    Transmission Bandwidth
    RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
