Retrofit-friendly 2-wire architecture for apartment and entry modernisation

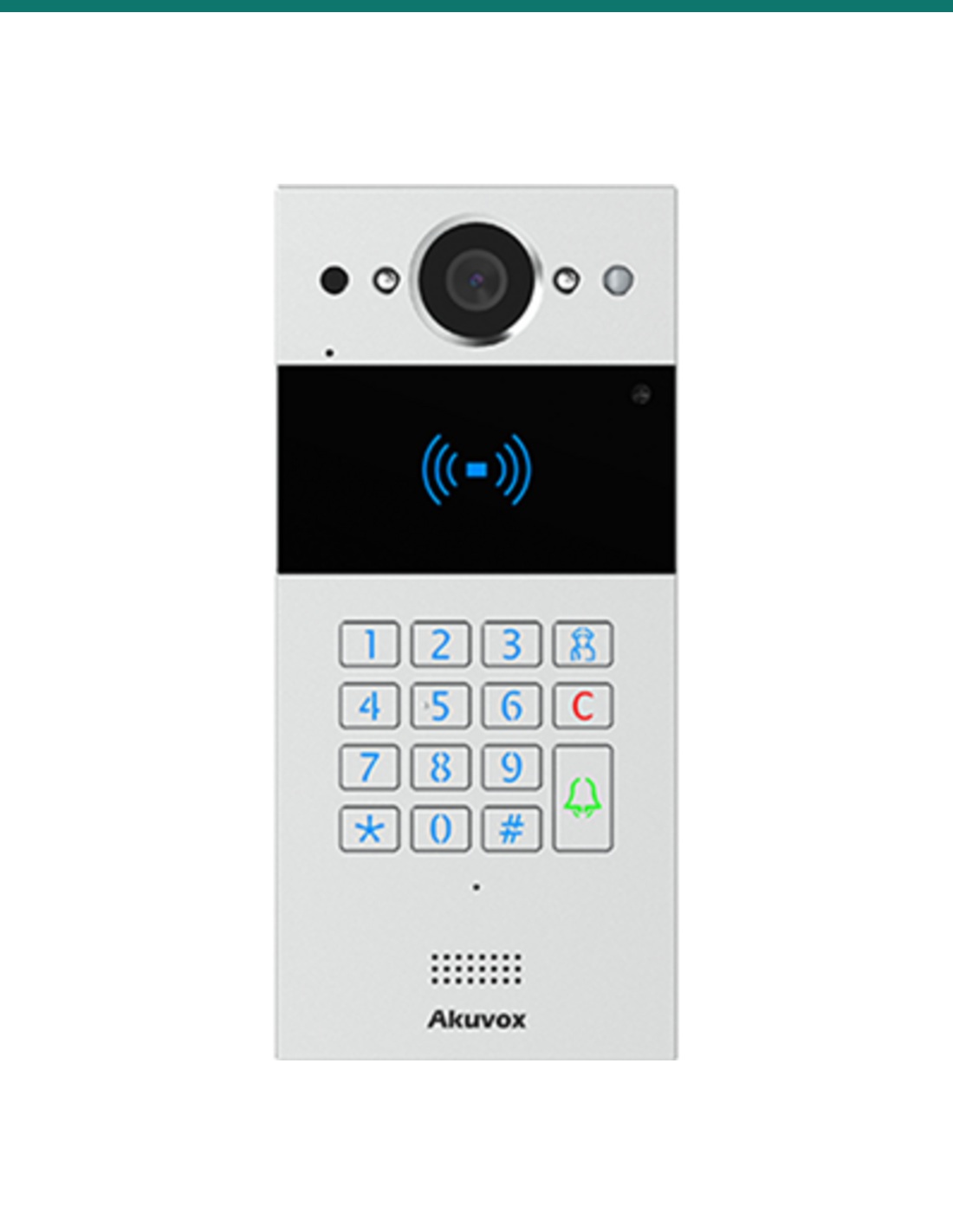

The defining point of the AK-R20K-2 is its 2-wire deployment model. In practical installation terms, that means the intercom is suited to older buildings and established entryways where a complete recable to new Ethernet runs may not be realistic. Existing low-voltage paths can often be re-used to bring SIP intercom capability to front doors, lobbies or gated pedestrian entries while limiting wall, conduit and riser disruption.

For Australian retrofit work, this matters in walk-up apartments, townhouse complexes and refurbishments where maintaining occupancy during the upgrade is essential. Instead of treating the door station as only a bell point, the AK-R20K-2 turns that position into a controlled access endpoint with credential options and remote answer capability through compatible SIP intercom infrastructure.

Three practical entry modes: call, PIN and RF card credential

This model combines a call interface with an integrated keypad and built-in RF card reader, giving installers and site managers multiple ways to handle day-to-day access. Residents can receive visitor calls through the SIP intercom path, authorised users can enter by keypad PIN where that fits the security policy, and routine entry can also be handled by RF cards for cleaner credential control at shared doors.

That mix is especially useful at apartment side gates, common foyers, service doors and retrofit office entries where different users require different permissions. Instead of adding separate code pads and readers around a basic intercom, the AK-R20K-2 keeps the access hardware consolidated at the door station, reducing device clutter and simplifying the visible entry point.

One front-end device for communication and controlled release workflows

In a complete installation, the door station sits at the point where identity and permission have to be resolved quickly. The AK-R20K-2 is designed for that role by combining visitor interaction with local access options in a single unit. The SIP intercom side supports call routing and door communication, while the keypad and RF reader provide direct credential handling at the edge.

For integrators, this architecture helps keep entry hardware neat and easier to service. It also supports common upgrade pathways: replacing a legacy audio panel, adding PIN access where mechanical key control is no longer suitable, or introducing RF credentials for residents, staff or contractors without separately mounting an additional reader beside the intercom.

How it works in a retrofit entry deployment

The AK-R20K-2 is typically used as the front-door intelligence point, linking a visitor call path with on-door authentication and a downstream lock release arrangement.

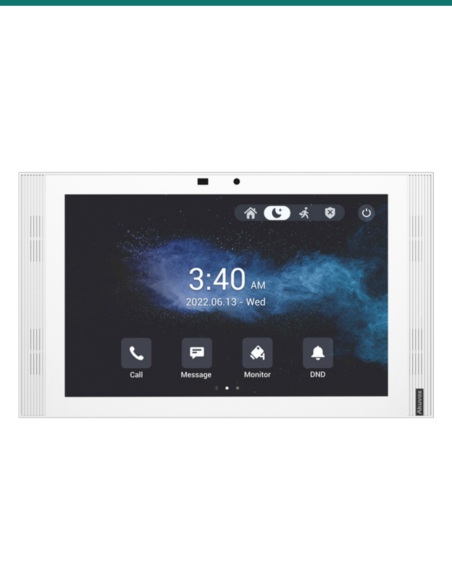

Indoor monitor

Pair with a compatible Akuvox indoor monitor so residents or staff can answer calls and trigger door release from inside the premises.

Electric strike or maglock interface

Match the door station with the appropriate lock hardware and release interface to suit fail-safe or fail-secure operation requirements.

2-wire system accessories

Use the required distribution, converter or bus-side accessories specified for the chosen Akuvox 2-wire intercom topology.

RF cards or tags

Add user credentials for residents, staff or contractors where card-based entry is preferred over or used alongside keypad access.

Is the AK-R20K-2 intended for retrofit projects?

Yes. The supplied product information specifically positions it as a 2-wire apartment or retrofit access-control intercom, making it suitable for upgrades where existing cabling pathways are important.

Does it support keypad entry?

Yes. This model includes an integrated keypad, allowing PIN-based access where enabled in the wider system design.

Can users enter with cards as well?

Yes. The unit has a built-in RF card reader, so authorised users can present compatible credentials at the door station for access.

Is this only an access keypad, or is it also an intercom?

It is both. The AK-R20K-2 is described as a SIP door intercom and an access-control device, so it combines visitor communication with local entry methods.

Where is this model commonly used?

Typical use cases include apartment entrances, shared lobbies, gates, villa entries and other retrofit door-control locations where a compact all-in-one intercom station is preferred.

Do I need to verify lock compatibility separately?

Absolutely. Final compatibility with electric strikes, magnetic locks, power supplies, exit devices and any required controllers should be checked against the complete intercom and door-hardware design before ordering for site.
